www.zyxel.com

PLA-402 v3

Powerline Ethernet Adapter

Version 3.3.4

Edition 1, 5/2009

2009 ZyXEL Communications Corporation

ENGLISH

Front and Rear Panels

POWER

COAX

RESET

SETUP

ETHERNET

Overview

The PLA-402 v3 allows you to set up a powerline

coaxial network using the coaxial outlets in your home.

The figure below shows your PLA-402 v3 (B)

connected to a DSL modem (A). You can plug a second

PLA-402 v3 (C) into another coaxial outlet in your home

and connect a computer for Internet access. Use the

push-button SETUP feature to set up a secure

HomePlug AV compatible powerline coaxial network.

Note: You can connect to the Internet through a router,

switch or modem. The DSL modem is just an example.

PLA 1 PLA 2

Powerline

PLA-402 v3 Home Setup

Coaxial Network

DSL Modem

ENGLISH

This Quick Start Guide shows you how to do the

following:

1. Connect the PLA-402 v3 to a Cable/DSL Modem or

Router (6)

2. Connect the PLA-402 v3 to a Computer (5)

3. Set Up a HomePlug AV Powerline Coaxial Network (8)

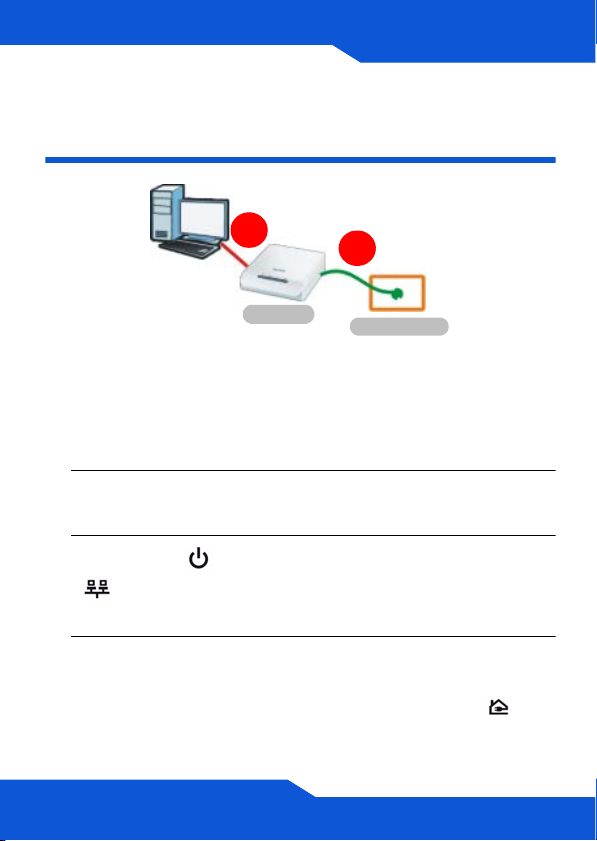

Connect the PLA-402 v3 to a

Computer

1. Use an Ethernet cable to connect the ETHERNET

port on the PLA-402 v3 (PLA 1) to the Ethernet port

on your computer.

2. Plug the PLA-402 v3 into a coaxial outlet.

3. The power ( ) LED should be on and the Ethernet

() LED should be on or blinking.

4. When the PLA-402 v3 detects a connection to

another PLA-402 v3 (or another HomePlug AV

compatible coaxial adapter), the HomePlug ( )

LEDs turn on.

PLA 1

Coaxial outlet 1

ENGLISH

Connect the PLA-402 v3 to a DSL

Modem or Router

1. Use an Ethernet cable to connect the ETHERNET

port on the PLA-402 v3 (PLA 2) to an available

Ethernet port of your modem, router or switch.

2. Plug the PLA-402 v3 into a coaxial outlet.

3. The power ( ) LED should

be on and the Ethernet ( )

LED should be on or blinking.

 If none of the LEDs are on, unplug your device

and recheck your hardware connections.

PLA 2

Coaxial outlet 2

DSL Modem

If you are having trouble setting up your connections,

make sure:

• Your outlets are working properly. Unplug the PLA-402

v3 and plug in another electrical appliance that you

know works.

• The Ethernet cables you are using are Category 5 or

higher. Most cables are labeled with their

specifications.

• All Ethernet cables are securely connected.

ENGLISH

Set Up a HomePlug AV Powerline

Coaxial Network

There are two ways to secure your powerline coaxial

network.

• If your other coaxial devices have SETUP buttons, go

to Set Up a Powerline Coaxial Network with SETUP

section.

• If your other coaxial devices do not have SETUP

buttons, see the User’s Guide for instructions on using

the PLA-4xx Configuration Utility to set up your secure

powerline coaxial network.

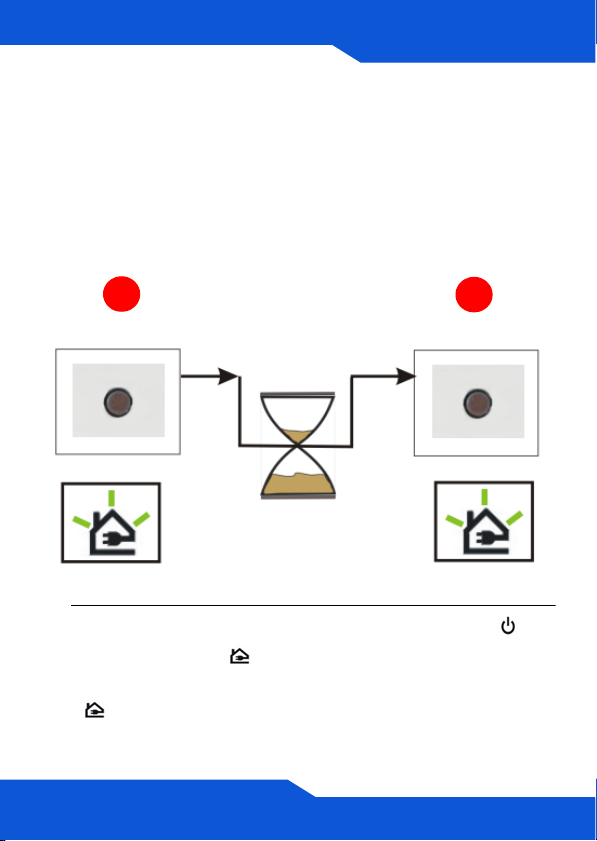

Set Up a Powerline Coaxial Network

with SETUP

Use the SETUP button to set up a secure connection

between two PLA-402 v3s or with another SETUP-

enabled device.

Use the SETUP feature on two devices at a time.

1. Place the coaxial devices close to each other, as

you only have two minutes to press the SETUP

buttons on both devices. You can disconnect the

devices from your computer or modem (or other

networking equipment) if you need to, but the

coaxial devices need to be plugged into coaxial

outlets. Press the SETUP buttons at the rear of your

coaxial devices for 1~2 seconds.

2. While the devices are connecting, the power ( )

and HomePlug ( ) lights blink. Also several times

all lights blink at the same time and the HomePlug

( ) light shows red.

Within 120

seconds

Press for 2 seconds Press for 2 seconds

ENGLISH

3. Wait for about one minute while your coaxial devices

connect. The power ( ) light is steady when the

SETUP process times out, the HomePlug ( ) light

is steady if you have a successful connection.

 If the power ( ) light does not blink, you have

probably pressed the SETUP button for too long.

Try again, pressing the SETUP button for 1~2

seconds.

 If the HomePlug ( ) lights on both coaxial

devices do not light up, the coaxial devices are

not connected. Repeat step 1in this section. If

that doesn’t work, see the User’s Guide for more

suggestions.
