Zte MF60 Manuel utilisateur

ZTE MF60-62

Quick Guide

ZTE CORPORATION

NO. 55, Hi-tech Road South, ShenZhen, P.R.China

Postcode: 518057

Tel: +86-755-26779999

URL: http://www.zte.com.cn

E-mail: mobile@zte.com.cn

LEGAL INFORMATION

No part of this publication may be excerpted, reproduced, translated or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without the prior

written permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications on print

errors or update specifications without prior notice.

Version No. : R1.0

Quick Guide

Introduction

ZTE MF60 is a 3G/2G mobile hotspot device, working in GSM/GPRS/EDGE/WCDMA/HSPA/HSPA+

network. The client devices could connect to it via USB or Wi-Fi interface. The device supports data and

SMS services, enabling you to communicate anytime and anywhere.

This quick guide provides instructions on how to install and get started with the product. For information

about connection of services, please consult your service provider.

Specification

HSPA+: DL 21.6Mbps, UL 5.76MbpsData Service

WCDMA CS: 64kbps UL/DL

WCDMA PS: 384kbps UL/DL

Interface USB and Wi-Fi

Wi-Fi Standard 802.11b/g

Wi-Fi Security WEP/WPA/WPA2/WAPI

USB Version USB 2.0 HIGH SPEED

USB Interface Type Micro USB

Weight 77g

Dimensions (W×H×D): 99.7mm*53.7mm*13.9mm

microSD card Support up to 32GB microSD card

Power Adapter 5V/700mA

Battery 1500mAh

*Standby time 100hours

*Working time 4hours

Operate system Windows 7, Windows Vista(32bit or 64bit), Windows XP (SP2 or later), MAC (10.4 or

later)

Web Browser IE (6.0 or later), Firefox (2.0 or later), Opera (10.0 or later), Safari (4.0 or later), Chrome

(5.0 or later)

Operating temperature 0℃~ +35℃

Storage temperature -20℃~ +50℃

Charging temperature 0℃~ +45℃

Humidity 5%~ 95%

Confidential and Proprietary Information of ZTE CORPORATION 1

ZTE MF60 Quick Guide

Notes:

microSD is a trademark of SD Card Association.

The device’s standby and working time are only for your reference, and based on ideal working

environment.

Getting to Know Your Device

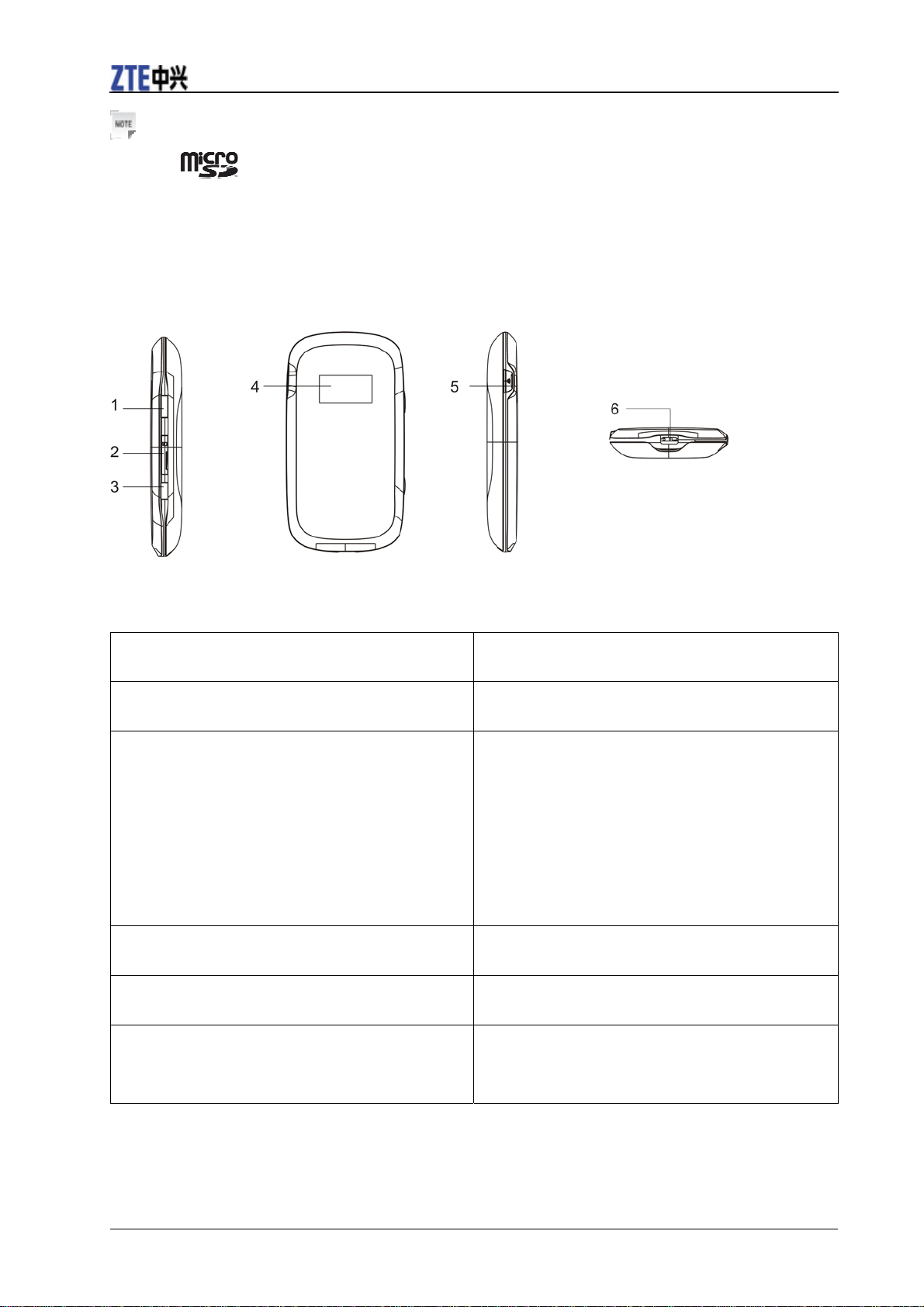

The following figure shows the appearance of the device, it is only for your reference. The actual device

may be different.

RightSide Front LeftSide Bottom

Interface and Buttons

1.Power Hold the Power button to switch on/off the

device.

2.Memory card slot (microSD card) It is where you insert the memory card (microSD

card).

3.WPS This button is used to start/end Wi-Fi Protected

Setup authentication process and enable/disable

the Wi-Fi function.

Hold it for 3 seconds to activate the WPS

function.

When the WPS function is available, press it to

deactivate the WPS function.

Press it to enable/disable Wi-Fi function.

4. LED Screen It indicates the signal type, signal strength,

battery, Wi-Fi, etc.

5. External Antenna Connector It is used to connect an external antenna to

enhance the signal strength.

6.Charger/USB port Charge your device.

Connect the client to your device via USB

cable.

2 Confidential and Proprietary Information of ZTE CORPORATION

ZTE MF60 Quick Guide

Notes:

Hold the WPS and Power buttons simultaneously until the LED screen turns off, and then release the

buttons. The device will restart automatically and restore to the factory default settings.

LED Indicator

When the device is powered on, the following icons will appear on the LED screen, with the

corresponding indicates listed in the table below:

Icon Indication

Network signal strength.

Network type. 2G or 3G icon will appear on the LED screen according to the network

being connected.

Connect to the Internet automatically.

Connect to the Internet manually.

Roaming network indication.

New message received.

Wi-Fi Status and number of the connecting users.

Battery power indication.

Hardware Installation

Inserting SIM Card and Battery

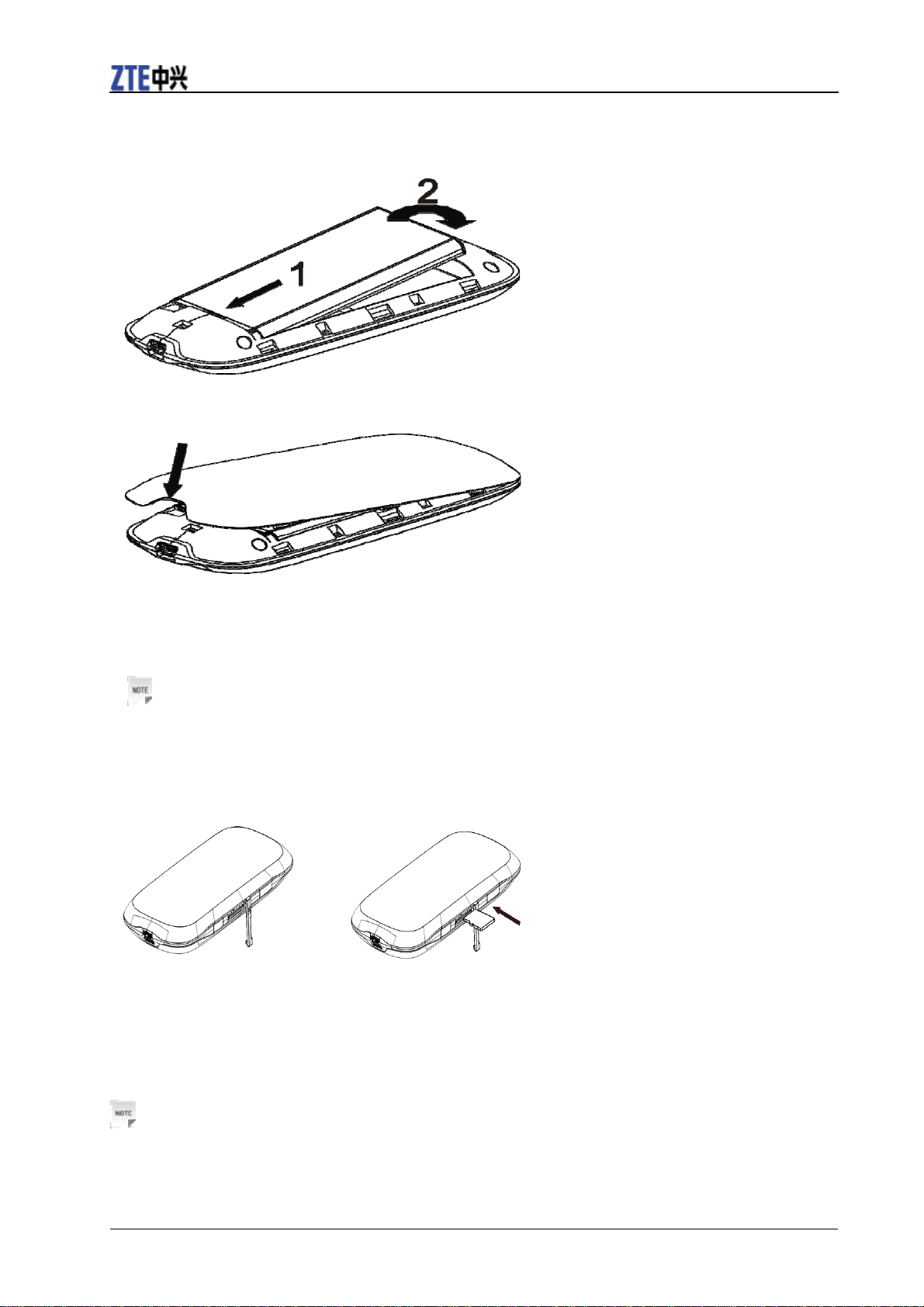

1. Use the thumb catch at the bottom of the device to open the battery cover.

2. Insert the SIM card into the SIM card holder.

Confidential and Proprietary Information of ZTE CORPORATION 3

ZTE MF60 Quick Guide

3. Insert the battery as shown with the contacts located against the metal springs, and press the battery

down into the case.

4. Line the battery cover up correctly and press gently to close the case.

Inserting microSD Card

1. Pull the microSD cover out of the card slot.

Notes:

Do not pull the cover rudely, as it is connected with the device.

2. Insert the microSD card into the microSD slot. The following picture shows the correct inserting

direction. You will hear a click when the microSD card locks in place.

3. Close the microSD cover.

Switching On/Off Your Device

Hold the Power button to switch on/off the device.

Notes:

The device is powered on when the LED screen lights up.

4 Confidential and Proprietary Information of ZTE CORPORATION

ZTE MF60 Quick Guide

Charging Your Device

You can charge your device by using USB cable or adapter.

1. Insert the charger lead carefully with the plug arrow facing the bottom of the device.

2. The plug only fits one way. Do not use excessive force to insert the plug.

3. Make sure the plug is the right way round and lined up correctly and insert it gently.

Working Mode

Your device supports three working modes. For the client, we only use PC or laptop as the example in this

document.

USB Mode: Connect to the device with the USB cable.

Wi-Fi Mode: Connect to the device via Wi-Fi.

Mixed Mode: Connect to the device with the above two connection methods.

Confidential and Proprietary Information of ZTE CORPORATION 5

ZTE MF60 Quick Guide

Notes:

If you want to connect to the Internet by using Wi-Fi mode, make sure that the client supports the Wi-Fi

function.

The following picture is the application example. All of the client devices can surf on the Internet at the

same time.

Establish a connection between your device and the client

Via USB Cable

Connect your device and the client with the USB cable.

Power on your device.

Follow the system prompts to complete the software installation.

Notes:

•If the system does not launch installation automatically, you can run the installation program in path of

My Computer > Portable Hotspot.

•The driver of your device will be installed at the same time.

After the installation, the system will create a shortcut icon on your desktop and a ZTE USB Drivers

for MF60 program group in the Start→Programs menu. The connection between your device

and the client will be established successfully a moment later.

Via Wi-Fi

1. Power on your device directly. It will take 1~2 minutes to initialize.

2. Use your normal Wi-Fi application on the client to search the available wireless network.

Notes: You need to check your Wireless Network Connection. Set the client to obtain an IP

address automatically in the Internet protocol (TCP/IP) properties, and the client will get an IP

address like “192.168.0.100”.

3. Select the SSID of your device, and then click Connect.

6 Confidential and Proprietary Information of ZTE CORPORATION

ZTE MF60 Quick Guide

Notes:

There will be a pop-up window to require the password. Check the label on your device to gain the

SSID and preset password information. Please do remember the new password when you change the

password by selecting Settings > Wi-Fi Settings > Security after logging in the WebGUI Configuration

Page. You can restore the device to the factory default settings in case you forget it.

4. Wait a moment, the connection between your device and the client will be established successfully.

Access the Internet

1. Switch on the device.

2. Establish a connection between your device and the client.

3. After successfully establishing the connection, access the Internet in the Always On and

Manual mode. The default mode is Always On.

Notes:

You can browse the WebGUI Configuration page and click WAN Connection to set the WAN

connection mode.

Access the WebGUI Configuration Page

1. Make sure the connection between your device and the client is correct.

2. Launch the internet browser and enter http://192.168.0.1 or http://ufi.home in the address bar.

Notes:

It is recommended that you use IE (6.0 or later), Firefox (2.0 or later), Opera (10.0 or later), Safari (4.0 or

later), Chrome (5.0 or later).

3.The login page appears as follows.

Confidential and Proprietary Information of ZTE CORPORATION 7

ZTE MF60 Quick Guide

View the information of WAN, WLAN and Device. Input the case-sensitive default password “admin”,

and then click Login to access the WebGUI Configuration page.

Notes:

•Do not put anything on the top of your device. Do not lay devices to overlap each other when using.

•The device takes 1~2 minutes to initialize, and attach to the network.

PIN Code Verification

If the PIN code of your SIM card is enabled, you will need to input the PIN code when you login at the

first time.

Notes:

The SIM card will be locked if you enter wrong PIN code consecutively for three times.

If you want to modify the PIN Status, please select Settings > Advanced > PIN Manage to do the

actions.

8 Confidential and Proprietary Information of ZTE CORPORATION
