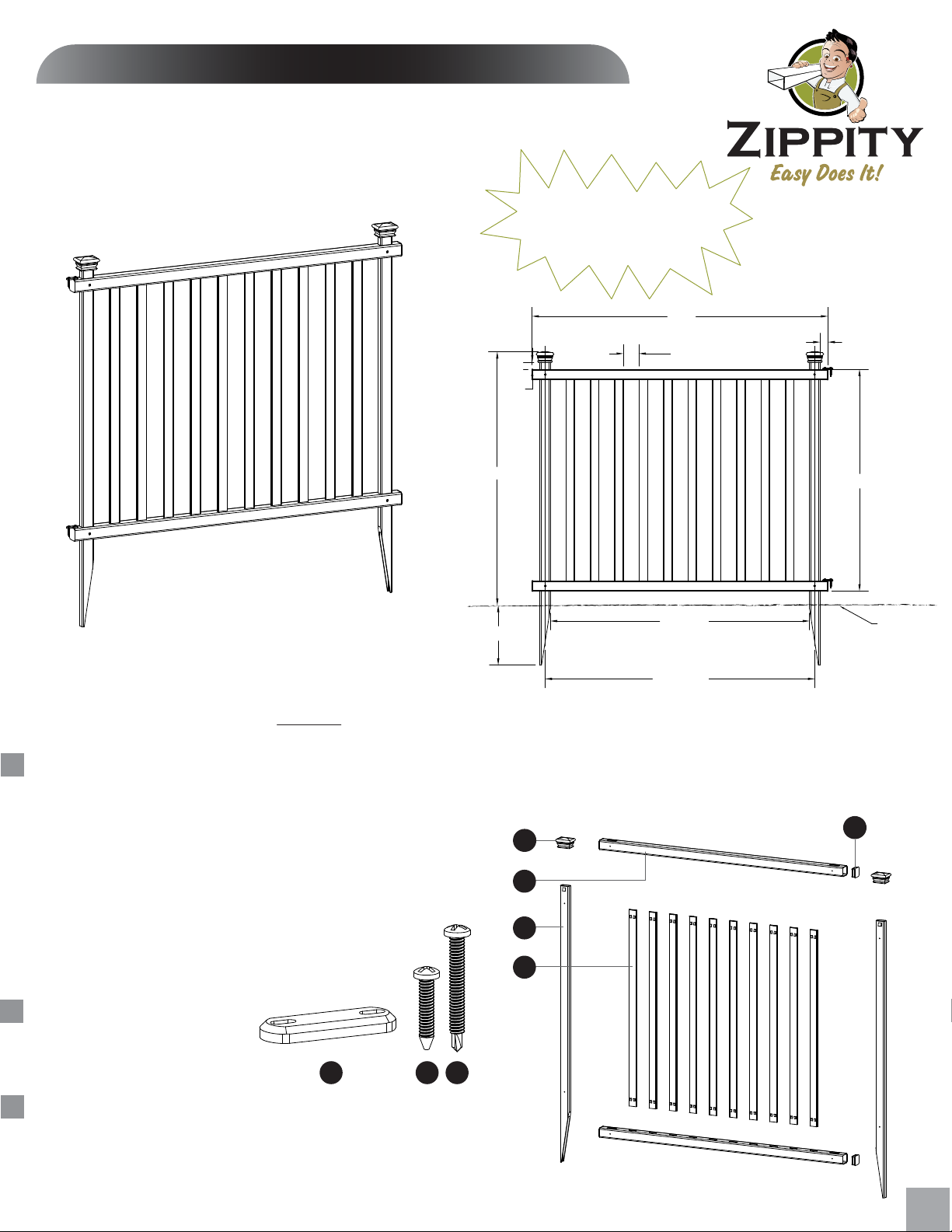

Zippity Baskenridge Guide de démarrage rapide

Check Box for These Contents

In the event of missing or defective parts please call our customer service department at

1 877 234 6196

(Mon. to Fri. 8:00 AM to 4:00 PM EST).

Post Caps

(4)

2. Top & Bottom Rails

(

4) - 1½” x 1½“ x 41 7/8”

Posts

(4) - 7/8“ x 1½” x 44”

4. Spindles (20) ¼” x 1½” x 31 ¼“

Joiner Clips

(4)

3/4”Self-Auguring Stainless Steel Screw

(16) (Bag A)

1”Self-Tapping Stainless Steel Screw

(8) (Bag B)

End Caps

(8) (4 are installed,4 are loose)

Tools You Will Need

• Cordless Drill

• Level

• Hammer

General Information

• Read Instructions through carefully before beginning assembly.

• When assembling components, place on a non-abrasive surface

(i.e.shipping box) to avoid scratching.

• We recommend an area approx 5’x 8’ for unobstructed assembling.

• You should not need to use excessive force when assembling components.

Baskenridge Vinyl Fence Kit

(42”W x 36”H)

Please read through before starting assembly.

ASSEMBLY INSTRUCTIONS

IMPORTANT: CHECK THE INSIDE OF THE LARGER PIECES IN YOUR BOX FOR OTHER MATERIALS

PACKED INSIDE.

Ver 1.0/122718

Ground

Not to Scale

THIS FENCE IS DESIGNED

FOR SEMI-PERMANENT

APPLICATIONS

8 1/2 in

42 in

36 in

1 1/8 in

1 in

36 3/4 in

38 1/4 in

31 1/2 in

2 1/4 in

Pressure fit an end cap to the end of the horizontal rails.

There will be a total of four end caps and four rails.

Slide the top rail up from the bottom of a post until the

pre-drilled hole on the rail aligns with the pre-drilled hole

at the top of the post.

Tip!

Shine an LED light from a smart phone or flashlight down

the end of the posts to help identify alignment of

pre-drilled holes if necessary.

Do the same with the other post.

Secure the rail to both sides of the posts using 3/4” screws

as illustrated.

STEP ONE

Baskenridge Vinyl Fence Instructions

Note: Align Holes

Note: Orientate the bottom of Posts as Illustrated

2 & 3

Note: Spindle holes facing down

STEP TWO

Insert the spindles into the routed holes as illustrated.

Note: the tabs on the end of the spindles are intended to go

into the rail to lock spindles into place.

Push the posts and spindles down into the bottom rail as

illustrated.

Baskenridge Vinyl Fence Instructions

Note: Once inserted, the

spindles will lock into place.

To remove the spindle(s),

gently insert a butter knife

along the picket direction

as shown and slowly pull up

the spindle(s).

4Baskenridge Vinyl Fence Instructions

STEP TWO

Secure the rail to the posts with 3/4” screws on both sides of the

rail as illustrated.

STEP THREE

Install fence into Ground

Block of Wood

Baskenridge Vinyl Fence Instructions

Move the fence to its final location and identify the location

of posts.

Loosen the top 8” to 10” of the ground using a claw hammer

and screw driver (or something equivalent) as illustrated.

Add water to loosen soil.

Use a block of wood to the protect the top of the posts and

gently hammer each post into the ground equally.

6Baskenridge Vinyl Fence Instructions

If your ground is too hard, or you have more than three or four

panels to install, please consider:

Purchase a 1 3/4” diameter auger bit (commonly used for

planting tulips) as illustrated ($15-$20 on Amazon.com)

Drill a hole in the ground at the desired location only about

8” to 10” deep.

Fill the holes with water as illustrated.

Push fence posts into the holes as illustrated.

STEP THREE

OPTIONS IN HARD GROUND

Top Rail

Bottom

Rail

Top Rail

Bottom

Rail

STEP THREE

Install fence into Ground - Continued

Level the assembled unit and backfill and compact dirt around

the base of each post to strengthen the unit.

Baskenridge Vinyl Fence Instructions

Level

STEP FOUR

Fasten Joiner Clips

Fasten joiner clips by screwing into place on the top of the top

rail and top of the bottom rail as illustrated.

Use the 1” self-tapping screws.

Fasten the opposite end of the joiner clip as illustrated.

6935 Reames Rd. Ste. K. Charlotte, NC 28216

Toll Free Phone: 1 877 234 6196 Fax: 704 631 4685

www.zippity-outdoor.com

STEP FIVE

Post Caps Installation

Finish the assembly by pushing the post caps down over the

top of posts as illustrated. The post caps will lock into place.

OPTIONAL

Angled Installation

The fence panels can also be installed on an angle as shown.

90° Application

45° Application
