Zippity Birkdale Manuel utilisateur

Check Box for These Contents

In the event of missing or defective parts please call our customer service department at

1 877 234 6196

(Mon. to Fri. 8:00 AM to 4:00 PM EST).

Post Caps

(2)

2. Top & Bottom Rails

(

2) - 1½” x 1½“ x 92”

Posts

(2) - 7/8“ x 1½” x 71”

4. Spindles (15) ¼” x 1½” x 46 ¼“

Joiner Clips

(2)

3/4”Self-Auguring Stainless Steel Screw

(12)

Tools You Will Need

• Cordless Drill

• Level

• Hammer

General Information

• Read Instructions through carefully before beginning assembly.

• When assembling components, place on a non-abrasive surface

(i.e.shipping box) to avoid scratching.

• We recommend an area approx 5’x 8’ for unobstructed assembling.

• You should not need to use excessive force when assembling components.

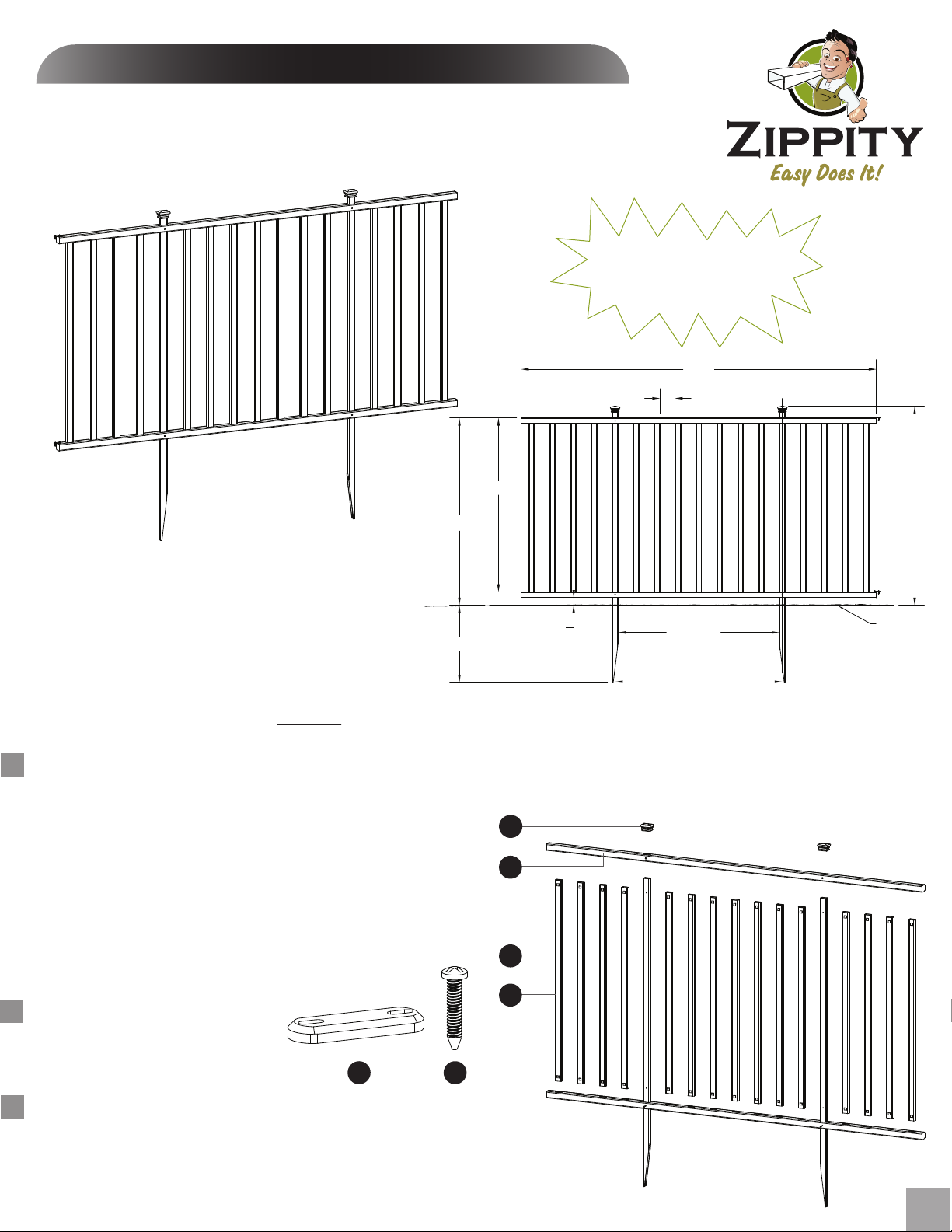

Birkdale Vinyl Fence Kit

(48 1/2”H x 92”W)

Please read through before starting assembly.

ASSEMBLY INSTRUCTIONS

IMPORTANT: CHECK THE INSIDE OF THE LARGER PIECES IN YOUR BOX FOR OTHER MATERIALS

PACKED INSIDE.

Ver 1.1/060317

Ground

Not to Scale

3 7/8 in

20 in

43 9/32 in

41 3/4 in

2 in

48 1/2 in

45 in 51 1/2 in

92 in

THIS FENCE IS DESIGNED

FOR SEMI-PERMANENT

APPLICATIONS

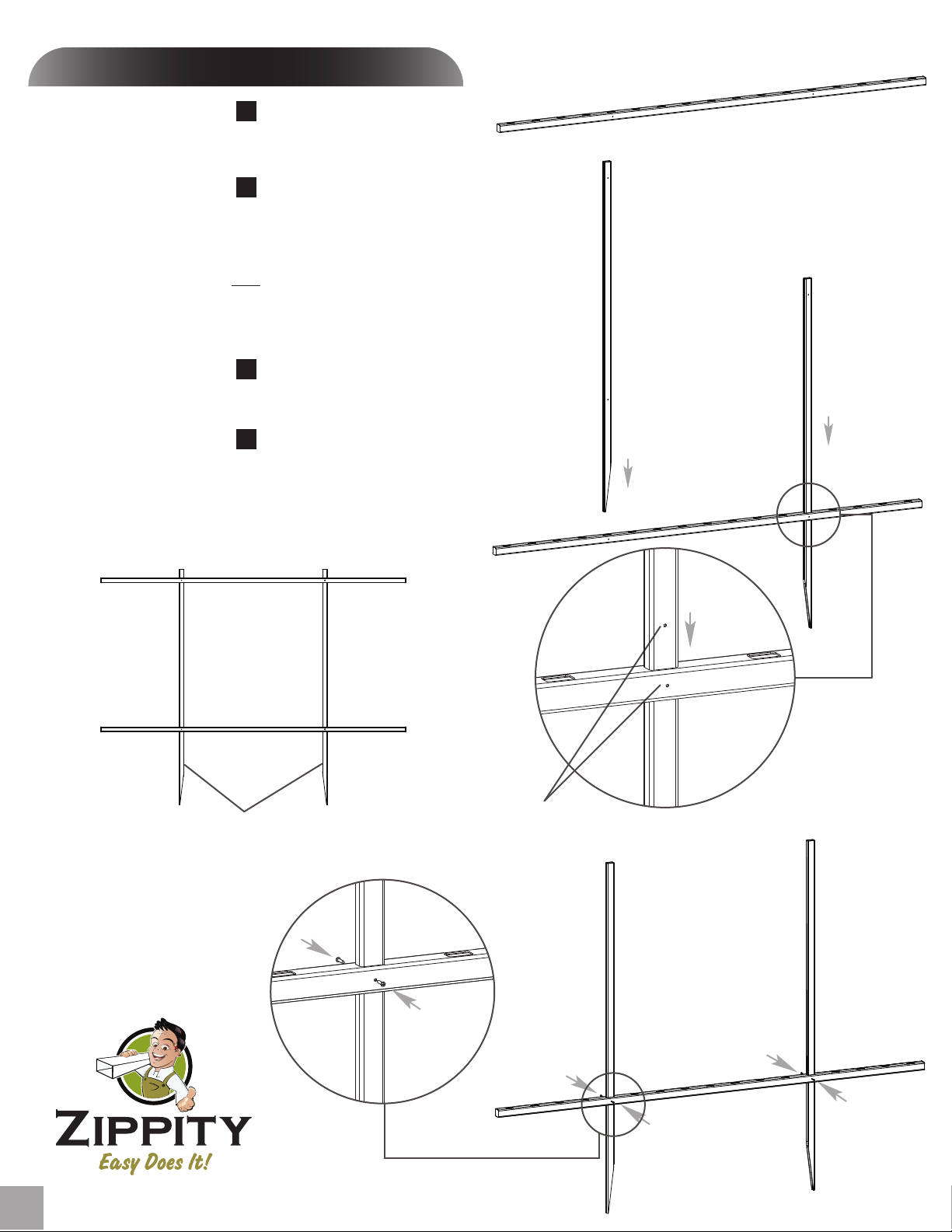

Position the bottom rail with routed holes for spindles facing

upwards.

Slide one post down thru the routed hole in the bottom rail

(that has the pre-drilled hole) until the pre-drilled hole in post

and rail align.

Tip!

Shine an LED light from smart phone or flashlight down the

end of the posts to help identify alignment of pre-drilled

holes if necessary.

Do the same with the other post.

Secure the bottom rail to both sides of the posts as illustrated.

STEP ONE

Birkdale Vinyl Fence Instructions

Note: Align Holes

Note: Orientate the bottom of Posts as Illustrated

2 & 3

STEP TWO

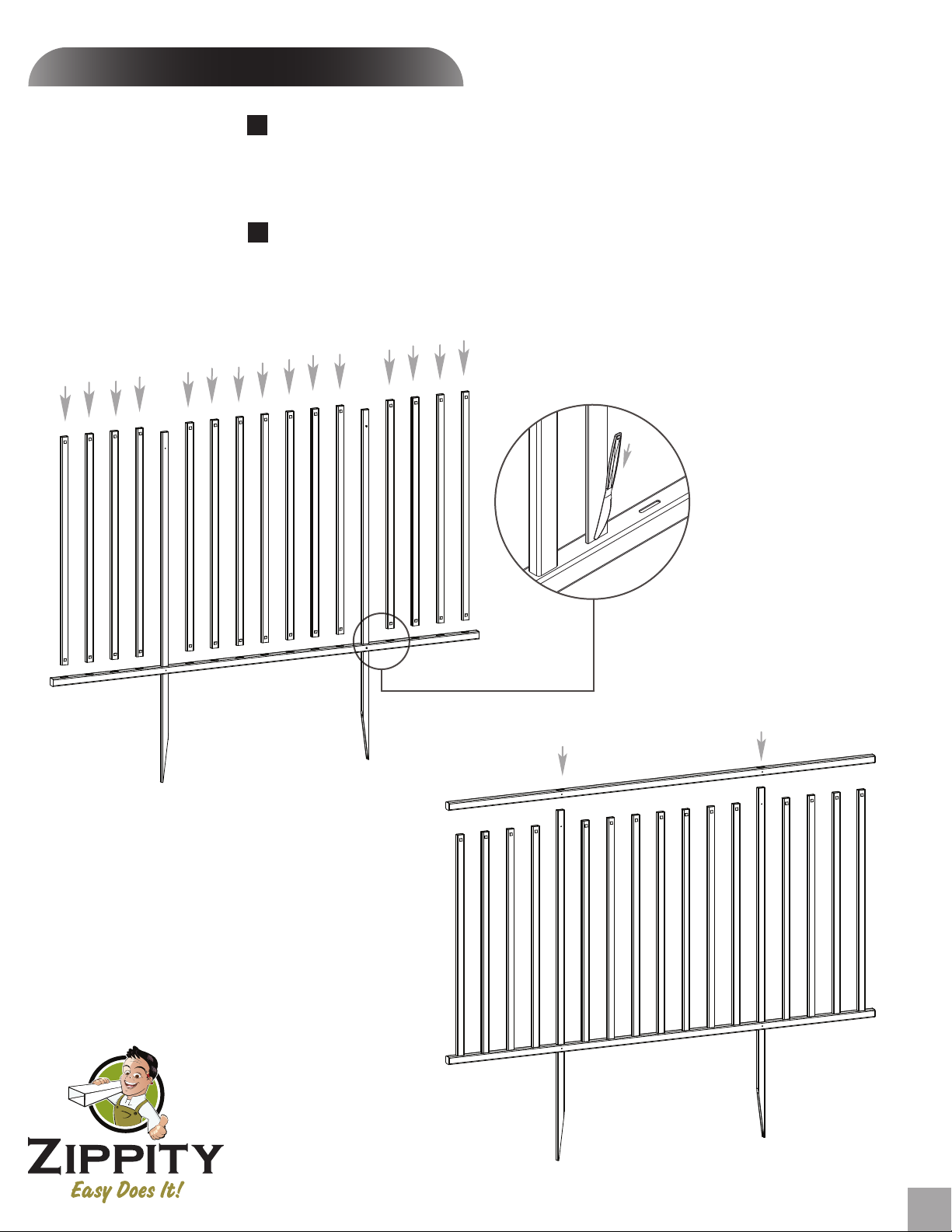

Insert the spindles into the routed holes as illustrated.

Note: the tabs on the bottom of the spindles are intended to go

into the bottom rail to lock spindles into place.

Push the top rail down over the posts and spindles as illustrated.

Birkdale Vinyl Fence Instructions

Note: Once inserted, the

spindles will lock into place.

To remove the picket(s),

gently insert a butter knife

along the picket direction

as shown and slowly pull up

the picket(s).

4Birkdale Vinyl Fence Instructions

STEP TWO

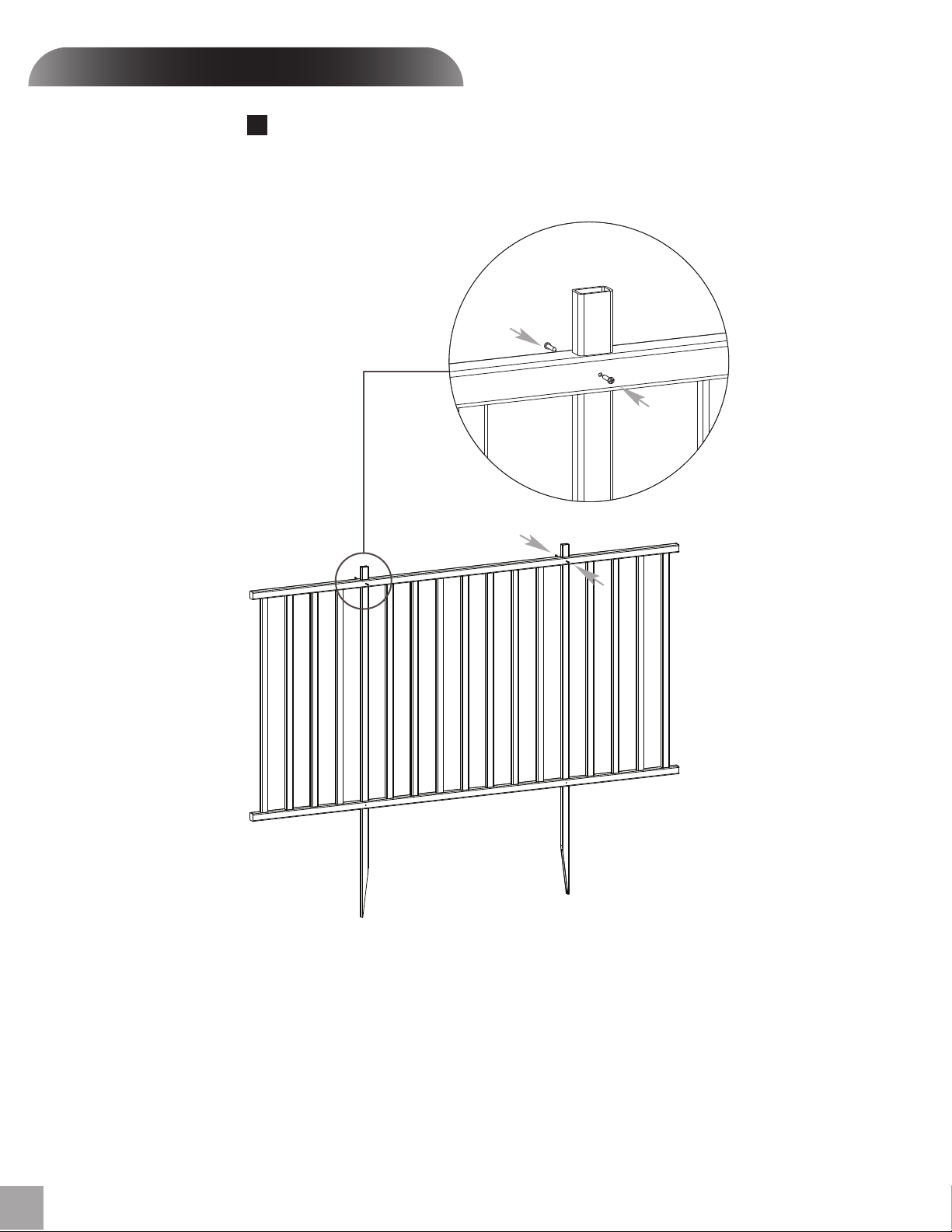

Secure the rails to the post with screws on both sides of the

top rail as illustrated.

STEP THREE

Install fence into Ground

Block of Wood

Birkdale Vinyl Fence Instructions

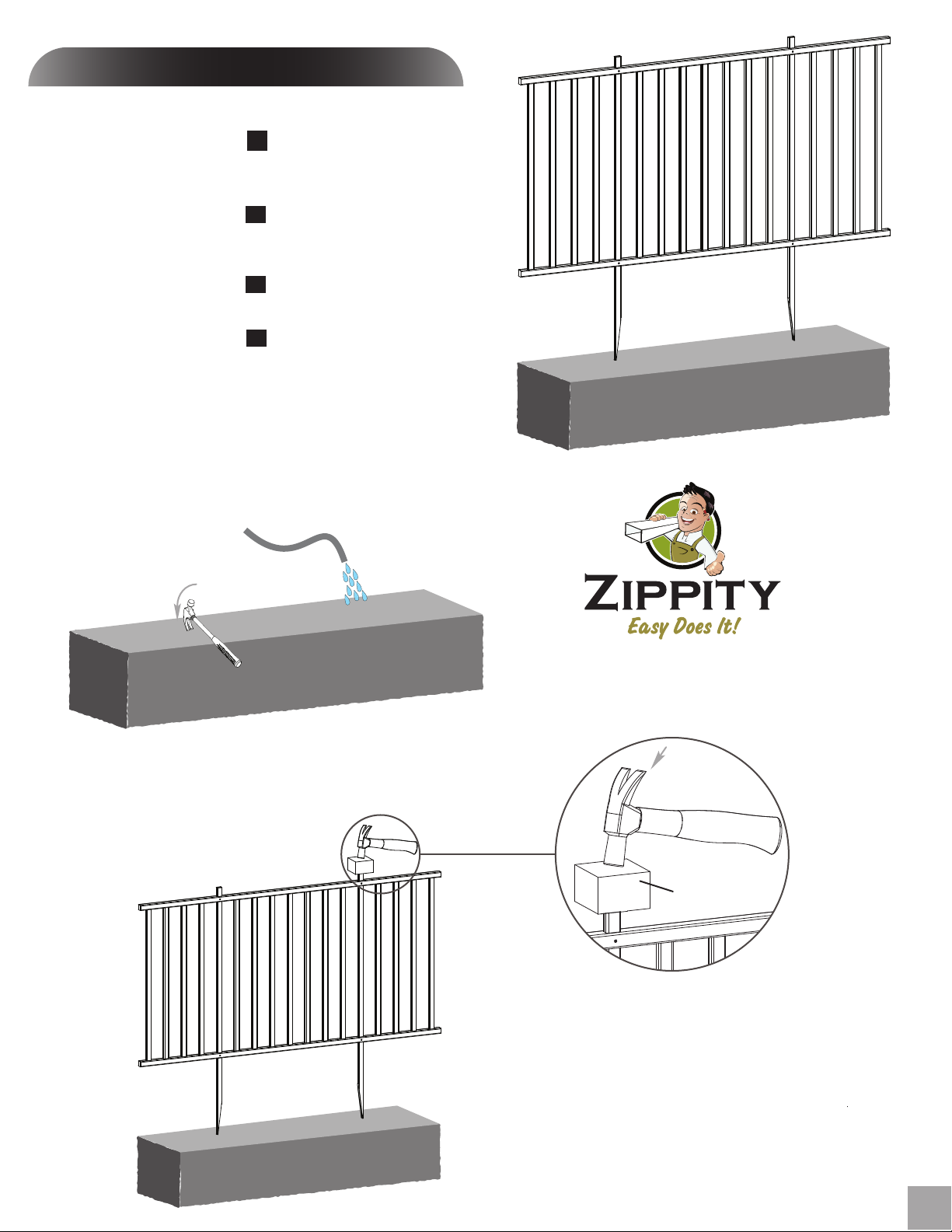

Move the fence to its final location and identify the location

of posts.

Loosen the top 10” to 12” of the ground using a claw hammer

and screw driver (or something equivalent) as illustrated.

Add water to loosen soil.

Use a block of wood to the protect the top of post and

gently hammer each post into the ground equally.

6Birkdale Vinyl Fence Instructions

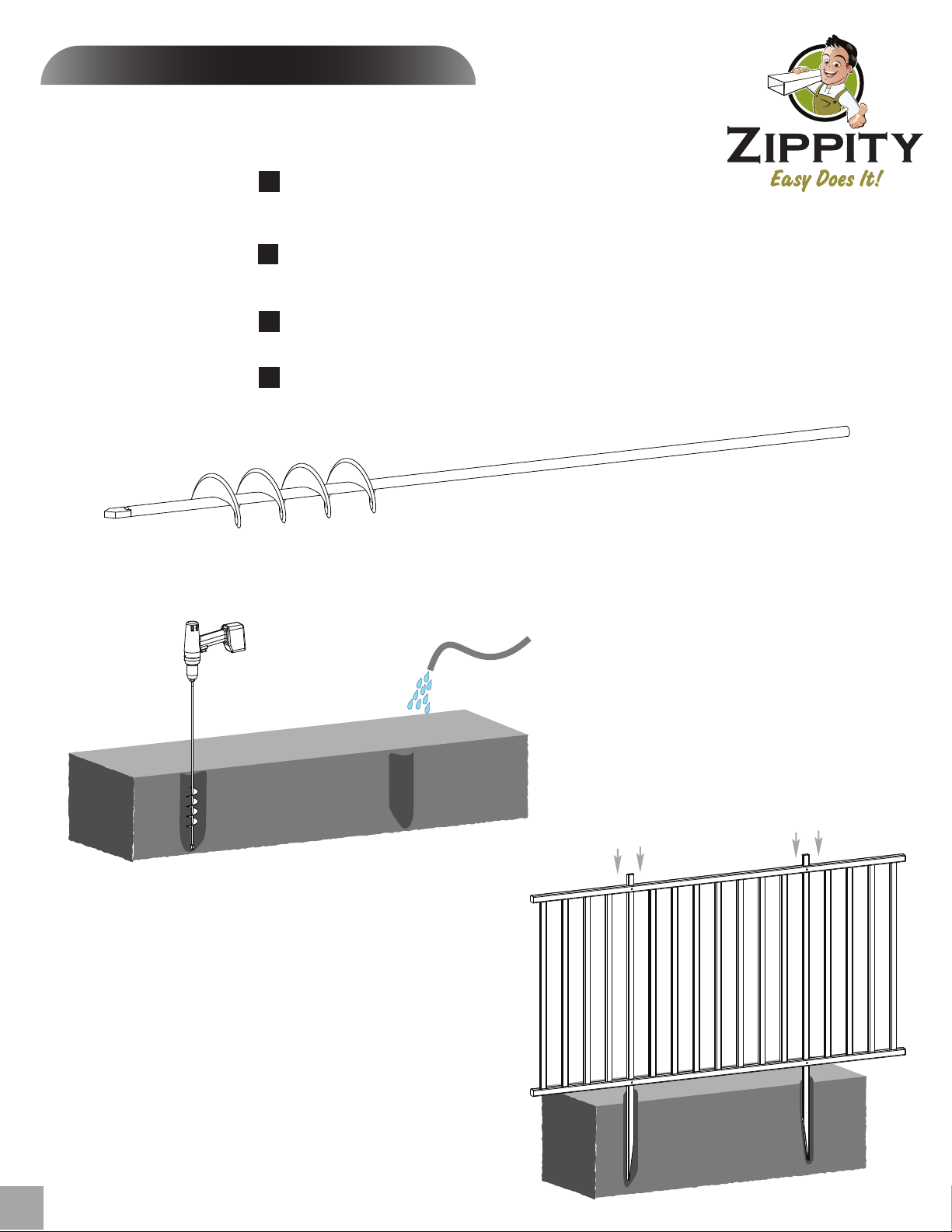

If your ground is too hard, or you have more than 3 or 4 panels

to install, please consider:

Purchase a 1 3/4” diameter auger bit (commonly used for

planting tulips) as illustrated ($15-$20 on Amazon.com)

Drill a hole in the ground at the desired location only about

8” to 12” deep.

Fill the holes with water as illustrated.

Push fence posts into the holes as illustrated.

STEP THREE

OPTIONS IN HARD GROUND

STEP THREE

Install fence into Ground - Continued

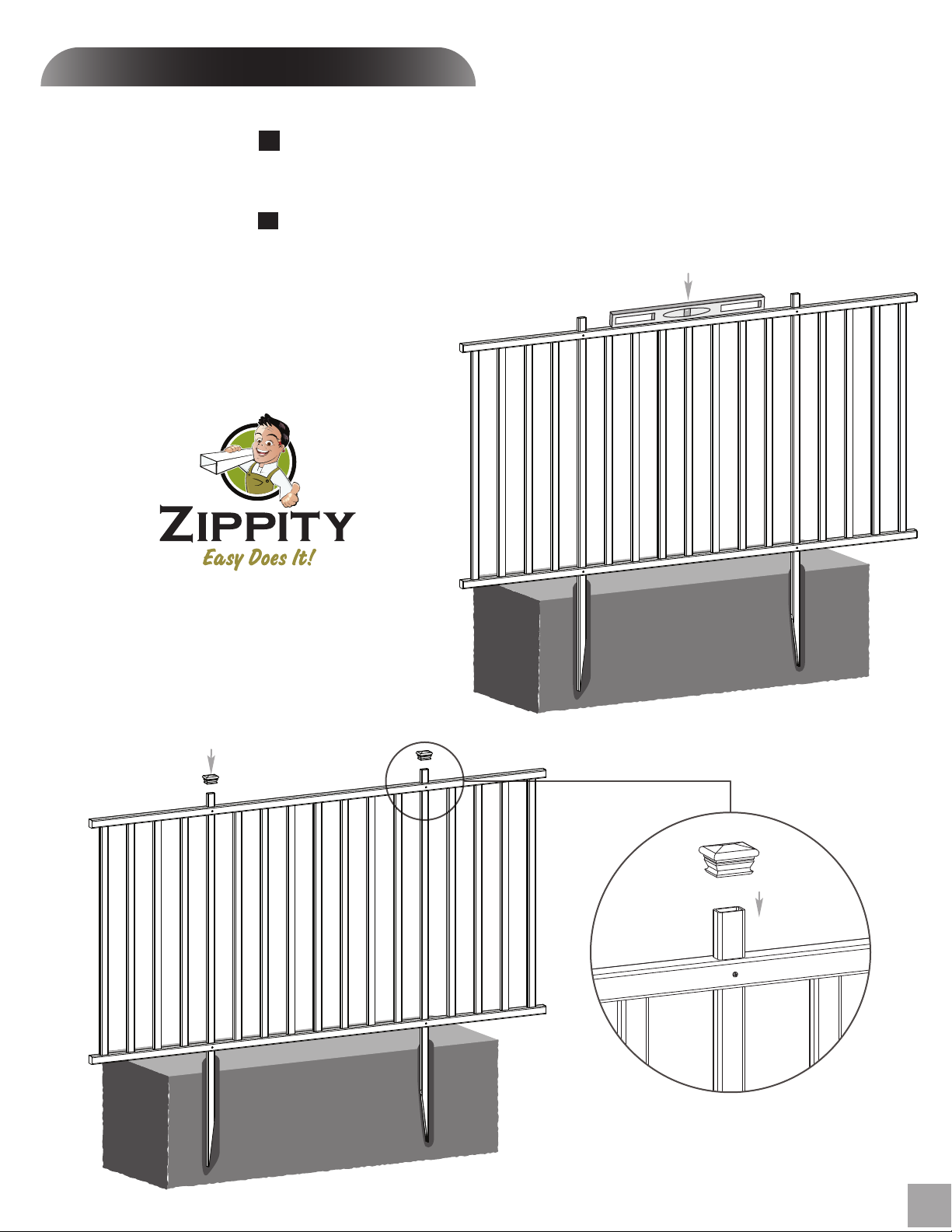

Level the assembled unit and backfill and compact dirt around

the base of each post to strengthen the unit.

Finish the assembly by pushing the post caps down over the

top of posts as illustrated. The post caps will lock into place.

Level

Birkdale Vinyl Fence Instructions

Top Rail

Bottom

Rail

Top Rail

Bottom

Rail

45° Application

10616 Bailey Road, Unit H, Cornelius NC 28031

Toll Free Phone: 1 877 234 6196 Fax: 704 631 4685

www.zippity-outdoor.com

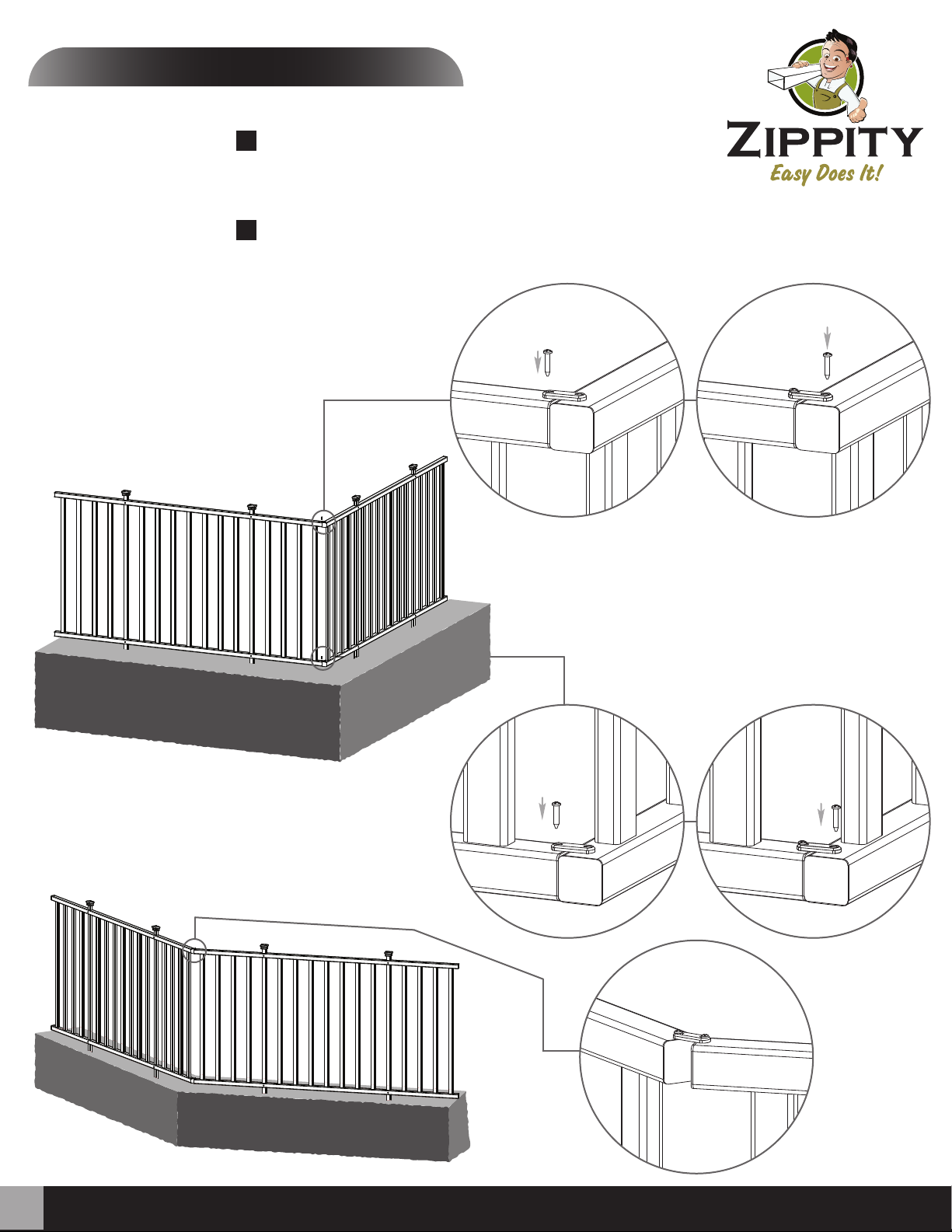

STEP FOUR

Fasten Joiner Clips

Fasten joiner clips by screwing into place on the top of the top

rail and top of the bottom rail as illustrated.

Screws are self-drilling.

Fasten the opposite end of the joiner clip as illustrated.
