machine number A50M84W

operating guide / warranty

thanks for

choosing zenith!

index page54

hookup directory

page 51

about your trakball remote page 16

special features you’ll want to know about

your on-screen menus page 20

page 3

RECORD YOUR MODEL NUMBER

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

To prevent fire or shock hazards, do not expose this product to rain or moisture.

POWER CORD POLARIZATION:

CAUTION: To Prevent Electric Shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

206-3359-O

INSTALLATION GETTING STARTED PAGE 3

For general information about the jacks on your Entertainment Machine, go to . . . . pages 4 and 5

If you are using an antenna or have direct cable service, go to . . . . . . . . . . . . . . . . . . . page 6

If you are using a cable box, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

If you are using a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

If you are using a DVD Player, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

For general speaker placement advice, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

To hook up your surround sound speakers, mini tower speaker or sub-woofer, go to . . . . . page 11

To hook up your entertainment machine to an external stereo, go to . . . . . . . . . . . . . . . page 12

This page will

help you

hook up your

Entertainment

Machine

properly.

Hookup Directory

IMPORTANT!! Use this page to decide where you need to begin your setup.

First, find the line below that best describes what you want to do, then go to

that page number. For a complete index go to page 54.

Antenna/Cable

Cable Box

VCR

DVD Player

About your Jacks

Audio Speakers

Speaker Placement

External Stereo

INPUT HOOKUP OPTIONS

GENERAL HOOKUP INFORMATION

AUDIO EQUIPMENT OPTIONS

For a complete Index, see page 54-55.

ANTENNA

CABLE

R- AUDIO- L/MONO VIDEO 2 S-VIDEO 2

R- AUDIO- L/MONO VIDEO 1 S-VIDEO 1

VARIABLE OUT

R -AUDIO- L

DATA

PORT

INSTALLATION GETTING STARTEDPAGE 4

Your jack-pack

and its

various uses.

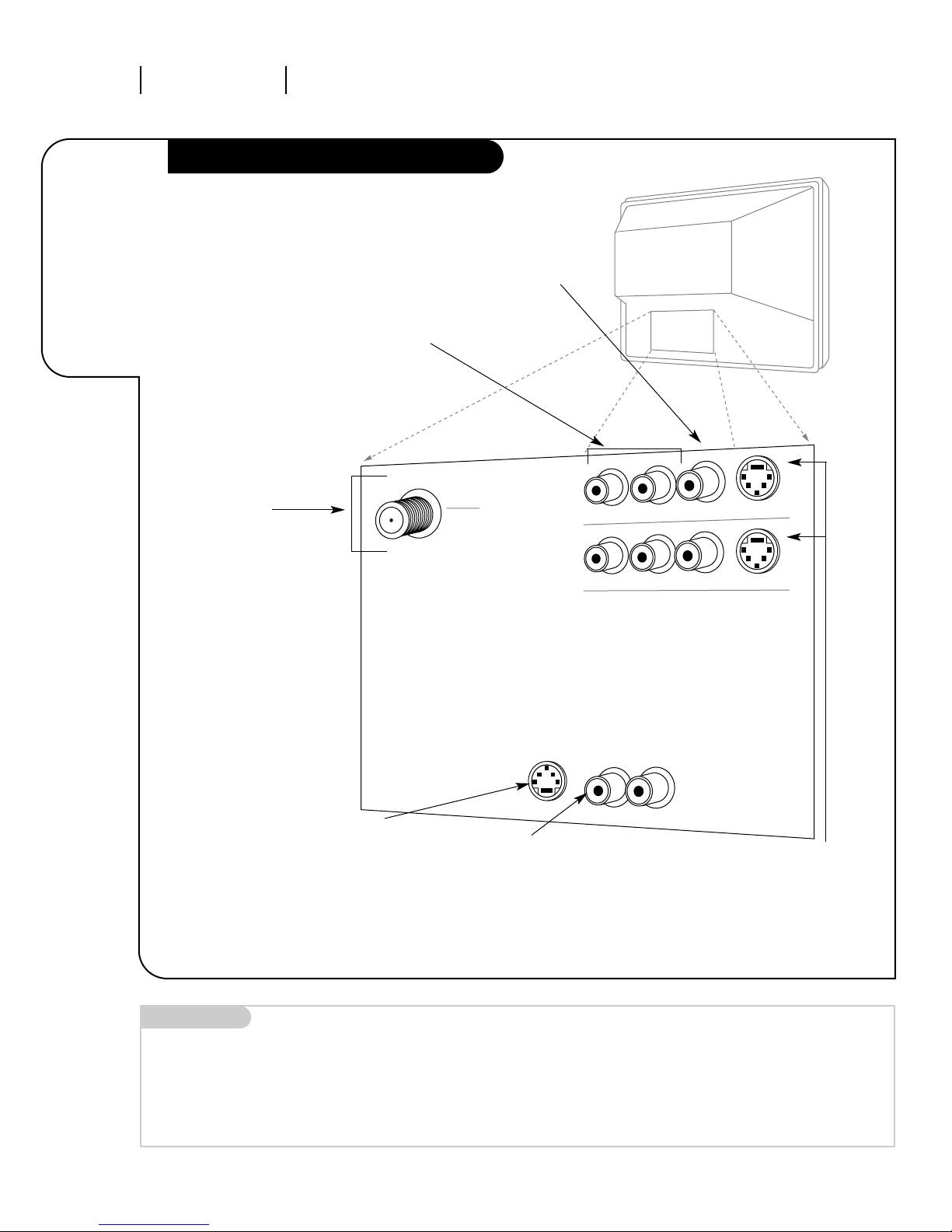

Audio Video Jacks

206-3359-O

RF Connectors:

Antenna /Cable

Used to connect anten-

na or cable to the tele-

vision, either directly

or through your cable

box.

Right/Left Audio

Used for stereo sound

from various types of

equipment.

Video 1/2

Connects the video

signals from any piece

of equipment.

S-VIDEO 1/2

A feature available

with some very

high-end equipment

that provides even

better picture quality.

Variable Out

Used to connect

either an external

amplifier, or add a

sub-woofer to your

surround sound system.

Data Port

Reserved for future

use.

Mini glossary

JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jack and the Audio/Video jacks that are color-

coded.

SIGNAL Picture and sound traveling through cable, or on the air, to your television screen.

INSTALLATION GETTING STARTED PAGE 5

206-3359-O

Connecting

cable to your

Entertainment

Machine.

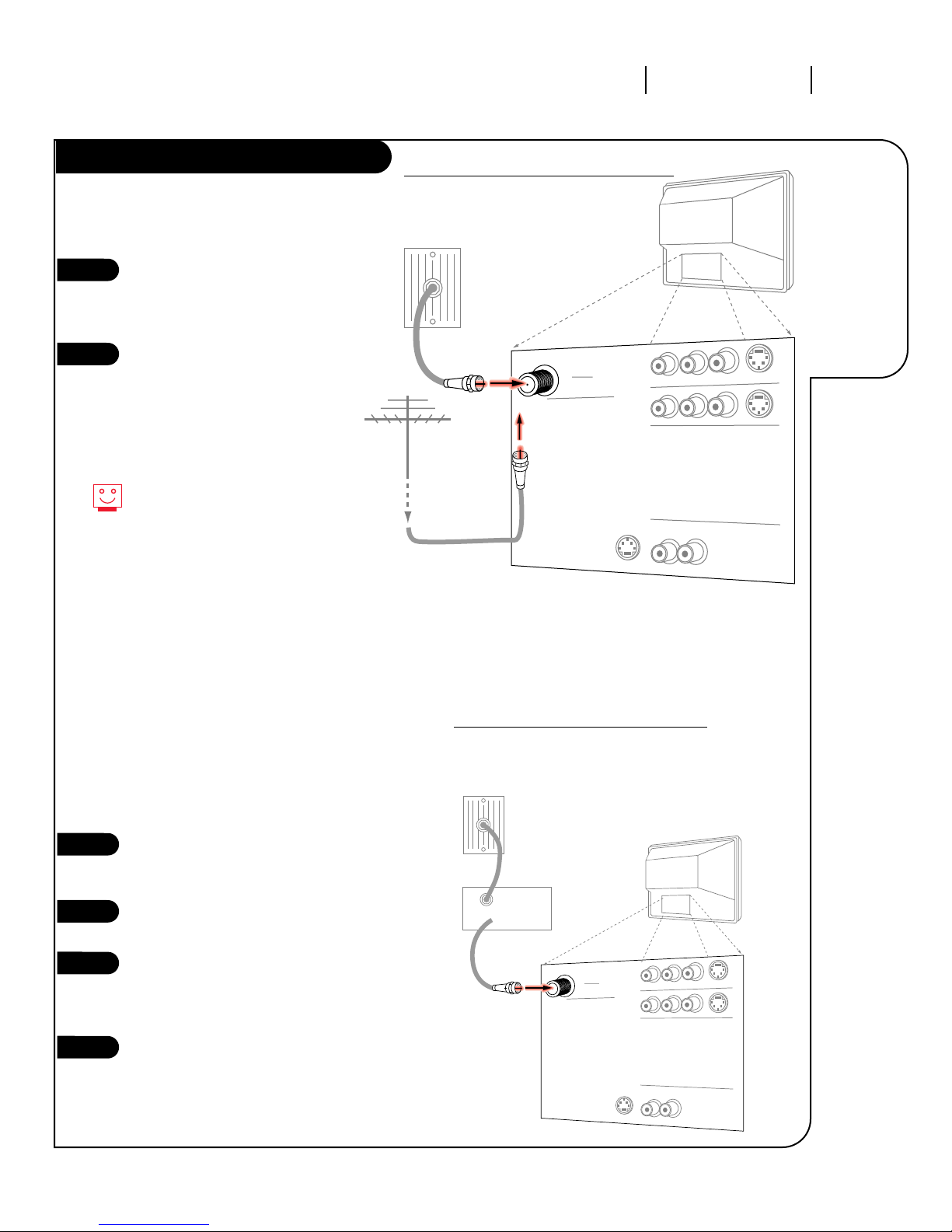

Hook Up Direct Cable TV or Antenna

ANTENNA

CABLE 1

VARIABLE OUT

Cable TV

wall jack

Rf coaxial wire

(75ohm)

TV back

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall or from your outdoor

antenna directly to this jack.

Hooking up to your Cable Box

Hooking up to Direct Cable or outdoor Antenna

ANTENNA

CABLE 1

VARIABLE OUT

Cable box

Out

Rf coaxial wire

(75ohm)

TV back

Cable TV

wall jack

Hooking up to Direct Cable and Antenna

Hooking up to Direct Cable with a cable box

RF coaxial wire

(75ohm)

Antenna

Locate the input jack on the

back of your cable provider’s

decoder box.

Connect the cable that runs from

the wall to this jack.

Locate the output jack on the

back of your cable provider’s

decoder box. Connect a cable to

this jack.

Locate the Antenna /Cable

jack on the back of your

Entertainment Machine. Connect

the other end of the cable that

runs from the decoder box to

this jack.

Some cable services require the use of a cable box to decode

premium channels and pay-per-view. Using the programming

feature of your remote, you can connect your cable box so

that you only need your MBR Trakball remote to control all

the channels. By connecting cable directly to your

Entertainment Machine, then running it out to the cable box

and back, you make the cable box another source to choose

from in the Source menu (see page 22).

If you receive antenna through a

wire that is several years old and

connects with two small prongs,

you will need to purchase a 300

Ohm adapter. It should be avail-

able from your local

electronics dealer.

INSTALLATION STANDARDPAGE 6

206-3359-O

Connecting a

VCR to your

Entertainment

Machine.

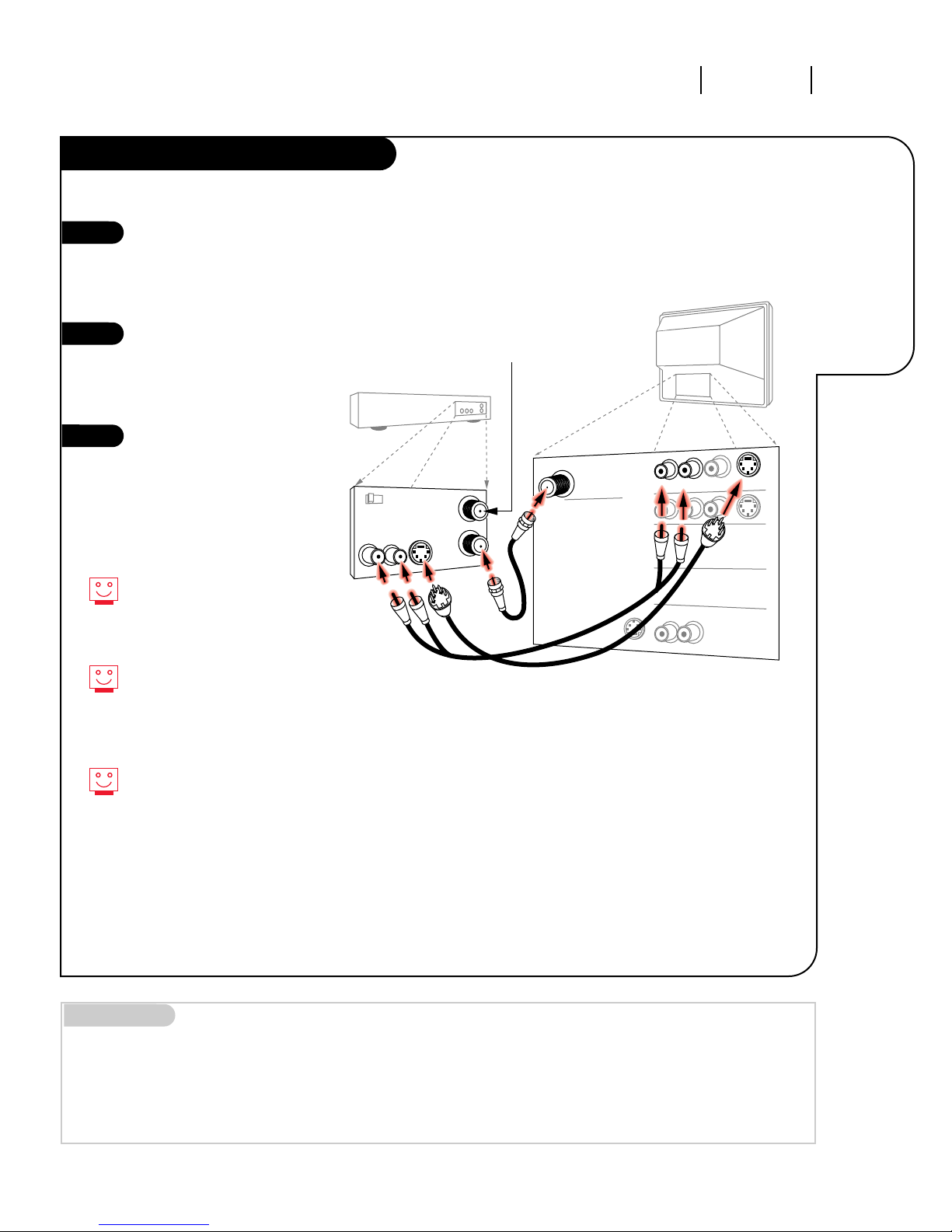

Hook Up Your VCR and Cable

ANTENNA

CABLE 1

VARIABLE OUT

TV back

Out

Audio Video

3 4

VCR

Back AV panel R- AUDIO- L

A/V cables

not included

with TV

Cable TV

wall jack

Round wire

(75ohm)

VIDEO 1

Output

Locate the RF or VHF/UHF/CATV

In jack on the back of your

VCR. Connect the cable line

coming from your wall directly

to this jack.

Find the composite video and

audio jacks on the

back of your VCR, and

connect them following

the instructions provided with

your equipment.

The cords should be included

with your VCR.

To use with PIP: go to the

source menu (see page 23) and

choose the jack that you’ve con-

nected your VCR to (Video 1) as

the Main or PIP source.

If you want to receive your sig-

nals on channel 3 or 4, locate

the Out to TV jack. Connect a

cable from that jack to the

Antenna/Cable jack on the back

of your Entertainment Machine.

RF coaxial wire

(75ohm)

Antenna

INSTALLATION STANDARD PAGE 7

206-3359-O

Connecting a

DVD player or

S-VHS player

to your

Entertainment

Machine.

Hook Up Your Super VHS VCR Player

Locate the VHF In jack on the

back of your DVD or S-VHS VCR.

Connect the cable line coming

from your wall directly to

this jack.

Now locate the Out to TV

jack. Connect a cable from

the Out to TV jack to the

Antenna 1/Cable 1 jack on

the back of your TV.

Find the audio and S-Video

jacks on the back of your DVD

or S-VHS player, and connect

them following the instructions

provided with your equipment.

For several pieces of equipment,

edit the names under Source ID

so you don’t forget which is

which. See page 31.

Some high-end DVD players

use a picture reproduction

system called “component

video.” Please refer to your DVD

manual for proper installation.

To use with PIP: go to the

Source Menu (page 23) and

choose the jack you’ve connected

your S-VHS or DVD player

(Video 1-3, DVD) as the Main

or PIP source.

ANTENNA

CABLE 1

VARIABLE OUT

TV back

Out

3 4

Super VHS VCR or

DVD player

Back AV panel R- AUDIO- L S-VIDEO 1

A/V cables

not included

with TV

Attach to

cable wall jack,

cable box, or

antenna

Audio Video

Output

Mini glossary

COMPONENT VIDEO Some video equipment uses three separate lines (Y, R-Y, B-Y) to more precisely reproduce images. Your manual will explain

how this relates to your equipment.

Mini glossary

AMPLIFIER An external machine that amplifies sound from a television, CD player, VCR, DVD or other A/V device.

INSTALLATION STANDARDPAGE 8

206-3359-O

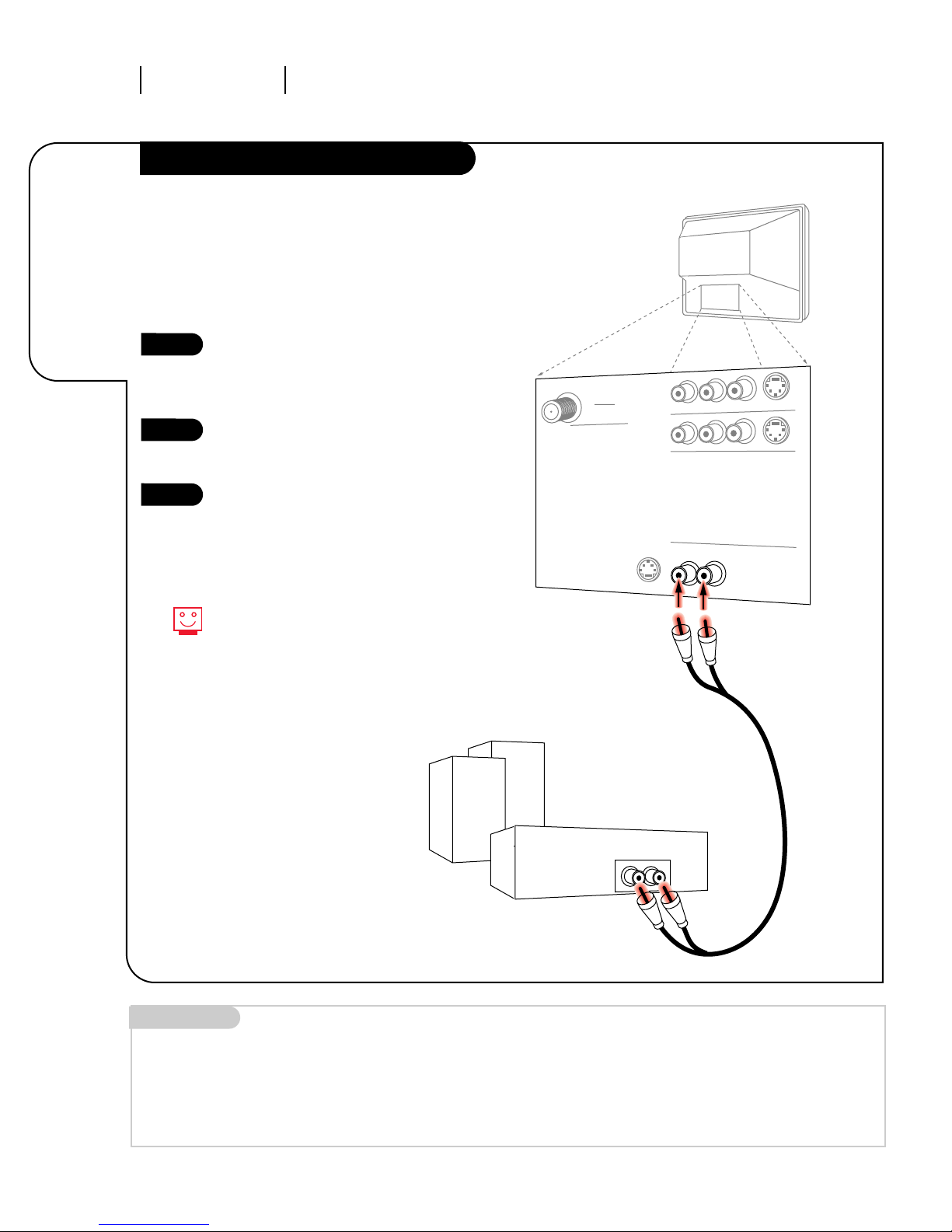

External Stereo

ANTENNA

CABLE

VARIABLE OUT

TV back

A/V cables

not included

with TV

External stereo amplifier

Locate the Variable Out jacks

on the back of your TV, and the

Input jacks on the back of your

stereo’s amplifier.

Connect the two jacks, making

sure that the right and left

channels are placed correctly.

Set up your speakers through

your stereo, according to

those directions.

you can adjust the volume level

on your external stereo system

even if your remote is in TV

mode. See Amplifier Volume

Override on page 46.

You’ll want to make sure your

Entertainment Machine and stereo are

located where you want them.

Moving connected equipment can be

dangerous for you and for it.

Combine

your new

Entertainment

Machine with

your home

stereo system.

INSTALLATION STANDARD PAGE 9

General

help on

designing

your home

theater

set-up.

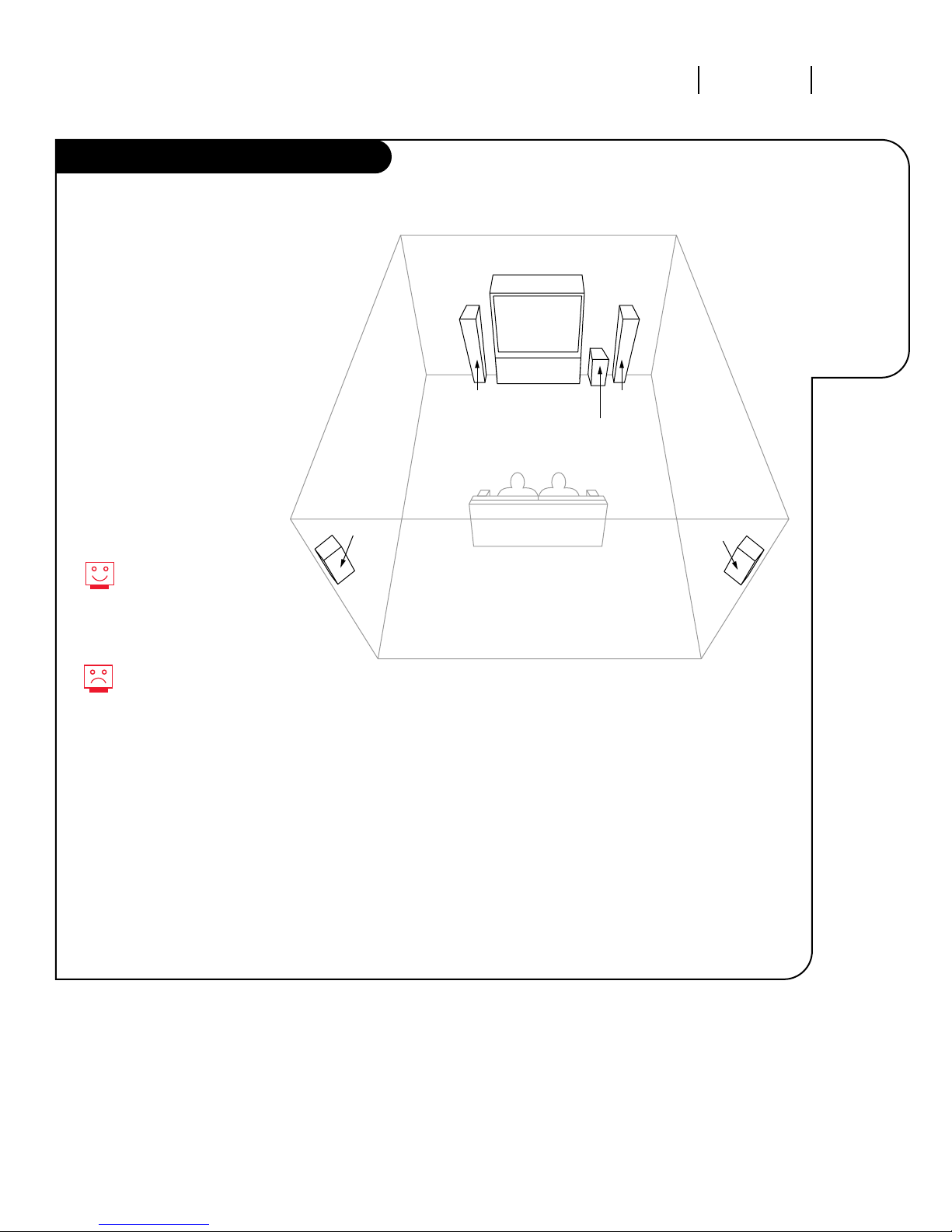

Room Set-ups for Home Theater

206-3359-O

sub-woofer

right

speaker

left

speaker

surround

sound

speaker

surround

sound

speaker

This is just a general room design.

Any number of set-ups are possible,

and some changes may be needed to

maximize your sound.

A left and right speaker on either

side of the Entertainment Machine

will create a “center channel,” making

the dialog sound as though it’s

coming directly from the

Entertainment Machine.

The rear surround sound speakers

provide the majority of other sounds,

like those from special effects in

movies. Your sub-woofer generates

ultra-low frequency sound, for

rumbling low-end audio.

Sound is affected by

speaker placement, so make

sure nothing is in front of the

speakers, and that they are

aimed in appropriate directions.

If your surround sound system

is on, but there’s no sound

from the speakers, the program

you’re watching might not be

broadcast in surround sound.

Use pages 6-12 to hook up your

Entertainment Machine. Plug in

your Entertainment Machine and

press the Power button on the

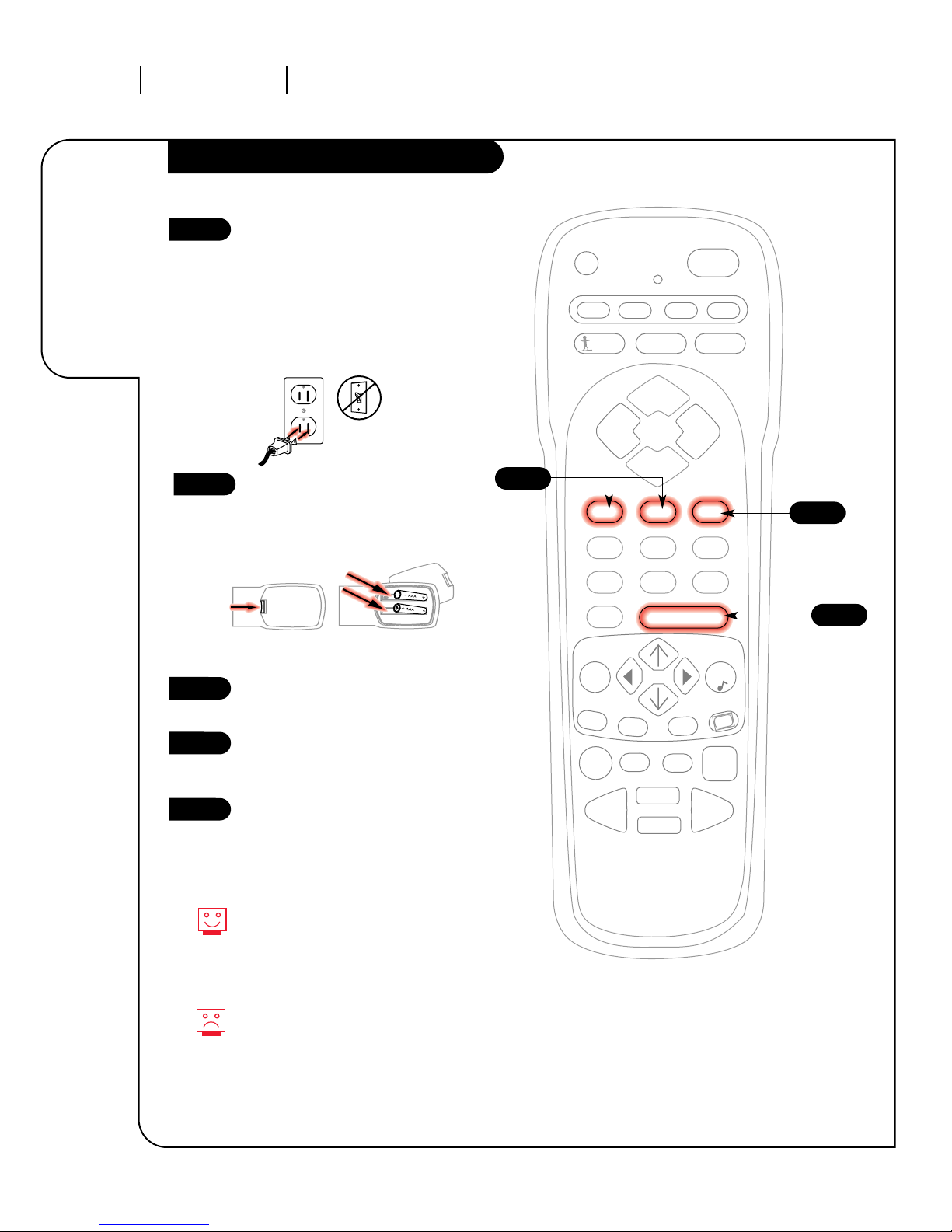

front panel. The Quick Start

screen will instantly appear, with

three steps you should follow if

you have not yet done so.

Remove the back of the remote

and put in three AAA batteries.

Make sure batteries are properly

installed (check the +/– signs).

Click ENTER on your remote to

continue the setup process.

Your choice will be to pick 1 or 2

(Antenna or Cable), depending on

the type of input signal you have.

You will then be prompted to press

3 on your number pad. Your

Entertainment Machine will now

search for all available channels,

and store them in its memory.

PRG

CABLE VCR AUX TV

ENTER

FLASHBK

CHANNEL

123

456

REWIND

RECORD PAUSE TIMER

PLAY

STOP

SURF MUTE

POWER

VOLUME VOLUME

QUIT

FFWD

TV/VCR

SOURCE

PIP

SWAP

FREEZ

INSTALLATION QUICKSTART MENUPAGE 10

Powering

the remote

and your

Entertainment

Machine.

Quick Start

206-3359-O

back of

remote

The Quick Start menu appears

the first time you turn on your

Entertainment Machine, allowing

you to get this out of the way

before going on to other options.

The Quick Start option only works

when the current source for the

Main picture is Antenna/Cable. Once

you have programmed the channels

for Antenna/Cable this option will

not appear in the menu for another

source.

Autres manuels pour A50M84W Series

Table des matières

Autres manuels Zenith TV

Zenith

Zenith A09A02X Manuel d'utilisation et d'entretien

Zenith

Zenith SM3547R Manuel d'utilisation et d'entretien

Zenith

Zenith A32B43 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SMS1943S Manuel d'utilisation et d'entretien

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith Presentation H27E46DT Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SR1941 Manuel d'utilisation et d'entretien

Zenith

Zenith Z27H96 Manuel d'utilisation et d'entretien

Zenith

Zenith R56W36 Manuel utilisateur

Zenith

Zenith SY3238 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SLS2555S5 and warranty Manuel d'utilisation et d'entretien

Zenith

Zenith B25A10Z Manuel utilisateur

Zenith

Zenith C27C41T Series Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 Z27A11 Manuel d'utilisation et d'entretien

Zenith

Zenith Concierge H19E34Y Manuel d'utilisation et d'entretien

Zenith

Zenith Z36H32 Manuel d'utilisation et d'entretien

Zenith

Zenith C13A03D Manuel utilisateur

Zenith

Zenith A27A11D Manuel utilisateur

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith SM2771S Manuel d'utilisation et d'entretien

Zenith

Zenith A13P01D Manuel utilisateur

Zenith

Zenith System 3 Z36X31 Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SR2765 Manuel d'utilisation et d'entretien

Zenith

Zenith A25A23W Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
