Zenith A19A02D Manuel utilisateur

Thanks for

choosing Zenith!

machine numbers A19A02D A25A02D

operating guide / warranty

hookup directory page 3

RECORD YOUR MODEL NUMBER

(Now, while you can see it)

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

206-3369-A

INSTALLATION GETTING STARTED PAGE 3

This page will

direct you to

which page

to go to for

proper hook-

up of your

Entertainment

Machine.

Hook-Up Directory

IMPORTANT!!

Use this page to decide where you need to begin your setup. First, find the line

below that best describes what you want to do, then go to that page number.

Cable TV

wall jack

Cable box

Out

Cable TV

wall jack

Cable box

Out

If you are using an antenna and no other equipment, go to . . . . . . . . . . . . . . . . . . page 4

If you have cable and no other equipment, go to . . . . . . . . . . . . . . . . . . . . . . . . . page 5

If you are using an antenna and have a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . page 6

If you have cable and a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Antenna only

Cable only

Antenna with VCR

Cable and VCR

206-3369-A

INSTALLATION STANDARDPAGE 4

Connect an

antenna

to your

Entertainment

Machine.

Hook Up Your Antenna to the TV

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

300 TO 75 OHM ADAPTER A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an

inch long with two screws on one end and a round opening with a wire sticking out on the other end.

RF coaxial wire

(75ohm)

Antenna TV back

TV back panel

(expanded view)

Antenna

Cable

TV back

Flat wire

(300 ohm)

Antenna

300/75 ohm

Adapter

TV back panel

(expanded view)

Antenna

Cable

If you have a 75 ohm RF cable,

then you don’t need any adapters!

Remember, when screwing RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

A 300 to 75 ohm adapter is not

included with your Zenith

Entertainment Machine.

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Flat wire antenna to TV

Antenna to TV Coaxial wire

206-3369-A

INSTALLATION STANDARD PAGE 5

Connect

cable to your

Entertainment

Machine.

Mini glossary

CABLE SERVICE The wire that supplies all your cable TV (CATV) stations.

Hook Up Your Cable (CATV) to the TV

Cable TV

wall jack

Cable TV

wall jack

Cable box

Out

RF coaxial wire (75ohm)

3 4

output

switch

TV back panel

(expanded view)

Antenna

Cable

TV back

TV back panel

(expanded view)

Antenna

Cable

TV back

If you’re using a cable box, leave your TV on chan-

nel 3 or 4 and use your cable box to change chan-

nels.

Remember, when screwing RF cables onto jacks,

clockwise tightens, and counterclockwise loosens.

If you’re using a cable box, Auto- Program might

only find the channel your cable service is on (usu-

ally channel 3 or 4). Don’t worry, that’s all you

need!

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

back of remote

Cable to TV

Cable with Cable Box to TV

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

206-3369-A

INSTALLATION STANDARDPAGE 6

Connect your

off-air

antenna and

VCR to your

Entertainment

Machine.

Hook Up Antenna and VCR to the TV

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

Out Audio

Video

3 4

VCR back

VCR back AV panel

TV back panel

(expanded view)

Antenna

Cable

TV back

Flat wire

(300ohm)

Antenna

300/75 ohm

Adapter

RF coaxial wire (75 ohm)

not included with TV

Antenna

RF coaxial wire (75ohm)

not included with TV

RF coaxial wire (75 ohm)

not included with TV

Output

switch

Output

switch

back of remote

Remember, when screwing

RF cables onto jacks, clockwise

tightens, and counterclockwise

loosens.

No A/V cables are included

with your Zenith Entertainment

Machine.

Without A/V cables, most VCRs will

not play videocassettes in stereo

sound.

Flat wire Antenna to TV with VCR

Coaxial wire Antenna to TV with VCR

Locate the Antenna/Cable jack on

the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack,

according to the diagram to the

right.

Remove the back of the remote

and put in two AA batteries.

Plug in your TV. Do not plug it

into a switched outlet. Your

Entertainment Machine is

designed to operate on household

current, 120-volt 60 Hertz AC do

not attempt to operate it on DC

Current.

Go to page 8 to Auto Program

your Entertainment Machine.

206-3369-A

INSTALLATION STANDARD PAGE 7

Connect

your VCR and

Cable to your

Entertainment

Machine.

Hook Up Your Cable (CATV) and VCR

Leave your VCR and your television

tuned to channel three and use

the cable box to change channels.

Remember, when screwing in RF

cables onto jacks, clockwise tight-

ens, and counterclockwise loosens.

No A/V cables are included with

your Zenith Entertainment

Machine. Without A/V cables, most

VCRs will not play videocassettes

in stereo sound.

Cable TV

wall jack

Cable TV

wall jack

RF coaxial cable (75ohm)

Cable box

Out

TV back panel

(expanded view)

Antenna

Cable

TV back

Out Audio

Video

3 4

VCR back

VCR back AV panel

Out Audio

Video

3 4

VCR back

VCR back AV panel

TV back panel

(expanded view)

Antenna

Cable

TV back

RF coaxial cable (75ohm)

not included with TV

RFcoaxial cable (75ohm)

not included with TV

output

switch

3 4

output

switch

output

switch

back of remote

Cable with Cable

Box to TV with

VCR

Cable to TV with VCR

206-3369-A

INSTALLATION QUICK STARTPAGE 8

Use Auto

Program to

automatically

find and

store all of

the stations

available in

your area.

Auto Program

With the remote control in hand,

press the POWER key to turn on

your Entertainment Machine.

Press the MENU key so the Setup

menu appears.

Using the UP/DOWN arrows on

the remote control, select Auto

Program on your screen.

Press a RIGHT or LEFT arrow to

reach the Auto Program screen.

Using the UP/DOWN arrows,

choose either Cable TV or Off-Air

Antenna on your screen.

Press a RIGHT or LEFT arrow to

begin Auto Program.

Press ENTER to return to

TV viewing.

123

456

ENTER

POWER

TIMER

FLSHBK

MUTE

VOLUME

CHANNEL

ADJ ADJ

SELECT

3/5

4/6

Mini glossary

AUTO PROGRAM Auto Program is how your Entertainment Machine finds all the channels available in your area and stores them into memory.

206-3369-A

OPERATION BUTTON FUNCTIONS PAGE 9

A quick list

of all the

buttons on

your remote

and what

they do.

123

456

ENTER

POWER

TIMER

FLSHBK

MUTE

VOLUME

CHANNEL

ADJ ADJ

SELECT

Power

Turns controlled

device on and off.

Timer

Displays Sleep Timer

menu. See “Timer

Setup” on page 15 for

more information.

Selects closed captions.

Flashback

Returns to last channel

viewed.

Mute

Turns sound off and on.

Volume(Up/Down)

Adjusts the sound on

your Entertainment

Machine.

Channel(Up/Down)

Cycles through available

channels.

Number Key Pad

Use for direct channel

entry or for on-screen

programming.

Enter

Displays current TV

channel and time, removes

on-screen menus. Press

after channel numbers for

instant selection.

Displays on-screen

menus available.

Select Up/Down Arrows

Selects on–screen

menu options.

Adj Left/Right Arrows

Adjust on-screen

menu options.

remote control part number

SC3492

The Buttons on Your Remote

206-3369-A

OPERATION BUTTON FUNCTIONSPAGE 10

How to use

your six-

button panel

to operate

the menus.

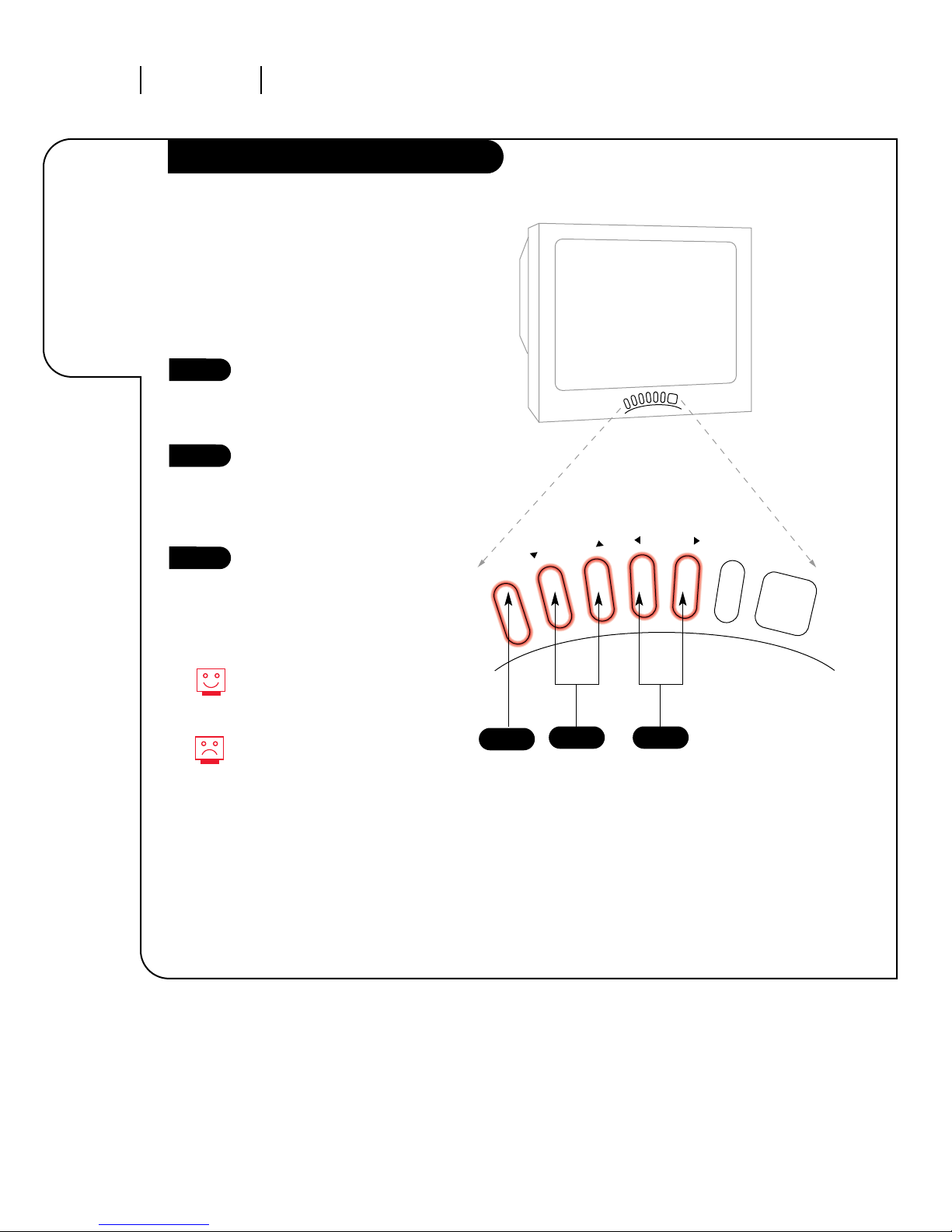

Front Panel Diagram

POWER

VOLUME

CHANNEL

To access the Setup menus, press

the MENU button once; to get the

Video menus, press the MENU

button twice.

Choose the function you wish to

change using the CHANNEL

UP/DOWN buttons. The Channel

buttons act as a “select”

(Up/Down) function.

The VOLUME buttons act as an

“adjustment” (Left/Right) func-

tion. Use the VOLUME buttons to

make changes or adjustments.

Menus disappear after five seconds.

To get them back, push the MENU

button again.

You’ll want to get a new remote;

call 1-800-255-6790 to purchase a

replacement.

132

When using the on-screen menus, the buttons on

the front panel correspond to the remote control

buttons as follows:

VOLUME = Adjust Left/Right

CHANNEL = Select Up/Down

Autres manuels pour A19A02D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Zenith TV

Zenith

Zenith HealthView H20D50DT Manuel d'utilisation et d'entretien

Zenith

Zenith A27A23W Manuel d'utilisation et d'entretien

Zenith

Zenith A27A11D Manuel utilisateur

Zenith

Zenith SENTRY 2 SMS1943S Manuel d'utilisation et d'entretien

Zenith

Zenith INTEQ IQ5270 Manuel d'utilisation et d'entretien

Zenith

Zenith SYSTEM 3 SY2738RK Manuel d'utilisation et d'entretien

Zenith

Zenith A09A02X Manuel d'utilisation et d'entretien

Zenith

Zenith A27A12D Manuel d'utilisation et d'entretien

Zenith

Zenith IQB42P97G Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SM0953X Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SM2726EW Manuel d'utilisation et d'entretien

Zenith

Zenith SENTRY 2 SMS2049X3 Manuel d'utilisation et d'entretien

Zenith

Zenith A27A74R Manuel utilisateur

Zenith

Zenith Concierge H27C35DT Guide de dépannage

Zenith

Zenith A50M84W Series Manuel utilisateur

Zenith

Zenith B27B40Z Manuel d'utilisation et d'entretien

Zenith

Zenith C27C35T Series Manuel utilisateur

Zenith

Zenith SENTRY 2 SMS2047W Manuel d'utilisation et d'entretien

Zenith

Zenith A20A22D Manuel utilisateur

Zenith

Zenith H19F34DT Series Manuel utilisateur

Zenith

Zenith Sentry 2 Series Manuel d'utilisation et d'entretien

Zenith

Zenith C34W37 Series Manuel utilisateur

Zenith

Zenith H27F56DT Guide d'installation

Zenith

Zenith Z36H32 Manuel d'utilisation et d'entretien

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
