Zencontrol zc-iot-fc Manuel d'instructions
Dimensions
Mounting options Field mount
Fixing centres 195 mm
Dimensions 206 / 42 / 30 mm
Installation
Remove the product from the box and inspect it for any damage. If you
believe the product to be damaged or otherwise unsound, do not install
the product. Please pack it back into its box and return it to the place of
purchase for replacement.
If the product is satisfactory, proceed with the installation:
1 Ensure safety warnings are adhered to.
2 Remove the end-covers by unscrewing the four fasteners to access
the mounting centres and terminals per g 2.
3 Mount the application controller using the allocated mounting
centres, as per the above dimensions. Avoid mounting on metal
surfaces, as this will prevent the radio communication.
4 Wire as per g 4 overleaf.
5 Reattach end-covers, ensuring adequate strain relief
Specications
Supply voltage 220 - 240 V ~ 50 Hz
Control system IEC62386-104 over Thread
Radio support IEEE 802.15.4
Frequency band 2.4 GHz
Max radio tx power +8 dBm
Ethernet 10/100 TCP/IP Ethernet
Wiring 1 - 4 mm2
Strip 6 - 7 mm
Operating temperature 0 to 55°C
Material PC
Classication Class II
Ingress protection IP20
Product range
Order code Description
zc-iot-fc Wireless eld mounted application controller
Safety information
■This product must only be installed by a licensed electrician.
■Before commencing installation turn off and isolate the
electrical supply.
■There are no user serviceable parts, attempting to service any
part of the product will void the warranty
■DALI is not SELV and as such should be treated as LV.
■As the installer, it is your responsibility to ensure you comply
to all relevant building and safety codes. Refer to application
standards for the relevant rules.
■When the installation is complete, leave this manual with the
building’s owner for future reference.
Wireless application controller zc-iot-fc
206
42
30
IEC 62386-104
over Thread
zc-iot-bridge
IEC 62386-103
D4i driver
Wireless sensor
IEC 62386-303
IEC 62386-304
To
zencontrol
Cloud
Wireless switch
IEC 62386-301
Wireless driver
IEC 62386-207
zc-iot-fc
IEC 62386-103
Wireless DT8 driver
IEC 62386-209
IEC 62386-101
Wireless system overview
Cover
Fastener
RJ45
2
To ensure adequate radio communication
DO NOT install device in a metal enclosure
LEthernet
N
Antenna
Information is subject to change without notice, E&OE Last updated 25 / 08 / 20 0553168_V 1.0
© zencontrolzencontrol.com
For more information
on compliant software
see our website
zencontrol.com
Notice

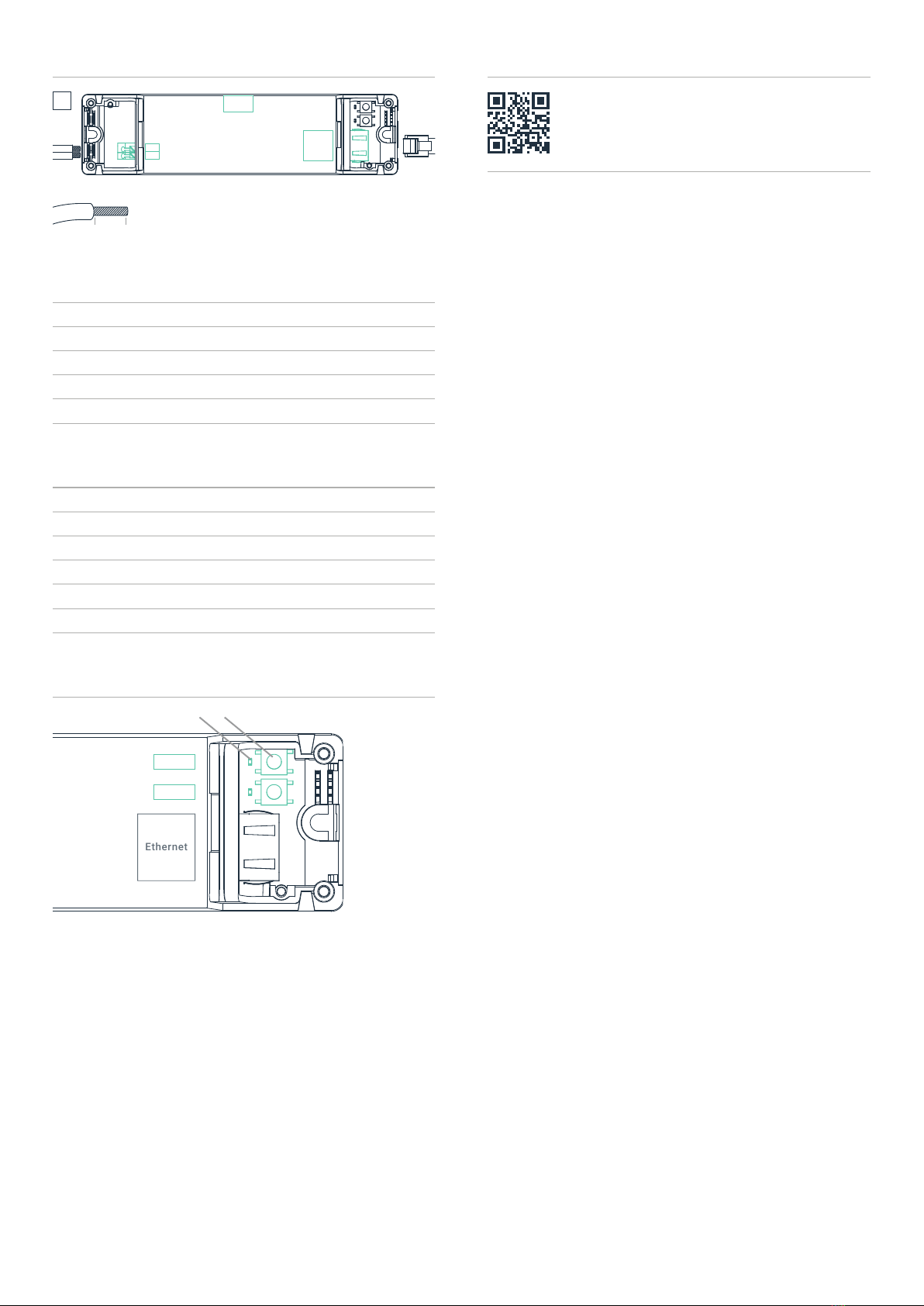

Wiring diagram
4
Wire preparation
0.5 - 1.5 mm2
RJ45
6 - 7 mm
Status LEDs
LED State Meaning
On / off & reset Alternating ash Bootload in process
On / off & reset Synchronised ash Start up in process
On / off Green - Flash / icker Wireless activity
Reset Red - Flash Wireless failure
Button actions
Button Action Function
On / off Short press Toggles lights (max / off)
On / off 5 second press Toggles identify function
Reset 1 - 2 seconds press Force Cloud reconnect
Reset 3 - 10 second press Reboot
Reset 11 - 15 second press Factory reset
Ethernet
Reset
On/Off
Indicators
LEDs Buttons
