Z-EDGE F1 Manuel utilisateur
BEDIENUNGSANLEITUNG
USER GUIDE
F1(f610d)
English 1
Deutsch 19
CONTENTS / INHALTSVERZEICHNIS
-1-
Table of Contents
1 Introduction .................................................................................................................................... 2
1.1 Features ................................................................................................................................. 2
1.2 What's in the Box ............................................................................................................. 2
1.3 Product Overview ............................................................................................................. 3
2 Getting Started .............................................................................................................................. 4
2.1 Inserting the Memory Card ......................................................................................... 4
2.2 Installation ............................................................................................................................ 5
2.3 Adjust Device Position ................................................................................................... 6
2.4 Connecting to Power ...................................................................................................... 6
2.5 Powering the dash cam ................................................................................................ 7
2.6 Set Date & Time ................................................................................................................ 7
3 Using the Car Dash Cam ........................................................................................................... 8
3.1 Recording Videos ............................................................................................................. 8
3.2 Recording Screen ............................................................................................................. 8
3.3 Adjusting the Settings .................................................................................................... 9
3.4 Loop Recording .............................................................................................................. 10
3.5 Emergency Video Protection ................................................................................... 10
3.6 Motion Detection .......................................................................................................... 10
3.7 Vibration Detection ....................................................................................................... 10
3.8 Taking a Snapshot ......................................................................................................... 11
3.9 Playback Videos & Photos ........................................................................................ 11
3.10 Managing Video & Photo Files ............................................................................ 11
3.11 GPS ..................................................................................................................................... 12
3.12 Night Vision .................................................................................................................... 12
4Menu Overview .......................................................................................................................... 13
5FAQs ................................................................................................................................................. 15
6 Customer Support .................................................................................................................... 15
7 Warranty ......................................................................................................................................... 16
8 Product Specifications ............................................................................................................ 17
-2-
1 Introduction
Welcome to buy the F1 car dash cam. Protect you and your vehicle with
real-time video and audio recording whilst you're driving. Featuring a stealth
size design and dual-lens for recording front and back. Please read this manual
carefully before using this product. We hope you enjoy using this product.
1.1 Features
• Full HD 1920 x 1080P
• 2.7" LCD Color screen
• Up to 150-degree wide angle lens
• Built-in G-Sensor
• Motion Detection
• Audio Recording
• Night Vision
• GPS

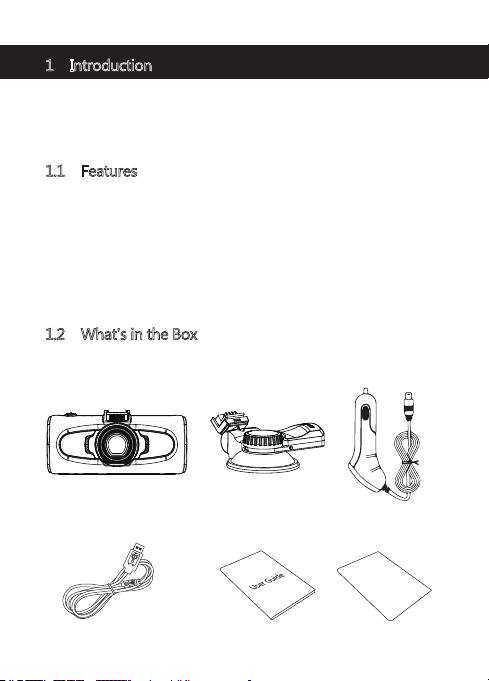

1.2 What's in the Box
Car Dash Cam Car ChargerCar Mount with
Built-in GPS
Mini-USB Data Cable Warranty CardUser Guide
-3-
1.3 Product Overview
1
2
3
4
5
6
7
8
Power Button
Down
Up
Mode
Display Screen
IR LCDs
Rear-View Lens
OK Button
9
10
11
12
13
14
15
16
Mini USB Port
Suction Mount Slot
Mic
TF/Micro SD Card Slot
Reset
Front-View Lens
Speaker
GPS USB Port
11 10
13
1 2
4 3
14 15
16
12
8 7 569
-4-
2 Getting Started

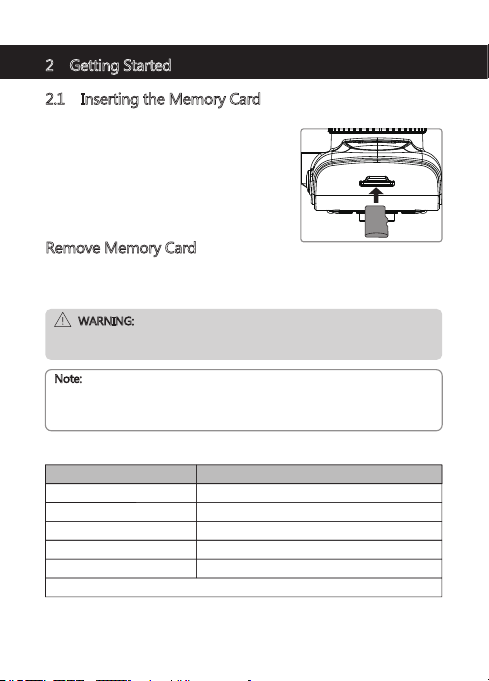

2.1 Inserting the Memory Card
Insert the memory card, with the pins facing
towards the display, until it clicks into place.
Remove Memory Card
Push the edge of the memory card inward until you feel it click, then allow it to
push out until you can remove it from the slot.
WARNING:
It is recommended to format the memory card before initial use. Please note
that all data saved on the memory card will be erased after formatting.
Note:
• Supports Micro SDXC cards up to 128GB .
• Do not remove or insert memory card whilst the device is powered on -
this may damage the memory card.
Storage Capacity Video Recording Time
For reference only
8GB
16GB
32GB
64GB
125GB
44min
88min
176min
352min
704min
-5-
1 2
2.2 Installation
Please follow the below instructions for mounting your dash cam to your
vehicles windshield:
1. Slide the car mount into the slot on top of the device until a click sound is
heard.
2. Peel off the protective plastic backing from the suction-cup.
3. Press the suction-cup firmly against your windshield, and rotate the lever
clockwise (12 'clock) to secure.
WARNING:
Do not install the device on a tinted window - doing so may damage the tint
film.
2.3 Adjust Device Position
Swivel the device vertically or
horizontally to adjust the position.
-6-
2.4 Connecting to Power
Use only the supplied car adapter to power the dash cam.
1. Plug one end of the car
charger into the USB
Connector of the dash cam.
2. Plug the other end into your
vehicles lighter socket.
3. For GPS, plug one end of the
car charger into the USB
connector on the car mount(16).
-7-
2.5 Powering the Dash Cam
Automatic Power
• Once the vehicle's engine is switched on, the dash cam automatically powers
on.
• When the vehicle's engine is switched off, the dash cam will automatically
save the recording and power off within 10 seconds.
Manual Power
• To manually turn the power on, short press
the 'Power' button (1).
• To manually turn the power off, press and
hold the 'Power' button (1) for 3 seconds.
2.6 Set Date & Time
• Before using the device, we recommend you set the correct date and time:
• If the device is recording, short press the 'OK' button (8) to stop and enter
video Mode.
• Press the 'Power' button (1) twice to enter the General Settings menu.
• Press the 'Up' and 'Down' buttons (2 & 3) to select Date/Time and press 'OK'
button (8) to confirm. Adjust the date and time settings using the 'Up' ,
'Down' and 'OK'buttons (2,3,8)
• With all fields correct, press the 'Power' button (1) to save and exit the menu.
3 Using the Car Dash Cam
3.1 Recording Videos
With an SD card inserted and the device connected to power, when the car
engine is switched on the dash cam will automatically power on and start
recording. When the vehicle engine is switched off, the dash cam will
automatically save the recording and power off within 10 seconds.
Alternatively, short press the 'OK'button (8) to stop/start video recording
manually.
3.2 Recording Screen
-8-
No. Item Description
Resolution Indicates the current video resolution.
Recording A flashing red dot indicates the Dash cam is
currentlyrecording.
2
1
Motion Detection Motion Detection : On/Off6
GPS Blue: Searching for GPS signals.
Green: GPS working status.
7
Recording Time Indicates the current video recording time.3
Loop Recording Loop Recording setting.5
IR Mode
Indicates the IR night vision setting,On/Off/Auto,
press and hold the 'Up' button (3) for 4 seconds to
change the IR mode.
4
1 2 43
5
6
7
13
8
9
11
10 12
