How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 1/15

How to Connect Elastix to NeoGate

TA FXS Gateway

Version: 1.0

Yeastar Technology Co., Ltd.

Date: 2014.06.06

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 2/15

Table of Contents:

1. Introduction..................................................................................... 3

2. Preparation...................................................................................... 4

3. VoIP Mode....................................................................................... 5

4. SPS/SPX Mode ................................................................................. 8

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 3/15

1. Introduction

This application note shows how to connect Elastix to NeoGate TA FXS gateway.

This guide has been tested with NeoGate TA3200 and Elastix firmware version:

2.4.0.

Two modes are available for NeoGate TA to connect to Elastix, we call them VoIP

trunk mode and Service Provider SIP/IAX trunk mode (SPS/SPX).

*You can simply choose one mode to achieve the connection.

Target：

After connecting NeoGate TA3200 and Elastix, FXS extensions will be extended

on Elastix. Once the FXS ports are connected to Elastix, the phones connected

to the FXS ports will be treated as Elastix FXS extensions. The following features

can be achieved:

1. Make calls between the analog phone and Elastix SIP extension;

2. Receive incoming calls on the analog phones;

3. Make external calls from the analog phones using trunks on Elastix.

Description：

IP address of Elastix: 192.168.5.178

IP address of NeoGate TA3200: 192.168.5.13

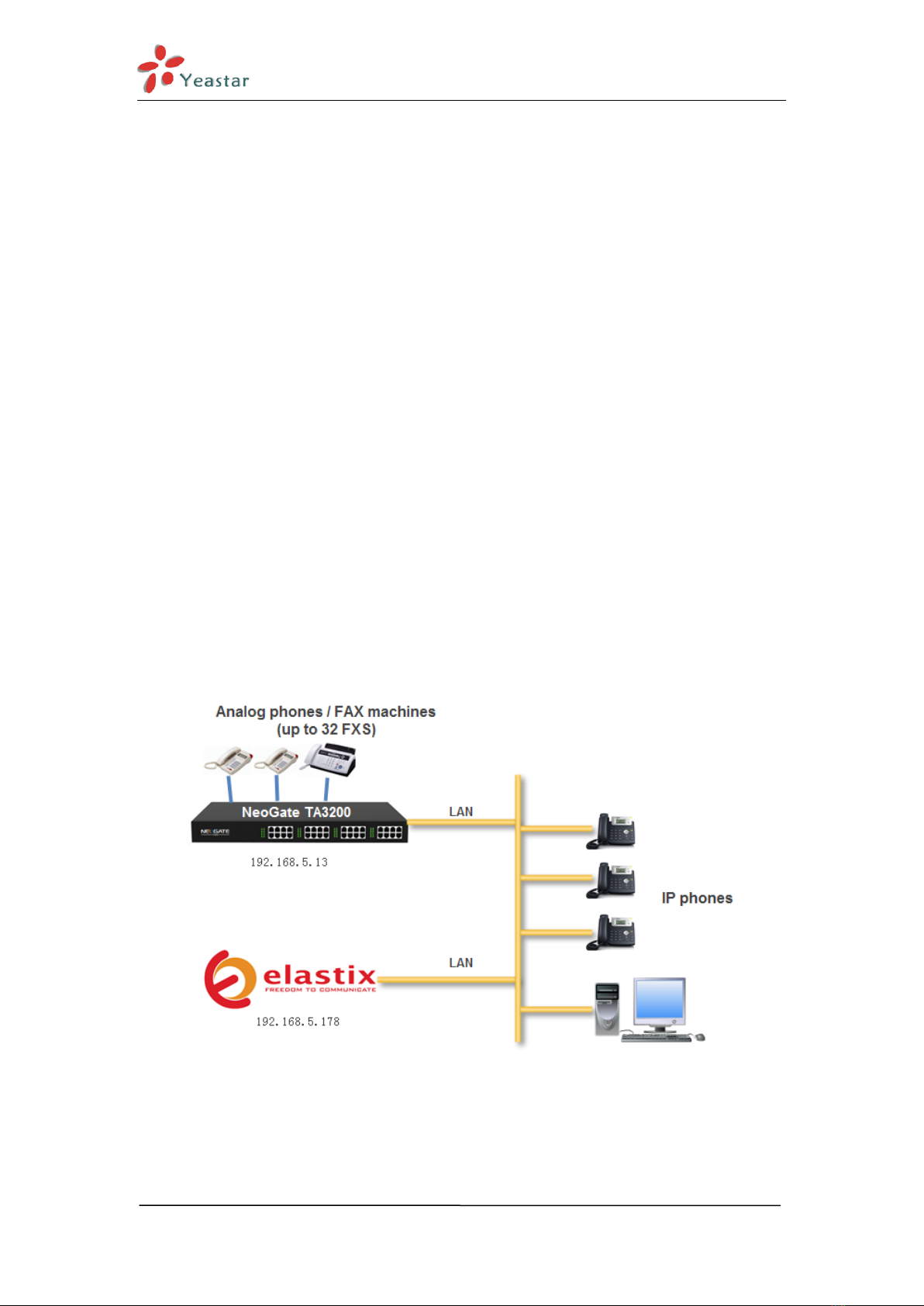

Figure 1. Connect Elastix and NeoGate TA3200

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 4/15

2. Preparation

NeoGate TA3200 attempts to contact a DHCP server in your network to obtain

valid network settings (e.g., the IP address, subnet mask, default gateway

address and DNS address) by default.

Before connecting NeoGate TA3200 to Elastix, you need to set a static IP

address from the same LAN with the Elastix.

Steps to set static IP for NeoGate TA3200:

1. Connect one analog phone in one of the FXS ports on NeoGate TA3200;

2. Dial "***" to enter the voice menu;

3. Press "1" to check the IP address;

4. Open the browser and type in the TA3200's IP address to access TA3200;

5. Log in TA3200 and go to System→Network Preferences→LAN Settings,

disable DHCP and configure the LAN network, save and apply the changes,

reboot NeoGate TA3200 to take effect.

Figure 2. Configure LAN Settings on NeoGate TA3200

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 5/15

3. VoIP Mode

If you choose VoIP mode, the FXS ports will be registered as the Elastix's SIP

extensions, whose functions are the same with other SIP extensions on Elastix.

Figure 3. Connect TA3200 and Elastix via VoIP Mode

Step 1. Create a SIP extension on Elastix.

Path: PBX→Extensions→Add Extension

Create an extension on Elastix for the FXS port on the TA3200 which has

connected an analog phone. Here we take extension 9000 for example.

Figure 4. Create Extension 9000 on Elastix

Step 2. Configure one VoIP server template on NeoGate TA3200.

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 6/15

Path: Gateway→VoIP Settings→VoIP Server Settings

Check "Enable Register", fill in the Elastix IP address; this VoIP server template

will be a VoIP mode template.

Figure 5. Configure the VoIP Server Template as VoIP Mode

Server Name: Elastix

Type: SIP

Enable Register: checked

Transport: UDP

Hostname/IP: fill in the Elastix IP address, 192.168.5.178

Domain: fill in the Elastix IP address, 192.168.5.178

Step 3. Edit the Dial Pattern Template

Path: Gateway→VoIP Settings→VoIP Server Settings

The default dial pattern is set as ".", which allows you to dial any number out. In

this guide, we will remain the default setting. You can change it according to

your environment.

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 7/15

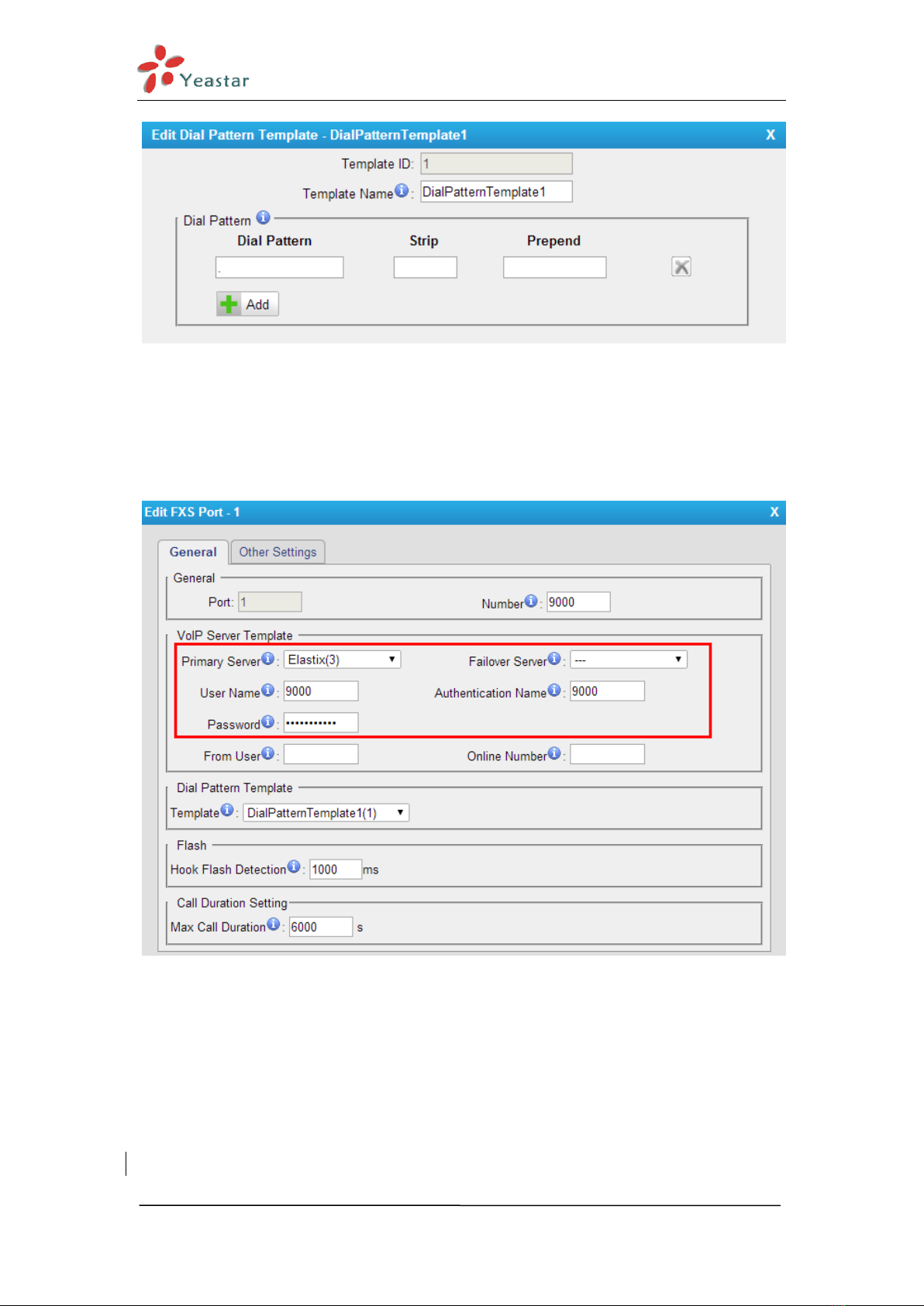

Figure 6. Edit Dial Pattern Template

Step 4. Edit the FXS port

Path: Gateway→FXS Port List→FXS Port List

Figure 7. Edit the FXS Port

Primary Server: choose “Elastix(3)”, the VoIP server template configured in

Step 2.

User Name: the extension username on Elastix, 9000.

Authentication Name: the extension authentication name on Elastix, 9000.

Password: the authentication password of the extension on Elastix,

pincode9000.

Dial Pattern Template: choose the Dial Pattern Template:

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 8/15

DialPatternTemplate1(1).

Save and apply the changes, and you will see the port status is “Registered” on

"Port Status" page.

Path: Status→System Status→Port Status

Figure 8. Port Status

Now, you are able to use the analog phone which is connected to NeoGate TA's

FXS port 1 to make calls and receive calls.

Note: ALL outgoing calls to Elastix extensions and to external numbers through

trunks on Elastix should match the dial pattern, or calls will fail.

4. SPS/SPX Mode

If you choose this mode to connect NeoGate TA3200 and Elastix, the FXS port

will be registered as a Service Provider SIP/IAX (SPS/SPX) trunk to the Elastix.

One SPS/SPX trunk to NeoGate TA also should be created on Elastix. In this

guide, we use SIP protocol, configure one VoIP server template as SPS mode on

NeoGate TA3200 and create one Service Provider SIP trunk on Elastix.

Figure 9. Connect TA3200 and Elastix via SPS Mode

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 9/15

Step 1. Create a Service Provider SIP Trunk on Elastix

Path: PBXTrunksAdd SIP Trunk

Figure 10. Add SIP Trunk

How to Connect Elastix to NeoGate TA FXS Gateway

http://www.yeastar.com 10/15

Figure 11. Configure SIP Trunk

PEER Details:

host=192.168.5.13

type=peer

qualify=yes

disallow=all

allow=ulaw,alaw,gsm

After creating the SIP trunk, we can check the status of this trunk, it should be

OK.

Path: PBXTools

Enter the command “sip show peers”and click “Execute”, the status will be

seen.
