QUICK-CONNECT GUIDE

YHT-33

YHT-33 QUICK-CONNECT GUIDE

INTRODUCTION

Yamaha developed the YHT-33 A/V Home Theater

package to turn your home into a theater. In addition to

enhancing the sound of a video source, like your TV,

DVD, or VCR, the YHT-33 also superbly reproduces

audio sources, such as a CD player or a cassette deck.

This Quick-Connect Guide will help you get started.

Study the speaker system plan (below), and then use

the interconnect diagrams (on the following pages) to

connect the receiver and speakers to your system.

For the video portion, you will need a television or

monitor. Refer to the Yamaha HTR-5240 Owner’s Manual,

as well as those that came with your other components,

for complete instructions and cautions. Be sure to turn off

all power while making connections.

Save this Quick-Connect Guide for future reference.

NOTE: Label the end of each speaker wire (i.e., left rear, right

front, etc.) before connecting them to the A/V receiver. For wire

runs over 30 feet, use larger 18- or 16-gauge speaker wire.

• Wire strippers (optional)

• Velcro (for secure fastening of NS-AC16 on TV)

• Brackets, toggle bolts, molly anchor screws, or sheet

metal screws (for securing NS-A16 speakers to walls)

NOTE: If you are unsure of how to securely and safely fasten

speakers to a wall, please contact a reliable source about the best

type of hardware for your particular wall's construction.

Secure installation is the purchaser's responsibility.

TOOLS AND PARTS

The YHT-33 Home Theater package consists of (1)

HTR-5240 A/V receiver with (1) universal remote

control, (1) DV-S5270 DVD Player, (4) 2-way NS-A16

front/rear speakers, (1) NS-AC16 2-way center-

channel speaker, 100' of speaker wire, (1) SW-201

Powered Subwoofer, and related owner’s manuals.

You will also need:

SPEAKER SYSTEM PLAN

NS-A16

(left side, same height as TV)

NS-A16

(right side, same height as TV)

L = Left Channel

R = Right Channel

C = Center Channel

S = Surround Channel

NS-A16

(on stand or wall, at least

ear level or preferably higher)

NS-A16

(on stand or wall, at least

ear level or preferably higher)

8'~10' apart

NS-AC16

(on top or below TV)

6'~8' apart

Couch

Listening Area

Sub

SW-201 Subwoofer (on floor)

YHT-33 QUICK-CONNECT GUIDE

CONNECTING AUDIO COMPONENTS

NOTE: For your convenience, the Yamaha HTR-5240 receiver is equipped with

two switched ac outlets (100 W max.). If desired, use them to power on connected

components (e.g., CD player or turntable) each time the receiver is turned on.

However, do not use them for components equipped with clocks (e.g.,VCR).

Yamaha HTR-5240 Receiver (Rear Panel)

L Out

Ground

Use RCA Audio Cables For Audio Interconnections

R Out

L Out R Out

L Out* R Out*

* Use Playback Or Line Out

** Use Line In

L In** R In**

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Turntable

CD Player (Changer)

Cassette Deck

YHT-33 QUICK-CONNECT GUIDE

CONNECTING THE YHT-33 SPEAKERS

NS-AC16

(Center Channel)

NS-A16

(Front Right Ch.)

NS-A16

(Front Left Ch.)

NS-A16

(Surround Right)

NS-A16

(Surround Left)

Yamaha HTR-5240

A/V Receiver

(Rear Panel

Speaker Terminals)

Set IMPEDANCE Selector

to right position

Clear

Wire

Clear/Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/Stripe

Wire

Clear

Wire

Clear/

Stripe

Wire

Clear

Wire

Clear/Stripe

Wire

−

−−

−

Cntr R

Surround

Main Spkrs.

/MONO

VOLUME

INPUT1

FROMAMPLIFIER

OUTPUT

TOSPEAKERS

INPUT2

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

OFF

POWER

0I0

Subwoofer Wiring

SW-201

(Subwoofer)

To AC Outlet

INPUT2 /MONO

RCA Audio Cable

(included)

Speaker

Wiring

BLK TERMINAL = (–)

❶

Strip 1⁄4" off ends of speaker wires

❷Push and hold down levers

❸Insert speaker wires and

release levers

❶

❸

❷

RED TERMINAL = (+)

YHT-33 QUICK-CONNECT GUIDE

INITIAL ADJUSTMENT OFTHE SW-201 SUBWOOFER

To achieve the optimum volume balance between the

SW-201 Subwoofer and the NS-A16 Main Speakers,

perform the following procedure:

1. Insert the SW-201’s power plug into a nearby ac outlet.

2. Set the SW-201’s VOLUME control to 0 (minimum

setting), the AUTO STANDBY switch to HIGH, and

the HIGH CUT switch to LOW.

3. Press the SW-201’s POWER switch to ON and power

on all other components.

INPUT1

FROM AMPLIFIER

OUTPUT

TO SPEAKERS

INPUT2 /MONO

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

OFF

POWER

VOLUME

0I0

HIGH CUT

LOW

HIGH

To AC Outlet

SW-201 Subwoofer

(Rear Panel)

AUTO

STANDBY

STANDBY-RED

ON-GREEN

OFF

LOW

HIGH

VOLUME

0I0

HIGH CUT

LOW

HIGH

❷

❸

❶

OFF

POWER

4. Play an audio source and adjust the HTR-5240’s

VOLUME control to a desired listening level.

5. On the SW-201, increase the volume gradually to

adjust the balance the volume between the SW-201

Subwoofer and the NS-A16 Main Speakers.

NOTE: Once the volume is balanced between the

subwoofer and the main speakers, you can adjust the

volume of your whole sound system by using the

HTR-5240's VOLUME control.

YHT-33 QUICK-CONNECT GUIDE

CONNECTING VIDEO CABLES FOR VIDEO COMPONENTS

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch

(on the VCR) to Line position to record from another source

connected to the Yamaha HTR-5240 receiver.

Yamaha HTR-5240 Receiver (Rear Panel)

SAT/D-TV MONITOR

OUT

IN OUT

VCR

VIDEO SIGNAL

VIDEO

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Use RCA Video Cables And Jacks For Video Interconnections

Optional 75-ohm

Coaxial Cable

Hi-Fi Stereo VCR

Satellite Receiver

(or Video Game)

Video In Video Out

ANT In

ANT Out

(RF Out)

Video In

Monitor/TV

Video Out

YHT-33 QUICK-CONNECT GUIDE

CONNECTING THE YAMAHA DV-S5270 DVD PLAYER

*Analog Audio Out connections are required for playback of CD-Rs and

recording from DVD to VCR.

Dolby Digital is a trademark of Dolby Laboratories Licensing Corporation.

DTS is a trademark of DTS Technology LLC.

Yamaha HTR-5240 Receiver (Rear Panel)

AUDIO OUT

VIDEO OUT

VIDEO

S VIDEO

COMPONENT VIDEO

OPTICAL

PCM/ DIGITAL

DTS

SUBWOOFER

AC IN

Use an RCA Video Cable And Jacks

For Video Interconnections

Optical-Fiber Cable (included)

Yamaha DV-S5270 DVD Player

(Rear Panel)

To AC Outlet

AC Line Cord

(included)

DVD/LD

❶Remove dust cap ❷Align plug with terminal

and insert cable

NOTES:

• On both ends of the optical-fiber cable, align and firmly insert each

plug into its mating terminal.

• During connection, do not bend the optical-fiber cable.

• Keep dust caps and reattach them if terminals are not used.

NOTE: Use the optical connection to

enjoy 5.1-channel surround sound

found on DVDs recorded in the Dolby

Digital or DTS Digital Surround format.

Connecting Optical-Fiber Cable

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

YHT-33 QUICK-CONNECT GUIDE

CONNECTING AUDIO CABLES FOR VIDEO COMPONENTS

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch (on the VCR) to Line

position to record from another source connected to the Yamaha HTR-5240 receiver.

Yamaha HTR-5240 Receiver (Rear Panel)

SAT/D-TV

VCR

IN OUT

AUDIO SIGNAL

Audio

L Out

Audio

R Out

Audio

L In

Audio

R In

Use RCA Audio Cables And Jacks

For Audio Interconnections

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

Audio L Out

Audio R Out

Hi-Fi Stereo VCR

Satellite Receiver

(or Video Game)

YHT-33 QUICK-CONNECT GUIDE

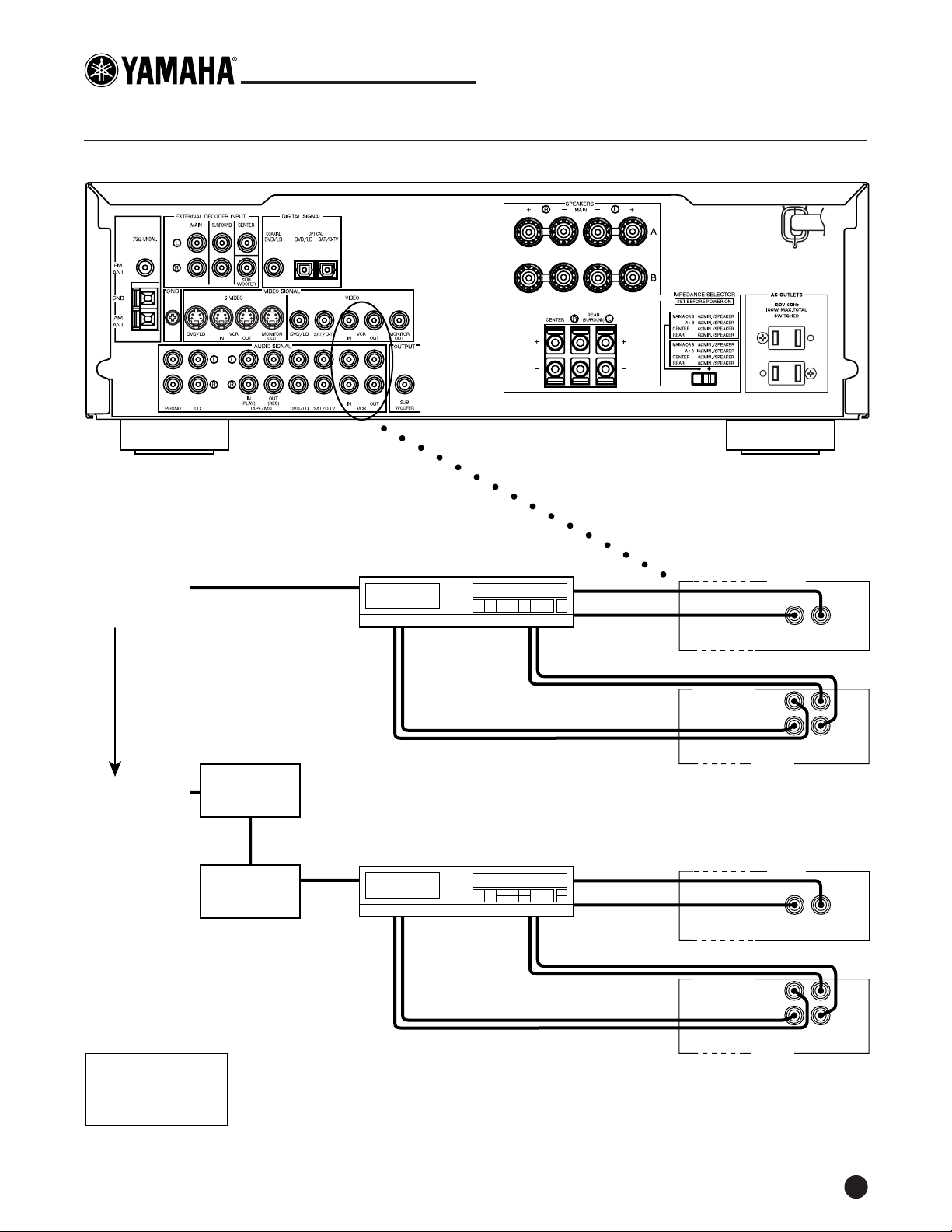

CABLE HOOK-UP(BASIC AND PREMIUM CHANNELS)

NOTE: When using a hi-fi stereo VCR, set the Tuner/Line switch

(on the VCR) to Line position to record from another source

connected to the Yamaha HTR-5240 receiver.

Yamaha HTR-5240 Receiver (Rear Panel)

IN OUT

VCR

VIDEO SIGNAL

VCRIN OUT

AUDIO SIGNAL

IN OUT

VCR

VIDEO SIGNAL

VCRIN OUT

AUDIO SIGNAL

Audio

L In

Audio

R In

Audio

L Out

Audio

R Out

RCA Audio Cables

ANT In Video In

Video Out

Basic Cable

(From Wall Jack)

ANT In

Premium Cable

(From Wall Jack)

(Channel 3 or 4

Output)

RCA Cable Color Codes

Yellow = Video

White = Left Audio

Red = Right Audio

RCA Video Cables

Audio

L In

Audio

R In

Audio

L Out

Audio

R Out

RCA Audio Cables

Video In

Video Out

RCA Video Cables

Hi-Fi Stereo VCR

(Tuner set to Channel 3 or 4)

Descrambler

Converter

Box

YHT-33 QUICK-CONNECT GUIDE

PROGRAMMING THE UNIVERSAL REMOTE CONTROL

SETTING UPCOMPONENTS

Perform the procedure for each component you own.

At the end of each step 5, the remote control’s processor

will automatically assign the selected component’s

control functions to its own buttons, ready for your use.

SETTING UPYOUR TV

1. Turn on the television set and look up a setup code

for your brand of television (codes are located at the

back of the HTR-5240 Owner’s Manual).

2. On the remote control, press TV.

3. Press and hold both VOLUME buttons at least four

seconds until the indicator LED flashes twice.

4. Using the keypad, enter the four-digit setup code.

The indicator LED will flash twice after your entry.

If the LED did not flash twice, repeat steps 3 and 4.

5. To verify the code works, aim the remote control at

the television set, press TV, and then press POWER.

The television set should turn off. If it doesn’t

respond, use another code for the same manufac-

turer and repeat steps 3 through 5.

The YHT-33 Home Theater package includes a univer-

sal remote control. It comes pre-programmed with

factory codes to control your HTR-5240 receiver and

most Yamaha audio components. To program other

brands of components (i.e., TV, VCR, etc.) or if your

Yamaha unit does not respond, you will need to

program the remote control with the manufacturer’s

codes (listed on the back pages of the HTR-5240

Owner’s Manual).

NOTE: The universal remote control is designed to control

most major brands of audio and video components. For other

units, use the original remote control supplied with the product.

POWER ON

1. Load the supplied batteries into the remote control.

2. Aim the remote control at the receiver, press AMP/

TUNER, and then press POWER.

3. The receiver should turn on.

Indicator LED

Use Keypad

To Enter

Setup Codes

Turns On

Component’s

Power

Component

Selector

Buttons

Use To Enter

Setup Mode

Use To Enter

Setup Mode

Table des matières

Autres manuels Yamaha Système de haut-parleurs

Yamaha

Yamaha NS125FP Manuel utilisateur

Yamaha

Yamaha YHT-17 Instructions de montage

Yamaha

Yamaha NS-AW190 Manuel utilisateur

Yamaha

Yamaha Soavo-1 Piano Black Manuel utilisateur

Yamaha

Yamaha NS-P7900 Manuel utilisateur

Yamaha

Yamaha NS-10MM Manuel utilisateur

Yamaha

Yamaha S250X Manuel utilisateur

Yamaha

Yamaha NS-M515 Manuel utilisateur

Yamaha

Yamaha S12 Manuel utilisateur

Yamaha

Yamaha Soavo-900C Manuel utilisateur

Yamaha

Yamaha NS-C444 - Center CH Speaker Manuel utilisateur

Yamaha

Yamaha NS-M525 - Left / Right Rear CH Speakers Manuel utilisateur

Yamaha

Yamaha NS-10MM Manuel utilisateur

Yamaha

Yamaha Digital Sound Projector YSP-900 Manuel utilisateur

Yamaha

Yamaha YSP-2700 Manuel utilisateur

Yamaha

Yamaha Soavo-900M Manuel utilisateur

Yamaha

Yamaha YST-MS55D Manuel utilisateur

Yamaha

Yamaha YAS-109 Manuel utilisateur

Yamaha

Yamaha NS-10M Manuel utilisateur

Yamaha

Yamaha Waveforce WF206 Manuel utilisateur

Yamaha

Yamaha ATS-1060 Manuel utilisateur

Yamaha

Yamaha DHR Series Manuel utilisateur

Yamaha

Yamaha NS-C444 - Center CH Speaker Manuel utilisateur

Yamaha

Yamaha VC Series Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur

TCL

TCL 6100 Series Manuel utilisateur
