Yamaha Card Filer Manuel utilisateur

Contents

What is the Card Filer?..................................2

Starting the Card Filer...................................3

Top display......................................................4

Menu Bar ........................................................4

MIDI Device Setup .........................................5

MIDI Port Setup (Windows).......................5

OMS Settings (Macintosh) ........................6

Receiving Files ...............................................7

Transmitting Files...........................................9

Controls ........................................................11

Deleting files and folders.........................11

Renaming files and folders......................12

Converting SMFs .........................................13

Error Messages............................................15

• Click on the red-colored text to jump to the related item in this manual.

• The software and this owner’s manual are exclusive copyrights of Yamaha Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any means is

expressly forbidden without the written consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the software and

documentation and cannot be held responsible for the results of the use of this manual and the

software.

• Copying of the commercially available music sequence data and/or digital audio files is strictly

prohibited except for your personal use.

• The company names and product names in this Owner’s Manual are the trademarks or

registered trademarks of their respective companies.

• The screen displays as illustrated in this Owner’s Manual are for instructional purposes, and

may appear somewhat different from the screens which appear on your computer.

This owner’s manual assumes that you are already familiar with basic Windows/Macintosh

operation. If you are not,please refer to the owner’s manual which came with your

Windows/Mac OS software before using Card Filer.

For information about hardware requirements, the interconnection of devices and the

installation of the Card Filer software, refer to the separate “Installation Guide” as well as the

Owner’s Manual for the respective MIDI device.

cf_e.qx 6/25/99 6:05 PM Page 1

What is the Card Filer?

With the Card Filer, you can receive and transmit data between your computer and your MIDI

instrument. You can also use it to manage the files stored on your MIDI instrument’s Memory Card

via your computer. The card filer can perform the following four functions.

Receive MIDI instrument Data

You can save your MIDI instrument’s Memory Card data on your computer (Page 8).

Transmit MIDI instrument Data

You can transmit data from your computer to your MIDI instrument’s Memory Card (Page 9).

Manage Files on Memory Card

You can delete and rename files/folders on your MIDI instrument’s Memory Card using your

computer (Page 11).

abcd.mid

Delete

abcd.mid efgh.mid

Rename

MUSIC SYNTHESIZER

Realtime Control

Extended Plug-in System

POWERCARDmLANMIDIHOSTSELECTTOHOSTBREATH

FOOT

SWITCH

FOOT

CONTROLLER

FOOT

VOLUME OUTIN THRU

SUSTAINPHONES INDIVIDUAL OUTPUT

OUTPUT

MONO R

DINPUT

GAIN

DOWN UP

LINE1MIC

LINE2

CUTOFF RESONANCE

ATTACK

1 2

DECAY SUSTAIN

CONTROL PAN

RELEASE

REVERB CHORUS

VELRATE

OFF

PLAY

STOP

REC

OFF

HOLD

PITCH

VOICE PERFORM

SHIFT PAGE PART

ELEMENT

DEC

NO INC

YES

EXIT ENTER

BYPASS

MASTER

KEYBOARD

MEMORY

BANK

PROGRAM

PART

PRE1 A B C D E F G H

1 2 3 4 1 2 3 4

1 2 3 4 5 6 7 8

GENERAL

ELEMENT SELECT ELEMENT ON

OFF

QED ARPEGGIO CONTROL COMLFO EFFECT

9 10 11 12 13 14 15 16

OSC PITCH FILTER AMPLITUDE LFO EQ PLG

INT

DRUM

EXT

PLG1 PLG2

PRE2

DATA

UTILITY CARD

EDIT

COMPARE

JOB

STORE

MODE

TEMPO

FILTER EFFECT

SCENE MIXER

PORTAMENTO PHRASECLIP

SEQPLAY

ARPEGGIO

OCTAVE

VOLUME

SYSTEM A B C 1 2 DRUM

Memory Card

CS6x etc...Computer

Transmit

MUSIC SYNTHESIZER

Realtime Control

Extended Plug-in System

POWERCARDmLANMIDIHOSTSELECTTOHOSTBREATH

FOOT

SWITCH

FOOT

CONTROLLER

FOOT

VOLUME OUTIN THRU

SUSTAINPHONES INDIVIDUAL OUTPUT

OUTPUT

MONO R

DINPUT

GAIN

DOWN UP

LINE1MIC

LINE2

CUTOFF RESONANCE

ATTACK

1 2

DECAY SUSTAIN

CONTROL PAN

RELEASE

REVERB CHORUS

VELRATE

OFF

PLAY

STOP

REC

OFF

HOLD

PITCH

VOICE PERFORM

SHIFT PAGE PART

ELEMENT

DEC

NO INC

YES

EXIT ENTER

BYPASS

MASTER

KEYBOARD

MEMORY

BANK

PROGRAM

PART

PRE1 A B C D E F G H

1 2 3 4 1 2 3 4

1 2 3 4 5 6 7 8

GENERAL

ELEMENT SELECT ELEMENT ON

OFF

QED ARPEGGIO CONTROL COMLFO EFFECT

9 10 11 12 13 14 15 16

OSC PITCH FILTER AMPLITUDE LFO EQ PLG

INT

DRUM

EXT

PLG1 PLG2

PRE2

DATA

UTILITY CARD

EDIT

COMPARE

JOB

STORE

MODE

TEMPO

FILTER EFFECT

SCENE MIXER

PORTAMENTO PHRASECLIP

SEQPLAY

ARPEGGIO

OCTAVE

VOLUME

SYSTEM A B C 1 2 DRUM

Memory Card

CS6x etc...Computer

Receive

cf_e.qx 6/25/99 6:05 PM Page 2

SMF Format Conversion

You can convert Standard MIDI Files on your computer from Format 1 to Format 0 so that they

can be played back on your MIDI instrument (Page 13).

Starting the Card Filer

nYou will get an error message if your computer’s MIDI driver has not been properly installed or if your computer and

MIDI instrument are not interconnected correctly. For details about Error Messages, see page 15.

Once you have connected your MIDI instrument to your computer and installed the Card Filer

software, you are ready to start using the Card Filer.

On Windows

Click [Start], go to Program Files →YAMAHA Card Filer → Card Filer and click the “Card Filer” icon.

On Macintosh

nIf you are using the Card Filer on a Macintosh computer, open the “Chooser” from the Apple menu and turn off

“Apple Talk.”

Open the “YAMAHA Card Filer” folder and double-click the “Card Filer” icon.

SMF Format1

1 Track

2 Track

3 Track

4 Track

16 Track

SMF Format0

1~16 Track

Exchange

cf_e.qx 6/25/99 6:05 PM Page 3

Top display

When you start the Card Filer, the “top display” will appear as shown below.

1Opens the “Receive” window where you can transfer data from your MIDI instrument’s Memory

Card to your computer, then save it.

2Opens the “Transmit” window where you can transfer data from your computer to your MIDI

instrument.

3Opens the “Control” window where you can delete and rename files/folders on your MIDI

instrument.

4Opens the “SMF Convert” window where you can convert SMF files on your computer from

Format 1 to Format 0.

Menu Bar

File

Transfer

Setup

Help

Opens the Card Filer Manual PDF file.

Displays the Card Filer’s version, etc.

Opens the “MIDI Port Setup” window

where you can specify your computer’s

“MIDI IN Port” and “MIDI OUT Port” used to

communicate with your MIDI instrument.

Same as the [Receive] button of the top display.

Same as the [Transmit] button of the top display.

Same as the [Control] button of the top display.

Same as the [SMF Convert] button of the top display.

Quits the Card Filer application.

cf_e.qx 6/25/99 6:05 PM Page 4

MIDI Device Setup

You will need to specify the MIDI device drivers through which your computer will

communicate with your MIDI instrument. Follow the procedure below.

nIf you are using a Macintosh, refer to the section “OMS Settings” on page 6.

MIDI Port Setup (Windows)

1.Select “MIDI Port Setup” from the “Setup” menu.

The “MIDI Port Setup” dialog box is displayed.

2.Click on each of the “▼” buttons for the “MIDI IN Port” or “MIDI OUT

Port”, select the MIDI driver from the drop-down list that is displayed.

• If the MIDI instrument’s TO HOST terminal is connected directly to the computer’s serial port.

Select the “Yamaha CBX Driver” for the “MIDI IN Port”, and the “Yamaha CBX A Driver” for the

“MIDI OUT Port”.

• If the MIDI instrument’s MIDI ports are connected to the computer via a MIDI interface.

For both the “MIDI IN Port” and “MIDI OUT Port”, select the MIDI driver that is compatible with

the MIDI interface you are using.

nFor information about how to install YAMAHA CBX Driver, refer to the README file in the “Mididrv” folder of the

included CD-ROM.

3.Click [OK].

cf_e.qx 6/25/99 6:05 PM Page 5

OMS Settings (Macintosh)

The Card Filer software uses OMS (Open Music System) for MIDI input/output. To use the

Card Filer software, OMS must be installed beforehand.

nFor information about installing OMS, refer to the separate Installation Manual.

About OMS

Card Filer uses the OMS (Open Music System) to transfer MIDI data to an external MIDI

device. OMS is a system extension that goes in the Mac OS System folder, designed to

manage the MIDI data stream (input & output) in a computer, to enable MIDI data transfer

between MIDI software and hardware attached to the computer. OMS is a de facto standard

of the MIDI environment under the Mac OS, and various music software manufacturers have

released OMS-compatible sequencer and other software.

OMS has the following merits:

• As OMS-compatible MIDI applications communicate with various MIDI devices via OMS, it

is no longer necessary for you to set up multiple MIDI drivers for those applications. Thus,

you can avoid conflicts between different drivers with the same purpose (MIDI control).

• Once a Studio Setup is read in OMS, any OMS-compatible application will be aware of it,

even if you need to reconfigure the routing of the MIDI data stream or change the current

Studio Setup. OMS-compatible applications will commonly recognize the new

configuration.

• You can have different Studio Setups to choose one from,to switch to a different MIDI

routing (patches between MIDI devices and software) fast and easily.

• Every time the OMS Setup application is opened, any MIDI device connected to the

computer is automatically detected, and its icon appears with a current MIDI status

(channel number, port number, patches, etc.). Once devices are configured with OMS

Setup, however, you need not care too much about the status.

• OMS can drive various MIDI interfaces, including the standard type (16 channels) and the

multi-port type (16 channels per port). If you use a multi-port type, you can control over 16

channels simultaneously via OMS.

nFor more information about OMS features, see the READ ME file included with OMS.

Setting up OMS

Setup files for the CS6x, CS6R etc., have already been created for use with the Card Filer;

please use the appropriate file for your device. The following example is for the CS6x.

1. First, interconnect the “TO HOST” terminal of the CS6x and the Macintosh serial port, then

set the “Host Select” switch of the CS6x to “Mac.”

2. Double-click the “OMS Setup” icon in the “OMS Application” folder.

3. Choose “Open” from the “File” menu and select “CS6x-Modem” from within the “OMS

setup for YAMAHA” folder.

nIf you are using a computer with no modem port (such as the Performa series), look in the “CS6x-Printer”

folder instead.

4. Choose “Make Current” from the “File” menu. The setup for your CS6x is now saved as

the current studio setup.

5. Choose “Quit” from the “File” menu to close OMS Setup.

nThe Card Filer is not compatible with versions of OMS earlier than 2.0.

cf_e.qx 6/25/99 6:05 PM Page 6

OMS Port Setup

Having set up OMS, you now need to start up the Card Filer and set the OMS ports.

1. First, start up the Card Filer by double-clicking its icon.

nIf AppleTalk is enabled, you will get an alert message. Click “OFF.” It will take some time for AppleTalk to be

disabled.

2. Choose “OMS Port Setup” from the Card Filer’s “Setup” menu, then select the port

settings. In the following example, the tone generator is a CS6x and its settings are

applied to OMS.

MIDI In

Select “CS6x.”

MIDI Out

Select “CS6x.”

3. Click [OK] to close OMS Port Setup.

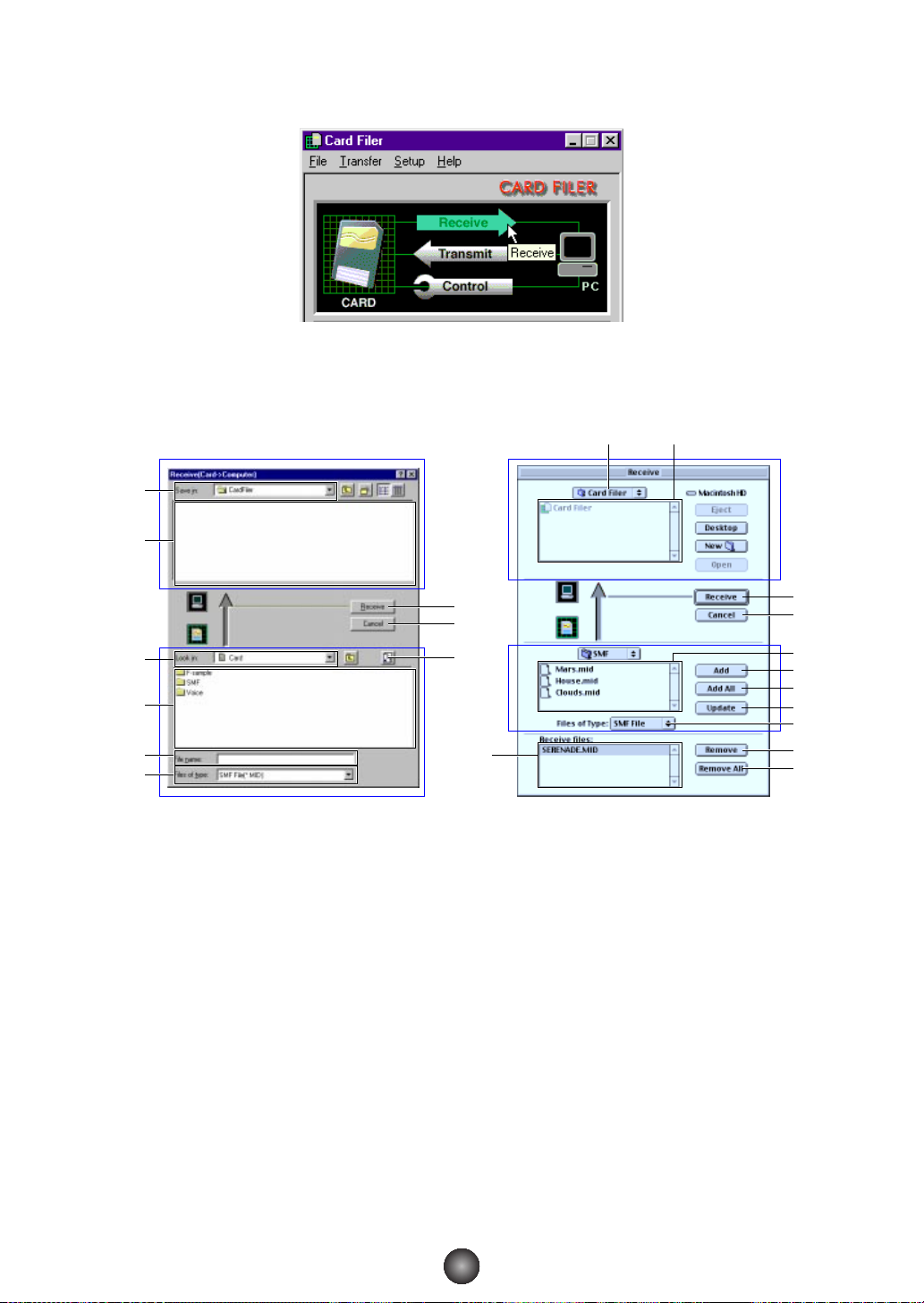

Receiving Files

You can save on your MIDI instrument’s Memory Card data on your computer.

nYou do not need to perform a bulk dump from your MIDI instrument.

MUSIC SYNTHESIZER

Realtime Control

Extended Plug-in System

POWERCARDmLANMIDIHOSTSELECTTOHOSTBREATH

FOOT

SWITCH

FOOT

CONTROLLER

FOOT

VOLUME OUTIN THRU

SUSTAINPHONES INDIVIDUAL OUTPUT

OUTPUT

MONO R

DINPUT

GAIN

DOWN UP

LINE1MIC

LINE2

CUTOFF RESONANCE

ATTACK

1 2

DECAY SUSTAIN

CONTROL PAN

RELEASE

REVERB CHORUS

VELRATE

OFF

PLAY

STOP

REC

OFF

HOLD

PITCH

VOICE PERFORM

SHIFT PAGE PART

ELEMENT

DEC

NO INC

YES

EXIT ENTER

BYPASS

MASTER

KEYBOARD

MEMORY

BANK

PROGRAM

PART

PRE1 A B C D E F G H

1 2 3 4 1 2 3 4

1 2 3 4 5 6 7 8

GENERAL

ELEMENT SELECT ELEMENT ON

OFF

QED ARPEGGIO CONTROL COMLFO EFFECT

9 10 11 12 13 14 15 16

OSC PITCH FILTER AMPLITUDE LFO EQ PLG

INT

DRUM

EXT

PLG1 PLG2

PRE2

DATA

UTILITY CARD

EDIT

COMPARE

JOB

STORE

MODE

TEMPO

FILTER EFFECT

SCENE MIXER

PORTAMENTO PHRASECLIP

SEQPLAY

ARPEGGIO

OCTAVE

VOLUME

SYSTEM A B C 1 2 DRUM

Memory Card

CS6x etc...Computer

Receive

cf_e.qx 6/25/99 6:05 PM Page 7

1.Open the “Receive (Card →Computer)” window.

Click [Receive] in the top display.

The “Receive (Card →Computer)” window will open.

Computer

1“Save in:”: Click this and choose the destination folder (to save to) from the drop-down list.

2File/folder list: This shows the contents of the destination folder.

Memory Card

3“Look in:”: Click this and choose the source folder (in the memory card) from the drop-down list.

4[Refresh (Update)]: Click this to update the contents of the current folder.

5File/folder list: This shows the contents of the source folder.

6“File name (Receive files)”: This shows the name of the file selected from the File/folder list.

7“Files of type:”: Click this and choose the file type from the drop-down list.

8[Receive]: Click this to begin receiving the file.

9[Cancel]: Click this to cancel the file transfer.

)[Add]: Choose a file and click this to add it to the “Receive files” list.

![Add All]: Click this to add all files in the current folder to the “Receive files” list.

@[Remove]: Choose a file and click this to remove a file from the “Receive files” list.

#[Remove All]: Click this to remove all files from the “Receive files” list.

Memory Card

1 2

)

6 6

Computer

Windows Macintosh

Memory Card

Computer

cf_e.qx 6/25/99 6:05 PM Page 8

2.Specify the file(s) and destination folder.

From the bottom list of MIDI instrument Memory Card files, choose the files you wish to transfer to

your computer.

3.Click [Receive] to begin transferring data from your MIDI instrument to

your computer.

You will see the following message after the transfer is complete:

4. Click [OK] to return to the “Receive” window.

Transmitting Files

You can transmit data from your computer to your MIDI instrument’s Memory Card.

1.Open the “Transmit (Computer →Card)” window.

Click [Transmit] in the top display.

The “Transmit (Computer →Card)” window will open.

MUSIC SYNTHESIZER

Realtime Control

Extended Plug-in System

POWERCARDmLANMIDIHOSTSELECTTOHOSTBREATH

FOOT

SWITCH

FOOT

CONTROLLER

FOOT

VOLUME OUTIN THRU

SUSTAINPHONES INDIVIDUAL OUTPUT

OUTPUT

MONO R

DINPUT

GAIN

DOWN UP

LINE1MIC

LINE2

CUTOFF RESONANCE

ATTACK

1 2

DECAY SUSTAIN

CONTROL PAN

RELEASE

REVERB CHORUS

VELRATE

OFF

PLAY

STOP

REC

OFF

HOLD

PITCH

VOICE PERFORM

SHIFT PAGE PART

ELEMENT

DEC

NO INC

YES

EXIT ENTER

BYPASS

MASTER

KEYBOARD

MEMORY

BANK

PROGRAM

PART

PRE1 A B C D E F G H

1 2 3 4 1 2 3 4

1 2 3 4 5 6 7 8

GENERAL

ELEMENT SELECT ELEMENT ON

OFF

QED ARPEGGIO CONTROL COMLFO EFFECT

9 10 11 12 13 14 15 16

OSC PITCH FILTER AMPLITUDE LFO EQ PLG

INT

DRUM

EXT

PLG1 PLG2

PRE2

DATA

UTILITY CARD

EDIT

COMPARE

JOB

STORE

MODE

TEMPO

FILTER EFFECT

SCENE MIXER

PORTAMENTO PHRASECLIP

SEQPLAY

ARPEGGIO

OCTAVE

VOLUME

SYSTEM A B C 1 2 DRUM

Memory Card

CS6x etc...Computer

Transmit

cf_e.qx 6/25/99 6:05 PM Page 9

Computer

1“Look in:”: Click this and choose the source folder (to send from) from the drop-down list.

2File/folder list: This shows the contents of the source folder.

3“File name (Transmit Files):”: This shows the name of the file selected from the File/folder list.

4“Files of type:”: Click this and choose the file type from the drop-down list.

Memory Card

5“Save in:”: Click this and choose the destination folder (to save to) from the drop-down list.

6[Refresh (Update)]: Click this to update the contents of the current folder.

7File/folder list: This shows the contents of the destination folder.

8[Transmit]: Click this to begin transmitting the file.

9[Cancel]: Click this to cancel the file transfer.

)[Add]: Choose a file and click this to add it to the “Transmit files” list.

![Add All]: Click this to add all files in the current folder to the “Transmit files” list.

@[Remove]: Choose a file and click this to remove a file from the “Transmit files” list.

#[Remove All]: Click this to remove all files from the “Transmit files” list.

2.Specify the file(s) and destination folder.

From the top list of files on your computer, choose those that you wish to transfer to your MIDI

instrument Memory Card.

3.Click [Transmit].

You will see the following message after the transfer is complete.

4. Click [OK] to return to the “Transmit” window.

1 2

)

Windows Macintosh

cf_e.qx 6/25/99 6:05 PM Page 10

Table des matières

Autres manuels Yamaha Logiciel

Yamaha

Yamaha M7CL StageMix V1.5 Manuel utilisateur

Yamaha

Yamaha MOTIF RACK Music System Manuel utilisateur

Yamaha

Yamaha S08 Voice Editor Manuel utilisateur

Yamaha

Yamaha Acoustic Manuel utilisateur

Yamaha

Yamaha PM1D Manager V2 Guide d'installation

Yamaha

Yamaha MOTIF RACK XS Editor Manuel utilisateur

Yamaha

Yamaha DME Designer Manuel utilisateur

Yamaha

Yamaha S70 XS Manuel utilisateur

Yamaha

Yamaha Add-On Effects Manuel utilisateur

Yamaha

Yamaha LS9 Editor Manuel utilisateur

Yamaha

Yamaha mLAN mLAN Driver Manuel utilisateur

Yamaha

Yamaha YC-3B Manuel utilisateur

Yamaha

Yamaha 02R96 Version 2 Manuel

Yamaha

Yamaha MOTIF6 Voice Editor Manuel utilisateur

Yamaha

Yamaha LS9-16 Manuel utilisateur

Yamaha

Yamaha CL3 Manuel utilisateur

Yamaha

Yamaha File Utility Manuel utilisateur

Yamaha

Yamaha mLAN Patchbay Manuel utilisateur

Yamaha

Yamaha Audio Manuel utilisateur

Yamaha

Yamaha CobraNet MY16-CII Manuel utilisateur

Yamaha

Yamaha mLAN Driver Manuel utilisateur

Yamaha

Yamaha M7CL-32 Manuel utilisateur

Yamaha

Yamaha MagicStomp Manuel utilisateur

Yamaha

Yamaha DME-N Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur
