0.768K-702 Printed in Japan ’02.02

EG 011621

ELECTRIC BASS

HAMAMATSU, JAPAN

CONTENTS

OVERALL ASSEMBLY ............................................ 2

CIRCUIT DIAGRAM .................................................. 6

WIRING .................................................................... 6

SPECIFICATIONS ................................................. 7

This document is printed on chlorine free (ECF) paper with soy ink.

WARNING : CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/

electronic and/or plastic (Where applicable) components may also contain traces of chemicals

found by the California Health and Welfare Agency (and possibly other entities) to cause cancer

and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS INYOUR

MOUTH FOR ANY REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not

inhale solder fumes or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product,

wash your hands before handling food.

BB404/BB405

BB 405

SERVICE MANUAL

BB404/BB405

A01b

A seal is attached

on the rear of the neck.

BB 404

E01 E04

E10

E02 E04

E05 E06

E07

E21

E11

A01

E25 E26

E27

D01

E12

E11

G03

G04G01

E25 E26 E27

E28

F01

E31

E09

E33

F01a

F01e F01f F01d

G08

G09G06

E19

E18 REAR VOLUME: 15A 500KΩ

MASTER TONE: 05A 250KΩ

E28

F01a

F01e F01f F01d

FRONT VOLUME: 15A 500KΩ

F12

F12a

E28

F01b

F01e F01f F01c F01d

F12b F12c

E08

OVERALL ASSEMBLY

Jack Installation

F12

F12b

F12

F12a

F12c

Bridge Assembly: Diecast (QC347700)

E18

B01

B03

B02

BB404

BB404/BB405

: New Parts RANK: Japan only

OVERALL ASSEMBLY BB404

A01 Neck Assembly YNS

A01 Neck Assembly WR

A01 Neck Assembly BL

A01b Seal (QC67620)

D01 Body

E01 Tuning Machine Assembly RM1243C (Chrome) 2 09

E02 Tuning Machine Assembly RM1243CL (Chrome) 2 09

E04 Round Head Wood Screw 2.4X10 FCM33G Chrome 4 01

E05 String Guide Chrome 05

E06 Spacer Black 01

E07 Round Head Wood Screw 2.7X20 FCM33G Chrome 02

E08 Rod Cover Black 03

E09 Oval Head Wood Screw 2.1X10 FCM3BL Black 01

E10 Nut Urea 40mm (Ivory) 07

E11 Neck Plate Chrome 03

E12 Oval Head Tapping Screw 4.0X45 FNM33G Nickel 4 01

E18 Bridge Assembly Diecast (Chrome) 10

E19 Oval Head Tapping Screw 3.0X25 FNM33G Nickel 4 04

E21 Strings H4030 1set (QC35100)

E25 Strap Button ST-type (Chrome) 2 04

E26 Oval Head Tapping Screw 3.0X25 FNM33G Nickel 2 04

E27 Spacer Felt (Black) 201

E28 Knob Black

FRONT/REAR VOLUME, M.TONE

303

E31 Back Cover Electrical (Black) 05

E33 Oval Head Wood Screw 2.7X13 FCM3BL Black 4 03

F01 Electrical Unit (QC26630)

F01a Variable Resistor 15A 500K ohm

FRONT VOLUME,REAR VOLUME

203

F01b Variable Resistor 05A 250K ohm MASTER TONE 03

F01c Mylar Capacitor 0.047uF 50 J 01

F01d Hexagonal Nut 8S with Volume 3

F01e Flat Washer 8S with Volume 3

F01f Toothed Lock Washer 8S with Volume 3

F12 Jack Gold 07

F12a Hexagonal Nut

F12b Toothed Lock Washer

F12c Rubber Ring

G01 Pickup Assembly S/C KPBO (Black) FRONT

G03 Pan Head Tapping Screw 2.6X35 FCM3BL Black 4 02

G04 Pickup Cushion 85X17X15 02

G06 Pickup Assembly S/C KPBO (Black) REAR

G08 Pan Head Tapping Screw 2.6X35 FCM3BL Black 4 02

G09 Pickup Cushion 85X17X15 02

H01 Accessory Unit G-1 1set 07

Cord D 05

Wrench #1.5

Wrench #5

Bridge Assembly Diecast (Chrome) 10

B01 Bridge Base Chrome 06

B02 Bridge Piece Assembly 1,2 (Chrome) 1,2 Strings 2 05

B03 Bridge Piece Assembly 3,4 (Chrome) 3,4 Strings 2 05

AAX33620

AAX33630

AAX33640

QC207000

QC236900

EA620040

VB518600

VJ382000

03706370

CB821460

03706220

CB821090

AA819690

EN240060

QC347700

EN230140

BB801510

EN230140

VB793700

CB807760

CB809560

EB620020

HS120070

HS120100

UA154470

QA209900

QC670100

VJ388800

CB815450

QC670200

VJ388800

CB815450

QC354000

QA262600

QC347700

QC347900

NX818300

NX818310

REF NO.

PART NO. DESCRIPTION REMARKS

QTY RANK

BB404

BB404/BB405

A01b

A seal is attached

on the rear of the neck.

BB 405

E01 E04

E10

E02 E04

E05 E06

E07

E22

E21

E11

A01

E25 E26

E27

D01

E12

E11

G03

G04G01

E25 E26 E27

E28

F01

E31

E09 E33

F01a

F01e F01f F01d

G08

G09G06

E19

E18

E20

REAR VOLUME: 15A 500KΩ

MASTER TONE: 05A 250KΩ

E28

F01a

F01e F01f F01d

FRONT VOLUME: 15A 500KΩ

F12

F12a

E28

F01b

F01e F01f F01c F01d

F12b F12c

E08

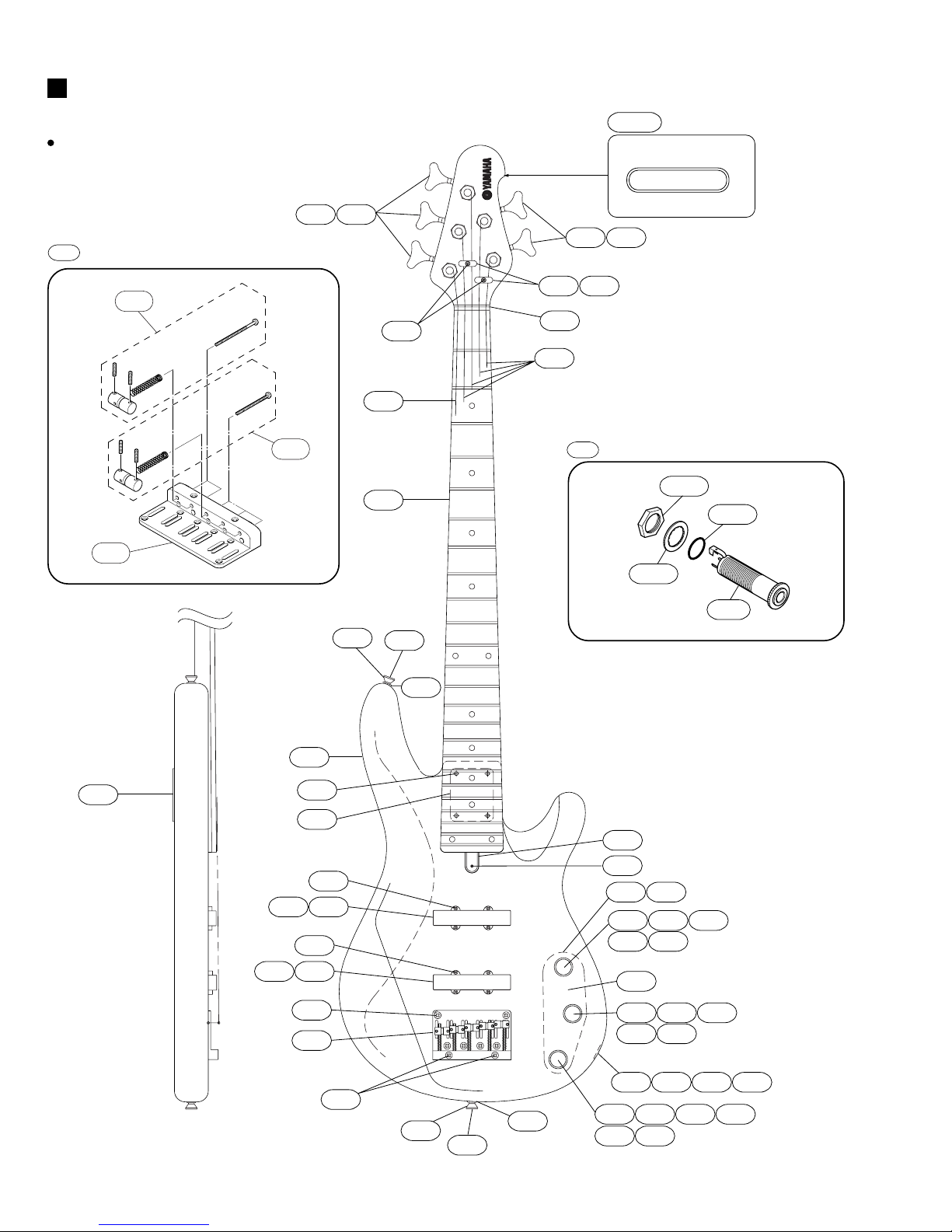

OVERALL ASSEMBLY

Bridge Assembly: Diecast (QC704900)

E18

Jack Installation

F12

B02

B03

B01

F12b

F12

F12a

F12c

BB405

BB404/BB405

: New Parts RANK: Japan only

OVERALL ASSEMBLY BB405

A01 Neck Assembly YNS

A01 Neck Assembly WR

A01 Neck Assembly BL

A01b Seal (QC67610)

D01 Body

E01 Tuning Machine Assembly RM1243C (Chrome) 3 09

E02 Tuning Machine Assembly RM1243CL (Chrome) 2 09

E04 Round Head Wood Screw 2.4X10 FCM33G Chrome 5 01

E05 String Guide Chrome 205

E06 Spacer Black 201

E07 Round Head Wood Screw 2.7X20 FCM33G Chrome 2 02

E08 Rod Cover Black 03

E09 Oval Head Wood Screw 2.1X10 FCM3BL Black 01

E10 Nut Urea 43mm (Ivory)

E11 Neck Plate Chrome 03

E12 Oval Head Tapping Screw 4.0X45 FNM33G Nickel 4 01

E18 Bridge Assembly Diecast FCM33G Chrome

E19 Oval Head Tapping Screw 4.0X25 FCM33G Chrome 6

E20 Oval Head Tapping Screw 4.0X40 FCM33G Chrome 2 01

E21 Strings H4030 1set(4pcs) (AA80931)

E22 Strings H4055 Low-B (QB00400)

E25 Strap Button ST-type (Chrome) 2 04

E26 Oval Head Tapping Screw 3.0X25 FNM33G Nickel 2 04

E27 Spacer Felt (Black) 201

E28 Knob Black

FRONT/REAR VOLUME, M.TONE

303

E31 Back Cover Electrical (Black) 05

E33 Oval Head Wood Screw 2.7X13 FCM3BL Black 4 03

F01 Electrical Unit (QC26630)

F01a Variable Resistor 15A 500K ohm

FRONT VOLUME,REAR VOLUME

203

F01b Variable Resistor 05A 250K ohm MASTER TONE 03

F01c Mylar Capacitor 0.047uF 50 J 01

F01d Hexagonal Nut 8S with Volume 3

F01e Flat Washer 8S with Volume 3

F01f Toothed Lock Washer 8S with Volume 3

F12 Jack Gold 07

F12a Hexagonal Nut

F12b Toothed Lock Washer

F12c Rubber Ring

G01 Pickup Assembly S/C KPBO (Black) FRONT

G03 Pan Head Tapping Screw 2.6X35 FCM3BL Black 4 02

G04 Pickup Cushion 85X17X15 02

G06 Pickup Assembly S/C KPBO (Black) REAR

G08 Pan Head Tapping Screw 2.6X35 FCM3BL Black 4 02

G09 Pickup Cushion 85X17X15 02

H01 Accessory Unit G-1 1set 07

Cord D 05

Wrench #1.5

Wrench #5

Bridge Assembly Diecast FCM33G Chrome

B01 Bridge Base FCM33G (Chrome)

B02 Bridge Piece Assembly 1,2 (Chrome) 1,2 Strings 2

B03 Bridge Piece Assembly 3,4,5 (Chrome) 3,4,5 Strings 3

REF NO.

PART NO. DESCRIPTION REMARKS

QTY RANK

AAX33650

AAX33660

AAX33670

QC207000

QC236900

EA620040

VB518600

VJ382000

03706370

CB821460

03706220

QC411200

AA819690

EN240060

QC704900

QC706800

VD762800

BB801510

EN230140

VB793700

CB807760

CB809560

EB620020

HS120070

HS120100

UA154470

QA209900

QC669900

VJ388800

CB815450

QC670000

VJ388800

CB815450

QC354000

QA262600

QC704900

QC705100

AAX33680

AAX33690

BB405

BB404/BB405

WIRING

CIRCUIT DIAGRAM

FRONT PICKUP

REAR PICKUP

FRONT VOLUME

REAR VOLUME

MASTER TONE OUTPUT

05A 250KΩ

15A 500KΩ

BPJJ-03

15A 500KΩ

0.047uF

FRONT PICKUP

Upper side: S (BB404)

N (BB405) Upper side: N (BB404)

S (BB405)

REAR PICKUP

to bridge ground

FRONT VOLUME

15A 500KΩREAR VOLUME

15A 500KΩ

MASTER TONE

05A 250KΩ

OUTPUT JACK

0.047uF

BB404/BB405

SPECIFICATIONS

STANDARD SPECIFICA TIONS

Scale Length..............................863.6mm

Body-Neck Construction ......... Bolt On

Length

BB404.......................................1141.0mm

BB405.......................................1159.5mm

Width

BB404......................................318.5mm

BB405......................................324.5mm

Net Weight

BB404......................................3.9kg

BB405......................................4.0kg

COLOR

Body

YNS .........................................Yellow Natural Satin

WR...........................................Wine Red

BL ............................................Black

Neck

YNS .........................................Yellow Natural Satin

WR...........................................Wine Red

BL ............................................Black

BODY

Material......................................Alder

Body Depth ...............................41mm

FINGERBOARD

Material......................................Rosewood

Fingerboard Width

BB404......................................0-F 40.0mm, 12-F 56.4mm

BB405......................................0-F 43.0mm, 12-F 65.0mm

No. of Frets................................24

NECK

Material......................................Maple

Neck Thickness ........................ 1-F 21.0mm, 12-F 24.4mm

PARTS

Hardware ...................................Chrome Plated

Nut..............................................Urea

Bridge

BB404......................................Korea: Diecast (Chrome)

BB405......................................Taiwan: Diecast (Chrome)

Strings

BB404......................................H4030

BB405......................................H4030 (4pcs)

H4055 (Low-B)

CONTROLS

Volume .......................................15A 500KΩx 2

Tone ...........................................05A 250KΩx 1

PICKUPS

Front/Rear ................................ Single Coil

Magnet

Front/Rear .............................Ferrite

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yamaha Guitare

Yamaha

Yamaha A1M Manuel utilisateur

Yamaha

Yamaha APX500II Manuel utilisateur

Yamaha

Yamaha FG720S Manuel utilisateur

Yamaha

Yamaha Acoustic Manuel

Yamaha

Yamaha Silent Guitar SLG-120NW Manuel utilisateur

Yamaha

Yamaha SA503 TVL Manuel utilisateur

Yamaha

Yamaha Electric Acoustic Guitar Manuel utilisateur

Yamaha

Yamaha APXT2EW Manuel utilisateur

Yamaha

Yamaha APXT1 Manuel utilisateur

Yamaha

Yamaha CGX171CCA Manuel utilisateur

Yamaha

Yamaha Silent Guitar SLG-100N Manuel utilisateur

Yamaha

Yamaha FX-310 Manuel utilisateur

Yamaha

Yamaha APX1200 Manuel utilisateur

Yamaha

Yamaha Electric Bass Manuel utilisateur

Yamaha

Yamaha CPX15II Manuel utilisateur

Yamaha

Yamaha SYSTEM60II Manuel utilisateur

Yamaha

Yamaha FX370C Manuel utilisateur

Yamaha

Yamaha SYSTEM71 Manuel utilisateur

Yamaha

Yamaha FG720S Manuel utilisateur

Yamaha

Yamaha Pacifica 112J Manuel utilisateur

Yamaha

Yamaha Monaural 2 Way Manuel utilisateur

Yamaha

Yamaha Electric Acoustic Guitar Manuel utilisateur

Yamaha

Yamaha Electric Acoustic Guitar Manuel utilisateur

Yamaha

Yamaha FG411SCE Manuel utilisateur

Manuels Guitare populaires d'autres marques

Squier

Squier Affinity Jazz Bass V Manuel utilisateur

Fender

Fender 72 Telecaster Manuel utilisateur

Gibson

Gibson Firebird X Manuel utilisateur

CARVIN

CARVIN P-SERIES Manuel utilisateur

Fender

Fender HEARTFIELD - FOR GUITARS AND BASSES Manuel utilisateur

Peavey

Peavey Acoustic Guitar Series Manuel utilisateur

Fender

Fender CY Manuel utilisateur

Zon

Zon Mosaic BB5 Manuel utilisateur

Warwick

Warwick RockBass Streamer LX Manuel utilisateur

Fender

Fender Deluxe Active Manuel utilisateur

Peavey

Peavey Spectrum Bass Manuel utilisateur

Warwick

Warwick Streamer LX Manuel utilisateur

Peavey

Peavey Nitro I Manuel utilisateur

Squier

Squier Frank Bello J Bass Manuel utilisateur

Fender

Fender Ritchie Blackmore Stratocaster Manuel utilisateur

Steinberger

Steinberger ZT3 TransTrem Manuel utilisateur

Peavey

Peavey T-45 Manuel utilisateur

Squier

Squier Squier Classic Vibe Manuel utilisateur
