Yamaha CJX-12S Manuel utilisateur

CJX-12S

SERVICE MANUAL

EG 011599

ELECTRIC ACOUSTIC GUITAR

HAMAMATSU, JAPAN

20010910-85000

SYSTEM40

WARNING : CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic

(Where applicable) components may also contain traces of chemicals found by the California Health and Welfare

Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS INYOUR MOUTH FOR ANY

REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or

expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands

before handling food.

NOTE: See parts list of the SENSOR PICKUP SYS-

TEM40 (EG 011428 ) service manual for de-

tails of the pre-amplifier assembly and the cir-

cuit board component parts.

CONTENTS

OVERALL ASSEMBLY ............................................. 2

This document is printed on chlorine free (ECF) paper with soy ink.

1.019K-95 Printed in Japan ’01.09

CJX-12S

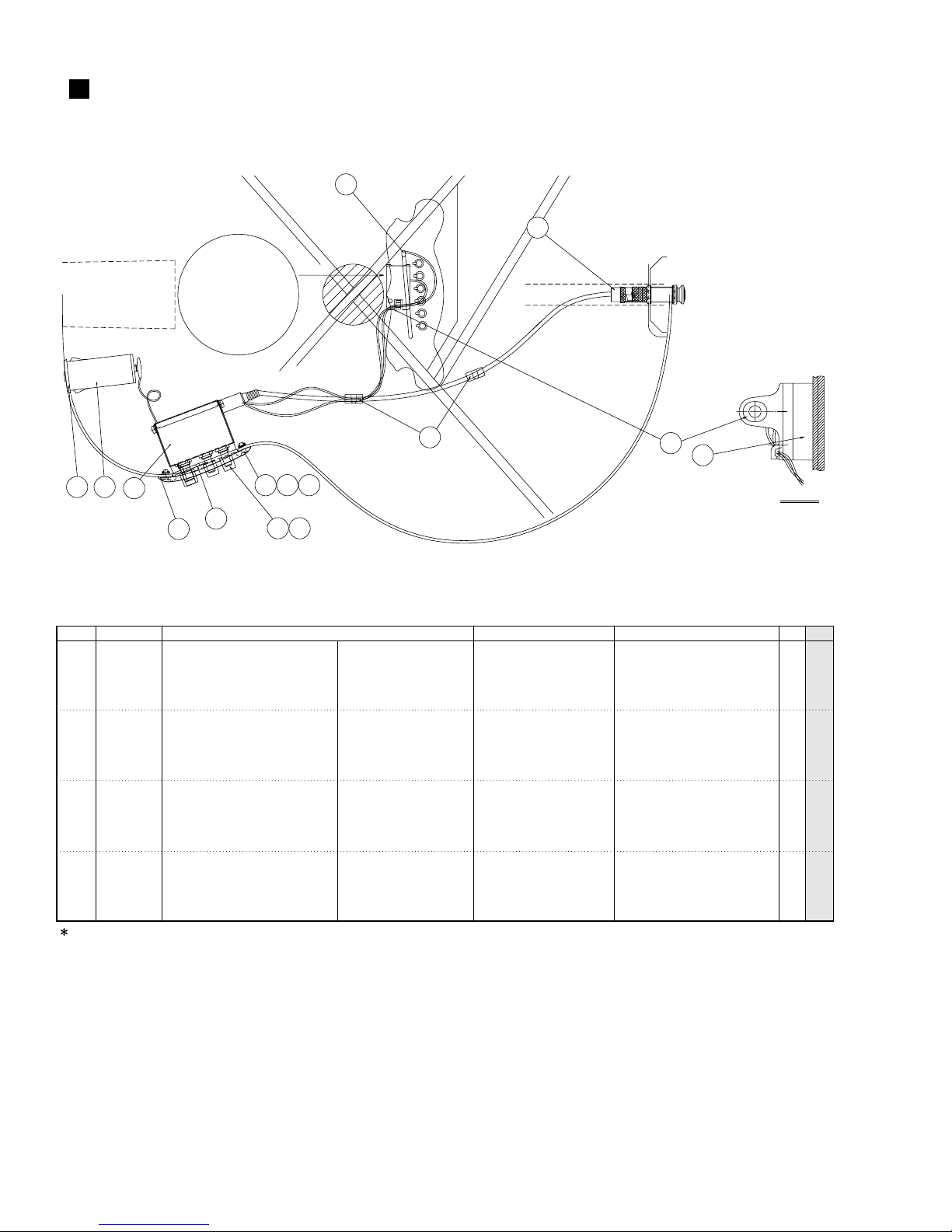

OVERALL ASSEMBLY

REF NO.

PART NO. DESCRIPTION REMARKS

QTY

: New Parts RANK: Japan only

OVERALL ASSEMBLY CJX-12S

1 Pickup Assembly M LR-Baggs 20

2 Pre-amplifier Assembly 26

3 PanelY 06

4 Pan Head Screw 3.0X10 Black 2

5 Floating Nut 0.6t 203

6 Truss Head Screw 2.5X6 Black 401

7 Battery Holder 05

8 Cushion 03

9 Cushion

10 Cord with End Pin Jack DIN type Output jack 12

11 Cord Clamp 202

12 Slide Knob MONO 306

13 Rotary Knob 405

14 Pickup Assembly N Condenser Mic 11

15 Spacer, Amplifier AMP-Z 1.0t 02

V3033600

V3117200

QC488100

QC271600

QC271500

VT805400

QC111900

QC112000

V7959000

V3117300

VC668400

QC187800

QC187700

V3033700

QC616300

RANK

NOTE: When the pre-amplifier assembly is installed in the body, a gap may be created between the pre-amplifier assembly and the body by the

difference in the form of the body. Only when this occurs, install the spacer of No.15with the pre-amplifier assembly so that a gap isn’t

created.

14 9

12 13

5 6

C view
