Yale Assure Lock SL Caractéristiques techniques

P/N YRD256-MNL-0003 Rev F

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT, VOIDING THE FACTORY WARRANTY AND COULD LEAD TO FAILURE OF THE PRODUCT TO PROVIDE ACCESS.

Yale Assure Lock

® ®

Key Free Touchscreen Deadbolt

Installation and Programming Instructions

(YRD256)

This manual will walk you through all the required steps to add your new

Yale Assure Lock SL to your door.

• Remove Existing Door Hardware

• Double Check Door Measurements

• Install your Assure Lock SL

• Program your Assure Lock SL

• Add your Assure Lock SL to your smart home system or August App*

Before you begin

for step-by-step installation

instructions & to register

your product

DOWNLOAD

THE BILT APP

Tools Needed

Standard

Phillips Head

Screwdriver

Utility Knife

Drill Wood Mortise

Chisel

Pencil

Tape

Measure

Level

Tools necessary only for new doors

or adjusting existing door

*If purchased with Yale Smart Module or Connected by August Kit

P/N YRD256-MNL-0003 Rev F

What's In The Box

Loosen screw to

remove cover

Key Free Touchscreen

Keypad

4 AA Batteries

Inside Lock Assembly

(Separates into 3 components)

Battery Cover

Inside Lock Mounting Plate

Installation Guide Envelope

(Includes this manual and

door checker with template)

Mounting Hardware

The mounting hardware box includes 16 components

Strike Plate

Adjustable

Deadbolt

OR OR

Screw Set D

Silver

for

2 to 2-1/4"

Door Thickness

Screw Set C

Black

Standard for

1-3/4"

Door Thickness

Strike Plate

and

Deadbolt Screws

Inside Lock

Screws Optional

Security

Strike Plate

Screws

Let's Get Started

Screw Set B

Green

for

1-3/8"

Door Thickness

Optional Yale

Smart Module

P/N YRD256-MNL-0003 Rev F

1Removing Existing Door Hardware

Do not discard old lock hardware until Assure Lock SL has been successfully installed.

Frame

P/N YRD256-MNL-0003 Rev F

New Door Marking Template

Door Checker

Check Door Measurements and

Make Adjustments If Needed

Use door checker from installation guide envelope to verify your door

measurements and make any needed adjustments.

With door checker, use template from installation guide envelope to prep a new door

that has not been predrilled for hardware.

Let's Get Started

Check

Your Door

Guide

Let's Get Started

New Door

Marking

Template

P/N YRD256-MNL-0003 Rev F

Actual Size

*Deadbolt latch position is based

on backset. Choose position

appropriate for your door.

Reference Door Checker

measurements E and F.

default

*2-3/8" Backset

*2-3/4" Backset

Installing Latch & Strike Plate

Press

Pull

Bolt must be in retracted

(unlocked) position. Note horizontal

orientation of tailpiece slot and UP

orientation of deadbolt latch. Backset

Actual Size

Choose

standard

strike plate

screws or

security

screws.

Actual Size

optional

Bolt must be

in retracted

(unlocked)

position.

P/N YRD256-MNL-0003 Rev F

4Installing Touchscreen Keypad

Outside of Door

Inside of Door

Bolt must be in retracted

(unlocked) position. Note

horizontal orientation of

tailpiece slot.

P/N YRD256-MNL-0003 Rev F

5Installing Inside Mounting Plate

Actual Size

Inside of Door

Make sure keypad

and mounting plate

are straight before

tightening screws.

Screw Set D

Silver

for

2 to 2-1/4"

Door Thickness

Screw Set C

Black

Standard for

1-3/4"

Door Thickness

Actual Size

Insert cable

through cable hole.

Choose through bolt appropriate for

your door thickness. Verify appropriate

through bolt with the door checker.

Screw Set B

Green

for

1-3/8"

Door Thickness

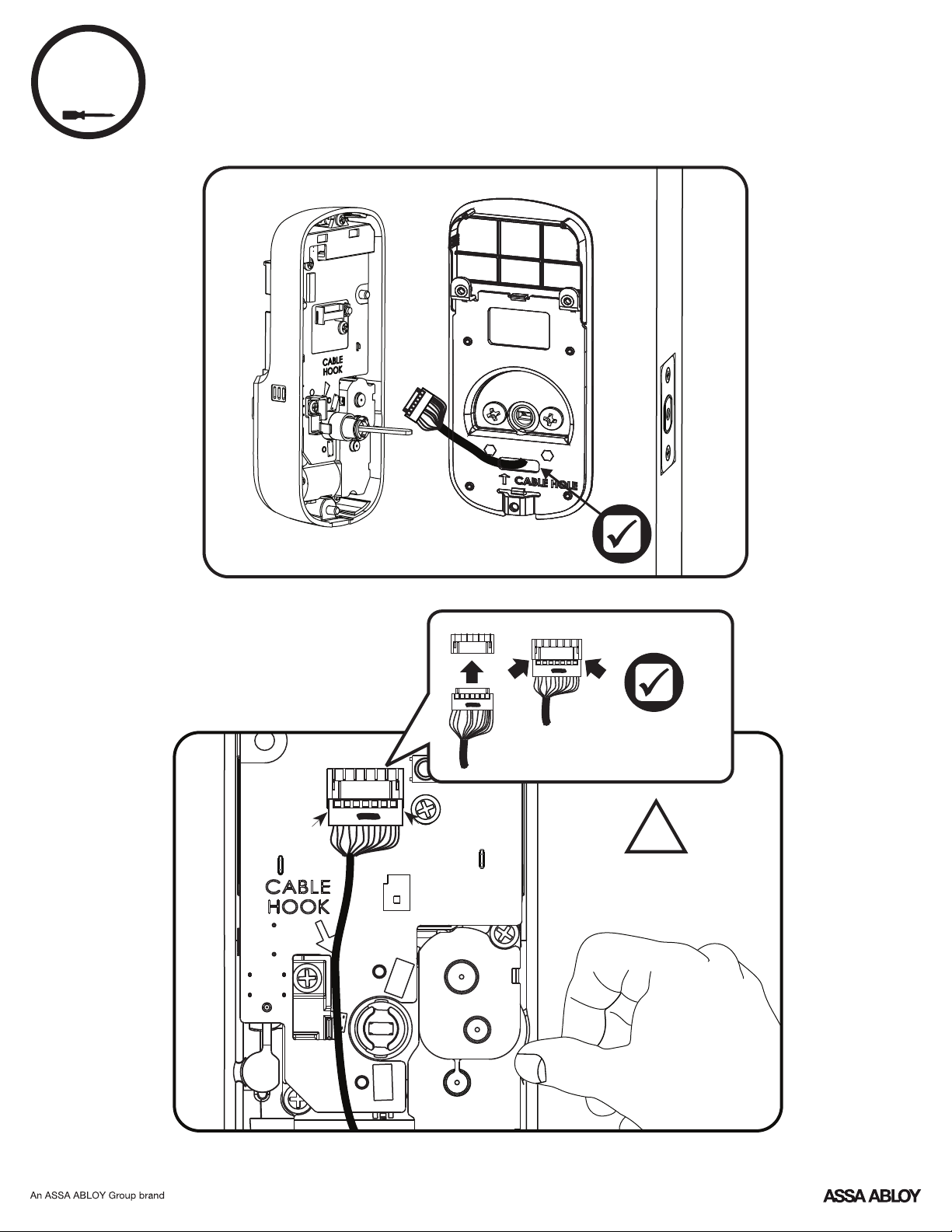

6Attaching the Cable Assembly

Inside of Door

Use cable hooks to

ensure proper routing.

Do not pinch wire.

Ensure cable is

securely fastened

into adapter.

P/N YRD256-MNL-0003 Rev F

7Installing Inside Lock

Actual Size

Inside of Door

Ensure thumbturn

is vertical. If the thumbturn

does not move freely, refer

to the hardware

troubleshooting steps.

Horizontal

P/N YRD256-MNL-0003 Rev F

Testing Mechanical Operation

Inside of Door

If thumbturn operation fails, check the installation beginning with Step 3.
