Yale YRCB-490-BLE-WSP Manuel utilisateur

Smart Cabinet Lock

Installation Instructions

Glow in the Dark

Emergency Release

If you have any questions while installing, call our 24/7 tech

support team! Call 1-855-213-5841 or email Support@YaleLock.com

Failure to follow these instructions could result in damage to the product and void the factory warranty

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

Lockbody

M4x12 Screw

Standard Lock

Post

CR2 Battery

Lock Post

Guide

Mounting Template

3M Mounting Tape

M3x10 Screw

1 4

Double Door

Plate

Mounting Bracket

Long Lock Post

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

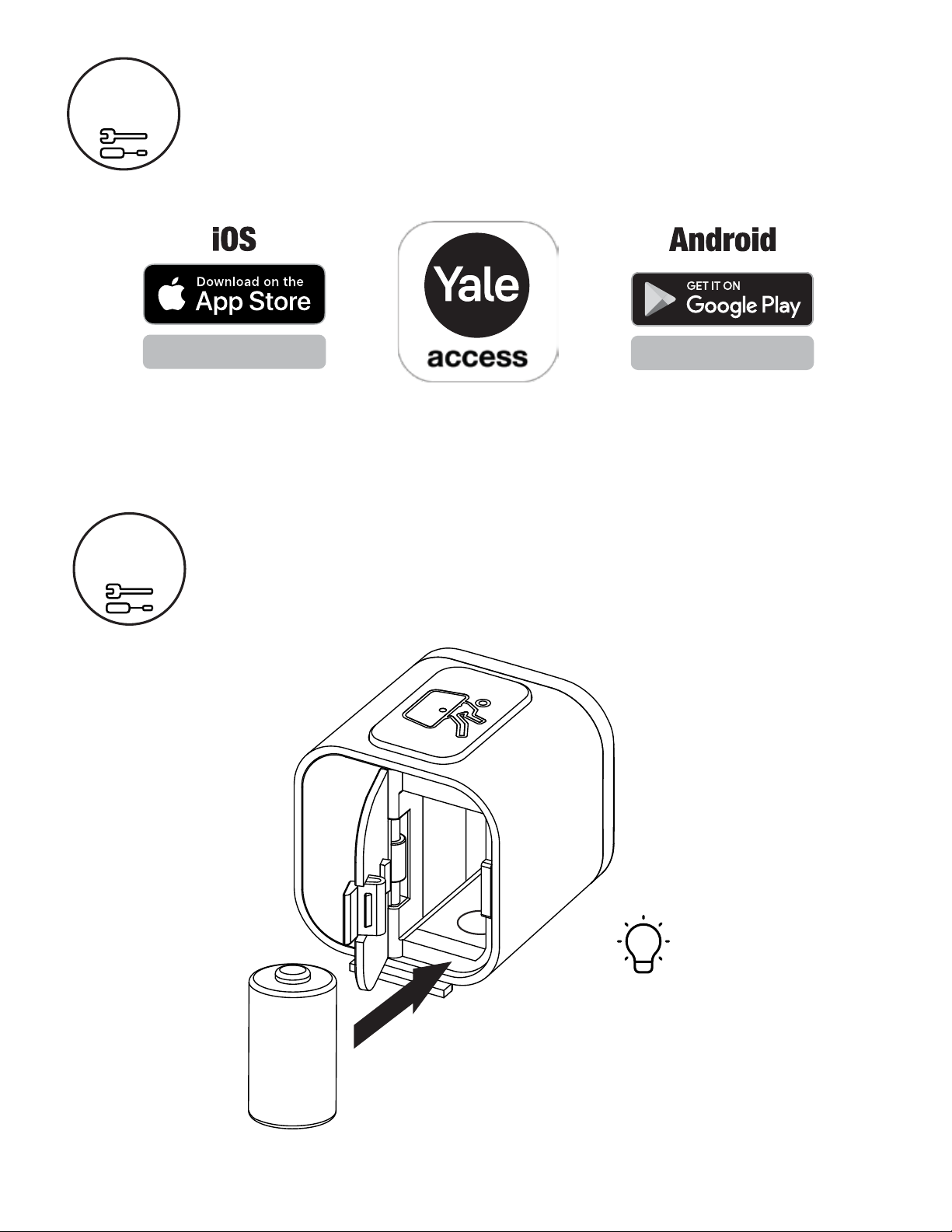

Download the Yale Access App

Insert CR2 Battery Into Lockbody

Lock will automatically unlock if

batteries die. Your app will alert

you when batteries are low.

IOS 11.0 + Android 6.0 +

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

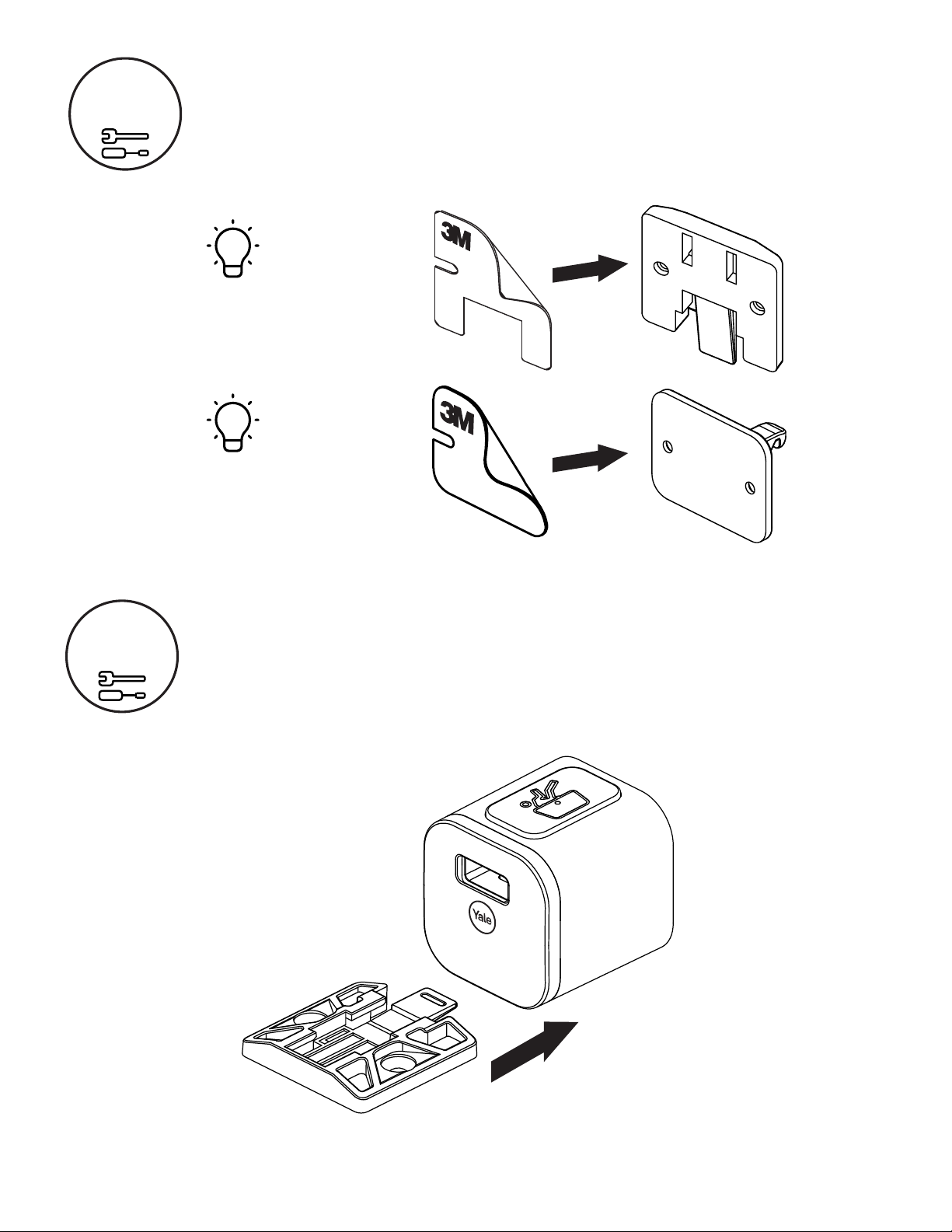

Attach 3M Tape to Mounting

Bracket and Lock Post

Slide Mounting Bracket onto

Bottom of Lockbody

Clean surface before application

and allow up to 24 hours for

proper bondage.

If cabinet has a face frame or

lip (max 1” high x max 1-1/4”

deep), use long lock post.

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

Slide Lock Post Guide onto

Lock Post

Attach Lock Post to Lockbody

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

Place mounting template in

desired location for installation.

Remove 3M film

from mounting bracket.

Install Smart Cabinet Lock

Mounting template cannot be

used to position lock when

using long lock post.

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

Attach Lock Post to Door

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

Remove Lock Post Guide

Test Operation

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

Congratulations! You've installed the Yale®Smart Cabinet Lock.

Follow the steps in your Yale Access app to complete the setup process.

NOTE TO INSTALLER AND CONSUMER

A second lock post is provided as a spare in the

event the cabinet door must be forced open and

installed lock post is broken.

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

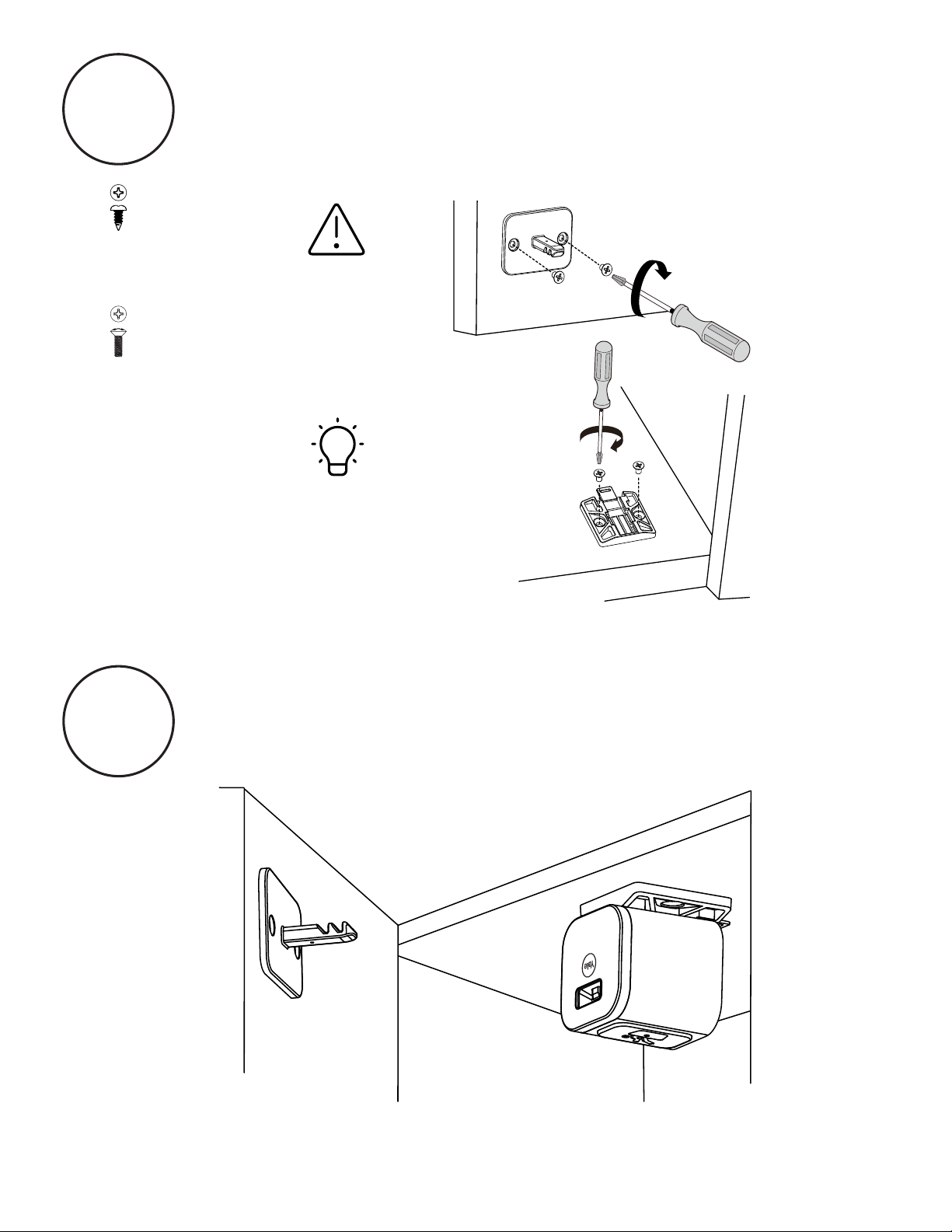

Screw Mounting

Remove lockbody from

mounting bracket to

access screw holes.

Make sure screws are

no longer than depth of

your cabinet door.

optional

Top Of Cabinet Installation

optional

YRCB490-MNL-0014 Rev B

Trusted every day Part of ASSA ABLOY

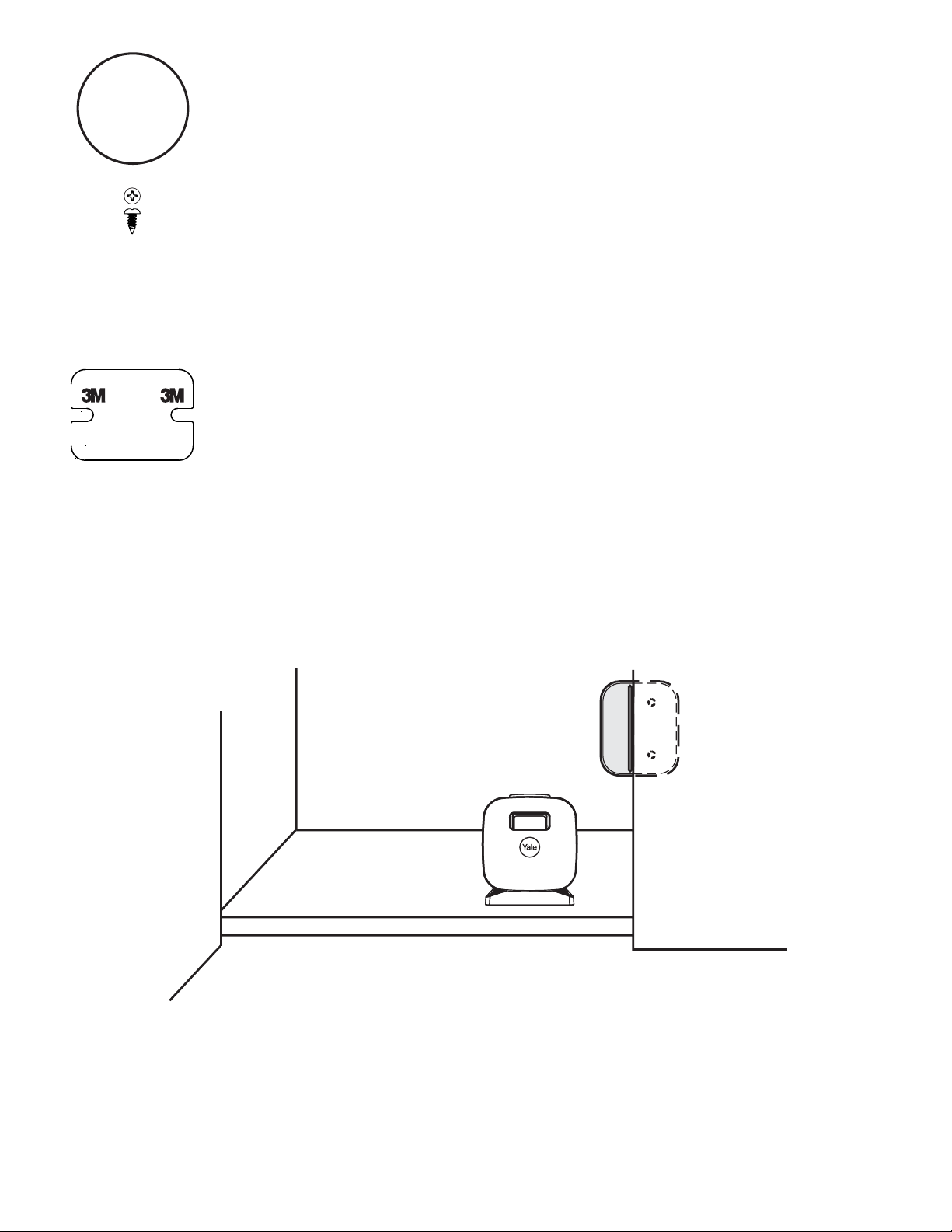

Double Door Plate

optional

Use screws OR double sided tape to

adhere the double door plate when

installing the Smart Cabinet Lock on the

adjacent door of a double door cabinet.
