X-360 Electric Scooter

Owner’s Manual

Revised 9/21/09

PLEASE BE SAFE WHEN RIDING

ALWAYS WEAR A HELMET AND OBEY ALL LAWS!

X-Treme TM Electric Scooters

Page

BATTERY MAINTENANCE and

CHARGING INSTRUCTIONS

1. You MUST charge completely prior to initial use. (Follow

charging instructions in your Product Handbook)

2. Charge immediately after each use.

3. Charge before storage. You must charge every 30 days if not

in use.

4. Charge the unit for 6-8 hours after the light on the charger turns

green.

5. DO NOT allow this unit to deep discharge the battery.

6. For safety purposes, DO NOT charge for over 24 hours.

7. Turn the unit OFF when not in use.

This PRODUCT IS NOT INTENDED FOR EXTREME or

OFF-ROAD Use! Please take care of your X-360!

DO NOT JUMP or ABUSE THIS PRODUCT!

DO NOT RIDE IN WET/ICY CONDITIONS!

Failure to follow these instructions will

VOID YOUR WARRANTY!

IMPORTANT

Failure to follow these INSTRUCTIONS will

VOID YOUR WARRANTY!

Page

WARNING

This product does not conform to Federal Motor Vehicle Standards and is not

intended for operation on public streets, roads or highways. Serious injury can

result from the unsafe operations of this product. Operator can minimize these

risks by using certain safety equipment such as: safety helmet, goggles, gloves,

elbow and kneepads and appropriate footwear.

DO NOT operate this product in traffic, on wet, frozen, oily or unpaved surfaces or

under the influence of drugs and/or alcohol. Avoid uneven surfaces, potholes,

surface cracks and obstacles.

DO NOT use a water hose to clean this product. See Product Handbook for more

information.

This product is recommended for riders 14 YEARS OF AGE and older.

SAFETY

Persons without excellent vision, balance, coordination, reflex, muscle and

bone strength and good decision-making capabilities should not use this

product.

Minors without adult supervision should not use this product.

Persons unwilling or unable to take responsibility for their own actions should

not use this product.

The user of this product assumes ALL risks associated with its use. To

minimize these RISKS, the user must wear safety helmet, goggles, gloves,

elbow and kneepads and appropriate footwear.

This product is ELECTRIC! DO NOT ride this product in wet conditions,

puddles or rainy weather.

IMPORTANT

PLEASE READ THIS BEFORE USING THIS PRODUCT

READ THIS FIRST!

Page

SAFETY GUIDE

The minimum recommended age for riding this scooter is 14 years old.

To avoid damage to the motor and footplate, do not overload the scooter.

Never ride with more than one person.

Inspect your scooter thoroughly before each use for loose or missing parts.

Avoid unintentional starts by turning the scooter off while not in use.

To avoid the risk of a short circuit in the electrical parts, do not use your

X-Treme Electric scooter in the rain and never spray or wash off your scooter

with water.

Do not place the battery near fire or heat.

To avoid damage to the battery, do not use the charger if it has been damaged

in any way.

Keep hands, face, feet and hair away from all moving parts.

Do not touch the motor or wheels while they are rotating.

Brakes are designed to control speed as well as stop the scooter. Practice

braking for proper slowing down and smooth stops.

Maintain your X-Treme X-360 as recommended in this Product Handbook.

Use only quality replacement parts as recommended by the manufacturer.

Inspect the entire scooter prior to each use. Replace any part that is cracked,

chipped or damaged before use.

*NEVER ALLOW CHILDREN TO OPERATE THE SCOOTER WITHOUT ADULT

SUPERVISION.

*NEVER ATTEMPT TO OPERATE THE SCOOTER WHILE UNDER THE

INFLUENCE OF ALCOHOL.

If a situation arises that is not covered in the manual,

proceed with caution and use good judgment.

Contact your dealer or X-Treme (www.x-tremescooters.com/support/)

if you need further assistance

QUICK

REFERENCE

SAFETY GUIDE

Page

TABLE OF CONTENTS

IMPORTANT INFORMATION…………………………………….…2-3

QUICK REFERENCE…………………………………………………4

TABLE OF CONTENTS……………………………….……………...5

GETTING TO KNOW YOUR X-TREME X-360………..…………..6

PACKING CONTENTS……………………………………………….7

GETTING STARTED………………..……………………………..…7

ASSEMBLY………………………………………………………..7

CHARGING………………………………………………………..8

RIDING……………………………………………………………..8

STOPPING/BRAKING……………………………………………9

BRAKING SYSTEM………….…………………………………..9

TIRES………………………………..…………………..………..10

MAINTENANCE………………………………………………………10

RECOMMENDED TOOLS……………………………………...10

ADJUSTING THE CHAIN……..…………………………….….10

MAINTENANCE SCHEDULE……………………………………….11

TROUBLESHOOTING GUIDE…..…………………………………..12

ADDITIONAL INFORMATION………………………………………..13

GENERAL INFORMATION/TECH SUPPORT……………………..14

Page

GETTING TO KNOW YOUR X-TREME X-360

Page

PACKAGE CONTENTS

Your X-Treme X-360 comes with the following items in the box. Please locate

all of the following:

1. The X-Treme X-360 Scooter

2. 36V Battery Charger

3. Tool Kit

4. Seat & Seat Post

5. Front Wheel & Axle

6. Trunk with Keys & mounting hardware

7. Trunk Rack & mounting nuts/bolts

8. Spare Fuse(s)

9. Product Handbook

10. Footplate nuts/bolts & washers

11. 1 Handlebar clamp & 1 seat post/trunk rack clamp

12. Footpad Decals

GETTING STARTED

Please read and understand these instructions and the OPERATING

PROCEDURES section, prior to starting or riding your X-360

Fig. 1

Fig. 2

Fig. 3

Assembly

1. Carefully remove the X-360 from the box.

2. Install the front wheel and axle. (Fig. 1)

3. Attach the T-handlebar to front fork/wheel

and

tighten clamp securely at the base.

Insert both left and right handlebars by

inserting and then tightening the black bolt.

(Fig. 2)

4. Secure the footplate to the frame using the

4 enclosed footplate nuts, bolts and rubber

washers then apply footplate decals.

5. Insert the seat post and seat into the seat

post receiver, and then install the trunk rack

to the rear of the scooter. Tighten the seat

post clamp securely. (Fig. 3)

6. Optionally, attach the trunk to the trunk rack

using the enclosed trunk hardware.

For more detailed assembly instructions go to

http://www.x-tremescooters.com/electric_scoot

ers/x360/images/adobe/x360-assembly.pdf

Page

Charging

Your scooter comes charged out of the carton. We still recommend charging

the unit for 6-8 hours prior to it’s first use. We also recommend charging your

scooter after each use and prior to storage.

Master Power/Kill Switch

Located on the dash, near the ignition is a master power/kill switch. This

switch must be on to operate the scooter and on during charging. This switch

will cut all power to the motor.

WARNING: Do not allow your scooter to go into deep discharge, as this will

damage the batteries.

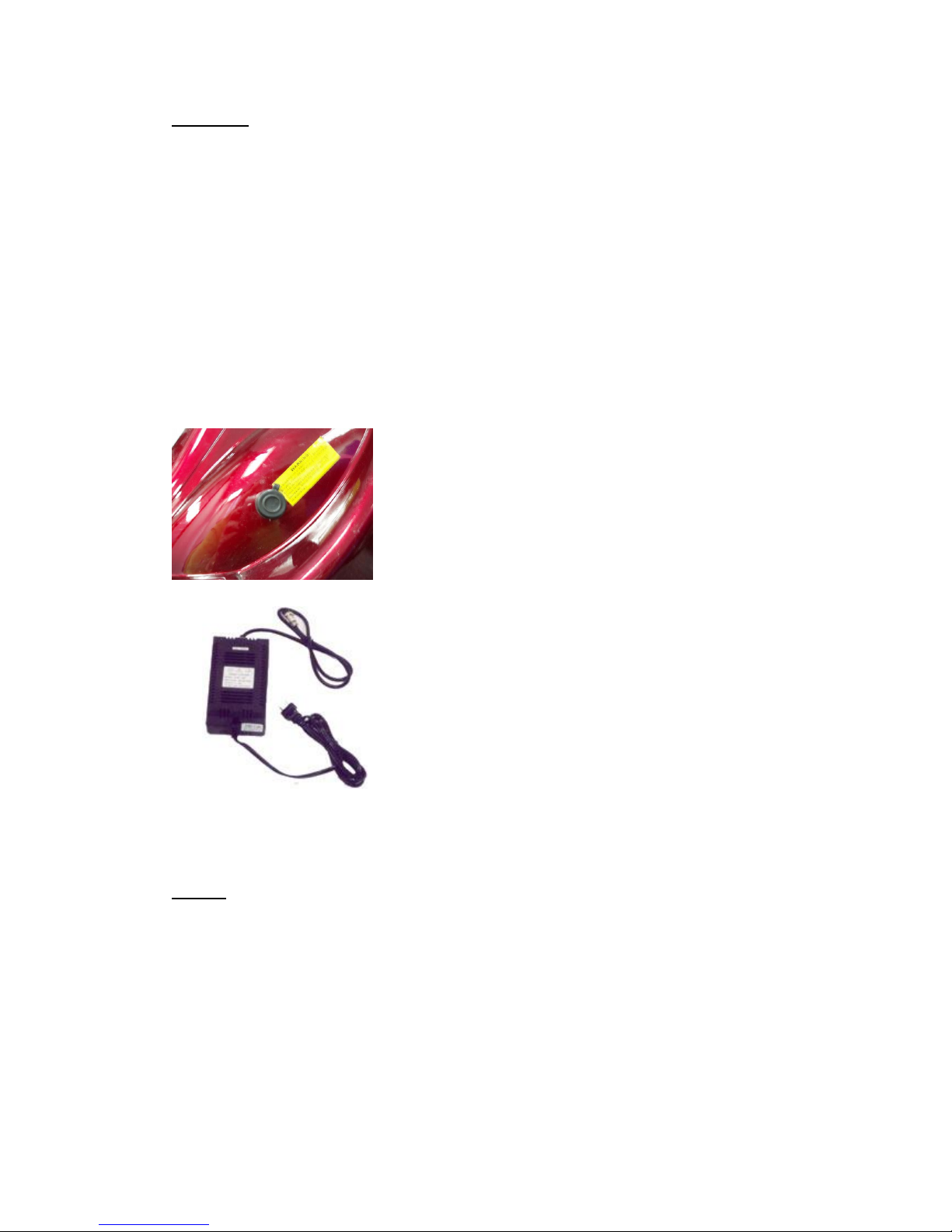

Fig. 4

Fig. 5

Riding

1. Make sure that all of the exposed bolts and screws are tightened.

2. Raise the kickstand to its upright position.

3. Turn the master power/kill switch to the ON position.

4. Turn the Ignition key to the on position.

5. Gently rotate the THROTTLE GRIP, on the right side of the handlebars.

The X-360 will begin to move on its own power. Your scooter has a

variable speed hand throttle. You can control the speed of your scooter by

the amount of pressure you use when rotating the hand throttle. The more

you rotate, the faster you will go.

1. Locate the master kill switch next to

the ignition on the dash. Turn to

the on position. Note the master

kill switch must be in the on

position for the scooter to accept

a charge.

2. Open the charging socket cover

located on the left side of the

scooter body. (Fig. 4)

3. Locate your Battery Charger. (Fig.

5) Find the charger socket end

that has a three-prong socket and

plug it into the scooter.

4. Next, plug the AC plug into a wall

outlet.

When first plugged in, the charger has two

red lights that will illuminate at the same

time, indicating that the charging process

has started. Once the light on the charger

turns green, you may remove the charger

and close the safety cap.

Page

Stopping/Braking

To brake, release the THROTTLE GRIP and depress the BRAKE LEVER on

the left side of the handlebar. Depressing the brake will disengage power to

the motor. When the unit feels like it is loosing power or not accelerating to

full speed, the scooter is ready to be re-charged.

BRAKING SYSTEM

The X-360 uses a hub brake system on the rear wheel of the scooter activated

by a hand brake lever on the left side of the handlebar. Squeezing the hand

brake lever with your left hand activates the rear brake. Make sure to release

the HAND THROTTLE GRIP when engaging the brake.

Practice braking on a smooth, dry surface to get used to the feel of the braking

system. Braking distance is affected by wet conditions and loose and uneven

riding surfaces.

Adjusting the Brakes

The Brakes on the X-360 should come fully adjusted from the factory.

However, it may be necessary to adjust the brakes from time to time.

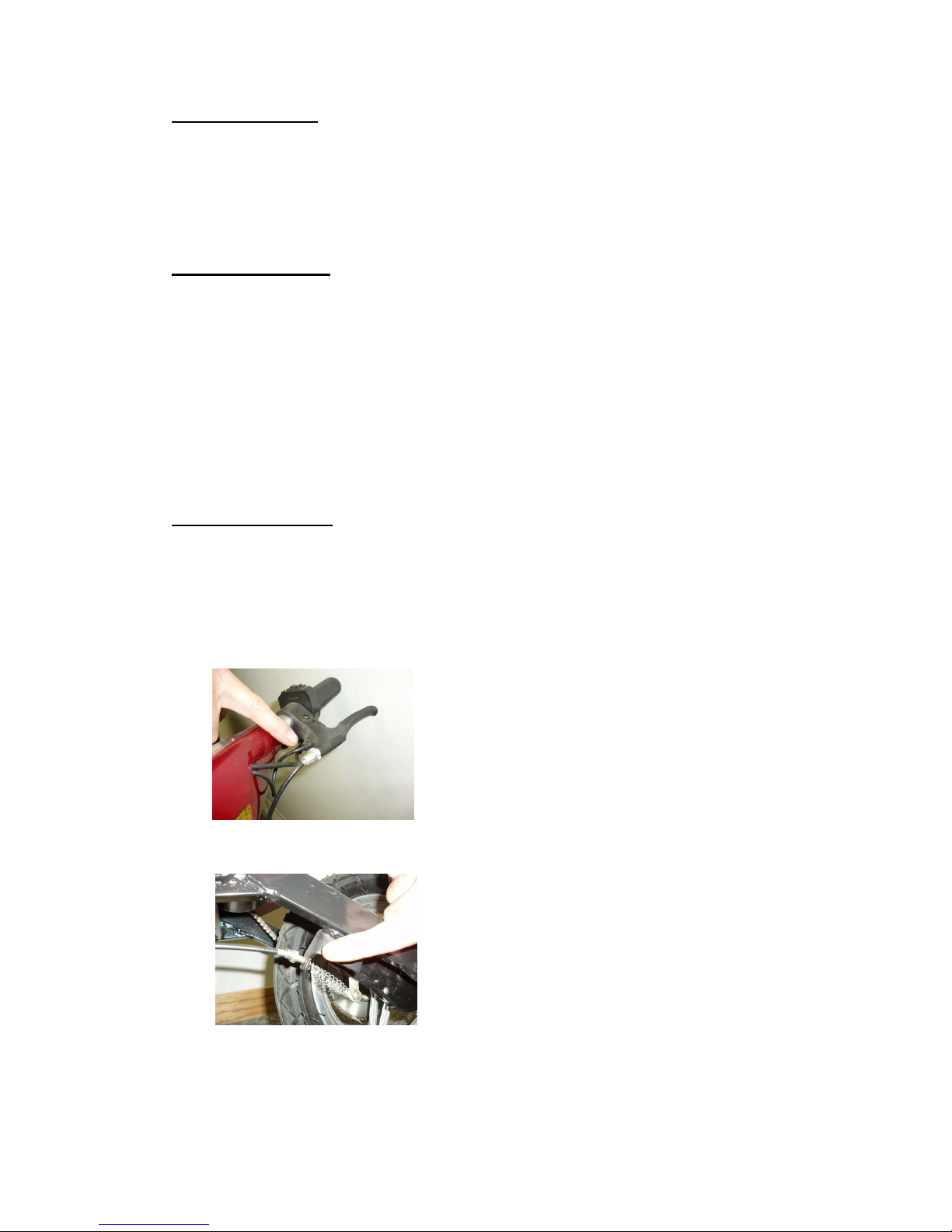

Fig. 6

Fig. 7

To adjust the rear brakes::

For brakes that are adjusted too tight:

1. Loosen the tension screw on the

left hand brake lever by rotating it

counter-clockwise until the wheel

spins freely. (Fig. 6)

For brakes that are adjusted too loose:

1. Tighten the tension screw on the

left hand brake lever by rotating it

clockwise until the wheel has a

slight drag. (Fig. 6)

For further adjustment, Locate the

adjustment screw on the rear brake hub

located on the rear wheel.

For brakes that are adjusted too tight:

1. Loosen the tension screw on the

rear brake hub by rotating it

clockwise until the wheel spins

freely. (Fig. 7)

For brakes that are adjusted too loose:

1. Tighten the tension screw on the

rear brake hub by rotating it

counter-clockwise until the wheel

has a slight drag. (Fig. 7)

Page

Squeaky Brakes

The brakes may squeak before they are broken in. This is normal and will not

affect the function or performance of the brakes. With continued use the

squeak should go away.

TIRES

The X-Treme X-360 uses an identical tire on the front and rear wheels, which

means that the tires can be rotated. Tire wear will differ based on rider weight,

riding conditions and care. Replacement tires can be obtained at your local

X-Treme dealer, through motorcycle shops, or from the X-Treme website at

www.x-tremescooters.com

Tire Pressure

The tires must be inflated to a maximum of 36 P.S.I. It is also recommended to

use a tube additive like Slime, available from any motorcycle shop, to avoid

inconvenient punctures.

MAINTENANCE

RECOMMENDED TOOLS

To adjust and service the X-Treme X-360 you will need the following tools:

Allen Wrenches: 3/4/5/6 mm

Wrenches: 10/13/13 mm Open end wrench

Large Adjustable Crescent Wrench

Philips Head Screwdrivers

Oil, Grease or Lubricant

ADJUSTING THE CHAIN

The chain will come adjusted from the factory. However, it may be necessary

to adjust the chain from time to time. The chain must be well aligned onto the

sprockets in order to avoid uneven wear. This will result in shortened chain

life.

How tight should the chain be?

If the chain is skipping or jumping on the sprockets, this is too

loose and may be harmful.

Autres manuels pour X-360

Table des matières

Autres manuels Xtreme Scooter

Xtreme

Xtreme X-140 Manuel utilisateur

Xtreme

Xtreme XB-420M Manuel utilisateur

Xtreme

Xtreme XM-3000 Guide de dépannage

Xtreme

Xtreme X-360 Manuel utilisateur

Xtreme

Xtreme XP-707 Manuel utilisateur

Xtreme

Xtreme XMB-420 Manuel utilisateur

Xtreme

Xtreme XG-565 A-Blaze Signature Series Manuel utilisateur

Xtreme

Xtreme XM-3150 Guide de dépannage

Xtreme

Xtreme X-600 Manuel utilisateur

Xtreme

Xtreme XT300 Manuel utilisateur

Xtreme

Xtreme XR-301 Manuel utilisateur

Xtreme

Xtreme X-250 Manuel utilisateur

Xtreme

Xtreme XG-499 Manuel utilisateur

Xtreme

Xtreme XR-101 Manuel utilisateur

Xtreme

Xtreme X-250 Manuel utilisateur

Xtreme

Xtreme XG-550 Manuel utilisateur

Xtreme

Xtreme X-500 Manuel utilisateur

Xtreme

Xtreme Rubicon 48V Manuel utilisateur

Xtreme

Xtreme XB-420M Manuel utilisateur

Xtreme

Xtreme XB-300SLA Manuel utilisateur

Xtreme

Xtreme METRO EXPRESS Manuel utilisateur

Xtreme

Xtreme XM-4000Li Guide de dépannage

Xtreme

Xtreme XM-5000Li Guide de dépannage

Xtreme

Xtreme XB-300SLA Manuel utilisateur

Manuels Scooter populaires d'autres marques

TEKTRO

TEKTRO CHEETAH Manuel utilisateur

Douglas

Douglas Vespa Sprint Guide d'installation

PLAYTIVE

PLAYTIVE AS-2448 Manuel utilisateur

Ebinger

Ebinger DONKEY XL Manuel utilisateur

Flyer

Flyer Mountain Guide de l'utilisateur

BackCountry eBikes

BackCountry eBikes Storm Manuel utilisateur

equipmed

equipmed FreeRoam II Manuel utilisateur

Yoto

Yoto Lion Manuel utilisateur

WESTHILL BIKES

WESTHILL BIKES LINK Manuel utilisateur

BAnff

BAnff eProdigy series Manuel utilisateur

Winther

Winther 475 Manuel utilisateur

Jetson

Jetson JBZL17 Manuel utilisateur

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuel utilisateur

Carrera

Carrera impel Manuel utilisateur

Afikim

Afikim Superlight SL-3 Manuel utilisateur

CareCo

CareCo ZOOM Manuel utilisateur

Douglas

Douglas Vespa G.S. Manuel utilisateur

Gazelle

Gazelle with BOSCH System Manuel utilisateur
