1.0 Components:
When you purchase the Diana Instant Hot Water tank, contents
include:
1. X-301 boiler
2. DLX-580 faucet
3. Feed water shut-off valve
4. Feed water adapter
5. ¼” feed water tube
2.0 Material required (Not provided)
►ruler or measuring tape ►open-end wrench ►gloves
►35mm drill bit - if no sink hole exists ►tubing cutter ►safety glasses
►small drill bit for starter holes ►pliers ►bucket or pan
►hand or electric drill
3.0 Faucet Compatibility
Only "Open Vent" faucets function with an instant hot water dispenser tank. Connecting a standard
faucet will damage the tank and void the warranty.
IMPORTANT INFORMATION
This hot water dispenser produces instant hot water of approximately 98°C (208°F) as dispensed
from the faucet. This product is not intended to produce a continuous flow of hot water. The
standard model will produce up to 60 cups of water per hour at approximately 98°C (208°F). Due to
high water temperature, for safety reasons, the tank is not under pressure. Consequently, there is a
slight delay of water flow after the faucet has been turned on. This is normal and indicates that the
priming chamber is functioning properly.
•Do not extend the hot water outlet tube.
•Minimum working pressure: 220kPa (system might not work properly if the pressure is below the
requirement).
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS CAREFULLY
When using all electrical appliances, basic safety precautions should always be followed including the
following:
1. Read all instructions.
2. To protect against electrical shock, do not place cord, plugs or appliance in water or other
liquid.
3. Do not operate any appliance with a damaged cord, plug, or after the appliance malfunctions.
4. Do not use outdoors or in damp area.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not use appliance for other than intended household use.
7. When using the appliance, provide 4 to 6 inches of air space around the entire unit for air
circulation.
8. Do not attempt to service this product. Repairs should be done by authorized service
personnel.
9. Do not let children operate. The water can cause severe burns.
4.0 SAVE THESE INSTRUCTIONS.
The alert symbols displayed at right point to important safety information to make you aware of
potential hazards that can cause serious injury or death. Please pay special attention to the
information following these alerts and warning. Failure to comply with these instructions can result in
property damage, serious injury or death.

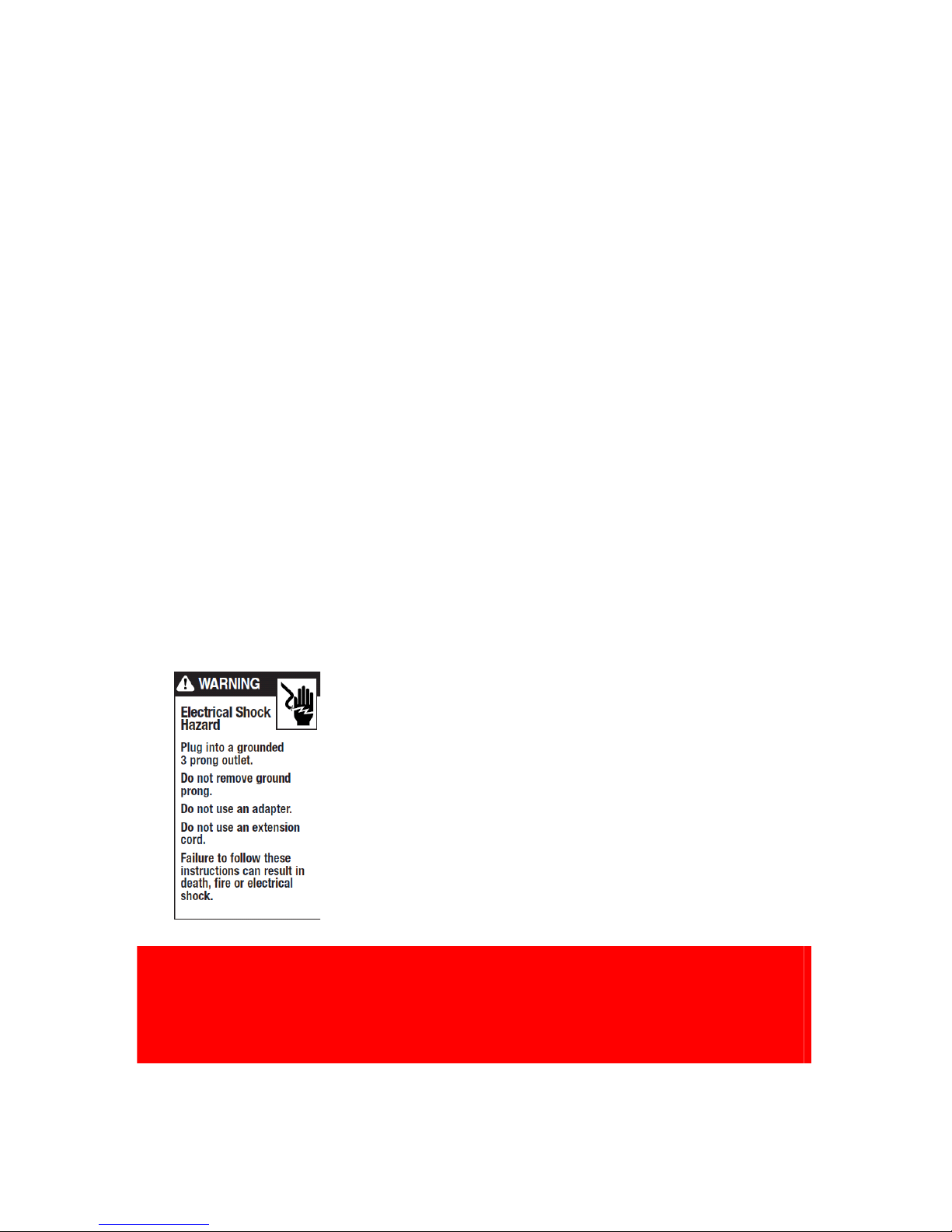

4.0.1 ELECTRICAL REQUIREMENTS (Recommended Ground Method)
For your personal safety, the hot water dispenser is equipped with a power supply cord having a 3-
prong ground plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-
prong, ground type outlet, grounded in accordance with all local codes and ordinances.
If a mating outlet is not available, it is the personal responsibility and obligation of the customer to
have a properly ground, 3-prong outlet installed by a qualified electrician.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician
determine that the ground path is adequate.
A 220 volt, 60Hz, AC only 15 or 20 ampere fused, grounded electrical supply is required. It is
recommended that a separate circuit serving only your hot water dispenser be provided.
Note: Use an outlet that cannot be turned on/off by a switch
PRESSURE FREE HOT WATER DISPENSER CONCEPT
Unlike other household water dispenser, this dispenser tank is not pressurized for safety reasons. For
a conventional household water heater, the faucet valve is placed after the heater tank resulting in a
pressurized tank. For a hot water dispenser, the faucet valve is placed before the tank, creating an
"open vent" style faucet and consequently no pressure is built up inside the tank.
5.0 OVERVIEW
Make sure you have all necessary parts, tools as suggested on manual cover.
1. Determine a convenient location to mount your faucet. This can be existing sink hole in the
sink top, or you may drill another hole into the sink. As you determine the location of your
faucet, consider the container you will use with appliance, such as a large cooking pan.
Location of the hole should also provide easy access for tank connections.
2. The thickness of the sink must be less than 70mm.
3. Before connecting to the power source, the dispenser must be filled with water and the
thermostat turned to the OFF position.
4. Do not use an extension cord with this appliance. Appliance must be within 914mm of the
power source.
5. Plumbing connections must comply with all local codes and ordinances.
6. Do not use any pipe sealing compounds as they may get inside the dispenser causing an
objectionable taste and odour.
IMPORTANT: Observe all governing codes and ordinances.
Faucet may be installed in spray hose opening in sink or drilled hole. If drilling another hole is needed,
the 35mm max. dia. hole is required.
Tank must be mounted vertically.
Quick-connector fittings connects to cold water supply line
See step 4 of installation for optional connections and instructions.
6.0 INSTALLATION
Before you begin
1. Determine where you will install your hot water dispenser. The faucet can be mounted in an
existing hole in the sink, or drill a 35mm hole in your sink.
2. Stainless Steel: You need a 35mm knockout punch available at most hardware stores or drill
a hole with an expandable drill.
3. Porcelain: Proper tools are required to drill through a porcelain or cast iron sink. If you are
not familiar with this process you should consider having this done by a professional plumber.
Do not attempt to drill without these special tools as you may severely damage your sink.
BE SURE TO CONFIRM YOUR FAUCET'S COMPATIBILITY WITH THIS APPLIANCE. FAUCET
MUST BE "OPEN VENT STYLE".
STEP 1 - Mounting Tank
Position tank vertically beneath faucet so flexible tube from the faucet reaches the centre faucet
supply tube on the tank.
Be sure dial is in OFF position during installation
NOTE: The tank must be positioned so the hose to the faucet does not twist
or kink
STEP 2 - Faucet Installation
Follow the installation instruction of the faucet manual.
STEP 3 - Connect Faucet to Tank
1. Connect 1/4" faucet copper line to the rear tube at the top corner of the tank with the quick-
connect fitting supplied with the appliance. Push line straight into quick-connect fitting as far
as possible for both connections.
2. Connect silicone tube to the centre outlet tube on top of tank.
3. Use cable ties to fix the connection tightly. It will create a secure connection when properly
installed.
Be sure the hose is not twisted or kinked. Hose may be shortened if necessary.
NOTE: DO NOT lengthen the hot water hose - dispenser performance will be impaired and
warranty will be void.
STEP 4 - Connect Cold Water Supply
Refer to installation instructions included with faucet if necessary.
Cold water is supplied to the tank through the faucet. Connect the cold water line to the faucet using
the 1/4" supply line and the quick-connect fitting.
Make sure the cold water connecting to the faucet is filtered. It is suggested that a shut-off
valve be installed between this connection and the cold water supply line.
Another common installation method is with the use of a saddle valve if a saddle valve is used; follow
the manufacturer's installation guides.
Connection to a hot water supply is not recommended. If a water filter is used, water pressure
to the tank should not drop below 240kPa or 35psi (2.4 bar).
Installation Diagram
STEP 5 - Check for Leaks
1. Open valve in water line.
2. Turn faucet on (push to unlock) to fill tank (about1 minute). When tank is full, water will flow
from faucet.
3. Turn faucet off. Check for leaks.
STEP 6 - Prepare for Power
Double check the thermostat control dial is in the OFF position. Thermostat control dial controls the
water temperature, not the water flow or delivery.
IMPORTANT INFORMATION
This dispenser is equipped with a Self re-setting thermal fuse
Turn the thermostat to OFF position and fill tank with water before plugging the power cord from the
tank into an electrical outlet.
If tank is empty and the thermostat set in the ON position when the power cord is
Connected, the self re-setting fuse in the heater control will disconnect the current to the heater after
approximately one minute, thus protecting the heater from a "dry start" failure. The fuse in the heater
control will self-reset after approximately 1/2 hour. Turn on the water supply to the tank and continue
the installation.
Continued misuse will cause damage to the appliance and is detectible thus, voiding the warranty.
STEP 7 - Test Installation
1. Plug electrical cord into a grounded 3-prong outlet.
2. Do not use an outlet controlled by an off/on wall switch. Turn thermostat control dial
clockwise to the highest position. Maximum temperature will be reached in about15 minutes
and dispenser will be ready for use. Lower the temperature setting by turning thermostat
control dial counter clockwise if you notice vapour or a boiling noise. To raise or lower the
water temperature, rotate the thermostat dial. At the LOW setting of thermostat dial water
temperature will be approximately 60(±5)0C and the HIGH setting of the thermostat dial water
temperature will be approximately93(±5) 0C.
7.0 CLEANING AND MAINTENANCE
Seasonal Shutdown
To prevent damage or mineral build up water must be drained regularly.
1. Unplug dispenser tank to power supply.
2. Turn thermostat control dial to OFF position (fully counter clockwise).
3. Turn faucet on and run water until water is cold.
4. Place a 3 L container under the drain plug at bottom of the tank.
5. Use a screwdriver to remove the screw and O-ring in the drain tube opening. When tank is
fully drained replace O-ring and screw. Tighten to reseal the drain.
NOTE: Do not plug appliance into power supply if tank is empty.
8.0 TROUBLESHOOTING
The following situations are not covered by the One Year Replacement Warranty.
1.0 Water is not hot: (assuming cold water supply is connected properly and valve is open).
•Check if dispenser is plugged in.
•Turn thermostat control dial fully clockwise. This may produce boiling water in approximately
15 minutes and possibly be accompanied by a gurgling sound in the tank and/or water
"sputtering" from the faucet.
•If the water boils, turn thermostat control dial slightly counter clockwise until the gurgling
and/or "sputtering" stops. This should take place within 20 seconds. Turn control dial an
additional 3mm counter clockwise at the tip of the dial. Wait 15 minutes and check the
temperature of the water.
•Check for blown fuse or circuit breaker is tripped (also see IMPORTANT NOTE explaining
the self re-setting thermal fuse in step 6 of installation).
NOTE: The thermostat activates the heater after water temperature in the tank drops approximately
8oC from the maximum setting. The dispenser does not produce a continuous flow of hot water.
2.0 Hot water drips or sputters from faucet:
•Turn thermostat control dial counter clockwise
•Check that the hose connecting the faucet to the dispenser tank is not clogged, twisted or
kinked.
•Check for proper installation of copper tubing from faucet to dispenser tank and faucet to
water line. If connected cross-connected, valve may be damaged.
3.0 Water does not flow right away or at all:
•Due to high temperature and for safety reasons, the tank is not under pressure causing a
slight delay in water flow.
•Make sure all valves on water supply are open.
•Check hose from faucet for twisting or tight bending.
4. Water boils or vapour appears:
•Lower temperature setting by turning thermostat control dial counter clockwise.
Note: If lowering the thermostat setting does not stop the boiling, unplug the power supply cord and
contact customer service.
For further technical support contact:
Ph: 1300 366 295
X
sential Pty Ltd
78 Daly Street Belmont Western Australia 6104
