Xo XOGRILL32XLT Manuel utilisateur
GAS GRILL
CARE & USE / INSTALLATION
RESIDENTIAL USE ONLY / HOMEOWNERS COPY
14
2
UNDERCOUNTER
When buying any XO appliance
you can be confident you have chosen a
high quality, innovative and stylish product
from a company that cares about you!
If you require service or have questions,
Help is only a phone call away -
call: 973-403-8900
Talk to one of our undercounter experts.
www.xoappliance.com/register-your-product/
CONGRATULATIONS
on purchasing your XO.
Before you proceed, take just a
moment to register your XO at:
REGISTRATION HELPS YOU BY -
Ensuring warranty coverage should you need service
Providing ownership veri cation for insurance purposes
XO can notify you in the event of product changes or recalls.
Or simply scan here to be taken
to the registration page...
model and serial number
You may require service or parts one day -
take a minute to locate and record some important info about your grill.
• Model number
• Date of purchase
• Proof of purchase by the original owner
• Serial number

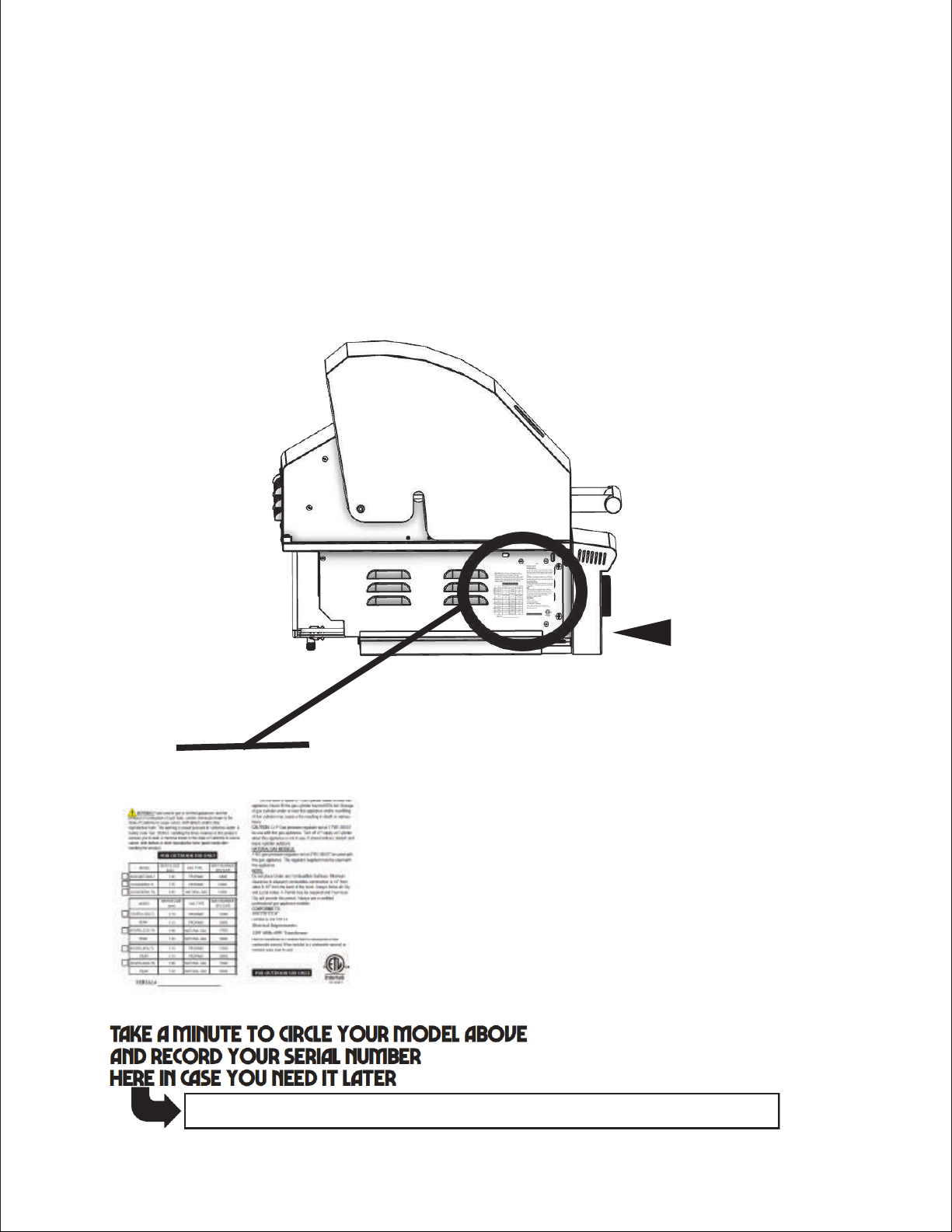

The serial number can be located on the rating plate which is located on the left side of the
grill or on the pull-out drip tray lighting instructions and also on the underside of the drip tray.
DRIP TRAY
RATING PLATE
3
CAUTION
5
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying th
Massachusetts license.
e appropriate
2. All permanently-installed natural gas or propane installations require a “T” handletype manual gas
manual gas valve be installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
WARNING! CALIFORNIA PROPOSITION 65
The burning of gas cooking fuel generates some by-products which are on the
list of substances which are known by the State of California to cause cancer or
reproductive harm.
California law requires businesses to warn customers of potential exposure to such
substances. To minimize exposure to the substances, always operate this unit
according to the use and care instructions found in this manual. Be certain to provide
adequate ventilation when cooking.
Warning: Handling the brass material on this product exposes you to lead, a chemical
known to the state of California to cause cancer, birth defects or other reproductive
harm. (Wash hands after handling this product.)
For more information go to this website
www.P65warnings.ca.gov
notice: commonwealth of massachusetts
• Never leave children unsupervised around the XO grill.
• Pre-heating for more than 15 minutes may overheat and cause damage to the grill.
• Never cover slots, holes, or passages in the grill fire box or cover an entire rack with material
such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon
monoxide poisoning. Aluminum foil linings may trap heat causing a fire hazard.
• Do not leave the grill unattended.
800-966-8300 www.xoappliance.com
Warning: Heavy Weight Hazard!
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER
ASSEMBLY AND SAFE USE OF THE APPLIANCE. READ AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS BEFORE ASSEMBLING AND USING THE APPLIANCE. FOLLOW ALL WARNINGS AND
INSTRUCTIONS WHEN USING THE APPLIANCE. FAILURE TO INSTALL AND OPERATE THIS UNIT
IN ACCORDANCE WITH THESE INSTRUCTIONS CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
6
STOP
THANK YOU FOR CHOOSING XO
As you unbox your new grill, please take a moment to make certain all the
parts are included and there was no damage in shipping.
Please recycle when you dispose of the packing materials.
One of the fastest and easiest
ways to get help is to visit
our YouTube Channel
which has lots of useful
How To videos -
Just scan the QR Code or go to
https://www.youtube.com/channel/UCT-Ip-dM9hoPydpxZfrZzRA
This manual covers the following XO products:
NOTE TO I N S T A L L E R
This manual must remain with grill. Check your local building codes for proper method of
installation. In the absence of local codes, this unit should be installed in accordance with National
Fuel Gas Code No. ANSI Z21.58D-2002 USA or CAN/CGA-B149.1/.2 Natural Gas/Propane
Code. (Canada) latest edition or the National Electrical Code ANSI/NFPA No. 70 or the Canadian
Electrical Code CGA 1.6b2005 or latest edition.
Please note: Pictures and Information may change without notice.
installation, care and use of your
xo perfomance cooking product
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.
40
CART (CART) 40CART (CART) SIDEB (SIDE BURNER CART)
7
where things are
Product Registration....................................................................................................................
Warnings...................................................................................................................................
Models.........................................................................................................................................
Specifications.............................................................................................................................
Dimensions............................................................................................................................
Safety.........................................................................................................................................
Grill Location - Clearances.........................................................................................................
Factoring in Wind Direction........................................................................................................
Overhead Construction..............................................................................................................
Outdoor Rated Hoods................................................................................................................
Cutout Dimensions.....................................................................................................................
Insulated Jacket Installation.......................................................................................................
Outdoor Island Venting..............................................................................................................
Electrical Hook Up......................................................................................................................
Before your Gas Hook Up...................................................................................................
Natural Gas Installation.......................................................................................................
Propane Tank Installation...................................................................................................
Lighting your grill safely......................................................................................................
Grilling Safety.............................................................................................................................
Cooking and Grilling Tips...........................................................................................................
Cleaning and Maintenance.................................................................................................
Trouble Shooting................................................................................................................
Wiring and Lightbulb Replacement)...................................................................................
Parts and Obtaining Service...............................................................................................
Warranty.....................................................................................................................................
2
5
Link - How To Videos................................................................................................................... 6
Product Features......................................................................................................................... 9
10
11-12
13
14
15
16
17
18
19
20
21
22 - 23
24 - 25
26 - 27
28 - 30
31
32
33 - 38
39 - 40
41 - 43
44 - 46
47
8
7
4
unique features and benefits
The XO gas grill has some of the most unique grilling features
that will enhance your grilling experience and make you that
Stainless Steel Grills,
unique full coverage flame tamers to create even heat and
minimize flair-ups, heavy duty stainless steel tube burners
to enhance the overall searing of your food.
Performance series stainless steel square cooking grates
enable cooking with greater speed and control.
The heavy duty grates heat up evenly and sear the natural
juices into the food.
The unique design of XO’s stainless steel flame tamers provide
superior protection to the burners and even temperature distribution
while vaporizing drippings to add flavor and ensuring rapid heat up.
Your XO grill
accessory with an adjustable temperature range from 400 to
1000 degrees.
an optional infrared burner available as an
9
meet your xo
The performance series stainless U-Style XLT burner is used
in this XO gas grill. This new burner has even heat distribution
that enables rapid heating throughout the cooking area.
Description
Main Cooking Area Sq. In.
Warming Rack Sq. In.
Total Cooking Area Sq. In.
Gas Type (specify)
Orifices Main Burners NG
Orifices Main Burners LP
Orifices Rear Burner NG
Orifices Rear Burner LP
Main Burners
Main Burner BTUs (each / total)
Cooking Grates
Warming Rack
Flame Tamers
Heat Zone Dividers
Rear Burner
Rear Burner BTUs
Rotisserie Kit
Hood Assembly
Spring Counter Balanced
Control Panel
Drip Tray
Ignition
Temperature Gauge
Control panel Lighting
Interior Work Lighting
Grill Cutout Dimensions
XOGRILL32XLT XOGRILL40XLT
please read and follow all safety instructions
10
530
166
696
NG or LP
1.98 mm
1.18 mm
1.5 mm
1.1 mm
(3) Tubular SS
17,000 / 51,000
(4)18” x 7 3/8” SS
Tilt and Store SS
(3) Full Coverage SS
(2)Removable SS
Ceramic InfraRed
11,000
Optional
Welded Stainless
Yes
Welded Stainless
Welded Stainless
Reliable Flame Thrower
Hood Mounted
12v Blue LED
12v Halogen (2)
8 1/2” x 21 1/4” x 30 5/8”
662
167
829
NG or LP
1.98 mm
1.18 mm
1.5 mm
1.1 mm
(4) Tubular SS
17,000 / 68,000
(5)18” x 7 3/8” SS
Tilt and Store SS
(4) Full Coverage SS
(3)Removable SS
Ceramic InfraRed
11,000
Optional
Welded Stainless
Yes
Welded Stainless
Welded Stainless
Reliable Flame Thrower
Hood Mounted
12v Blue LED
12v Halogen (2)
8 1/2” x 21 1/4” x 38 3/8”
product specifications
