XFX GeForce 9300 Manuel utilisateur

User Guide

XFX GeForce 9300

Motherboard

All manuals and user guides at all-guides.com

all-guides.com

XFX GeForce 9300 Motherboard

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

iii

Before You Begin…

Inside the GeForce 9300

Installation CD

he following tools and drivers are in the XFX GeForce 9000

Motherboard Installation CD:

Motherboard Drivers for:

Windows XP

Windows XP 64-bit

Windows Vista

Windows Vista 64-bit

Onboard Audio Drivers

Windows XP

Windows XP 64-bit

Windows Vista

Windows Vista 64-bit

eSA A Driver

Windows XP

Windows XP 64-bit

Windows Vista

Windows Vista 64-bit

Adobe Acrobat Reader 8.0

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

Parts NO in the Kit

his kit contains all the hardware necessary to install and connect

your new XFX GeForce 9300 motherboard. However, it does not

contain the following items that must be purchased separately to

make the motherboard functional.



Intel microprocessor:

Intel Core 2 Extreme, Intel Core 2 Quad, Intel Core 2 Duo Pentium

EE, Pentium D, Pentium in the Socket 775 package



Cooling fan for the microprocessor:



System memory support:

Supports dual channel DDR2 memory, and up to 8 GBs DDR2

Memory



Graphics Card

his motherboard supports one x16 PCI Express slot.



Power Supply

he power supply requirement is dependent upon the power and

the of the graphics card you install. As a rule, for one graphic card

you need a minimum of a 350 W power supply.

hese instructions tell you how to install each of the parts listed so

you can have a functioning motherboard. As you go through the

installation instructions, we are assuming you have purchased the

necessary parts.

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

Intentions of the Kit

his kit provides you with the motherboard and all connecting cables

necessary to install the motherboard into a PC cabinet. If you are

building

a PC, you will use most of the cables provided in the kit. If

however, you are

replacing

a motherboard, you will not need many of

the cables.

When

replacing

a motherboard in a PC cabinet, you will need to

reinstall an operating system even though the current drives have an

operating system.

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

All manuals and user guides at all-guides.com

all-guides.com

XFX GeForce 9300

Motherboard

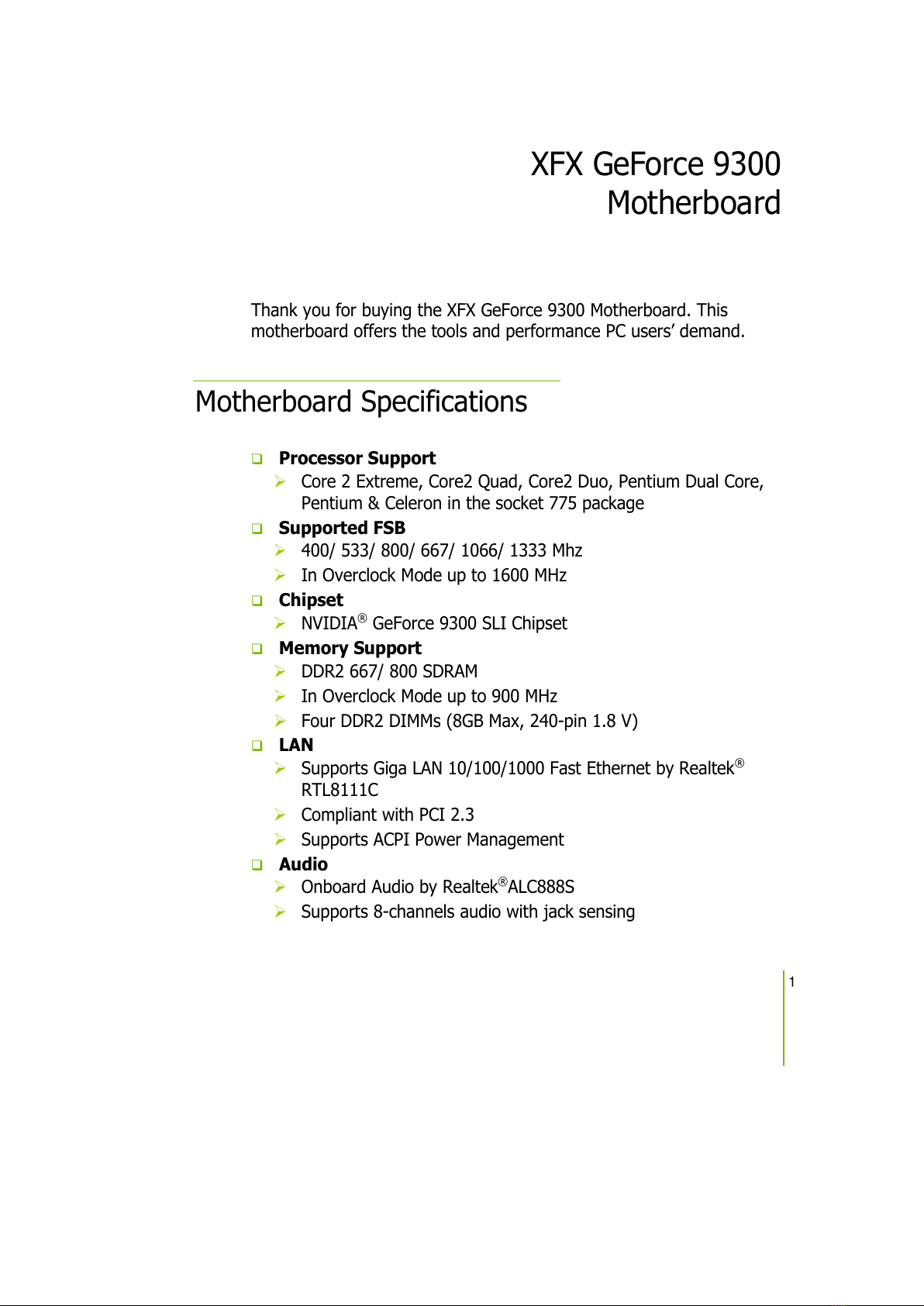

hank you for buying the XFX GeForce 9300 Motherboard. his

motherboard offers the tools and performance PC users’ demand.

Motherboard Specifications



Processor Support

Core 2 Extreme, Core2 Quad, Core2 Duo, Pentium Dual Core,

Pentium & Celeron in the socket 775 package



Supported FSB

400/ 533/ 800/ 667/ 1066/ 1333 Mhz

In Overclock Mode up to 1600 MHz



Chipset

NVIDIA

GeForce 9300 SLI Chipset



Memory Support

DDR2 667/ 800 SDRAM

In Overclock Mode up to 900 MHz

Four DDR2 DIMMs (8GB Max, 240-pin 1.8 V)



Supports Giga LAN 10/100/1000 Fast Ethernet by Realtek

R L8111C

Compliant with PCI 2.3

Supports ACPI Power Management



Audio

Onboard Audio by Realtek

ALC888S

Supports 8-channels audio with jack sensing

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

Compliant with Azalia Spec

Meet Microsoft

Windows

Vista

Premium Spec



SATA

Six SA A II ports with NVIDIA chipset

Supports six SA A devices

Supports storage and data transfers at up to 3 Gb/s

One eSA A port with JMicron

JMB362 chip



RAID

Six SA A II supporting RAID 0/ 1/ 0+1/ 5 or JBOD mode

One eSA A supporting RAID 0/ 1 mode



Connectors Back panel

One PS/2 keyboard port

Six USB ports

One clear CMOS button

One HDMI port

One VGA port

One DVI port

One eSA A port

One LAN jack

Six audio jacks



On-Board Pin headers

hree USB 2.0 pin headers

One SPDIF-Out pin header

One Front Panel Audio pin header



Slots

One PCI Express x 16 slot

One PCI Express x 1 slot

wo PCI slots, support 3.3V/ 5V PCI bus Interface



Form Factor

Micro-A X (24.4 cm X 24.4 cm)



Mounting

Eight mounting holes

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

Motherboard Layout

PCI 2

PCI 1

PCI_E2

NVIDIA

MCP7AS

PCI_E1

BATT

SYSFAN1

CPUFAN

SATA3_4

SATA1_2

T: LINE-IN

M: LINE-OUT

B: MIC

T: RS-OUT

M: CS-OUT

B: SS-OUT

B: USB PORTS

KEYBOARD

T: LAN JACK

B: USB PORTS

JAUD1

JMICRON

JMB362

REALTEK

ALC88S

REALTEK

RTL8111C

JSPD1 JUSB3 JUSB1 JUSB2

J4RESET1 POWER1

ITE

IT8720F

JFP2

JFP1

JPWR2

B: ESATA PORT

USB PORTS

T: VGA PORT

B: DVI PORT

HDMI PORT

CLEAR COMS BUTTON

Debug LED Light

XFX Geforce 9300

Micro-ATX Motherboard

All manuals and user guides at all-guides.com

XFX GeForce 9300 Motherboard

Rear Panel

GeForce 9300 Rear Panel



Keyboard Connector

he standard PS/2

keyboard DIN connector is for a PS/2

keyboard.



USB Port

he USB (Universal Serial Bus) port is for attaching USB

devices such as keyboard, mouse, or other USB-compatible

devices.



Clear CMOS

here is a CMOS RAM on board that has a power supply from

external battery to keep the system configuration data. With

the CMOS RAM, the system can automatically boot OS every

time it is turned on. If you want to clear the system

configuration, use the button to clear data. Press the button to

clear the data.



HDMI Port

he High-Definition Multimedia Interface (HDMI) is an all-

digital audio/video interface capable of transmitting

uncompressed streams. HDMI supports all V format, including

Keyboard

HDMI

USB Port LA Line-In RS-Out

VGA Port

Mic SS-Out

DVI Port USB Port eSATA USB Port

Clear

CMOS

Line-Out CS-Out

All manuals and user guides at all-guides.com
