Xerox Phaser 7750 Manuel de l'opérateur

Phaser® 7750 Color Laser Printer

4-3

Paper Jams

This topic includes:

■"Jam at Tray 1 (MPT)" on page 4-3

■"Jam at Tray 2" on page 4-6

■"Jam at Tray 3, 4, or 5" on page 4-8

■"Jam at the Fuser" on page 4-11

■"Jam at the Duplex Unit" on page 4-14

■"Jam at Finisher Entrance" on page 4-16

■"Jam at Finisher-Bypass Door G" on page 4-17

■"Jam at Finisher Door H" on page 4-18

For safety information, go to Reference/Troubleshooting/User Safety on the User

Documentation CD-ROM.

Jam at Tray 1 (MPT)

There is a jam at Tray 1 (MPT). Follow these steps to clear the jam.

1. Remove paper from Tray 1 (MPT).

Videos are available with instructions for clearing paper jams. Videos are located

on the User Documentation CD-ROM and at www.xerox.com/office/7750support.

7750-006

Paper Jams

Phaser® 7750 Color Laser Printer

4-4

2. Remove the jammed paper. Confirm that all paper fragments are removed.

3. If you did not find paper in step 2, push up the latch on the left side of the printer to open

Left Door A.

Warning

Use caution. Some components behind Left Door A may be hot.

4. Remove the jammed paper. Confirm that all paper fragments are removed.

7750-007

7750-001

7750-078

Paper Jams

Phaser® 7750 Color Laser Printer

4-5

5. Close Left Door A.

6. Replace the paper in the tray.

Note

Do not load paper above the fill line.

For additional information, go to www.phaserSMART.com.

7750-005

7750-008

Paper Jams

Phaser® 7750 Color Laser Printer

4-6

Jam at Tray 2

There is a jam at Tray 2. Follow these steps to clear the jam.

1. Open Left Door B.

2. Remove the jammed paper. Confirm that all paper fragments are removed.

3. Close Left Door B.

7750-009

7750-010

7750-011

Paper Jams

Phaser® 7750 Color Laser Printer

4-7

4. Pull out Tray 2.

5. Remove jammed paper from the tray.

6. Verify that the paper is loaded correctly in the tray and that the guides are pressed firmly

against the paper.

7750-012

7750-013

7750-016

Paper Jams

Phaser® 7750 Color Laser Printer

4-8

7. Push Tray 2 completely to the back of the printer.

For additional information, go to www.phaserSMART.com.

Jam at Tray 3, 4, or 5

There is a jam at the tray specified on the front panel. Follow these steps to clear the jam.

1. Open Left Door C.

2. Remove the jammed paper. Confirm that all paper fragments are removed.

7750-014

7750-018

7750-019

Paper Jams

Phaser® 7750 Color Laser Printer

4-9

3. Close Left Door C.

4. Pull out the tray specified on the front panel.

7750-021

7750-022

Paper Jams

Phaser® 7750 Color Laser Printer

4-10

5. Remove the crumpled paper from the tray.

Note

If you have a 2500-Sheet High-Capacity Feeder, lift the cover on the let side of the

tray and remove jammed paper.

6. Verify that the paper is loaded correctly in the tray and that the guides are pressed firmly

against the paper.

7750-109

7750-136

7750-113

Paper Jams

Phaser® 7750 Color Laser Printer

4-11

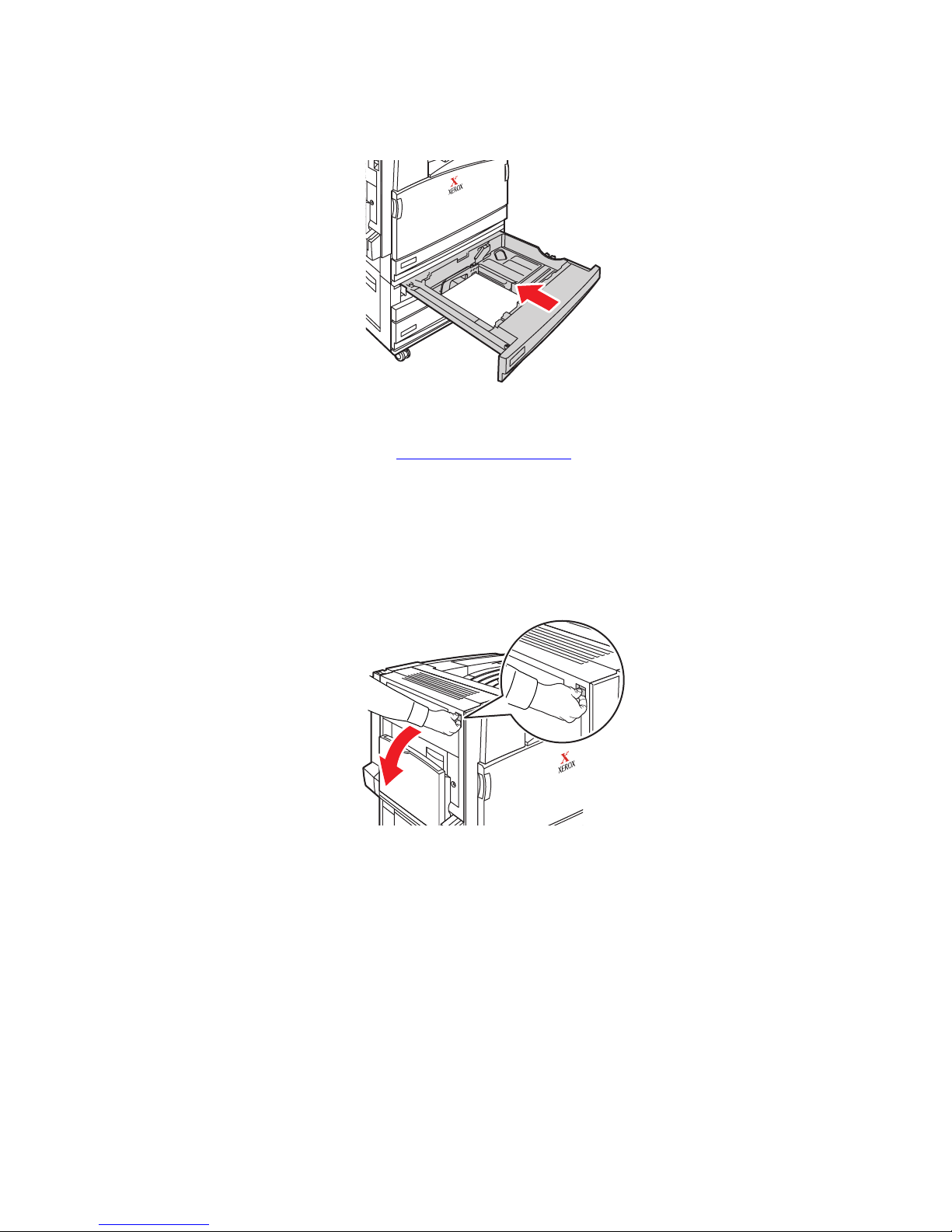

7. Push the tray completely to the back of the printer.

For additional information, go to www.phaserSMART.com.

Jam at the Fuser

There is a jam at the fuser. Follow these steps to clear the jam.

1. Push up the latch on the left side of the printer to open Left Door A.

Warning

Use caution. Some components behind Left Door A may be hot.

7750-023

7750-001

Paper Jams

Phaser® 7750 Color Laser Printer

4-12

2. Lift the green release latch located on the right side of the fuser.

3. Remove the jammed paper. Confirm that all paper fragments are removed.

4. Push down the green release latch.

7750-002

7750-003

7750-004
