Xerox PHASER 6250 Manuel utilisateur

Phaser® 6250 Color Laser Printer

4-3

Paper Jams

This topic includes:

■"Misfeed at Tray 1 (MPT)" on page 4-3

■"Misfeed at Tray 2, 3, or 4" on page 4-5

■"Jam at the Fuser" on page 4-8

■"Jam at the Duplex Unit" on page 4-10

For safety information, go to Reference/Troubleshooting/User Safety on the User

Documentation CD-ROM.

Misfeed at Tray 1 (MPT)

Follow these steps to clear the misfeed.

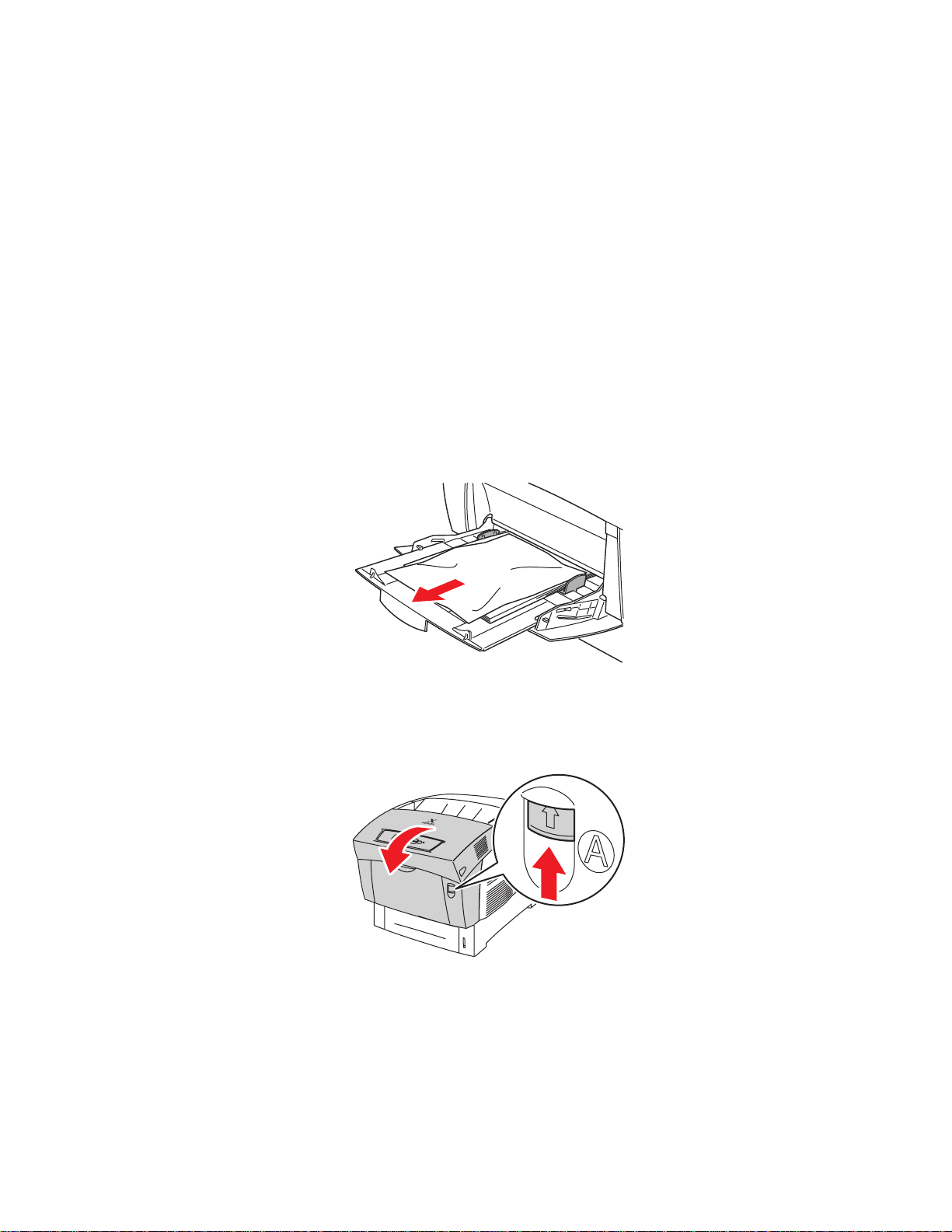

1. Remove the jammed paper from Tray 1 (MPT).

2. Push up the latch on the front of the printer to open Front Door A.

6250-013

6250-066

Paper Jams

Phaser® 6250 Color Laser Printer

4-4

3. Remove jammed paper.

4. Close Front Door A.

6200-016

6250-064

Paper Jams

Phaser® 6250 Color Laser Printer

4-5

5. Load the paper in Tray 1 (MPT). Do not load the paper above the fill line. Confirm that the

guides are set flush against the paper. Verify that the paper is clean and not stuck together.

For additional information, go to www.phaserSMART.com.

Misfeed at Tray 2, 3, or 4

Follow these steps to clear the misfeed for the tray specified on the front panel.

1. Pull the tray specified on the front panel completely out of the printer.

6250-008

6250-009

6250-035

Paper Jams

Phaser® 6250 Color Laser Printer

4-6

2. Remove any crumpled paper from the tray.

3. Verify that the paper is loaded correctly in the tray and the guides are set flush against the

paper.

4. Remove jammed paper from inside the printer tray slot. Verify that all scraps of paper are

removed.

6250-014

6200-00

6250-015

Paper Jams

Phaser® 6250 Color Laser Printer

4-7

5. Insert the tray into the tray slot and push it completely to the back of the printer.

6. Push up the latch on the front of the printer to open Front Door A.

7. Remove jammed paper.

6250-036

6250-066

6200-016

Paper Jams

Phaser® 6250 Color Laser Printer

4-8

8. Close Front Door A.

For additional information, go to www.phaserSMART.com.

Jam at the Fuser

Follow these steps to clear the jam.

1. Press the latch on the right side of the printer to open Front Door B.

6250-064

6250-039

Paper Jams

Phaser® 6250 Color Laser Printer

4-9

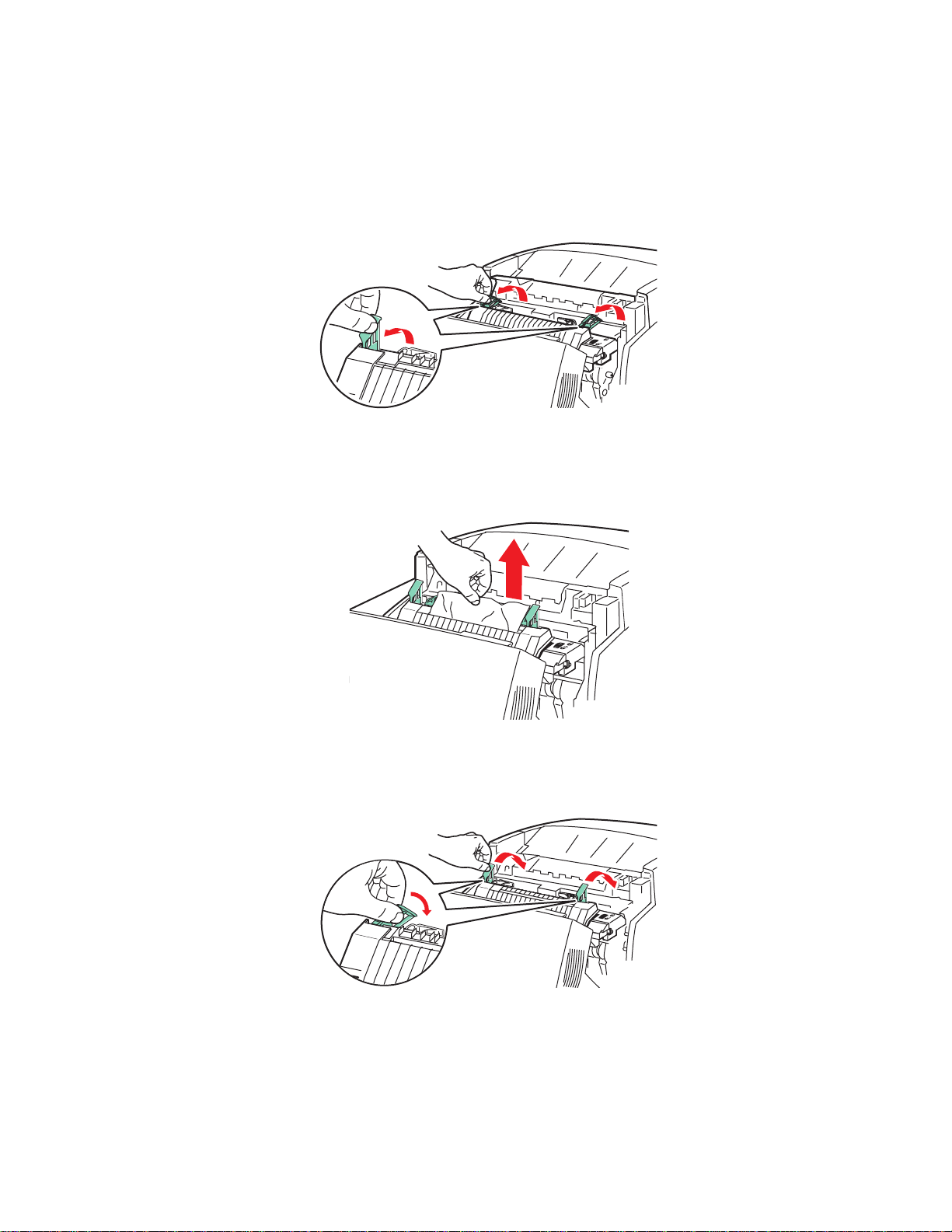

2. Pull up the two green levers at both ends of the fuser unit.

Warning

The fuser is hot. To prevent burns, do not touch the black part of the fuser.

3. Remove the jammed paper.

4. Completely push down the two green levers at both ends of the fuser.

6250-061

6250-063

6250-06

Paper Jams

Phaser® 6250 Color Laser Printer

4-10

5. Close Front Door B.

For additional information, go to www.phaserSMART.com.

Jam at the Duplex Unit

Follow these steps to clear the jam.

1. Press the latch on the right side of the printer to open Front Door B.

6250-094

6250-065

Paper Jams

Phaser® 6250 Color Laser Printer

4-11

2. Remove the jammed paper.

3. Close Front Door B.

For additional information, go to www.phaserSMART.com.

6250-019

6250-094
