1
QUICK START
INTRODUCTION
This guide provides information on:
FUnpacking the printer
FPrinter setup
FPrinting a basic job
FControl panel description
FReferences to additional information
UNPACKING AND PLACING THE PRINTER
Use the following procedures to unpack the
printer and verify the contents:
Step 1. Remove any plastic wrap and styrofoam pads.
WARNING: DO NOT LIFT THE PRINTER BY
YOURSELF. Two people should lift the
printer out of the carton and place it
B
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
2
Quick Start
Step 2. Grasp the printer as shown in Figure 1.
Figure 1. Grasping the Printer
Step 3. Remove the printer from the carton and place it
on a flat surface.
Step 4. Unpack the contents and verify the following
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
Quick Start
3
Figure 2. Contents of the Shipping Carton
1. Printer 6. Paper
Support Wire
2. Toner Cartridge Kit 7. Documen
tation
3. Paper trays (two with 4215/MRP, 8. Power
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
4
Quick Start
Installing the Memory Expansion Kit and Interface Card
The printer is delivered with 4 megabytes of
random access memory (RAM). You have selected
one of the following memory expansion options:
F4-megabytes (for a total of 8-megabytes)
F8-megabytes (for a total of 12-megabytes)
F16-megabytes (for a total of 20-megabytes)
You selected one of the following interface
cards:
FTwinax
FCoax
You may also have the IPDS upgrade kit for your
twinax or coax interface.
Arrange for your Xerox service representative
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
Quick Start
5
Installing the Manual Feed Tray
Follow these steps to install the manual feed
tray:
Step 1. Unpack the manual feed tray.
Step 2. With the manual feed tray in the closed
position, line up the tabs at the bottom of the
Figure 3. Positioning the Manual Feed Tray
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
6
Quick Start
Step 3. Hold the closed manual feed tray so that it is
flush against the rear of printer. The tabs on
the manual feed tray have pins. The tabs at
the rear of the printer have corresponding
holes where the tray pins are inserted to
secure the tray under the manual feed slot.
Insert one of the tray pins into the
corresponding hole in the printer tab and then

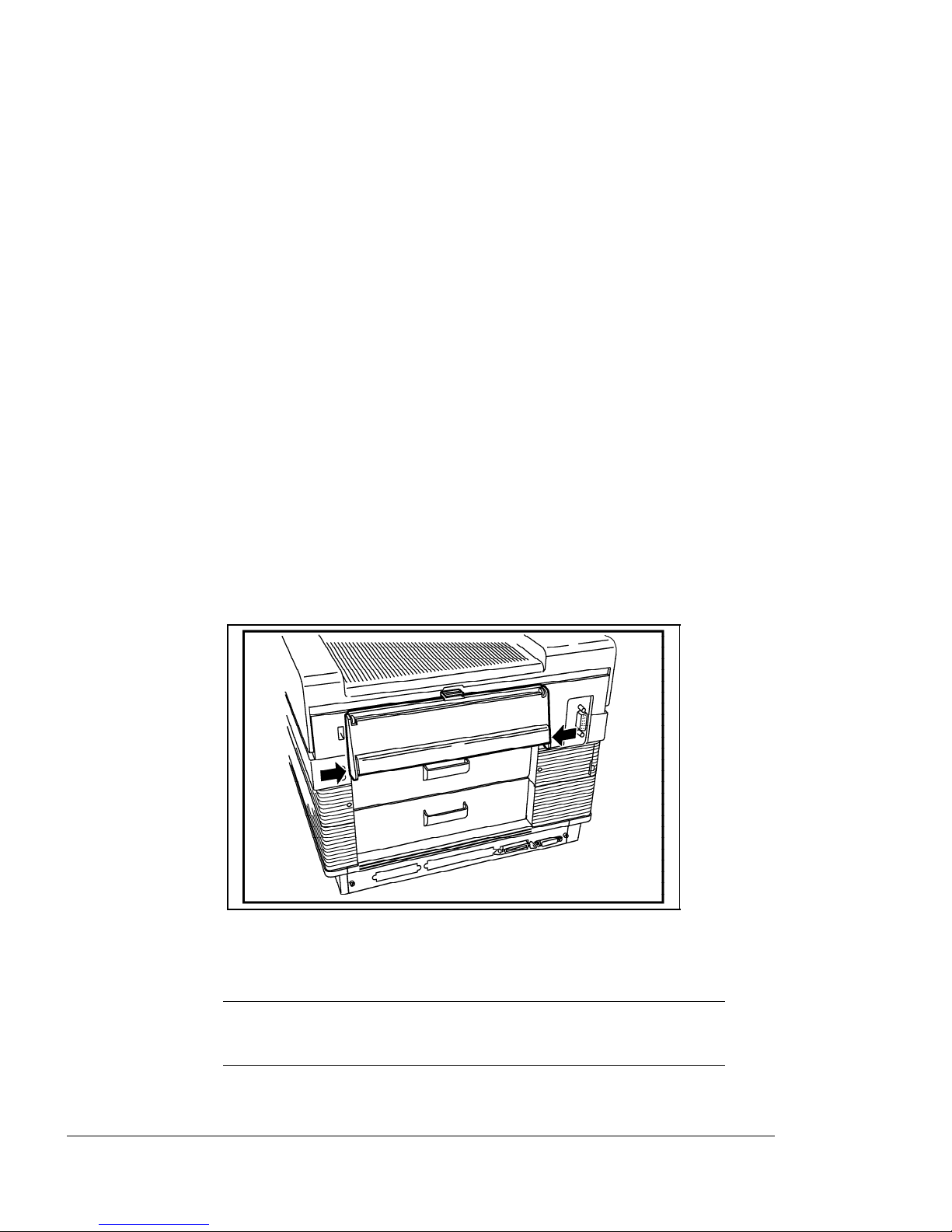

Figure 4. Installing the Manual Feed Tray
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
Quick Start
7
Installing the Paper Support Wire
The paper support wire attaches to the rear of
the output tray. The paper support wire is
used to extend the length of the paper output
tray to accommodate the stacking of extra long
paper, e.g., Ledger or A3 paper. Follow these
steps to install the paper support wire:
Step 1. Unpack the paper support wire.
Figure 5. Installing the Paper Support Wire
Installing the Toner Cartridge Kit
CAUTION: If you relocate the printer
at any time, be sure to remove the
toner cartridge from the printer
G
Step 1. Unpack the Toner Cartridge Kit.
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
8
Quick Start
Step 2. Remove the contents of the box. See Figure 6.
Figure 6. Contents of the Toner Cartridge
Kit
1. Toner cartridge
2. Corotron
3. Fuser cleaning felt
4. Toner cartridge Installation booklet
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
< cut top 2" cut 1">
DIIIIIIIIHHHHHHHHIIIIIIIIIIIII
Quick Start
9
Step 3. Open the top cover of the printer by pressing
the release latch. Remove any packing material
Figure 7. Opening the Top Cover
Installing the Fuser Cleaning Felt Follow these
steps to install the fuser cleaning felt:
Step 1. Unpack the fuser cleaning felt.
CAUTION: Do not touch the felt area on
the underside of the cleaning felt.
G
Step 2. Lift up the fuser cleaning felt housing cover.
XEROX 4219/MRP Mid Range Systems Printer
XEROX 4215/MRP Mid Range Systems Printer
