X-Vision XPD721WIR Manuel utilisateur

Model: XPD721WIR

700 TVL Vandal Resistant Day/Night Dome

Before you begin

• Please unpack the box carefully and identify that all the parts are present.

• Do not cut the camera cables, this will void the warranty.

• Make sure you use only the recommended power supply. Damage caused to the

camera by incorrect voltage or wiring is not covered by the warranty.

The camera is suitable for indoor or outdoor use. Please bear in mind the following

points when choosing a mounting position.

• The camera must be positioned so that it will not point directly into the sun (sunrise

and sunset) or any bright light, as this may cause damage to the camera.

Model:

XPD721WIR

700 TVL Vandal Resistant Day/Night Dome

Thank you for purchasing this Xvision camera. Before operating this product, please read

this instruction manual carefully.

zUse with a 12V DC regulated power supply.

zTo prevent fire or electrical shock, industry standard wiring should be used for the 12V

DC input terminal.

zBe sure to connect each lead to the appropriate terminal. The incorrect connection may

cause malfunction and/or damage to the camera.

zDo not attempt to point the camera at the sun or other extremely bright objects. It can

cause image smearing whether the camera is powered on or not and can lead to the

damage of the CCD (Charge Coupled Device).

zWhen camera is installed next to equipment, such as wireless communication device,

that emits a strong electromagnetic field, some irregularity such as noise on the

monitor screen may occur.

zBe sure to use a ceiling board that has enough strength to support this camera.

zDo not pull the camera cable, this may cause it to disconnect from the internal camera.

zDo not touch the inside of camera even if something is wrong.

zBefore installation, be sure to disconnect the power supply first, check the ground

connection, and then install the camera.

zOperating temperature: -10° ~ +50°C

zStorage temperature: -20° ~ +60°C

zBe sure to use the screws supplied with the camera for installation.

1. Safety Precautions

The XPD721WIR dome camera is designed for high risk applications and is able to

withstand a blow from a 120 pound sledgehammer. It offers very high resolution images of

600 TVL in Colour mode and 700 TVL in B/W mode, with a low lux sensitivity of 0.0003 lux.

It features Dynamic Night View, Number Plate Recognition, Wide Dynamic Range, Smart

DNR for disk saving and an Auto Iris Varifocal Lens with 36x Optical Zoom. It is designed for

internal or external use and can be wall or ceiling mounted.

In addition to this the camera features high output LEDs for up to 30 metres IR night vision

in complete darkness.

z700 TVL resolution images in B/W mode and 600 TVL in Colour.

zSony 1/3” Next Generation CCD Image Sensor with Xvision DSP.

z2.8 to 11.0mm Varifocal Auto Iris Lens for 26 to 92° viewing angle for super sharp

images and easy selection of the optimum viewing angle during installation.

zIntegrated Long Life Infra Red LEDs turn on automatically in low light conditions or

complete darkness and provide up to 30 metres Night Vision.

zDynamic Night View technology provides clear images without the need for IR LEDs

down to 0.0003 lux, this is achieved by using Field Integration. Please note due to the

way in which field integration works, whilst it is in operation the frame per second will

be reduced. The darker the scene, the lower the frame per second.

zSmart DNR (3D Digital Noise Reduction) reduces the noise on the image when viewing

in low lux environments (like at night). This reduces the size of the image when being

recorded by a DVR, resulting in a saving of disk space.

zD-WDR (Digital Wide Dynamic Range) feature allows the camera to display balanced

pictures even when the scene being watched has bright spots or various light levels and

back light conditions.

zNumber Plate Recognition using advanced Highlight Suppression Technology.

zManual pan/tilt mechanism with 3-Axis Rotation.

zDesigned for Wall or Ceiling Mounting, suitable for Internal or External use.

3. Features

2. Product Description

4. Contents

XPD721WIR Camera

Wall Plugs & Screws

Opening Tool Allen Key

Screws & Wall Plugs

Template

Use of Accessories:

1. OPENING TOOL: Needed for opening up the pipe holes during cabling.

2. ALLEN KEY: For body cover and camera base assembly.

3. TEMPLATE: A drilling guide for use during installation.

4. RUBBER PAD: A waterproof pad for use at the base of the camera during installation.

5. Product Assembly

Handling the camera:

1. Never attempt to disassemble or modify the camera.

2. If an abnormality should occur, immediately turn off the power and consult your dealer.

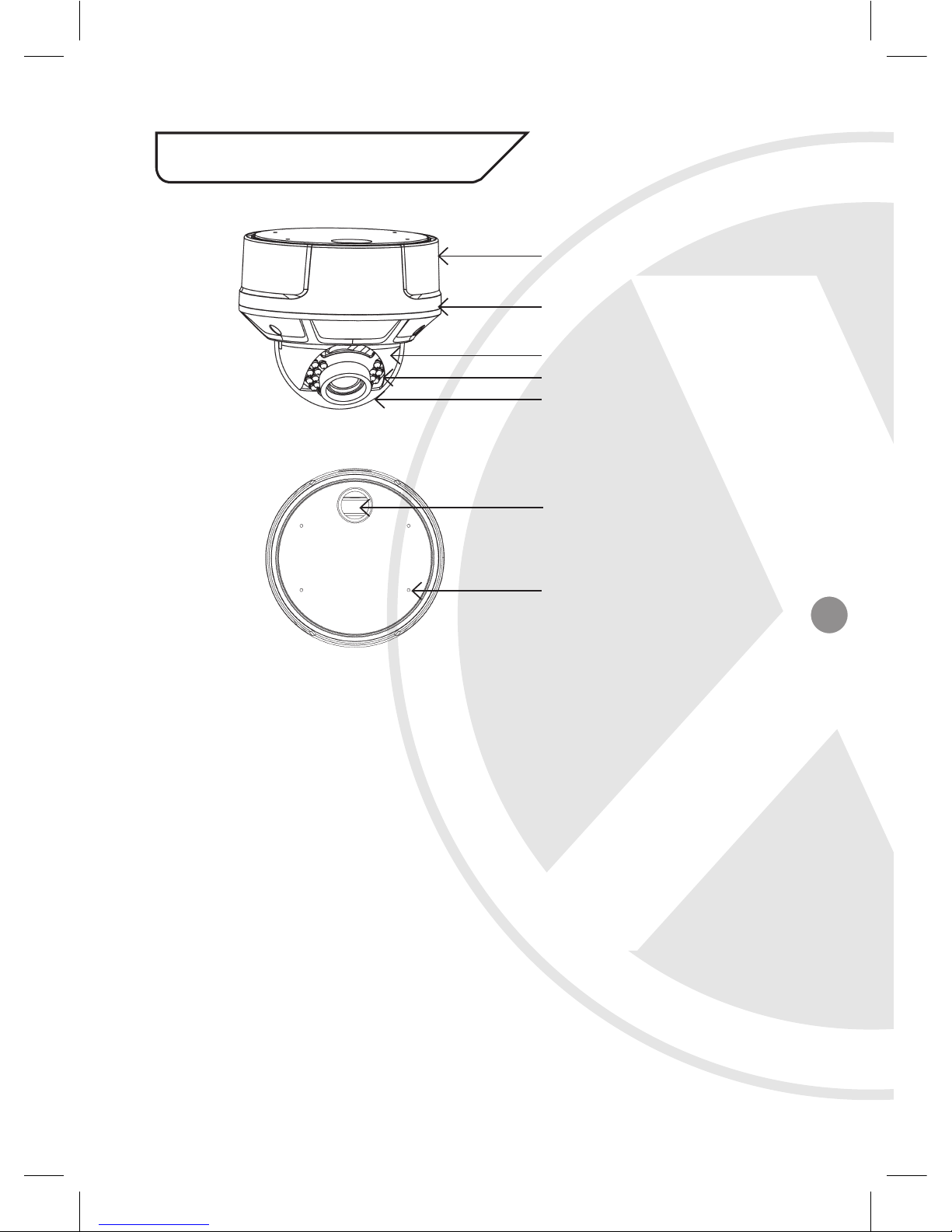

Dome cover (transparent)

Camera body

Body cover

Dome base

Cable hole

Mounting Holes

Cover Removal and Attachment

1. To remove the body cover, disassemble it with the Allen Key provided in the accessory

set. (Rotating clockwise will close it and anti-clockwise will release it).

2. To attach it, align the edge of body cover to the groove on the Dome base. Turn the

dome until the lens points to the opening window, and then screw it tightly into place.

IR LEDs

6. Installation

FIX THE DOME BASE

1. Attach the provided template to where you want to install the camera and drill the

holes in the place where the camera is to be installed, then run the power and video

cables through the hole.

2. Disassemble the dome base from the dome base.

3. Fix the Dome base on the wall or the ceiling using the wall plugs and screws supplied.

WALL MOUNT

Ceiling Area

Dome Base

Camera Body

Dome Cover

ADJUST THE CAMERA LENS

Camera body moves in three ways. It can be paned, tilted and rotated.

4. Adjust the direction so that the lens is pointing at the target.

5. Use the lever to adjust the view angle and focus.

ATTACH THE BODY COVER

6. Turn the dome cover to adjust the lens to the opening window.

CONNECT THE POWER & VIDEO CABLES

7. Connect the video output to the monitor or other video device through a 75 Ohms type

coaxial cable.

8. Connect the power source, insert the AC plug into the AC socket and the DC plug into the

DC Jack (+12V DC in jack centre).

Once the picture appears on the monitor, make the final Zoom and Focal adjustments

if required.

VIDEO CABLE

12V DC POWER CABLE

Rotate 180°

Pan 360°

Tilt 90°

Focus Adjustment lever

Zoom / Viewing Angle

Adjustment lever

IR LEDs

7. Camera OSD Control

Various camera settings can be adjusted using the OSD buttons located in the dome.

Press the Set button to enter the OSD Menu.

Video Test

Connector

Set (Menu)

Down

Left

Press this Control For this Action

UP, DOWN Select between items in a list

LEFT, RIGHT Select a menu item to change its setting

SET (MENU) Access a sub menu

OSD Button Control Actions

8. OSD Menu Structure

LENS

●DC

●SHARPNESS ●MONITOR ●OSD COLOR

EXPOSURE

●BLC ●D-WDR ●RETURN

●SHUTTER ●AGC ●SENS-UP

WHITE BALANCE

●AWB ●ATW ●AWC SET ●OUTDOOR

●INDOOR ●MANUAL

DAY/NIGHT

●AUTO ●COLOR ●B/W

3DNR

●OFF ●ON

●CAMTITLE ●D-EFFECT ●MOTION ●PRIVACY

●SNYC ●LANGUAGE

SPECIAL

●FACTORY ●RETURN

RESET

ADJUST

EXIT

SETUP MENU

9. SETUP Menu Functions

1. LENS <Option : DC>

This should be left on the default DC setting.

2. EXPOSURE

• SHUTTER: Adjusts shutter settings <AUTO / FLK / MANUAL>

- AUTO - Adjusts shutter settings to control the brightness level on screen.

- FLK (Flickerless mode) - Reduces on-screen flickering. FLK is the only option

available when the camera lens is set to DC mode.

- MANUAL - Allows you to adjust the shutter speed from 1/50~1/100,000 (PAL).

• BRIGHTNESS: Adjusts brightness settings

• AGC: Automatic Gain Control <HIGH / MIDDLE / LOW / OFF>

For better performance in low light conditions the AGC can be increased. This has

the effect of making the picture brighter (however it may also add more noise to the

picture as it is amplifying all aspects of the video signal).

• SENS-UP (DYNAMIC NIGHT VIEW): <AUTO / OFF>

To get a clear image under night or low lighting levels by providing higher sensitivity

in low light conditions. NOTE only adjustable if SHUTTER setting is set to ‘AUTO’ or

‘1/60’

- OFF - Deactivate SENS-UP feature.

- AUTO - In low light or at night time, select this feature. Enter the submenu to select

maximum low shutter value from X2 to X256 (use the X256 setting for the lowest

lux level response of the camera).

We recommend keeping the value in the x2 to x64 range to limit ghosting effect.

• BLC: Back Light Compensation <OFF / BLC / HSBLC>

The BLC function makes objects in front of a bright scene (such as a window on

a bright sunny day) clearer to see by increasing their brightness and making the

background darker.

- OFF - Deactivate BLC feature (default setting).

- BLC - Enter the BLC submenu to select an area in the scene which requires

enhancing. Set the GAIN setting to the level of enhancement required (select either

Low, Middle or High).
