X-Vision X100 Series Manuel utilisateur

Quick Guide

X100 SERIES

2 X100 Series Quick Guide

INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE

INTRODUCTION.................................................................................................... 3

i Overview ............................................................................................................ 3

ii Features ............................................................................................................. 3

Standard Features across the Range ............................................................... 3

Additional Features ......................................................................................... 4

iii Minimum System Requirements ................................................................ 5

iv Notes on Installation ................................................................................... 6

INSTALL & CONNECT ......................................................................................... 7

1.1 X100C Wireless IP Cube Camera ................................................................ 7

1.2 X104P Wireless Pan Tilt Zoom IP Camera ................................................ 9

1.3 X100D IP Dome Camera .............................................................................. 12

1.4 X100V Vandal Resistant IP Dome Camera ............................................... 16

1.5 X100B IP Bullet Camera .............................................................................. 21

1.6 X100T IP Body Camera ................................................................................ 24

1.7 X104S Vandal Resistant IP Speed Dome .................................................. 28

1.8 X100VS Video Server (Codec) .................................................................... 31

SETUP (Quick Guide) ............................................................................................ 34

2.1 Setting up your Network ............................................................................ 34

2.2 Search and Setup by IPWizard II ............................................................... 35

2.3 Access Your IP Camera On Your Web Browser ....................................... 40

(See full version of the SET UP chapter on the User Manual CD)

CONFIGURE .............................................................................. See User Manual CD

RECORDING SOFTWARE ........................................................ See User Manual CD

APPENDIX 1: HOW TO CALIBRATE AN AUTO IRIS LENS ............................... 41

XVISION SUPPORT .............................................................................................. 43

WARRANTY ........................................................................................................... 43

QUICK GUIDE CONTENTS

X100 Series Quick Guide 3

INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE

This user guide explains how to operate your camera from a computer. Read this manual completely and

carefully before you operate the device.

STANDARD FEATURES ACROSS THE RANGE

The following are features of the X100 IP Camera Series:

i OVERVIEW

ii FEATURES

• Easy ‘Plug and Play’ installation and configuration using the Setup Wizard

• 1.3 Megapixel High Definition images up to 1280x1024 resolution, 3x the resolution of standard

CCTV cameras

• IEEE 802.3af Power over Ethernet (except X100C and X104P)

• Choice of compressions and multiple streams for optimum performance in any environment

• Up to 30 fps in VGA mode, 15 fps in Megapixel mode

• Digital Zoom for detailed viewing

• Remote Viewing from anywhere in the world using any standard PC or Mac web browser

• Supports 3G Mobile Viewing on all popular Smart Phones

• Intelligent Motion Detection with Automatic Email Alerts & Local Alarm* Notifications when

motion is detected

• Two-way audio for remote communication with people near the camera*

• Alarm Input and Output (except X100C and X104P)

• Supports DDNS (Dynamic Domain Name System)

• Supplied with Free Multi-channel Management and Recording software for up to 64 IP Cameras

*Speakers will need to be plugged in to the camera for this function

4 X100 Series Quick Guide

INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE

ADDITIONAL FEATURES

X100C WIRELESS IP CUBE CAMERA

• Features White LEDs for 10m Night Vision

• 4.0mm Lens for 50° viewing angle

• SD Card Recording

• Designed for Wall, Ceiling or Desk

mounting

• Suitable for indoor use only

X104P WIRELESS PAN TILT ZOOM

IP CAMERA

• Features White LEDs for 10m Night Vision

• 4.0mm lens for 50° viewing angle

• Motorised Pan (355°) and Tilt (100°)

• Designed for Wall, Ceiling or Desk

mounting

• Suitable for indoor use only

X100D IP DOME CAMERA

• 4.0mm Lens for 50° viewing angle

• Optional lenses available for 35°, 43°, 85°,

or 135° viewing

• Power Over Ethernet

• Designed for Wall or Ceiling Mounting

• Suitable for indoor use only

X100V VANDAL RESISTANT IP DOME

CAMERA

• Vandal Resistant

• Features IR LEDs for 30m Night Vision

• 2.7 to 9.0mm Lens for 20 to 80° viewing

angle

• Power Over Ethernet

• Designed for Wall or Ceiling Mounting

• Suitable for indoor or outdoor use

X100B IP BULLET CAMERA

• Features IR LEDs for 20m Night Vision

• 4.0mm Lens for 50° viewing angle

• Power Over Ethernet

• Designed for Wall or Ceiling Mounting

• Suitable for indoor or outdoor use

X100T IP BODY CAMERA

• C/CS Mount Lens with Auto Iris Support

• Supplied with a 4.0mm lens as standard

for 50° viewing angle

• Optional lenses available for fixed or

varifocal viewing angles

• Power Over Ethernet

• Designed for Wall or Ceiling Mount

• Optional Accessories available for external

mounting

• Suitable for indoor use as supplied

X104S VANDAL RESISTANT IP SPEED

DOME

• Vandal Resistant

• 4.0mm lens for 50° viewing angle

• Motorised Pan (355°) and Tilt (100°)

• Power Over Ethernet

• Designed for Ceiling Mount

• Optional Wall Mount available

• Suitable for indoor or outdoor use

X100VS VIDEO SERVER

• Single Input Video Server

• Converts any type of analogue CCTV

camera into IP

• Power Over Ethernet

• SD Card Recording

• Audio Input

• Suitable for indoor use only

X100 Series Quick Guide 5

INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE

The following are the minimum system requirements for the X100 Series IP Camera Range:

Network Environment Wired Models Wireless Model (X100C, X104P)

Network Interface: 10/100MBase-TX Ethernet 10/100MBase-TX Ethernet

802.11b/g or n WLAN

Browser: Internet Explorer 6.0, Safari 5.0, FireFox 3.5 or later

System Hardware

CPU: Pentium 4, 2.0 GHz or higher

Memory: 512 MB or above

VGA Card Resolution: 1024 x 768 or above

Sound Card: for 2 Way Audio function (optional depending on model)

System Requirements for Viewing and Recording Software

Estimated Total

Display and

Recording FPS:

QVGA 120 120 to 360 360 to 540 540 to 960 960+

VGA 30 30 to 90 90 to 135 135 to 240 240+

SXGA 8 8 to 23 23 to 34 34 to 60 60+

CPU: Intel P4

2.4GHz

Intel P4

3.2GHz

Intel

Pentium D

950

3.4GHz

Intel Core 2

Duo

E8600

3.3GHz

Intel Core

2 Quad

Q9650

3.0GHz

RAM: 512 MB 1 GB 2 GB

Display:

1024 x 678 resolution or above

DirectX 9.0c or above

Intel 945G/965G or above

OS:

Windows XP,

Windows Vista*

Windows 7

Hard Drive: Minimum 60GB recommended

For Multi-channel recording, use 7200rpm or higher speed HDD

Ethernet: 100 MBps 1 GBps

Chipset: Intel 945 or Intel 965 or above

*When using Vista it is recommended that extra memory is installed

iii MINIMUM SYSTEM REQUIREMENTS

6 X100 Series Quick Guide

INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE

iv NOTES ON INSTALLATION

• Please unpack all boxes carefully and identify that all the parts are present.

• Do not aim the camera at the sun or similar intense light.

• Treat the camera with care.

• Do not open the camera to make internal adjustments unless instructed to do so in this manual.

• Avoid using the camera in very hot or very cold temperatures or in areas of high humidity (unless the

camera is designed for outdoor use).

• Ensure the camera is well ventilated. It should not be placed near heated devices such as radiators or

heat elements.

• The camera should be installed on a firm and solid surface. Wall or Ceiling mounting the camera should

be done with care to ensure the camera weight can be supported safely.

• Do not cut the camera cables, this will void the warranty.

• Only use the supplied power adaptor. Using a different adaptor may cause the camera to malfunction,

heat up or catch fire. Any damage cause to the camera by using the incorrect power adaptor will void

the warranty.

• Do not tamper or open the power adaptor supplied.

X100 Series Quick Guide 7

INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE

PACKAGE CONTENTS

• X100C IP Camera

• Wireless Antenna

• Camera Bracket

• Fixing Screws & Wall Plugs

• 12V DC Power Adaptor

• User’s Manual & Software CD

IDENTIFY PARTS

1.1 X100C WIRELESS IP CUBE CAMERA



CONNECTIONS

FRONT VIEW



Microphone

Focus Ring

Reset Button

SD Card Slot

Network Port

Audio Output Socket

12V DC Power Socket

Wireless Antenna

Connector

Night Vision LEDs

Network Type LED

(Green/Orange)

Green LED indicates

Wired connection is

active. Orange LED

indicates Wireless

connection is active.

Insert SD Card for on

board recording

Ensure only the 12V DC

Power Adaptor supplied

with the camera is used.

INSTALL & CONNECT INSTALL & CONNECT

8 X100 Series Quick Guide

INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE

INSTALLATION

The X100C IP Camera can be mounted on a Wall or Ceiling. It can also be desk mounted using the

bracket supplied.

1. For Wall or Ceiling mounting, make a hole where the camera is to be installed to insert the 12V DC

Power Adaptor and LAN cable.

2. Feed the 12V DC Power Adaptor, and LAN cables through the hole.

3. Use the screws and wall plugs supplied to fix the bracket on a wall or ceiling as shown.

4. Adjust the camera direction and angle of view as required using the bracket.

- Make any lens (focus) adjustments using the manual Focus Ring after you have connected the camera and have

setup live viewing via your PC.

5. Connect the 12V DC Power Adaptor and LAN cable to camera.

6. The camera is now ready for you to setup and configure using your PC.

- See SETUP on page 34.

For Wireless Connection

Attach the Wireless Antenna to the camera. Configure your camera’s IP settings using a Wired

connection before you start.

- See SETUP on page 34.

For Audio

Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an

amplifier for voice alerting or for enabling the 2 Way Audio function.

Resetting your camera

The Reset Button is used to restore the factory default settings. If you are experiencing problems

with the IP camera, sometimes restarting the device will make the system revert back to a normal state.

To reset, hold the button for at least 5 seconds. The camera will restore factory settings & reboot.

Note: Restoring the factory default setting will lose all the previous settings including the IP address.

You will need to run the IPWizard II program to re-configure the camera to enable it to work properly again.

INSTALL & CONNECT

Focus Ring

To Power

To Network

Turn anti-clockwise to

loosen for adjustment

X100 Series Quick Guide 9

INSTALL & CONNECT SETUP CONFIGURE RECORDING SOFTWARE

PACKAGE CONTENTS

• X104P IP Camera

• Wireless Antenna

• L-Bracket with 2x Screws

IDENTIFY PARTS

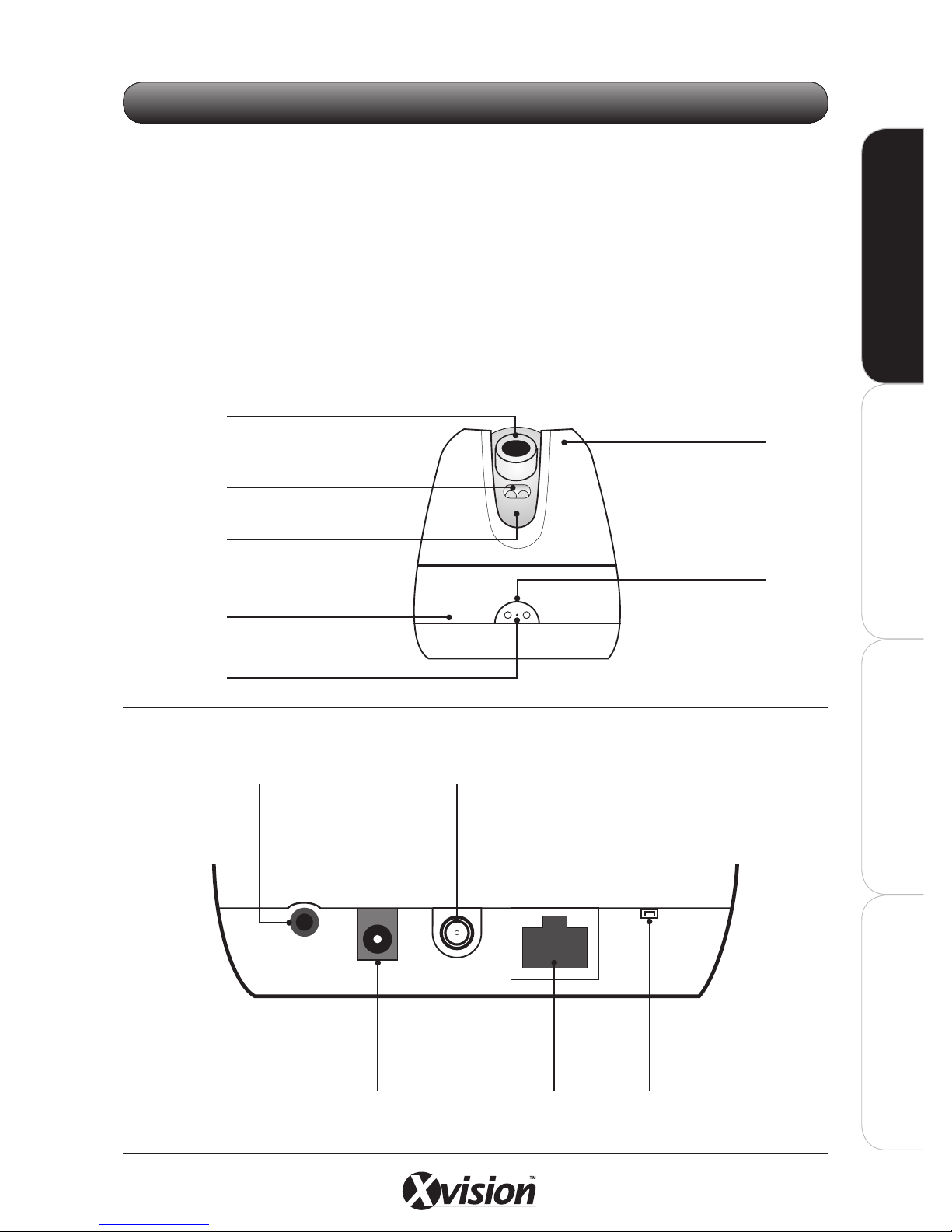

1.2 X104P WIRELESS PAN TILT ZOOM IP CAMERA

CONNECTIONS ON BASE SIDE

FRONT VIEW

• Fixing Screws & Wall Plugs

• 12V DC Power Adaptor

• User’s Manual & Software CD

Lens

Lens Mechanism

Camera Body

Camera Base

Microphone

Network Type LEDs

(Green/Orange)

Green LED indicates

Wired connection is

active. Orange LED

indicates Wireless

connection is active.

The body of the

camera can pan (left

to right) 355°.

The Lens Mechanism can tilt

(up & down) 100°.

Focus Ring

Night Vision LEDs

Network Port

12V DC Power Socket

Ensure only the 12V DC

Power Adaptor supplied

with the camera is used.

AUDIO

OUT 12V DC RESETLAN

Reset Button

Audio Output

Socket

Wireless Antenna

Connector

INSTALL & CONNECT

10 X100 Series Quick Guide

INSTALL & CONNECT SETUP CONFIGURERECORDING SOFTWARE

INSTALLATION

The X104P IP Camera can be mounted on a Wall or Ceiling using the L-Bracket provided. It is designed

for internal use only. It can also be desk mounted as supplied.

1. For Wall or Ceiling mounting, make a hole where the camera is to be installed to insert the 12V DC

Power Adaptor and LAN cable.

2. Feed the 12V DC Power Adaptor and LAN cables through the hole.

3. Use the screws and wall plugs supplied to fix the bracket to the camera, then to the ceiling as

shown. For wall mounting, fix the bracket to the wall before mounting the camera to the bracket.

4. Connect the 12V DC Power Adaptor and LAN cable to camera.

5. The camera is now ready for you to setup and configure using your PC.

- See SETUP on page 34.

Lens Adjustment

Make any lens (focus) adjustments after you have

connected the camera and have setup live viewing via

your PC.

To adjust the lens, open the Dome Cover by turning it

anti-clockwise and rotate the Focus Ring.

For Wireless Connection

Attach the Wireless Antenna to the camera. Configure your camera’s IP settings using a Wired

connection before you start.

- See SETUP on page 34.

For Audio

Connect the 3.5mm microphone Audio Out Socket to an audio output device such as a speaker with an

amplifier for voice alerting or for enabling the 2 Way Audio function.

CEILING MOUNT

Power &

LAN cable

Power &

LAN cable

WALL MOUNT

INSTALL & CONNECT

Focus Ring

Autres manuels pour X100 Series

Table des matières

Autres manuels X-Vision Caméra de sécurité

X-Vision

X-Vision XSD27ZIR-2 Manuel utilisateur

X-Vision

X-Vision XC960BN Manuel utilisateur

X-Vision

X-Vision XC960S30 Manuel utilisateur

X-Vision

X-Vision XPD700W-2 Manuel utilisateur

X-Vision

X-Vision VIS238D Manuel utilisateur

X-Vision

X-Vision XC960DA Manuel utilisateur

X-Vision

X-Vision VIS249D Manuel utilisateur

X-Vision

X-Vision XPD421DNV Manuel utilisateur

X-Vision

X-Vision Professional NPR Camera Guide de configuration

X-Vision

X-Vision VIS249DX Manuel utilisateur

X-Vision

X-Vision XIR621 Manuel utilisateur

X-Vision

X-Vision XAM202-208 Manuel utilisateur

X-Vision

X-Vision X100 Series Manuel utilisateur

X-Vision

X-Vision HD 960H Manuel utilisateur

X-Vision

X-Vision XSD27ZIR-2 Manuel utilisateur

X-Vision

X-Vision XSD35ZDN Manuel utilisateur

X-Vision

X-Vision XSD27ZIR Manuel utilisateur

X-Vision

X-Vision XPT600 Manuel utilisateur

X-Vision

X-Vision PC810 Manuel utilisateur

X-Vision

X-Vision XIR501 Manuel utilisateur

X-Vision

X-Vision XSD27ZDN Manuel utilisateur

X-Vision

X-Vision XSD27ZIR-2 Manuel utilisateur

X-Vision

X-Vision XHC1080S10IRN Manuel utilisateur

X-Vision

X-Vision XP1080S20 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
