X-Micro XWL-11GPAG Manuel utilisateur
WLAN 11g PCMCIA Card
User Manual
INFORMATION TO USER
Product Name: X-Micro WLAN 11g PCMCIA Card
Model Name:
XWL-11GPAG
FCC INFORMATION
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
The equipment has been tested and found to comply with the limits for a
Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communication. However, there is no grantee that
interference will not occur in a particular installation. If this equipment dose
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
correct the interference by one or more of the following measures:
to
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Notice: The Part 15 radio device operates on a non-interference basis with
other devices operating at this frequency. Any changes or modification not
expressly approved by the party responsible could void the user’s authority to
operate the device.
REGULATORY INFORMATION
X-Micro WLAN PCMCIA Card must be installed and used in strict accordance
with the manufacturer’s instructions. This device complies with the following
radio frequency and safety standards.
USA - Federal Communications Commission (FCC)
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may cause undesired
operation.
Europe-R&TTEDirective
This device complies with the specifications listed below
• ETS 300-826 General EMC requirements for Radio equipment.
• ETS 300-328 Technical requirements for Radio equipment.
• EN60950 Safety Requirements for Radio equipment
The channel identifiers, channel center frequencies, and regulatory domains of
each 22-MHz-wide channel are shown in following Table.
MAX. OUT POWER
COUNTRY CHANNELS
INDOOR OUTDOOR
S
p
ain 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
France 2400-2454 MHz 1-8 < 100 mW EIRP < 100 mW EIRP
France 2454-2483.5 MHz 9-13 < 100 mW EIRP < 10 mW EIRP
Italy 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
UK 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Netherlands 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Germany 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Austria 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Belgium 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Switzerland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Luxemburg 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Russia 2400-2483.5 MHz 1-13 <10 mW EIRP <10 mW EIRP
Ireland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Portugal 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Norway 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Denmark 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Finland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Iceland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Greece 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Lichtenstein 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Sweden 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP
Contents
1. Introduction............................................................................................................5
1.1 Product Feature..........................................................................................5
1.2 System Requirement..................................................................................5
2. Getting Start...........................................................................................................5
2.1 LED Indicators...........................................................................................5
2.2 Install the X-Micro WLAN 11g PCMCIA Card........................................5
2.2.1 Utility Installation..........................................................................5
2.2.2 Driver Installation..........................................................................8
3. Configuration...........................................................................................................11
3.1 Link Information............................................................................................11
3.2 Configuration.................................................................................................12
3.3 Advance .........................................................................................................13
3.4 Site Survey.....................................................................................................15
3.5 About US .......................................................................................................16
4. Glossary ...................................................................................................................17
1. Introduction
1.1 Product Feature
Compliance with IEEE 802.11g and 802.11b standards
Highly efficient design mechanism to provide unbeatable performance
Achieving data rate up to 108Mbps for 802.11g and 11Mps for 802.11b with wide
range coverage
Strong network security with WEP and WPA support
Auto-switch between the two standards, IEEE 802.11b and 802.11g
Driver/Utility support most commonly used operating systems including Windows
98SE/ME/200/XP.
1.2 System Requirement
Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems
PC with Pentium III 600MHz system or above is recommended
Equipped with at least one PC cardbus socket or PC cardbus adapter
One CD-ROM drive
2. Getting Start
2.1 LED Indicators
The Power LED will be ON when the unit is powered up.
The Link LED will be Blinking indicates a WLAN connection.
2.2 Install the X-Micro WLAN 11g PCMCIA Card
2.2.1 Utility Installation
1. Before insert PC card into the PC cardbus of your computer, please install the
Utility Program first. Make sure that the X-Micro WLAN 11g PCMCIA Card
is NOT inserted into the cardbus slot.
NOTE: all the snapped images of installation mentioned in this manual are based
on Windows XP. For other windows operating system, all the procedures are
the same but the screens are not the exactly same.
2. Turn on the computer. Insert the CD into the CD-ROM Drive. Please select
“PC Card/ PCI Card” and then click the “Install”.

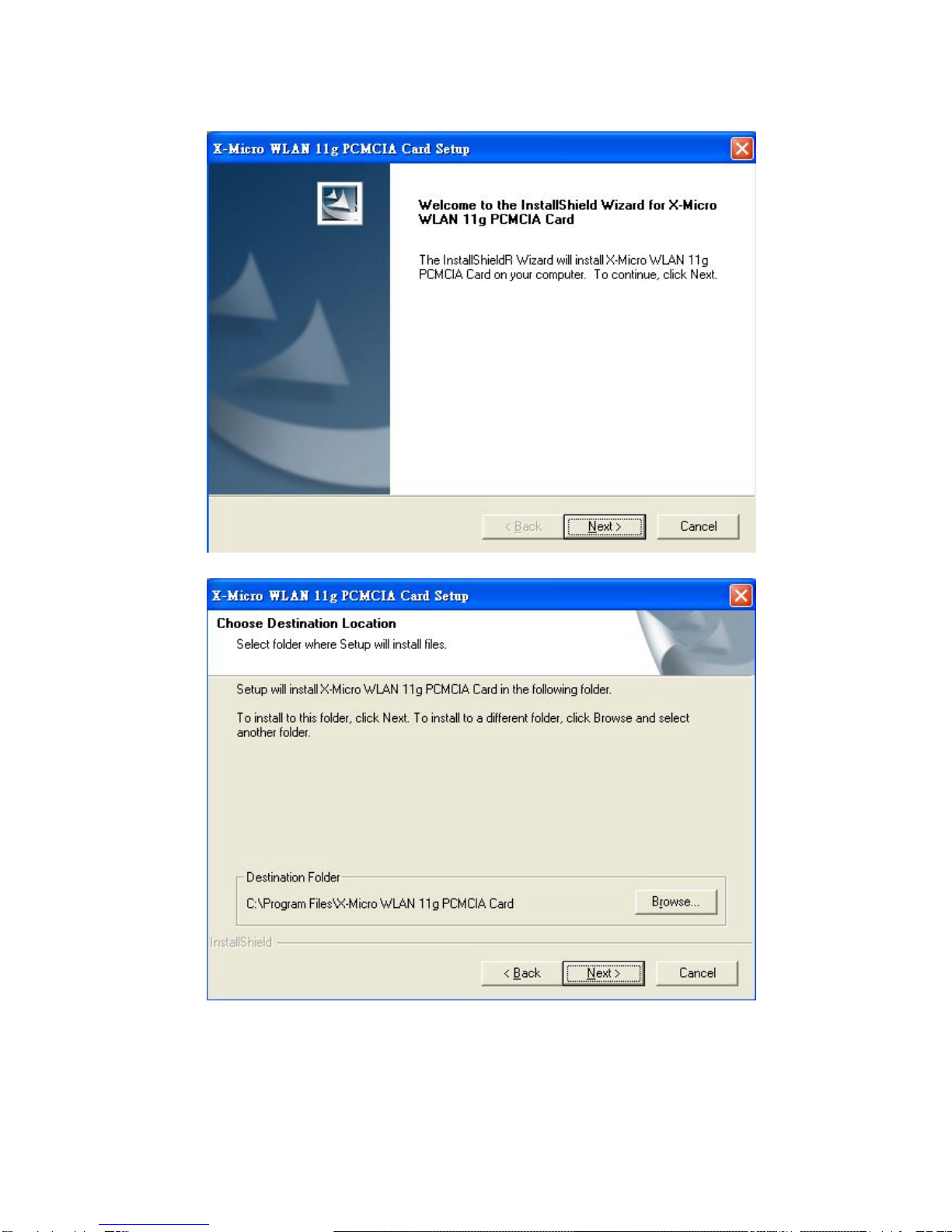

3. InstallShield Wizard will automatically start. Please click “Next” to continue.
4. Please click “Finish”
5. Please turn off your computer and then insert the PC card into the cardbus.
Turn on your computer and start to install the driver.
2.2.2 Driver Installation
1. Please select the second option and click “Next”.
2. Please click “Continue Anyway”
3. Please click “Finish”
4. To make sure if the installation is successful, you could check it through the
device management.
