Dimensions in parentheses are in

millimeters unless otherwise specified.

6/07

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

Wolf Pro wall chimney hoods provide the ultimate

in ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

The Pro wall chimney hood installed with an optional

6" (152), 12" (305), 18" (457) or 24" (610) classic

stainless steel duct cover completes the chimney

design. With the Pro wall chimney hood you also have

the option of a decorative rail. While a classic stainless

steel rail is standard on the (R) model, platinum or

brass rails are also available to match the bezels of our

dual fuel ranges.

Pro wall chimney ventilation hoods are recommended

for use with all Wolf cooking appliances.

Wolf Pro wall chimney hoods are

available in the classic stainless steel

finish. Rail option hoods (R) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall chimney hoods are sold as a shell

only, internal, in-line and remote blower

options are available.

Classic stainless

steel finish

Backdraft damper

Stainless steel

baffle filters

Infinite-speed

blower control

Location of

rating plate

Halogen lighting

Model PWC482418

Model PWC482418R

Rail Option

Model PWC482418R shown with decorative rail

Hand finished

craftsmanship

Recessed easy-

access controls

Welded seams and

hemmed edges

Decorative rail

(optional)

18" (457)

OVERALL

HEIGHT

48" (1219)

OVERALL WIDTH

30" (762)

TOP WIDTH

30" (762)

TOP WIDTH

48" (1219)

OVERALL WIDTH

4" (102)

24" (610)

OVERALL DEPTH

131/2"

(343)

131/2"

(343)

24" (610)

OVERALL DEPTH

18" (457)

OVERALL

HEIGHT

(51)

3/4" (19)

DIAMETER

OF RAIL

FEATURES

Classic stainless steel finish

Optional 6" (152), 12" (305), 18" (457) and

24" (610) duct covers available to complete

the chimney design

Rail option wall hoods (R) come with a

classic stainless steel decorative rail and

stand-offs—optional platinum or brass rail

available to match dual fuel range bezels

Internal, in-line and remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy access controls

Infinite speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Removable, dishwasher-safe, restaurant-

grade stainless steel baffle filters and grease

cups

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

UL approved for covered outdoor applica-

tions

Two and five year residential warranty –

exclusions apply; warranty information can

be found on our website, wolfappliance.com

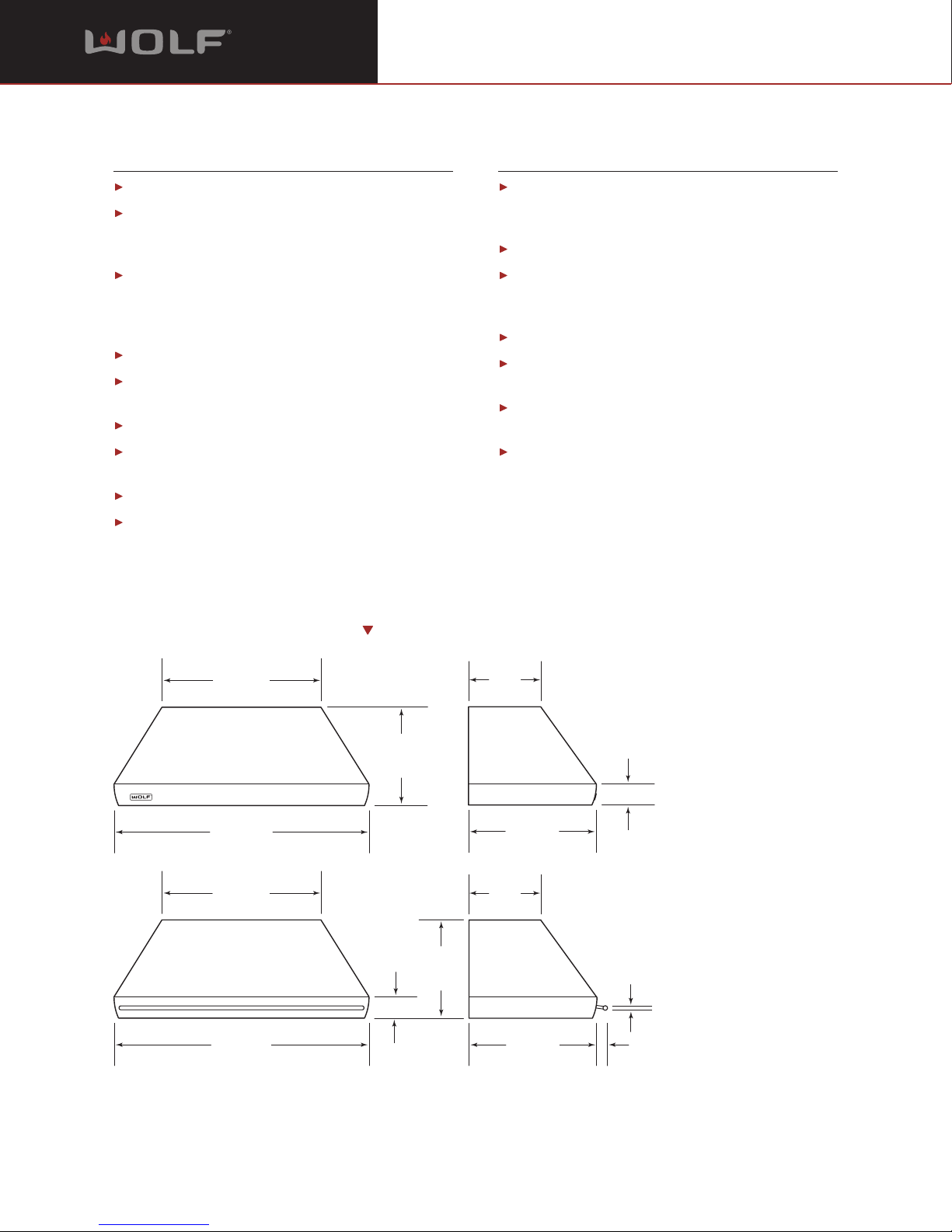

OVERALL DIMENSIONS

Model PWC482418

Model PWC482418R

with Rail

Dimensions in parentheses are in

millimeters unless otherwise specified.

Unit dimensions may vary by ±

" (3).

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

SPECIFICATIONS

Overall Width of Hood 48" (1219)

Overall Height of Hood 18" (457)

Overall Depth of Hood – PWC482418 24" (610)

PWC482418R (including rail) 26" (660)

Internal Blower Option 1200 CFM

In-Line Blower Option 1100 CFM

Remote Blower Options 900, 1200 or 1500 CFM

Discharge Vertical

Duct Size 10" (254) Round

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight (shell only) 94 lbs (43 kg)

Specifications are subject to change without notice.

BLOWER OPTIONS

1200 CFM Internal Blower 804703

as of Fall 2007 801317

1100 CFM In-Line Blower 808332

900 CFM Remote Blower 801641

1200 CFM Remote Blower 801642

1500 CFM Remote Blower 804701

Refer to Pro Ventilation Recommendations

at the end of this section.

ACCESSORIES

Platinum or brass decorative rail

and stand-offs

38" (965) high stainless steel

backsplash with warming racks

38" (965) high stainless steel

backsplash

6" (152), 12" (305), 18" (457) and

24" (610) duct covers

Accessories are available through your

Wolf dealer. To obtain local dealer

information, visit the Locator section of

our website, wolfappliance.com.

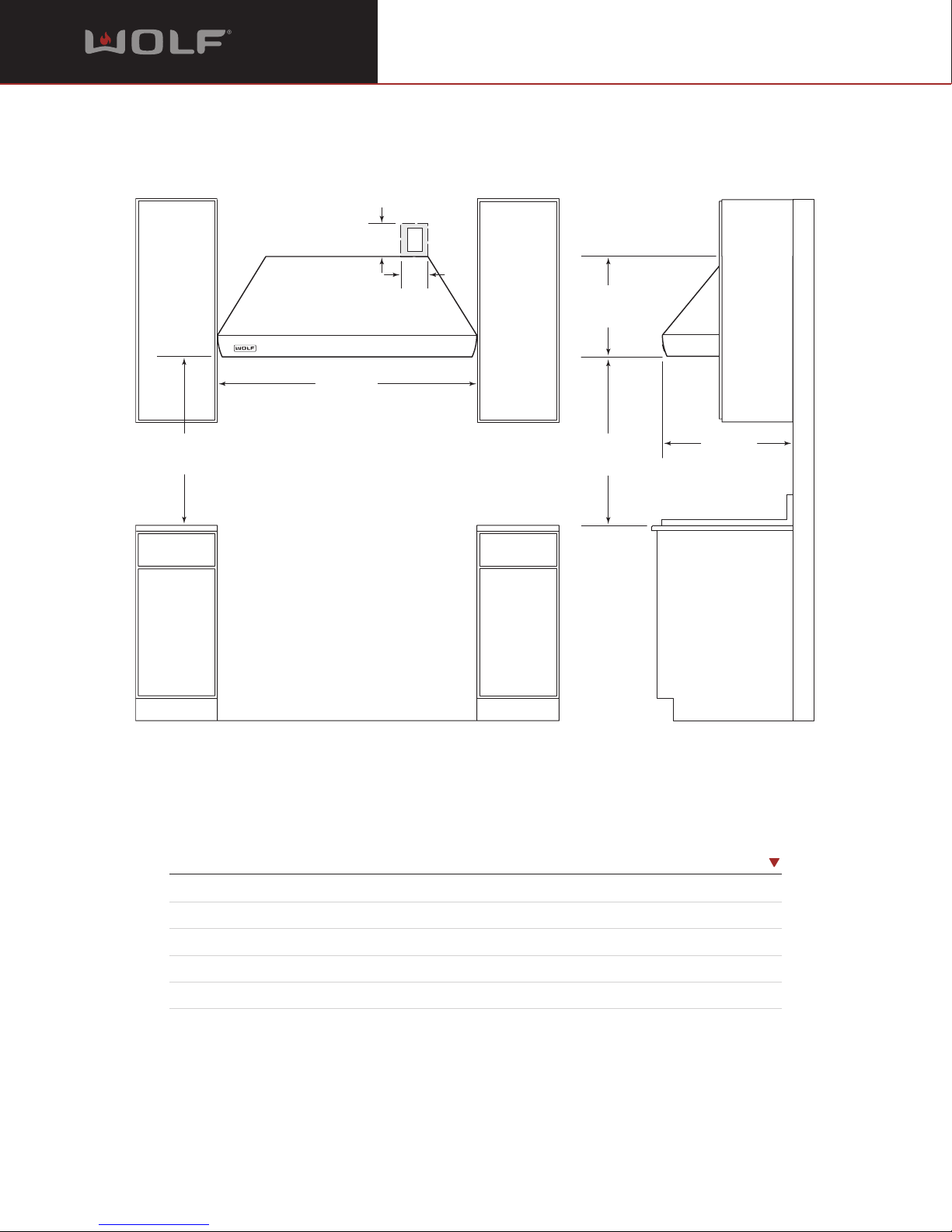

(152)

(127)

LOCATION OF

ELECTRICAL

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

24" (610)

DEPTH OF HOOD

48" (1219)

WIDTH OF HOOD

NOTE: Pro wall chimney hoods have a vertical discharge.

DIMENSIONS

Overall Width of Hood 48" (1219)

Overall Height of Hood 18" (457)

Overall Depth of Hood (excluding rail) 24" (610)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Within shaded area

See Installation Instructions shipped with unit for detailed specifications.

INSTALLATION SPECIFICATIONS

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

INSTALLATION NOTES

Refer to the illustrations and specifications

for overall dimensions and installation specifics.

Wolf Pro wall chimney ventilation hoods are

recommended for use with any Wolf cooking

appliance, and should be as least as wide as

the cooking surface. It is recommended that the

hood overlap the cooking surface by 3" (76) on

either side.

Optional 6" (152), 12" (305), 18" (457) and

24" (610) duct covers are available as a sales

accessory to complete the chimney design.

Installation of all Pro wall chimney hoods

should be 30" (762) to 36" (914) from the

bottom of the hood to the countertop. Follow

the dimensions shown in the Installation

illustration.

Wolf Pro wall chimney hoods are shipped

without a blower assembly. Internal, in-line or

remote blower assemblies are available. Blower

options also vary with the volume of air that

needs to be moved and the length of the duct

run. Refer to page 8 for Pro Ventilation CFM

Recommendations and Blower Options.

IMPORTANT NOTE: Install this ventilation hood

only with a Wolf blower.

Pro wall chimney hoods require a separate,

grounded 110/120 V AC, 60 Hz power supply.

The service should have its own 15 amp circuit

breaker. Placement of the electrical supply is

not critical, as long as you provide enough 120

V AC, 60 Hz power cable to make the electrical

connection. Locate electrical within the shaded

area shown in the Installation illustration.

You must follow all National Electrical Code

regulations. In addition, be aware of local codes

and ordinances when installing your service.

Refer to the installation instructions shipped

with each Wolf product for detailed specifica-

tions. This information can also be found on

our website, wolfappliance.com.

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

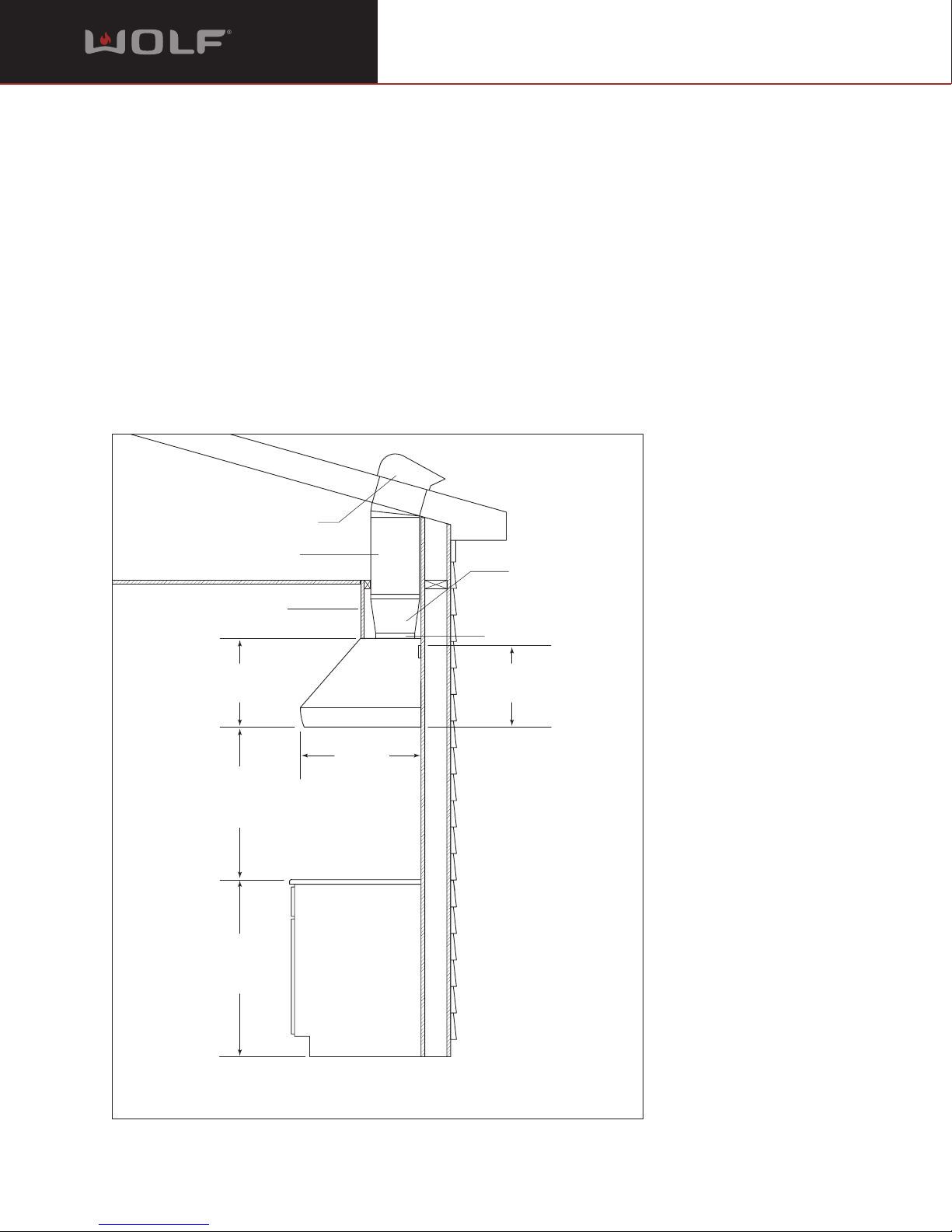

Ducting for Pro wall

chimney hoods.

DUCTWORK INSTALLATION

THROUGH ROOF

24" (610)

DEPTH OF HOOD

ROOF CAP OR REMOTE BLOWER

10" (254) ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

NOTE: VERTICAL DISCHARGE ONLY FOR PRO WALL CHIMNEY HOODS.

VERTICAL DISCHARGE

TRANSITION

14"W x 93/4"D TO 10" ROUND

7"H (INCLUDING FLANGES)

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

18" (457)

HEIGHT

OF HOOD

163/4" (425)

TOP OF WOOD

MOUNTING STRIP

WALL HOOD

DUCTING CONSIDERATIONS

Wolf Pro wall chimney ventilation hoods are

shipped without the blower assembly. Internal,

in-line and remote blower assemblies are

available.

IMPORTANT NOTE: Install this ventilation hood

only with a Wolf blower.

Wolf Pro wall chimney hoods have a vertical

discharge location with 10" (254) round duct.

A transition with backdraft damper is included.

The hood will operate most efficiently when

ductwork does not exceed 50' (15 m) in length.

Local building codes may require the use of

make-up air. Consult your local HVAC profes-

sional for specific requirements in your area.

IMPORTANT NOTE: Wolf Pro wall chimney

hoods must be vented to the outside. Use only

metal ductwork.

Refer to the illustration below for ducting

considerations for Pro wall chimney hoods.

Dimensions in parentheses are in

millimeters unless otherwise specified.

Unit dimensions may vary by ±

" (3).

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

WOLF BLOWER ASSEMBLIES

A ventilation system must include a blower

assembly. Wolf ventilation hoods are shipped

without the blower assembly. An internal, in-line

or remote blower assembly must be selected to

accommodate the cooking appliance, CFM

requirements and homeowner preferences.

Internal, in-line and remote blower assemblies

are available as sales accessories through your

Wolf dealer.

IMPORTANT NOTE: Use only a Wolf blower

with all Wolf ventilation products.

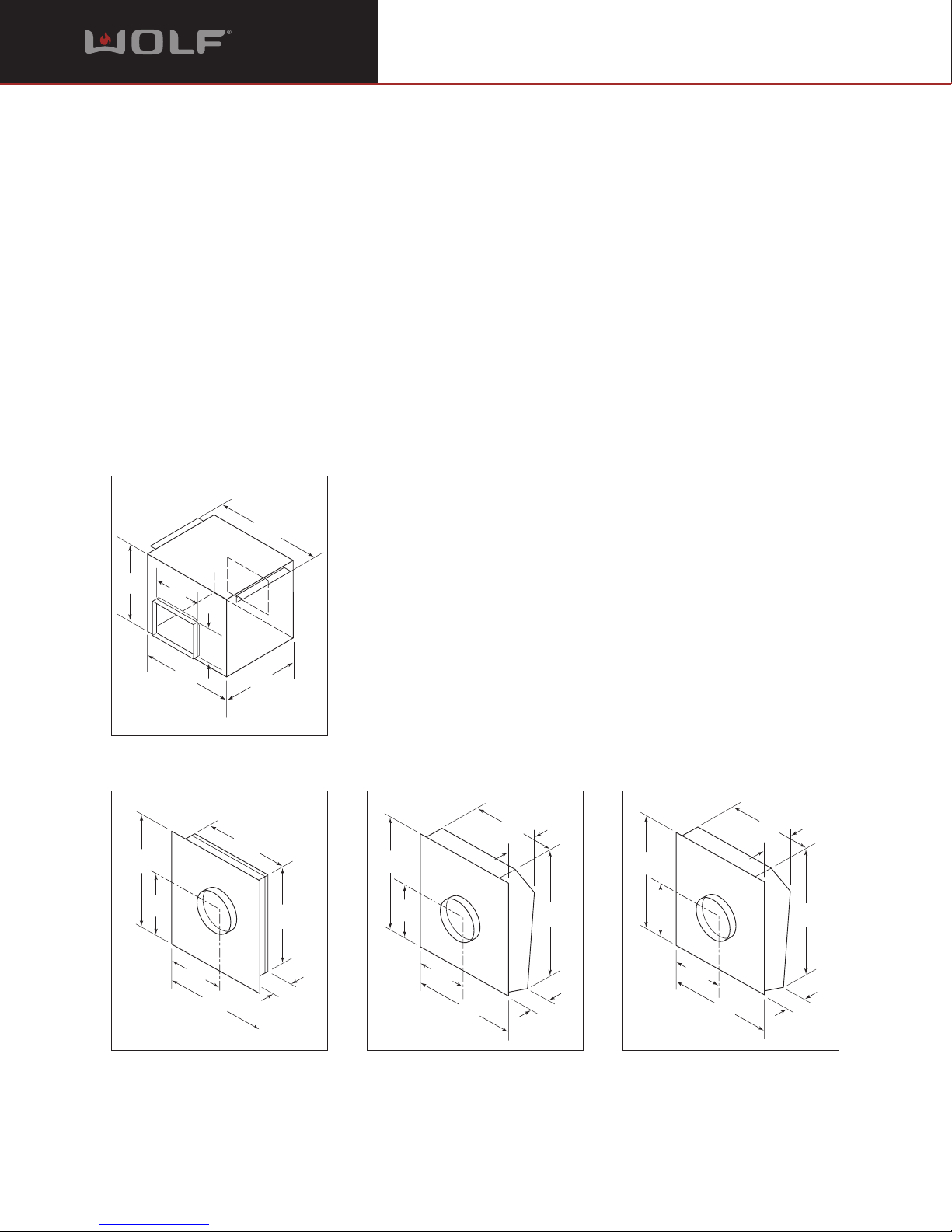

Internal blowers are mounted inside the hood

canopy. In-line blowers are mounted in between

the hood and the exterior of the home. Remote

blowers can be mounted on the roof or in some

cases, on an exterior wall. Refer to the illustra-

tions below for dimensions of Wolf in-line and

remote blowers.

Pro ventilation recommendation charts on the

following page provide minimum CFM recom-

mendations according to the cooking appliance

and ventilation hood used and blower options

for each specific Pro wall chimney hood.

241/2"

(622)

151/2"

(394)

281/4"

(718)

203/4"

(527)

243/4"

(629)

14"

(356)

43/4"

(121)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

18" (457)

22"

(559)

101/8"

(257)

71/4"

(184)

10"

(254)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

21" (533)

25"

(635)

103/8"

(264)

71/4"

(184)

10"

(254)

10" (254)

Diameter

18"

(457)

22"

(559)

247/8"

(632)

12"

(305)

18"

(457)

(203)

In-line BLOWER-110IL

Remote BLOWER-90REM Remote BLOWER-120REM Remote BLOWER-150REM

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro 48" (1219) Wall Chimney Hood

MODEL PWC482418(R)

Pro Wall Chimney Hoods

Model PWC362418 PWC422418 PWC482418 PWC542418

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900 900

DF364 / R364 / SRT364 / RT364 900 900

RT362 900 900

R488 / RT488 1100 1100

DF486 / R486 / SRT486 / RT486 1100 1100

DF484 / R484 / SRT484 / RT484 1100 1100

Minimum CFM requirements for Wolf ranges and rangetops. Additional CFM may be required for charbroilers, griddles

and long duct runs.

PRO VENTILATION CFM RECOMMENDATIONS

PRO VENTILATION BLOWER OPTIONS

Pro Wall Chimney Hoods

Blower Description Blower Number Wall Chimney Hood Models

600 CFM Internal CTBLOWER-60INT (801644 – 810314 as of Fall 2007) PWC362418 / PWC422418

900 CFM Internal CTBLOWER-90INT (801645 – 810315 as of Fall 2007) PWC362418 / PWC422418

1200 CFM Internal IBLOWER-120INT (804703 – 810317 as of Fall 2007) PWC482418 / PWC542418

1100 CFM In-Line BLOWER-110IL (808332) All Pro Wall Chimney Hoods

900 CFM Remote BLOWER-90REM (801641) All Pro Wall Chimney Hoods

1200 CFM Remote BLOWER-120REM (801642) All Pro Wall Chimney Hoods

1500 CFM Remote BLOWER-150REM (804701) All Pro Wall Chimney Hoods

Ce manuel convient aux modèles suivants

Autres manuels Wolf hotte de ventilation

Wolf

Wolf 811504 Manuel utilisateur

Wolf

Wolf L402212 Instructions d'utilisation

Wolf

Wolf V Series Manuel utilisateur

Wolf

Wolf DD36I Instructions d'utilisation

Wolf

Wolf PW302418 Manuel utilisateur

Wolf

Wolf ICBPW482418 Manuel utilisateur

Wolf

Wolf Pro Wall Chimney Ventilation Hoods Manuel utilisateur

Wolf

Wolf CTWH30 Manuel utilisateur

Wolf

Wolf PW662418 Instructions d'utilisation

Wolf

Wolf PRO WOSZRERADWRH117 Manuel utilisateur

Wolf

Wolf CTWH30 Instructions d'utilisation

Wolf

Wolf Pro Island Ventilation Hoods Manuel utilisateur

Wolf

Wolf PL402212 Instructions d'utilisation

Wolf

Wolf I363418 Manuel utilisateur

Wolf

Wolf PW662418 Instructions d'utilisation

Wolf

Wolf W542718 Instructions d'utilisation

Wolf

Wolf L582212 Instructions d'utilisation

Wolf

Wolf W302210I Instructions d'utilisation

Wolf

Wolf L282212I Manuel utilisateur

Wolf

Wolf L462212 Instructions d'utilisation

Wolf

Wolf PI423418(R) Instructions d'utilisation

Wolf

Wolf FWL-ABLV AG Manuel utilisateur

Wolf

Wolf Pro Wall Manuel utilisateur

Wolf

Wolf ICBPW482418 Manuel du propriétaire

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
