Dimensions in parentheses are in

millimeters unless otherwise specified.

8/07

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

Model PI363418

Model PI363418R

Rail Option

AWolf Pro island hood— the final touch to complete

your stage featuring professional cooking equipment.

This premier ventilation system complements your

cooking appliance of choice, guaranteeing you’ll look

the part, no matter what new cooking challenges you

take on.

This 36" (914) wide island hood is 34" (864) deep and

available in the classic stainless steel finish. You also

have the option of decorative rails. While classic stain-

less steel rails are standard on the (R) model, platinum

or brass rails are also available to match the bezels of

our dual fuel ranges and sealed burner rangetops.

The Pro island hoods are recommended for use with

all Wolf cooking appliances.

Wolf Pro island hoods are available in

the classic stainless steel finish. Rail

option hoods (R) come with classic stain-

less steel decorative rails and stand-offs

for both sides of the hood. Optional

platinum or brass rails match dual fuel

range bezels. Pro island hoods are sold as

a shell only; internal, in-line and remote

blower options are available.

Model PI363418R shown with decorative rails.

Classic stainless

steel finish

Stainless steel

baffle filters

Location of

rating plate

Infinite-speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Hand finished

craftsmanship

Recessed easy-

access controls

Decorative rails

(optional)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Unit dimensions may vary by ±

" (3).

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

FEATURES

36" (914) wide island ventilation hood with

classic stainless steel finish

Rail option island hoods (R) come with

classic stainless steel decorative rails and

stand-offs—optional platinum or brass rails

available to match dual fuel range bezels

Internal, in-line and remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy-access controls

Infinite-speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Removable, dishwasher-safe, restaurant-

grade stainless steel baffle filters

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

Two and five year residential warranty—

exclusions apply; warranty information can

be found on our website, wolfappliance.com

18" (457)

OVERALL

HEIGHT

36" (914)

OVERALL WIDTH

4"(102)

34" (864)

OVERALL DEPTH

13"

(330)

18"

(457)

36" (914)

OVERALL WIDTH

18"

(457)

18" (457)

OVERALL

HEIGHT

34" (864)

OVERALL DEPTH

13"

(330)

4"(102)

(51)

3/4" (19)

DIAMETER

OF RAIL

(51)

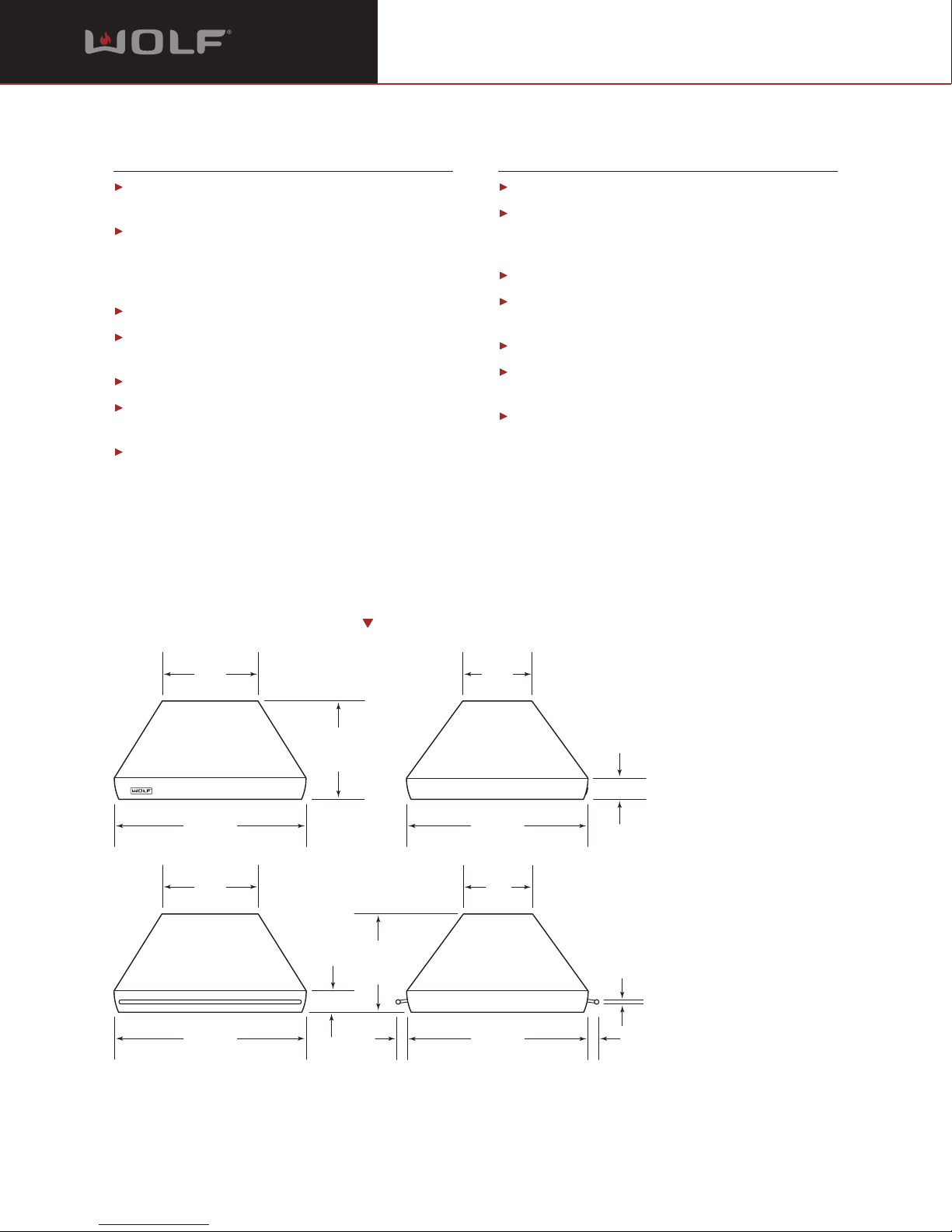

OVERALL DIMENSIONS

Model PI363418

Model PI363418R with Rail

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

SPECIFICATIONS

Overall Width of Hood 36" (914)

Overall Height of Hood 18" (457)

Overall Depth of Hood 34" (864)

(including rails) 38" (965)

Internal Blower Option 1200 CFM

In-Line Blower Option 1100 CFM

Remote Blower Options 900, 1200 or 1500 CFM

Discharge Vertical

Duct Size 10" (254) Round

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight (shell only) 95 lbs (43 kg)

Specifications are subject to change without notice.

BLOWER OPTIONS

1200 CFM Internal Blower 804703

as of Fall 2007 810317

1100 CFM In-Line Blower 808332

900 CFM Remote Blower 801641

1200 CFM Remote Blower 801642

1500 CFM Remote Blower 804701

Refer to Pro Ventilation Recommendations

at the end of this section.

ACCESSORIES

Platinum or brass decorative rails

and stand-offs for both sides of

the hood

6" (152), 12" (305), 18" (457) and

24" (610) classic stainless steel

duct covers

Accessories are available through your

Wolf dealer. To obtain local dealer

information, visit the Showroom Locator

section of our website, wolfappliance.com.

18" (457)

HEIGHT

OF HOOD

34" (864)

DEPTH OF HOOD

36" (914)

WIDTH OF HOOD

LOCATION OF ELECTRICAL SUPPLY

CENTERED THROUGH TOP OF HOOD

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

DIMENSIONS

Overall Width of Hood 36" (914)

Overall Height of Hood 18" (457)

Overall Depth of Hood (excluding rail) 34" (864)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Centered through top of hood

See Installation Instructions shipped with unit for detailed specifications.

INSTALLATION SPECIFICATIONS

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

INSTALLATION NOTES

Refer to the illustrations and specifications

for overall dimensions and installation specifics.

Wolf Pro island ventilation hoods are recom-

mended for use with any Wolf cooking appli-

ance. The hood must overlap the cooking

surface by a minimum of 3" (76) on either side.

Installation of all Pro ventilation hoods

should be 30" (762) to 36" (914) from the

bottom of the hood to the countertop. Follow

the dimensions shown in the Installation

illustration on page 4.

Wolf Pro island hoods are shipped without a

blower assembly. Internal, in-line or remote

blower assemblies are available. Blower options

also vary with the volume of air that needs to

be moved and the length of the duct run. Refer

to the charts at the end of this section for Pro

ventilation recommendations and blower

options.

IMPORTANT NOTE: Install this ventilation hood

only with a Wolf blower.

Pro island hoods require a separate,

grounded 110/120 V AC, 60 Hz power supply.

The service should have its own 15 amp circuit

breaker. Placement of the electrical supply is

not critical, as long as you provide enough 120

V AC, 60 Hz power cable to make the electrical

connection. Location of electrical is centered

through the top of the hood as shown in the

Installation illustration on page 4.

You must follow all National Electrical Code

regulations. In addition, be aware of local codes

and ordinances when installing your service.

Refer to the installation instructions shipped

with each Wolf product for detailed specifica-

tions. This information can also be found on

our website, wolfappliance.com.

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

Ducting for Pro island

hoods.

ROOF CAP OR REMOTE BLOWER

18" (457)

HEIGHT OF HOOD

ISLAND HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

34" (864)

DEPTH OF HOOD

10" ROUND DUCT

VERTICAL

DISCHARGE

VERTICAL DISCHARGE ONLY FOR ISLAND HOODS.

TRANSITION

141/8"W x 9"D TO 10" ROUND

7"H (INCLUDING FLANGES)

SOFFIT, CABINET OR

DUCT COVER

30" TO 36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36" (914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

DUCTING CONSIDERATIONS

Wolf Pro island hoods are shipped without the

blower assembly. Internal, in-line and remote

blower assemblies are available.

IMPORTANT NOTE: Install this ventilation hood

only with a Wolf blower.

Pro island hoods have a vertical discharge

location with 10" (254) round duct. A transition

with backdraft damper is included. The hood will

operate most efficiently when ductwork does

not exceed 50' (15 m) in length.

Local building codes may require the use of

make-up air. Consult your local HVAC profes-

sional for specific requirements in your area.

IMPORTANT NOTE: Wolf Pro island hoods

must be vented to the outside. Use only metal

ductwork.

Refer to the illustration below for ducting

considerations for Pro island hoods.

Dimensions in parentheses are in

millimeters unless otherwise specified.

Unit dimensions may vary by ±

" (3).

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

WOLF BLOWER ASSEMBLIES

A ventilation system must include a blower

assembly. Wolf ventilation hoods are shipped

without the blower assembly. An internal, in-line

or remote blower assembly must be selected to

accommodate the cooking appliance, CFM

requirements and homeowner preferences.

Internal, in-line and remote blower assemblies

are available as sales accessories through your

Wolf dealer.

IMPORTANT NOTE: Use only a Wolf blower

with all Wolf ventilation products.

Internal blowers are mounted inside the hood

canopy. In-line blowers are mounted in between

the hood and the exterior of the home. Remote

blowers can be mounted on the roof or in some

cases, on an exterior wall. Refer to the illustra-

tions below for dimensions of Wolf in-line and

remote blowers.

Pro ventilation recommendation charts on the

following page provide minimum CFM recom-

mendations according to the cooking appliance

and ventilation hood used and blower options

for each specific Pro island hood.

241/2"

(622)

151/2"

(394)

281/4"

(718)

203/4"

(527)

243/4"

(629)

14"

(356)

43/4"

(121)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

18" (457)

22"

(559)

101/8"

(257)

71/4"

(184)

10"

(254)

10" (254)

Diameter

143/4"

(375)

291/2"

(749)

291/2"

(749)

21" (533)

25"

(635)

103/8"

(264)

71/4"

(184)

10"

(254)

10" (254)

Diameter

Remote BLOWER-60REM and

BLOWER-90REM

Remote BLOWER-120REM Remote BLOWER-150REM

18"

(457)

22"

(559)

247/8"

(632)

12"

(305)

18"

(457)

(203)

In-line BLOWER-110IL

Dimensions in parentheses are in

millimeters unless otherwise specified.

Planning Information

Pro Island Ventilation Hood

MODEL PI363418(R)

PRO VENTILATION CFM RECOMMENDATIONS

PRO VENTILATION BLOWER OPTIONS

Pro Island Hoods

Blower Description Blower Number Island Hood Models

1200 CFM Internal IBLOWER-120INT (804703 – 810317 as of Fall 2007) All Island Hoods

1100 CFM In-Line BLOWER-110IL (808332) All Island Hoods

900 CFM Remote BLOWER-90REM (801641) PI363418 / PI423418 / PI543418

1200 CFM Remote BLOWER-120REM (801642) All Island Hoods

1500 CFM Remote BLOWER-150REM (804701) All Island Hoods

Pro Island Hoods

Model PI363418 PI423418 PI543418 PI663418

DF304 / R304 / SRT304 600 600

DF366 / R366 / SRT366 / RT366 900

DF364 / R364 / SRT364 / RT364 900

RT362 900

R488 / RT488 1100

DF486 / R486 / SRT486 / RT486 1100

DF484 / R484 / SRT484 / RT484 900

DF606 / R606 1500

DF604 1500

Minimum CFM requirements for Wolf ranges and rangetops. CFM recommendations are based on total Btu/hr output.

Additional CFM may be required for charbroilers, griddles and long duct runs.

Autres manuels pour PI363418

Ce manuel convient aux modèles suivants

Autres manuels Wolf hotte de ventilation

Wolf

Wolf ICBDD30 Manuel utilisateur

Wolf

Wolf W302718 Instructions d'utilisation

Wolf

Wolf Pro Wall Series Manuel utilisateur

Wolf

Wolf Pro Wall Ventilation hoods Manuel du propriétaire

Wolf

Wolf CTWH30 Manuel du propriétaire

Wolf

Wolf Pro Wall Series Manuel utilisateur

Wolf

Wolf I363418 Manuel utilisateur

Wolf

Wolf PW302418 Manuel utilisateur

Wolf

Wolf PI363418 Manuel utilisateur

Wolf

Wolf PI423418(R) Instructions d'utilisation

Wolf

Wolf W302718 Manuel utilisateur

Wolf

Wolf L462212 Instructions d'utilisation

Wolf

Wolf PW662718 Instructions d'utilisation

Wolf

Wolf PW362418 Instructions d'utilisation

Wolf

Wolf PW482718 Manuel utilisateur

Wolf

Wolf Cooktop Ventilation Hoods Manuel utilisateur

Wolf

Wolf PW422418R Instructions d'utilisation

Wolf

Wolf W302210I Instructions d'utilisation

Wolf

Wolf PW422718 Instructions d'utilisation

Wolf

Wolf CTEWH30I Manuel utilisateur

Wolf

Wolf DD45I Manuel utilisateur

Wolf

Wolf Pro Island Ventilation Hoods Manuel utilisateur

Wolf

Wolf PW302418 Manuel utilisateur

Wolf

Wolf Pro Hood Liner Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
