Wintech TDS560USB PLUS Manuel utilisateur

TDS560USB PLUS Emulator

Installation Guide

Wintech Digital Systems Technology Corp.

http://www.wintechdigital.com

IMPORTANT INFORMATION

About This Manual

This Installation Guide is for the TDS560USB PLUS JTAG Emulator

product.

The TDS560USB PLUS JTAG Emulator is a module to be attached to a

PC for hardware engineers and software programmers to develop DSP

applications.

The text paragraphs in this Guide are very important for proper device

functioning and for preventing any possible damages on the Wintech

TDS560USB PLUS JTAG Emulator device and project target board. These

paragraphs are shaded as in the following example. Please carefully read

each of the shaded text.

This is an example of a very important text paragraph.

Related Documents

Code Composer User's Guide(Texas Instruments SPRU296)

Code Composer Studio User's Guide (Texas Instruments SPRU328B)

XDS560 Emulator Technical Reference (Texas Instruments SPRU589）

Using xdsprobe with the XDS560 and XDS510 (Texas Instruments

SPRA758A)

TABLE OF CONTENTS

Introduction...........................................................................1

Overview ..................................................................................................1

Features.....................................................................................................2

Quick Install.........................................................................3

Quick Install Procedures...........................................................................3

The TDS560USB PLUS JTAG Emulator kit contains.............................3

Installation Requirements.........................................................................4

Supports Operating Systems.....................................................................4

Detailed Installation............................................................5

What you will need...................................................................................5

The Hardware Installation........................................................................5

The USB Device Drivers Installation.......................................................6

Installing the TDS560USB PLUS Software.............................................9

Code Composer Studio Setup.................................................................10

Hardware Considerations.................................................15

Recommended Connection Procedure ...................................................15

Recommend Disconnection Procedure...................................................16

JTAG Cable Connection.........................................................................16

XDSRESET and XDSPROBE..........................................17

XDSRESET............................................................................................17

XDSPROBE...........................................................................................17

Appendix A ........................................................................18

Code Composer Studio Setup (OMAP) .................................................18

Appendix B.........................................................................22

Support Information.........................................................23

Contact Information................................................................................23

TDS560USB PLUS Emulator Installation Guide

Introduction

Overview

The TDS560USB PLUS JTAG Emulator is designed to be used with

digital signal processors (DSPs) operating at 1.0-5.0 volts. The emulator

itself is a USB device. It is fully plug and play compatible. The

TDS560USB PLUS JTAG Emulator is designed to operate with TI Code

Composer Studio IDE debug tool and is compatible with

Windows2000/XP/2003 Server.

Figure 1-1

TDS560USB PLUS Emulator Installation Guide

Features

The TDS560USB PLUS JTAG Emulator has the following key features:

zUSB compatible. Simple Connection, fully Plug-and-Play compatible–

no jumpers, no switch settings

zHot pluggable

zSupports Texas Instruments （TI）DSP with a JTAG (IEEE 1149.1)

interface: C2000, F2400, C27X, F28X, C54X, C55X, C6000, C64X,

TMS470 (ARM) and OMAP platforms

zSupports Texas Instruments Code Composer Studio

zCompatible with XDS510

zIncludes all XDS560PCI features:

·Real-Time data exchange (RTDX) bandwidth over 2 Mb/s

·Real-time event sequence server without stopping the application

zSupports multiprocessor debugging of same or different type

zWide dynamic operating voltage: 1.0 to 5.0 volts

zProgrammable TCK: 500KHz to 35MHz

zIncreasing code download speed up to 8x faster than XDS510

zOverall cable/pod length of 6ft (1.5m)

zHardware detection of power losses and cable disconnects

zAll pod signals are ESD protected

TDS560USB PLUS Emulator Installation Guide

Quick Install

Quick Install Procedures

This Guide describes the steps to installing the TDS560USB PLUS JTAG

Emulator in the following order:

1. Install the TDS560USB PLUS JTAG Emulator hardware

2. Install the TDS560USB PLUS JTAG device driver

3. Make sure Code Composer Studio™ IDE is installed on the PC

4. Install the TDS560USB PLUS JTAG Emulator software

5. Configure Code Composer Studio IDE

6. Reset the TDS560USB PLUS JTAG Emulator and Reset the target

DSP

7. Run CCS

The TDS560USB PLUS JTAG Emulator kit

contains

(See Figure 1-1)

• TDS560USB PLUS JTAG Emulator and Pod

•USB interface cable

• 5 Volt DC power supply

• AC power cord

•The TDS560USB PLUS driver disk

•TDS560SB PLUS JTAG Emulator Installation Guide Reference Guide

(this document)

TDS560USB PLUS Emulator Installation Guide

Installation Requirements

• Code Composer Studio IDE 2.0 or greater

• A free USB port (USB2.0 is recommended)

• 500MHz or higher Pentium ™-compatible CPU (900MHz or higher

Pentium III CPU or equivalent is recommended)

• Local CD-ROM drive

Supports Operating Systems

• Windows Win2000(SP4) /WinXP(SP1)/ 2003 Server

TDS560USB PLUS Emulator Installation Guide

Detailed Installation

What you will need

The following list details all items needed to install and run with the

TDS560USB PLUS JTAG Emulator.

zPC, with a free Universal Serial Bus (USB) port

zThe TDS560USB PLUS JTAG Emulator

zThe TDS560USB PLUS driver disk

zUSB interface cable

zDSP target system

zCode Composer Studio

The Hardware Installation

zRemove power from the target DSP system

zAttach the keyed TDS560USB PLUS JTAG Emulator JTAG interface

cable to the target board

zAttach the TDS560USB PLUS JTAG Emulator to the host computer

system using a USB cable

zApply power to the TDS560USB PLUS JTAG Emulator

WARNING

Make sure that the interface cables are connected to the correct

orientation. Pin 1 on the interface cable should match Pin 1 on

the DSP system connector. The TDS560USB PLUS JTAG

Emulator features a "keyed" connector to minimize the chance

of error.

Do not force cables into position. Forcing them may either

damage the cables or the interconnected boards and systems.

TDS560USB PLUS Emulator Installation Guide

The USB Device Drivers Installation

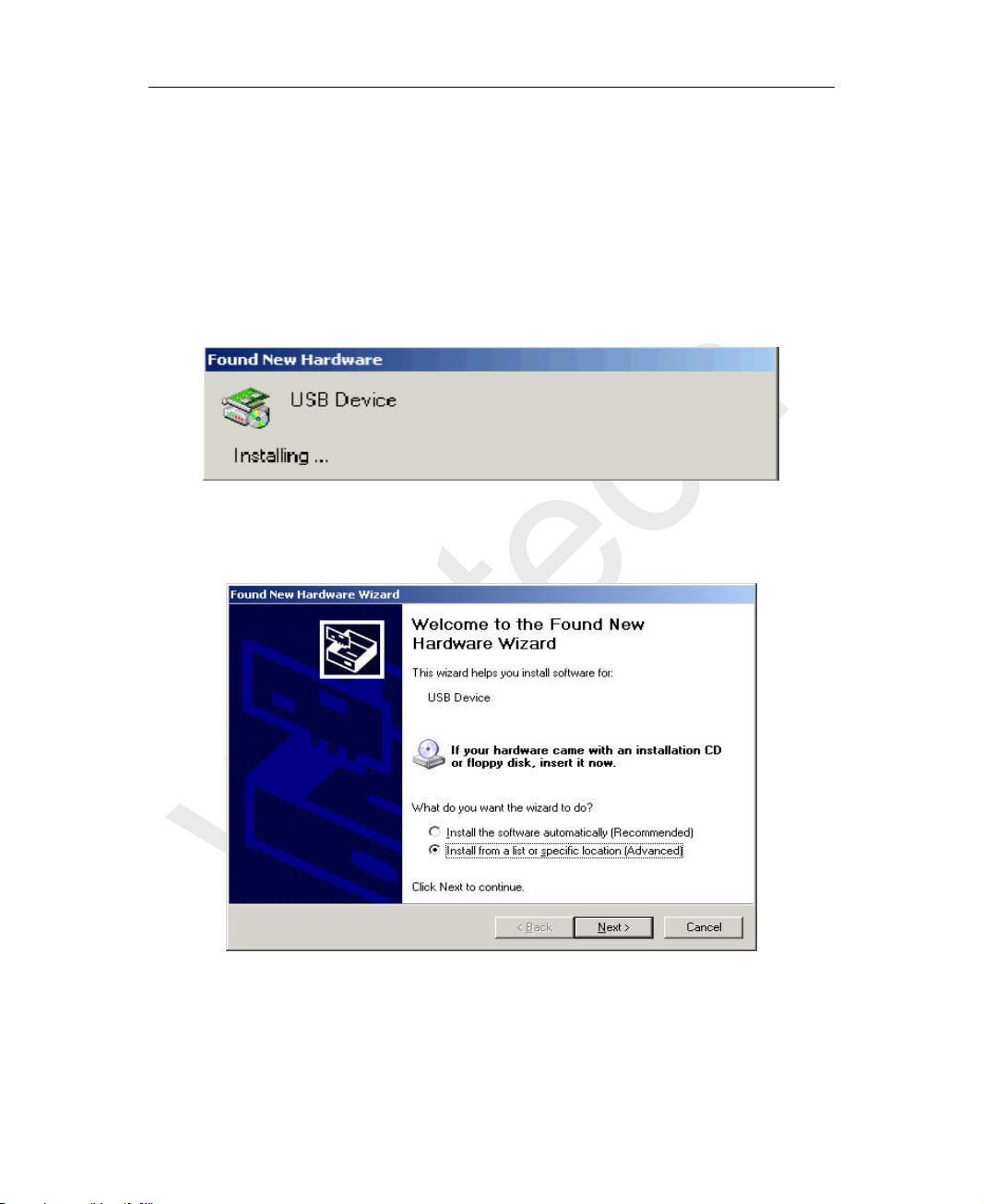

1. After plug the TDS560USB PLUS JTAG Emulator into the host

computer's USB port and turn on the power, the system should

display the “Found New Hardware” (Figure A-1) dialog box. This

dialog box indicates the computer operating system has found a new

USB device.

Figure A-1

2. The system will prompt for new hardware detected and start the “Found

New Hardware Wizard” as shown in Figure A-2.

Figure A-2

3. Click on “Next” and the system will display the window as shown in

Figure A-3. Check “Search for the best driver in this location” and

Check “include this location in the search”, then Browse the file

“TDS560USB_PLUS.INF “ in the installation CD, or in the folder

TDS560USB PLUS Emulator Installation Guide

where you have copied the file into, as shown in Figure A-3.

Figure A-3

4. Click on “Next” and the following window will be displayed, as shown

in Figure A-4.

Figure A-4
