RFIDReaderModule
- 6 -

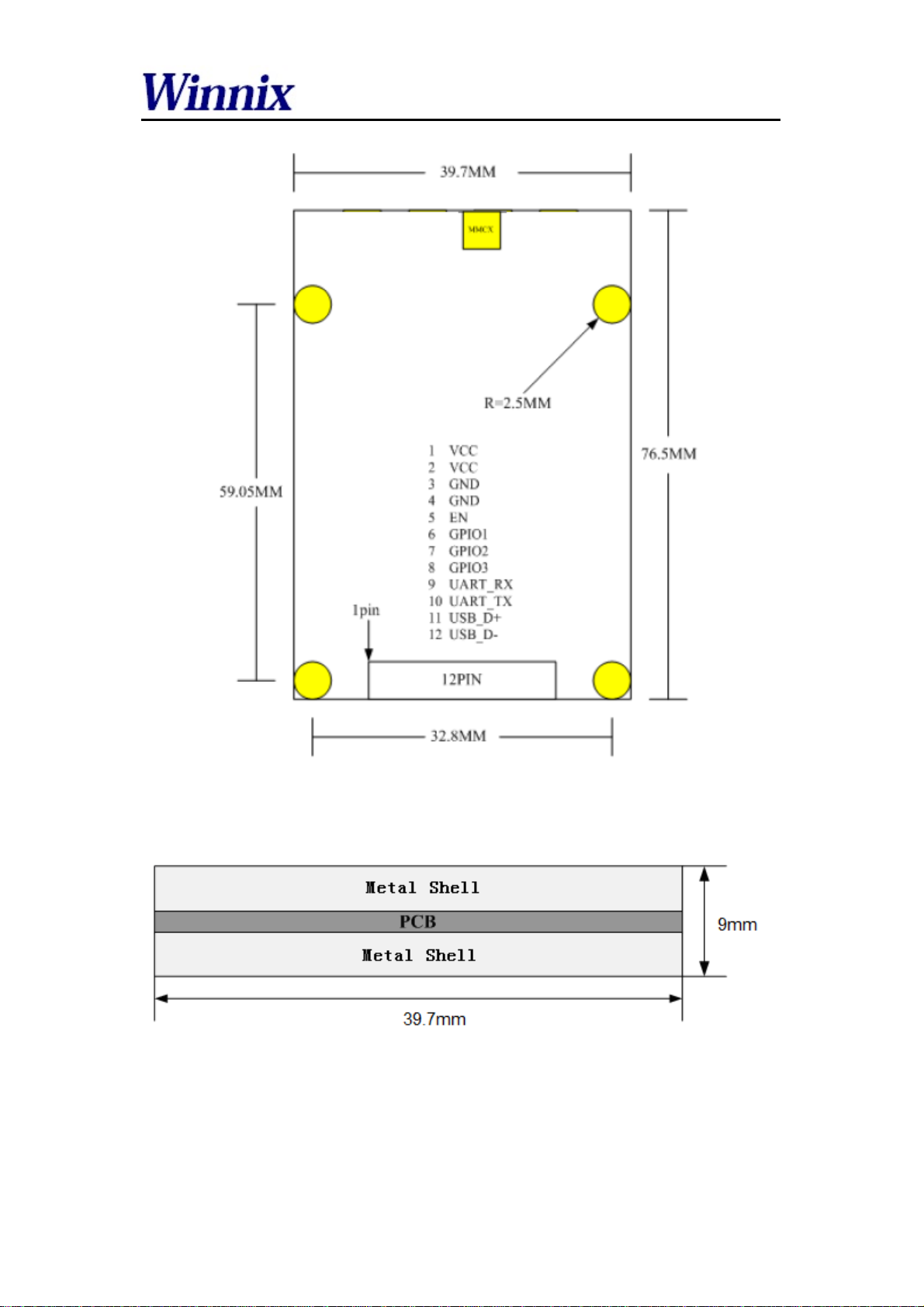

Interface definition
Pin Signal name Signal direction Function/compatibility description
1 VCC Input Module supplying power
2 VCC Input Module supplying power
3 GND - Module connecting ground
4 GND - Module connecting ground
5 EN Input Module enabling，highly effective
6 GPIO Bidirection Generic port
7 GPIO Bidirection Generic port
8 GPIO Bidirection Generic port
9 UART_RX Input Asynchronous serial interface receiving
10 UART_TX Output Asynchronous serial interface sending
11 DBG_RX - Test port
12 DBG_TX - Test port
OEMs information: RealID Technology Co., Ltd. was established in December 2012, the
registered capital of 990 million yuan. It is a professional company specializing in RFID system
design, equipment development and related technical services. RealID Technology Co., Ltd.
gathered a number of highly qualified management personnel, first-class product development
elite, to provide customers with first-class hardware products, program design, and custom
services.
Changes or modifications made to the equipment not expressly approved by Winnix may void the
FCC / IC authorization to operate this equipment.
The use of the transceiver module is authorized in mobile or fixed host devices taking into account
the conditions listed below
:• OEM Integrator must ensure that the end user manual may not contain any information about
the way to install or remove the module from the final product.
• Depending on the final host device additional authorization requirements for the nontransmitter
functions of the transmitter module may be required (i.e., Verification, or Declaration of
Conformity) The OEM integrator is responsible for ensuring that a er the module is installed and
operational the host continues to be compliant with the Part 15B unintentional radiator
requirements.
• The information on the label and in the user manual is required to be incorporated in the user
manual of the final host. see 47 CFR15 requirements for more details (e.g. 15.19 / 15.21 / 15.101 /
15.105 / RSSGEN / ICES)
• Additional label with the words ‘Contains FCC ID: RVZHYM740’ shall be applied and visible
from the outside of the host product.
