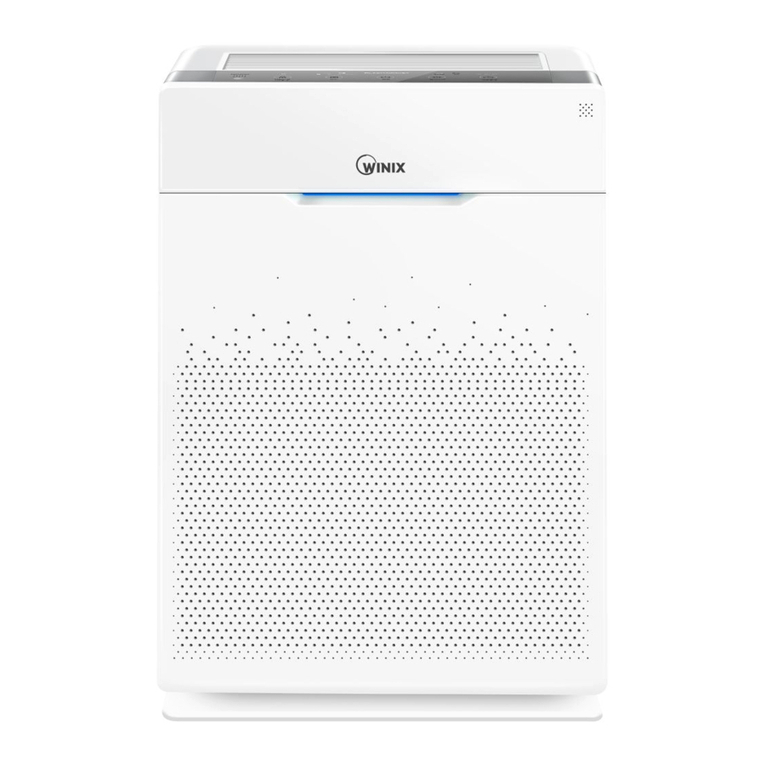

Winix ZERO+ Manuel utilisateur
User Manual
Model
Use & Care
Guide
ˍPlease read and follow all safety rules and instructions
in this manual before operating.
ˍThe product warranty is printed on the back of this
guide, so please keep it in a safe place for future use.
WINIX AIR PURIFIER
=(52:L)L$=38+:(
ZERO+ WiFiEnglish
&217(176
5-STAGE AIR PURIFICATIONooooooooooooooooooooooooooooooooooooooooooooo3
CONTROLSoooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo4
WHERE TO USEoooooooooooooooooooooooooooooooooooooooooooooooooooooooo5
INSTALLING THE FILTERSooooooooooooooooooooooooooooooooooooooooooooooo6
SAFETY AND CAUTIONSoooooooooooooooooooooooooooooooooooooooooooooooo8
INITIAL OPERATIONoooooooooooooooooooooooooooooooooooooooooooooooooooo9
AUTO AND SLEEPooooooooooooooooooooooooooooooooooooooooooooooooooooo10
MANUAL MODE, TIMER AND PLASMAWAVE
h
ooooooooooooooooooooooooooo11
CHILD LOCK, AIR QUALITY LED oooooooooooooooooooooooooooooooooooooooo12
WINIX SMARToooooooooooooooooooooooooooooooooooooooooooooooooooooooo13
FILTER CAREoooooooooooooooooooooooooooooooooooooooooooooooooooooooooo15
PARTICLE SENSOR CAREooooooooooooooooooooooooooooooooooooooooooooooo19
CLEANING CAREoooooooooooooooooooooooooooooooooooooooooooooooooooooo20
FREQUENTLY ASKED QUESTIONSoooooooooooooooooooooooooooooooooooooo21
UNIT SPECIFICATIONSooooooooooooooooooooooooooooooooooooooooooooooooo23
PRODUCT WARRANTY oooooooooooooooooooooooooooooooooooooooooooooooo24
ȗThis product is suitable for 220 ~ 240V only.
Frenchooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo 26
Spanishoooooooooooooooooooooooooooooooooooooooooooooooooooooooooo 51
Germanoooooooooooooooooooooooooooooooooooooooooooooooooooooooooo 76
Italian oooooooooooooooooooooooooooooooooooooooooooooooooooooooooo101
Dutchooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo 126
Polishooooooooooooooooooooooooooooooooooooooooooooooooooooooooooo 151
English ZERO+ WiFi
5-STAGE AIR PURIFICATION
PlasmaWave
True HEPA lter
(CD) Coated
Deodorization
Carbon lter
Pre-lter
non-removable
replaceable
washable
replaceable
Cleancel™
(Anti-microbial coated)
5
Product User Manual
•
•:,1,;$,5385,),(5
=(52:L)L$=38+:(
UserManual
Model
Use&Care
Guide
Pleaseread andfollow all safety rules andinstructions
inthis manual beforeoperating.
Theproduct warrantyis printed on the backof this
guide,so pleasekeep it in a safe place for futureuse.
Pre-lter/CD Carbon Filter/
True HEPA lter with Cleancel™
(Included with the product.)
Power cord with
plug
English ZERO+ WiFi
CONTROLS
Air Outlet Vent
Light Sensor
Detects the amount of
ambient light within
the environment, to
adjust the brightness
of the LED indicators.
Mode / Fan Speed Button
Every time the Mode button is
pressed, the Mode LED light will
cycle through the settings. (Auto,
Sleep, Low, Medium, High, Turbo)
Child Lock Indicator
LED light indicates
whether Child Lock mode
is enabled or disabled.
Timer Indicator
If timer has been set,
the LED light Indicates
the set time of operation.
PlasmaWave Indicator
Indicates whether
PlasmaWave is
enabled or disabled.
Timer / Air Quality Button
Press to cycle through and set
desired length of operation (1hr,
4hr, 8hr, [NO TIMER]).
Press and hold for 3 seconds to
enable or disable the Air Quality
light.
Smart Sensor
Automatically
detects indoor air
quality.
Wi-Fi Button
Enables or disables
Wi-Fi function.
Reset Button
After replacing a lter,
press the RESET button
for at least 5 seconds.
Power Button
Turns the unit on
or o.
Check Filter
Indicator
LED light indicates
when it is time to
change the lter.
PlasmaWave /
Child Lock Button
Enables or disables
PlasmaWave .
Press and hold for
3 seconds to enable
or disable the Child
Lock mode.
English ZERO+ WiFi
WHERE TO USE
Allow 30 ~ 46 cm. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
30~46 cm
30~46 cm
WARNING
Follow these instructions to reduce the risk of serious injury
or death and to reduce risk of damaging the unit.
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust.
Do not place around heating elements.
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships,
etc.).
Do not place in an area with excessive
amounts of noxious gases.
Do not place near any flammable
materials (aerosols, fuel, gases etc.). Do not have unit facing into wind or draft.
Do not place below any electrical outlet. Do not place in excessively humid areas
where unit may become wet.
ęThis unit is not intended to be used to preserve documents or in art conservation.
English ZERO+ WiFi
This product comes with all of the required filters. The protective plastic wrap must be
removed from the filters before use.
ęOperating the unit without removing the plastic wrap may result in product failure.
ęUnplug and make sure the unit is turned off before installing filters.
ęThe unit will automatically power off when front panel is opened.
ŵ Remove the front panel by grasping its
upper edge and gently pulling towards
yourself.
ˍTo remove the front panel, the latch at
the lower edge of the panel must be
released from its position.
Latch
Ŷ Remove the filters from the unit, they are
protected inside a plastic wrap.
ŷ Remove filters from protective plastic wrap.
ˍOperating the unit without removing
filters from plastic may cause abnormal
noise, deformation, or fire as a result of
overheating.
Note
ˍRefer to pages 15 - 18for detailed information on filter care
and how to replace them.
INSTALLING THE FILTERS
English ZERO+ WiFi
INSTALLING THE FILTERS
Ÿ Install the filters until they fit securely in
place.
Filters must be installed in this order:
3 True HEPA filter with Cleancel™ (rear)
2 CD Carbon filter (middle)
1 Pre-filter (front)
ˍTo install the pre-filter, insert bottom tabs
into the slots on either side of the lower part
of the unit, then rotate upward to insert the
upper tabs into the slots at the top part of
the unit until both sides audibly click into
place.
Pre- lter
CD Carbon
lter
True HEPA
lter with
Cleancel™
Ź Replace the front panel by first inserting
the latch at the bottom edge into the
base of the unit, then rotate the panel
upward toward the top of the unit until it
magnetically snaps closed.
ź When to service and replace filters:
Filter Indicator Light When to
service
When to
replace
1 Pre-filter none Clean once every
14days Permanent
2 CD Carbon filter
Can NOT be
WASHED
Lasts up to
6 ~12 months
3 True HEPA filter
with Cleancel™
ęIntervals between filter replacement may vary depending on environment.
ęFor optimal use, Pre-filter can be cleaned every 14days which can extend the life of
other filters.
this unit
is compatible
with this
ĆOWHU
FILTER
ITEM: 117130
J
English ZERO+ WiFi
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions and
instructions to avoid damage and ensure safe use.
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal temperatures causing product failure and
deformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
WARNING
Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit.
Do not tie or knot power cord when unit
is in operation.
If the unit becomes submerged in water,
unplug it and contact customer service.
Do not unplug or move the unit while in
operation.
Do not plug additional appliances into
the same outlet or power supply. Do not touch the plug with wet hands.
Unplug unit when not in operation for
extended periods of time.
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it.
ęIf the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
ęThis appliance is not intended for use by a person (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
ęChildren should be supervised to ensure that they do not play with the appliance.
English ZERO+ WiFi
INITIAL OPERATION
ŵ Insert the unit plug into an electrical outlet.
ˍThe Control Panel lights will turn on and
off.
Ŷ Press the ‘Power’ button.
Note
ˍDuring the first 4minutes of power up, the Air Quality light
will flash as the Smart Sensors measure the air quality in the
environment, after which normal operation will begin.
ŷ By default, when the unit first powers on, the
mode will be set to Auto with PlasmaWave
h
enabled.
ˍWhen in Auto Mode the fan speed will
be automatically adjusted according to
the environments air quality.
ˍPlasmaWave
h
works to remove harmful
airborne contaminants.
Note
ˍIn Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
ˍWhen the unit is running, you may hear a chirping or buzzing
sound. The sound is from large particles passing through
PlasmaWave
h
, it is normal and does not signify product
failure. To disable PlasmaWave
h
, see page 11.
English ZERO+ WiFi
AUTO AND SLEEP
Every time the Mode button is pressed, the Mode LED light will cycle through the
settings. (Auto, Sleep, Low, Medium, High, Turbo)
1. Auto Mode
Enables Auto operation based on the unit's air quality Smart Sensors.
ŵ Press the Mode button to select Auto mode.
ˍThe mode LED light will indicate when
‘Auto’ mode has been selected, and
operation will begin.
ˍEach time the Mode button is pressed,
the modes will be cycled. (Auto, Sleep,
Low, Medium, High, Turbo).
Note
ˍWhen in Auto Mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced. If the
indoor air quality decreases the fan speed will automatically
be increased.
ˍWhen unit is first started, Auto Mode is enabled and set to
Low fan speed.
2. Sleep Mode
ŵ
Press the Mode button to select Sleep mode.
ˍThe mode LED light will indicate when
‘Sleep’ mode has been selected, and
operation in that mode will begin.
Note
ˍWhen Sleep mode is selected, the fan speed is automatically
set to Low. Fan speed can be changed by pressing the Fan
Speed (Mode) Button.
ˍWhen Sleep Mode is enabled, the Air Quality light is disabled.
Table des matières
Autres manuels Winix Purificateur d'air
Winix
Winix 9500 Manuel utilisateur
Winix
Winix D480 Manuel utilisateur
Winix
Winix 5300-2 Manuel utilisateur
Winix
Winix 9800 Manuel utilisateur
Winix
Winix NK305 Manuel utilisateur
Winix
Winix XQ Pro Manuel utilisateur
Winix
Winix AM90 Manuel utilisateur
Winix
Winix FreshHome PlasmaWave WACP150 Manuel utilisateur
Winix
Winix C545 Manuel utilisateur
Winix
Winix 9800 Manuel utilisateur
Winix
Winix U300 Manuel utilisateur
Winix
Winix AZSU350-JWB Manuel utilisateur
Winix
Winix HR900 Manuel utilisateur
Winix
Winix 5300-2 Manuel utilisateur
Winix
Winix QS Manuel utilisateur
Winix
Winix ZERO AZBU330-HWE Manuel utilisateur
Winix
Winix 5300-2 Manuel utilisateur
Winix
Winix AAPU450-JDE Manuel utilisateur
Winix
Winix ZERO Pro Manuel utilisateur
Winix
Winix HR900 Manuel utilisateur
Manuels Purificateur d'air populaires d'autres marques
AtmosAir
AtmosAir P2002 Manuel utilisateur
Friedrich
Friedrich C-90A Instructions d'utilisation et d'installation
Surgically Clean Air
Surgically Clean Air JADE2.0 Manuel utilisateur
Base aire
Base aire 555 Pro Manuel utilisateur
Champion
Champion CP25 Manuel utilisateur
vollara
vollara Air & Surface Pro+ Manuel utilisateur
