Windsor VAC PAC VP Manuel utilisateur

Record model and serial number located on data label.

Refer to these numbers when calling Windsor dealer for

parts or service.

MODEL :

SERIAL NO. :

PURCHASE DATE :

INDUSTRIES, INC., 1351 W. Stanford Ave., Englewood CO 80110 USA

*303-762-1800*FAX 303-762-0817

Owner’s Guide

98179 12/9/97

C-UL

115V Vac Pac for use in North America

MODEL Approvals DESCRIPTION

VP-J 100V Vac Pac for use in Japan

The assemblies shown in this manual are for the VP

model, with notes pertaining to the other models.

The chart below provides a brief description of

each model.

Models:

VPH

C-UL

115V Vac Pac for use in Hospitals (HEPA)

VP, VP-J, VPH, VPH-J

VPH-J

100V Vac Pac for use in Hospitals (HEPA)

. . . for Continuous Improvement.

Windsor’s Quality Management System is Certified ISO 9001.

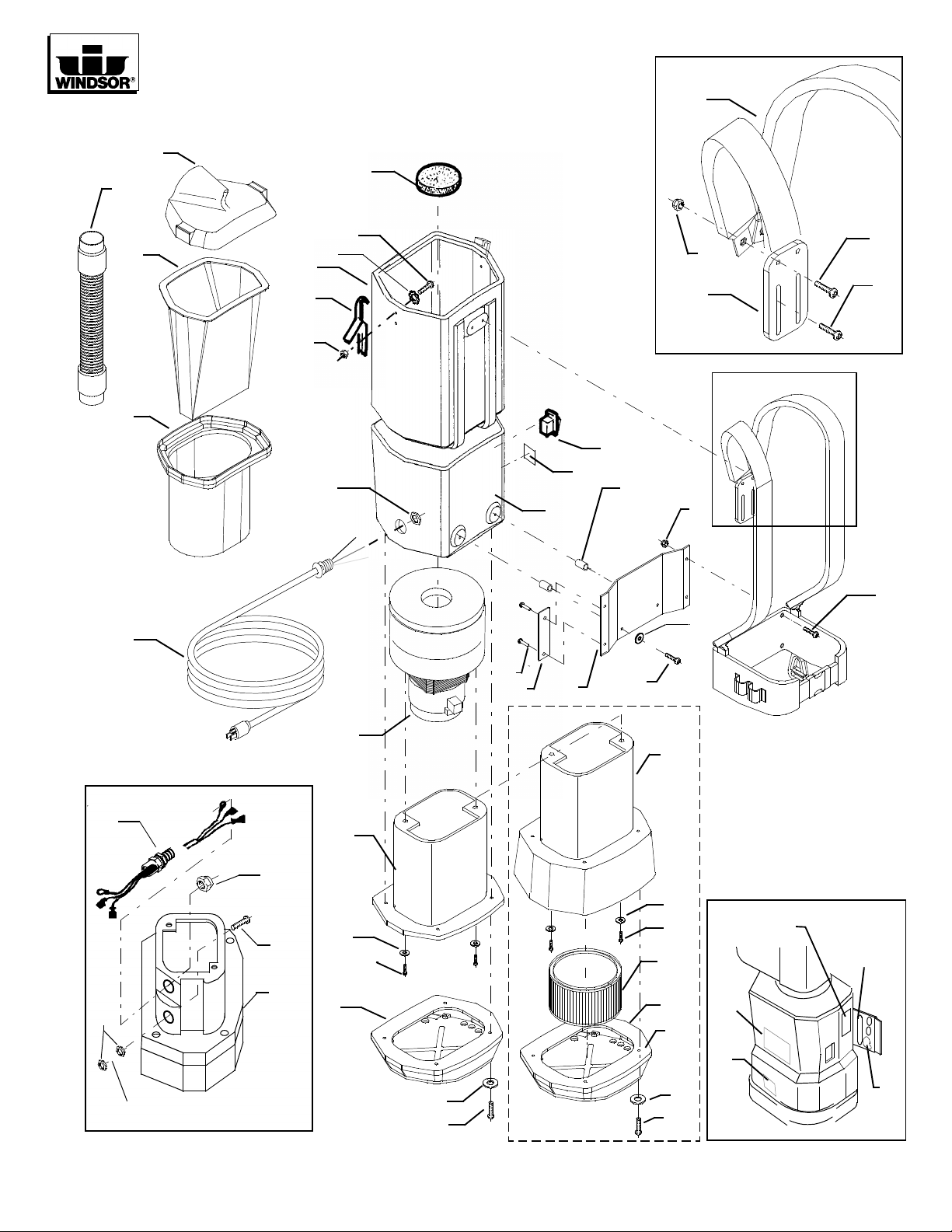

VAC PAC

REV.

DETAIL A

SEEDETAIL

10a

29a,b

30 35 21

27 1b

5b*

32*

3a 3b*

1a 1b*

24 24*

4abc

4c*

6abcd

5b*

26*

10b*

NOTE: PLACE GROUND WIRES ON

SCREW BETWEEN NUTS.

33*

28ab

Model/S.N.

Label

98179 12/9/97

36*

*NOTE: HEPA MODELS ONLY

VAC PAC PARTS LIST

98179 12/9/97

Ref Part No. Qty Description Serial No. Notes:

From To

1 70021 SCR, 10-32 X 2 FHMS

2 70092 SCR, 10-32 X 1.5 PHMS (VPH’S_

3A 08049 BASE, VP’S

3B 08046 BASE, VPH’S

4A 70361 SCR, 10-32 X 1/2 PHTR PLTD

4B 70114 SCR, #10 X 3/4 POLYFAST (VPJ)

4C 70383 SCR, 10-32 X 3/4 PHTR PLT DL

5A 71107 SUPPORT, MOTOR (VP’S)

5B 71115 SUPPORT, MOTOR (VPH’S)

6A 53738 VAC MOTOR ASM, 115V

6B 53575 VAC MOTOR ASM, 100V

6C 53576 VAC MOTOR ASM, 115V HEPA

6D 53577 VAC MOTOR ASM., 100V HEPA

7 88657 WIRE ASM, 18/3 - VPH 115V

8 23511 CORD ASM, 115V 18/3 X 40’ SJT (VP,J,H)

9 57104 NUT, 10-32 W/ STAR WASHER (VPH)

10A 57208 NUT, PG11 METAL

10B 57176 NUT, NYLON 3/8-18 NPT (VPH)

11 75173 TANK, MAIN HOUSING 115V-100V

12 57049 NUT, 6-32 LOCK

13 48062 LATCH & KEEPER

14 70056 SCR, 6-32 X 1/2 PHMS

15 50535 LABEL, VAC PAC MAIN

16 34203 FILTER, VAC INTAKE

17 14803 BAG, CLOTH

18 14804 BAG, PAPER

19 27622 COVER, ROTOMOLD (VP’S ,VPH’S)

20 39405 HOSE

21 57030 NUT, 10-32 NYLOCK

22 14854 BRACKET, SHOULDER STRAPS

23 70162 SCR, 10-32 X 3/8 PHMS

24 87095 WASHER, #10 FLAT PLTD

25 14805 SHOULDER STRAP, VAC PAC

70160 SCR, 10-32 X 5/8 PHMS

62372 PLATE, HARNESS

50571 LABEL, WARNING - VP ONLY

28B

50650 LABEL, WARNING - VPH ONLY

29A

72076 SWITCH, DPST 250V 16(6) A ROCKER (ALL EXCEPT VPH’S)

29B

72145 SWITCH, 125V DPST (VPH’S)

27376 CLIP, SWITCH RETAINING

87014 WASHER, #8 INT. STAR

34233 FILTER, HEPA W/GASKET (VPH’S)

50639 LABEL, HEPA (VPH’S ONLY)

34 50656 LABEL, C-UL LISTING (VP, VPH’S)

73735 SPACER, 1” OD X .234 ID X 1” LG. NYL

99812 FOAM TAPE, 1/4T X 1/2 (VPH’S)

67005 RIVET, 1/8 OD WHITE AL

62395 PLATE, DATA PLATE LABEL

50776 LABEL, FOR SAFETY

NOTE: Maintenance and repairs must be done by qualified personnel. Using non-Windsor parts to repair this machine

willvoidthe warranty.Acompleteservicemanualisavailableuponrequest.Theservicemanualincludesa wiringdiagram,

parts lists, parts diagrams and basic repair instructions for the entire machine. Contact an authorized Windsor dealer for

details.

VPT Tool Kit

02085

5” Brush

Asm

02084

5” Upholstery Tool

02083

3” Brush

Tool

02086

19”Extension

02293

28” Crevice

Tool

VPS Spot-Lite Kit

89079

42” Spot-Lite

Wand

78263

6” Spot-Lite

Tool

78066

16” Bristle

Tool

78067

17” Carpet

Tool

89071

Upper Wand

89077

Lower

Wand

VPF Floor Kit

VQS Vac Quick Sweep

78277

Quick Sweep

Tool

89079

Spotter Tool

Wand

ACCESORY TOOLS

98179 4/24/97

notes
