WIN Enterprises PL-63010 Manuel utilisateur
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
1
User’s Manual
PL-63010 / MB-63010
Version 0.1
MB-63010 Embedded Gaming Board supports AMD
®
R-Series APU, 4 displays, 2 GbE, 4 COMs, NVRAM, Standard
Gaming I/O 72-pin golden finger connector.
(PL-63010 is the platform-level implementation MB-63010)
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
2
© Copyright WIN Enterprises. All Rights Reserved
This document contains proprietary information protected by copyright. All rights are reserved. No
part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without prior written permission of the manufacturer.
The content of this document is intended to be accurate and reliable. The original manufacturer
assumes no responsibility for any inaccuracies that may be contained in this manual. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without prior notice.
Trademarks
IBM
®
, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International Business
Machine Corporation.
Award
®
is a trademark of Award Software International, Inc.
Intel
®
is a trademark of Intel.
RTL
®
is a trademark of Realtek
VIA
®
is a trademark of VIA Technologies, Inc
Microsoft
®
, Windows, Windows NT and MS-DOS are either trademarks or registered trademarks of
Microsoft Corporation
All other product names mentioned herein are used for identification purpose only and may be
trademarks and/or registered trademarks of their respective companies.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this document, the manufacturer
and distributor assume no liability resulting from errors or omissions in this document or from the use
of the information contained herein.
For more information on MB-63010 or other WIN products visit our website
www.win-ent.com.
For technical support send your inquiries to sales@win-ent.com or call +1 (978) 688-2000.
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
3
Table of Contents
Table of Content........................................................................................................ 3
Chapter 1. General Information ................................................................................. 4
1.1 Introduction ................................................................................................. 4
1.2 Specifications .............................................................................................. 4
1.3 Ordering Information................................................................................... 7
1.4 Packaging .................................................................................................... 7
1.5 Precautions .................................................................................................. 8
1.6 Board Placement.......................................................................................... 9
1.7 Board Dimensions ..................................................................................... 10
Chapter 2. Connector/Jumper Configuration.............................................................11
2.1 Connector/Jumper Location and Definition.................................................11
2.2 Connector and Jumper Setting.................................................................... 15
2.3 Compact Flash
™
Card Socket Pin Defininitions.......................................... 28
Chapter 3. BIOS Setup ............................................................................................ 29
3.1 Quick Setup ............................................................................................... 29
3.2 Entering the CMOS Setup Program............................................................ 30
3.3 Menu Options ............................................................................................ 32
3.4 Advanced Menu......................................................................................... 33
3.5 Chipset Menu............................................................................................. 43
3.6 Boot Menu................................................................................................. 51
3.7 Security Menu ........................................................................................... 54
3.8 Exit............................................................................................................ 55
Appendix A: Development Kit (optional) ................................................................ 56
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
4
Chapter 1. General Information
1.1 Introduction
PL-63010 is the Box/System implementation of WIN's MB-63010 board that
features the AMD Fusion R-series APU, three DVI-D + one HDMI display, Dual
Giga Ethernet, four USB 3.0 + eight USB 2.0 interfaces, optional I/O and
security module for casino applications and more. The device provides
excellent performance for various applications such as multi-player,
multi-display, high-end 3D games. Windows
®
WES 7 and Linux Ubuntu 10/11
are supported. These devices also include an industry-standard 72-pin golden
finger connector for all gaming kits and the refurbishing machines market.
1.2 Specifications
■System
AMD
®
socket FS1r2 for R-series Quad/Dual coreCPU
APU, 35W max.
BIOS AMI
®
UEFI BIOS
Chipset AMI
®
A75
System Memory Two DDR3-1600 SODIMM socket support up to 16GB
Watchdog Timer 255 levels timer interval, (1sec. to 255min.), setup by
software
■Audio
Audio Chipset HDA
Power amp. 6W Stereo power amp.; jumpers for optional volume
control external VR
5+1 channel audio jack on rear edgeAudio Interface
2x amplified speaker out through golden finger
■Ethernet
Ethernet Interface 2x Gigabit Ethernet
■Storage
One CF socketSSD
Or 2GB PATA NANDrive (onboard optional); pin header
for write protection
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
5
HDD Two SATA3.0 (6Gb/s) connectors with 4-pin SATA power
connector
■Security
CPU Security AES, RNG, Content protection
Physical Security Onboard Storage (optional)
DIP-8 socket for optional Crypto MemorySoftware Security
TPM 1.2 (optional)
■Gaming
NVRAM On-board battery backup of 32KB SRAM
Optional up to 4.5MB NVRAM or 2.5MB MRAM
Timers 1x 1mS timer and 4x Programmable timer with timeout
interrupt
EEPROM DIP 8-pin socket for optional I²C EEPROM or Crypto
Memory
Digital I/O 72-pin golden finger gaming I/O interface
- 15x Photo-isolated digital inputs
- 16x TTL digital inputs
- 24x 500mA current sink output by MOSFET
- 2x 2A high current sink output by MOSFET
FPGA All input with programmable de-bounce
Timer 4+1 with interrupt
32-bit Random Number Generator
Lamp outputs with programmable flash and dimming
Serious out for external lamps modules for decoration
Programmable PWM output
I/O expansion Pin header for optional gaming I/O & NVRAM expansion
module
■Expansion
One PCI-E x16 slot (PCIe x8 signal),
One mini-PCIe socket for PCIe x1 Or one mSATA (default
mSATA)
Expansion slot
LPC, I2C, SPI header
■System I/O
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
6
COM 4x COM
- COM1 - Full RS-232, DB9
- COM2 - simple RS-232/RS-485, DB9
- COM3 - simple RS-232 (pin header)
or cctalk (jumper select)
- COM4 - simple RS-232 (pin header)
4x USB 3.0 port at rear I/OUSB
8x USB2.0 internal
- 2x by 180°Vertical type-A socket
- 6x by pin header
■Hardware monitoring
System Heath
Monitoring
Measurement of CPU core and system temperature with
thermal trip
■Power Supply
Voltage DC 5V & DC12V input from 20-pin Golden finger
■Software
O/S Microsoft® Windows® WES7 and Linux Ubuntu 10/11
support
■Mechanical and Environment
Operating Temperature: 0 – 60 ºC (32 ºF – 140 ºF)
Storage Temperature: -20 – 85 ºC (-4 ºF – 185 ºF)
Environmental
Relative Humidity: 10-85 % RH, non-condensing
Certifications FCC/CE Class A
Dimensions 170mm x 210mm
■Applications
Multi-display video slot/poker machine
Multi-display amusement machine
Multi-player Roulette/Baccarat system
Multi-player Racing/Shooting game
Main Applications
Bingo room island system
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
7
1.3 Ordering Information
■Ordering Information
MB-63010 (board)
AMD R-series APU based Gaming Board with HDMI, 3x
DVI-D, 2x GbE, 4x COM, 4x USB 3.0
■Optional
- R217A-01; R217A I/O Testing Board
- CB-G00028-00; R217 I/O Testing Board Cable for
MB-63010
- CB-IUSB01-00; USB cable 2x5 (2.54mm)
- CB-S4B402-00; Dual end 4 Pin power cable.
DK-GA5010-01
- CB-SATA07-00; SATA Cable w/ 35cm
R283 Casino feature expansion module
Note: Specifications subject to change without prior notification.
1.4 Packaging
Please make sure that the following items have been included in the package
before installation.
1. MB-63010 board
2. Quick Installation Guide (Optional)
3. Cables (Optional)
4. CD-ROM that contains the following folders:
(1) Manual
(2) Driver
If any item of above is missing or damaged, please contact your dealer or
retailer from whom you purchased the MB-63010. Keep the box and carton for
shipping or storing MB-63010. After you unpack the goods make sure the
packaging is intact. Do not plug the power adapter of the appliance if you
already find it appears damaged.
Note: Keep the MB-63010 in its original packaging until you start installation.
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
8
1.5 Precautions
Please make sure you properly ground yourself before handling the MB-63010
board or system components. Electrostatic discharge can be easily damage
the MB-63010 board.
Do not remove the anti-static packing until you are ready to install the
MB-63010 board.
Ground yourself before removing any system components from its protective
anti-static packaging. To ground yourself, grasp the expansion slot covers or
other unpainted parts of the computer chassis.
Handle the MB-63010 board by its edges and avoid touching the components
on it.
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
9

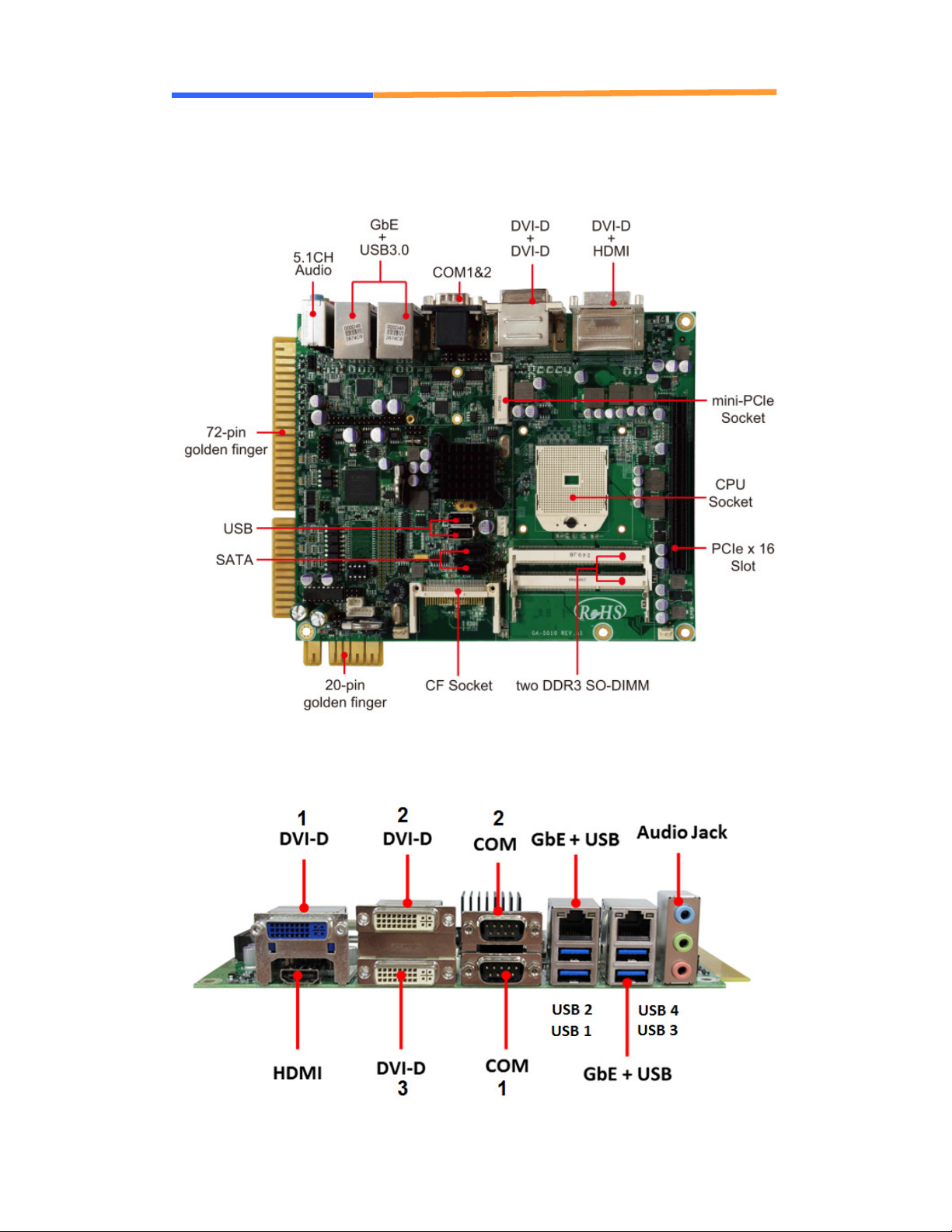

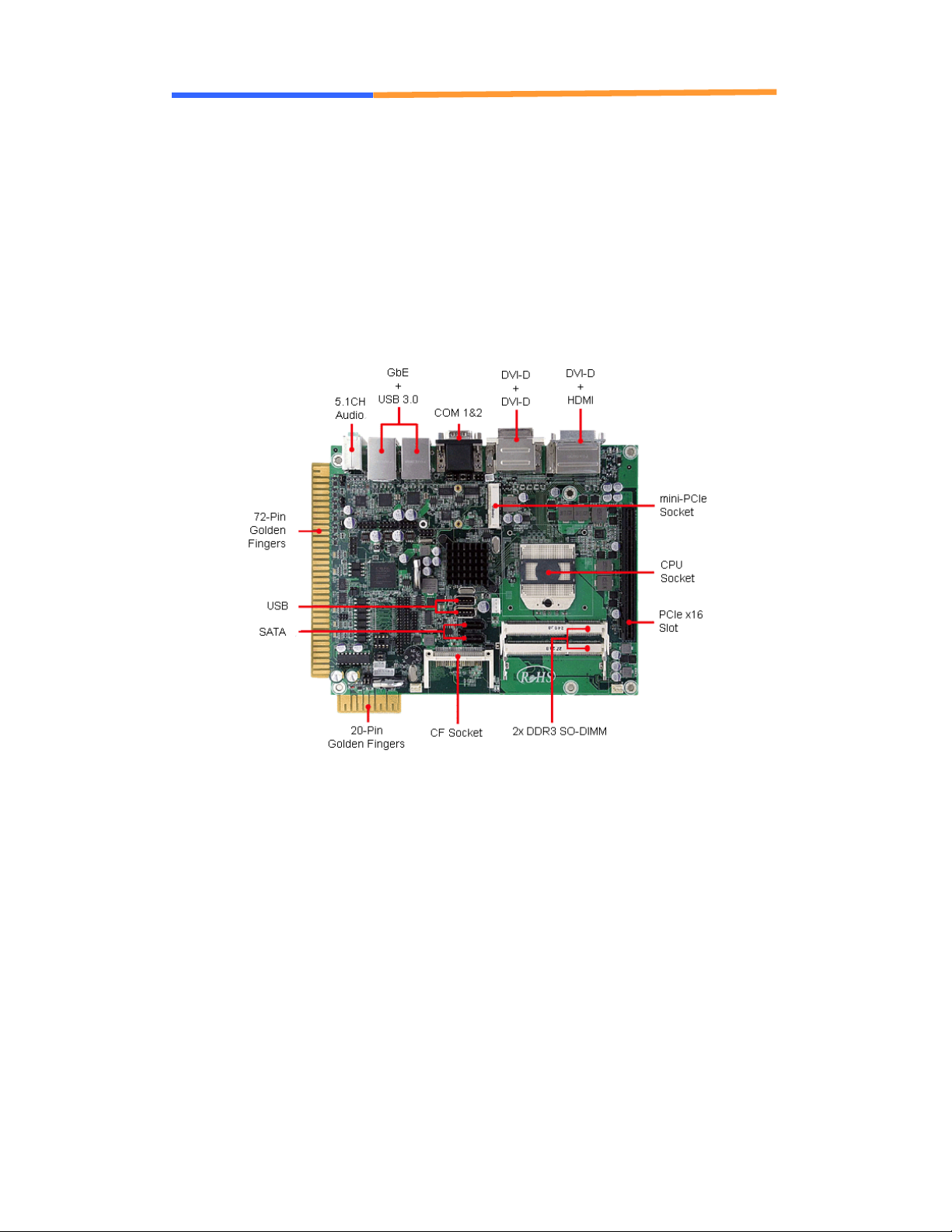

1.6 Board Placement
User’s Manual
WIN Enterprises, Inc. MB-63010 User Manual
10

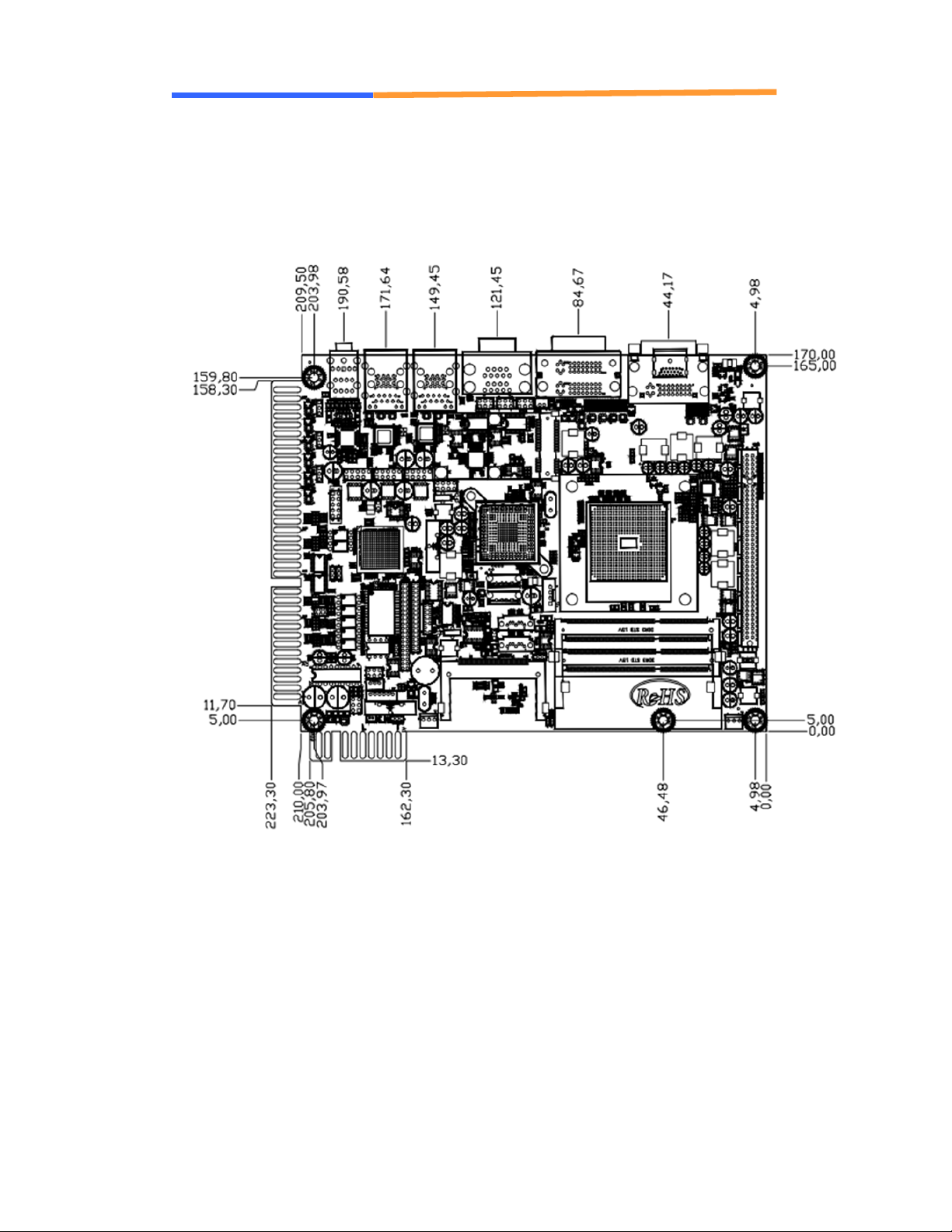

1.7 Board Dimensions
