WIN Enterprises PL-01030 Manuel utilisateur
User’s Manual
Manual 1.0
PL-01030
Fanless Micro PC with AMD Geode LX800 Low Power
Processor Manual
www.win-ent.com
Table of Contents
PL-01030, Version 1.0
Chapter 1. General Information........................................................................................3
1-1. Introduction ............................................................................................................... 3
1-2. Specification.............................................................................................................. 3
1-3. Mechanical Drawing.................................................................................................. 5
Chapter 2. Installation and Configuration Install the HDD........................................... 6
2-1. Install the memory .................................................................................................... 7
2-2. Install the CF card .................................................................................................... 7
Chapter 1. General Information
1-1. Introduction
The PL-01030 is a very compact, low-power, fanless Micro PC that supports full
functions. This product is appropriate for the projects requiring thin client architectures.
Specific applications include: Network gateway appliance, security control, general
Windows XP application (not heavy loading), or any project requiring extremely
compact size, low power and fanless operation.
Inside the PL-01030 platform product is the IP-06060, a 3.5” SBC board featuring the
AMD® CS5536 chipset and AMD® Geode™ LX800 500 MHz processor.
The product supports:
CRT and 24-bit TFT panels, one ATA-66 IDE device, one CFC socket, Dual Intel®
82551ER (or Realtek RLT8139CL+) Ethernet chipset with two RJ45 jack for
10/100Mbps, 4 COM ports, 4 USB 2.0 ports, one Parallel port & Microphone &
Speaker out..
For additional details refer to IP-06060 Manual.
1-2. Specifications
General Functions
BIOS Insyde® 512KB Flash BIOS
I/O Chipset Winbond 83627HG
Enhanced IDE Support one Ultra ATA-66 IDE
Parallel port Support SPP/ECP/EPP
IR interface Support one IrDA Tx/Rx header
Support four USB 2.0 ports: two on external Connector, USB connectors: two on Pin-
header
Watchdog Timer Software programmable, 1-255 level
Power management APM 1.2 compliant Flat Panel/CRT Interface
Display memory Share system memory 2~254MB
CRT Resolution support up to 1920 x 1440 @ 32bpp or Resolution 1660 x1200
@ 32bpp CRT & LCD simultaneous: up to 1024 x 768 @ 18bpp (60Hz)
Ethernet Interface R-053A for 24-bit LVDS; R-053B for 18-bit LVDS
Ethernet interface PCI 100/10 Mbps Ethernet controller
SSD Interface
Sound
SoundBlaster Pro Hardware and Direct Sound Ready
AC97 Audio controller, Digital Audio
Software Driver Supports for Windows XP Mechanical and Environmental
Max. power requirements +5 V @2.4A,
Dimensions w/o base kit; 146.1mm (L) x 51mm (W) X 222.5mm (H)

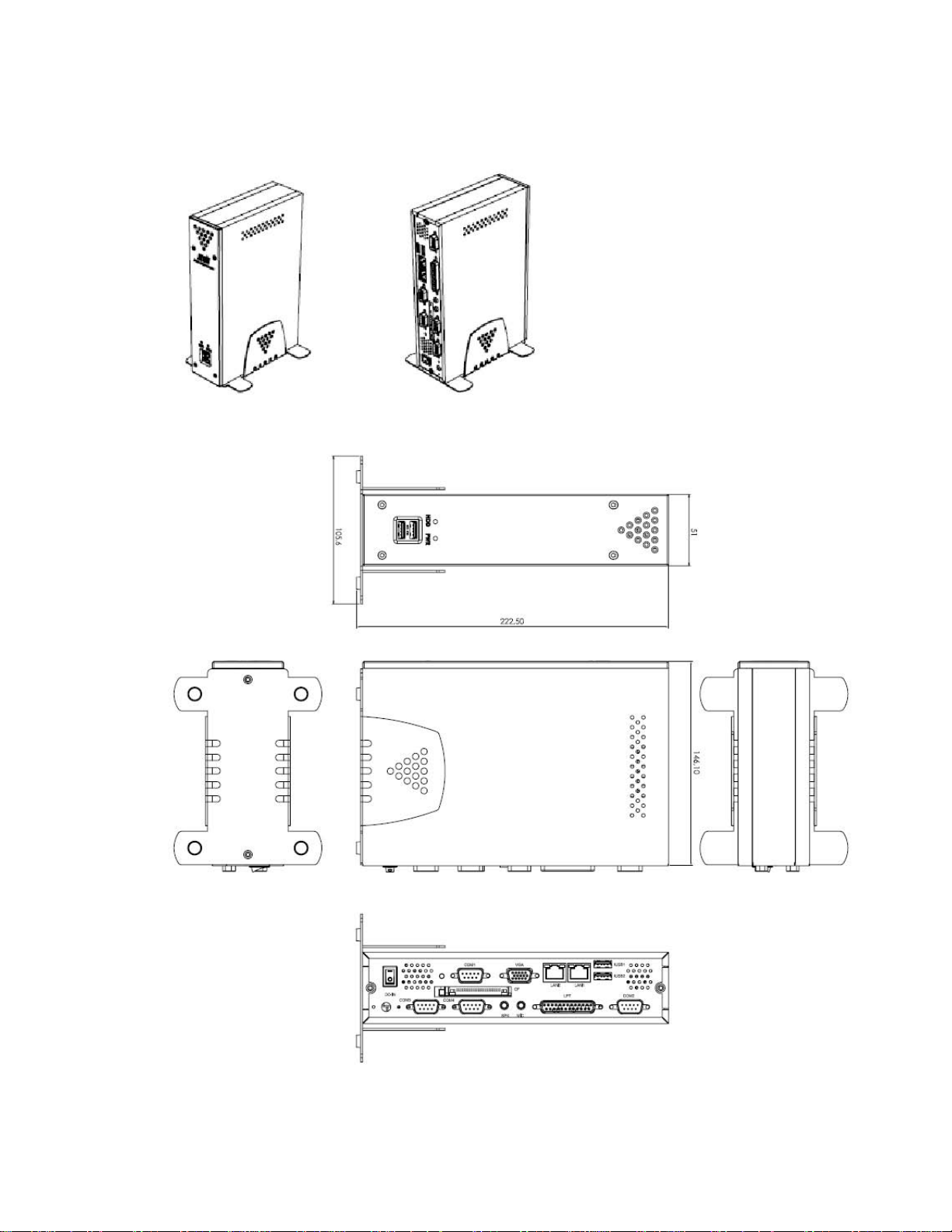

1-3. Mechanical Drawing
Chapter 2. Installation and Configuration
Installing the HDD
(1) Open the box by unscrewing the two screws from the bottom cover of PL-01030, remove the
two brackets.
(2) Fix the HDD on the HDD bracket by screwing the four screws from the two sides of HDD
bracket. Then connect the 44-pin HDD cable from the other sides of CPU board as pictured below.
(3) Connect the 44-pin HDD cable to CON 11.
2-1 Installing the memory
(1) Open the box.
(2) Insert the single slot DIMM memory into the socket on the back side
2-2 Installing the CF card
(1) No need to open box, just plug into the hole between COM1 and COM4 connector as in the below
picture. Note to face the CF card downsides.
