Wildix DaySaver Manuel utilisateur
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 1 of 15
Sep 08, 2020 20:09
DaySaver Quick Installation Guide
Overview and LED indicators
DaySaver Overview
LED indicators description
Installation and connection
Provisioning and configuration
Data connection backup
Enable VoLTE
Set uplink config
Enable DHCP Server
Set Static IP Address for WAN port
Test the network topology
Use DaySaver as Trunk backup (optional)
How to send/ receive SMS
Time indexes of SMS sending
Factory reset and reboot
Recovery
Step 1
Step 2
Step 3
Step 4
Overview and LED indicators
DaySaver Overview
Front panel:
DaySaver Quick Installation Guide describes how to connect and configure the gateway.
DaySaver Datasheet: Media Gateways Datasheet
Min. supported WMS Version: 4.01.43713.08
SMS Support: starting from firmware version 2.53.4.20
Updated: July 2020
Permalink: https://confluence.wildix.com/x/Z4A2Ag
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 2 of 15
1 - SIM slot: insert and press a SIM card to the slot
2 - SIM LED indicator: shows SIM registration status
3 - LAN LED indicator
4 - Running indicator: indicates network registration status
5 - Power indicator: shows power supply status
6 - WAN LED indicator
7 - 2 antennas: one for data connections; another one - for calls and SMS
:Rear panel
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 3 of 15
1 - DC 12V power supply (optional, WMP code: PS-12V2A)
2 - WAN/ PoE port
3 - LAN port (static IP address 192.168.11.1)
4 - buttonReset
5 - buttonReboot
LED indicators description
Indicator State Description
PWR Off There is no power supply or it is abnormal
On The device is powered on
RUN Off The device is not running normally
On The device is being initialized
Slow flashing The device is successfully initialized and running normally
WAN/
LAN Off The is no network connection
Fast flashing Network is successfully connected
SIM Slow flashing 4
sec SIM card cannot be detected (flashing ever 4 seconds)
Fast flashing SIM card has been inserted and successfully registered (flashing every 2
seconds)
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 4 of 15
Installation and connection
Make sure the PIN code of the SIM card is disabled.
Connect antennas to the rear panel of the gateway
Connect network cable to WAN/ PoE port
Insert a SIM card to the slot
Provisioning and configuration
For provisioning of DaySaver, consult .Provisioning of Wildix devices Guide
For remote/unreachable media gateways behind NAT/ Firewall, follow Remote Provisioning of Wildix devices
.Manual

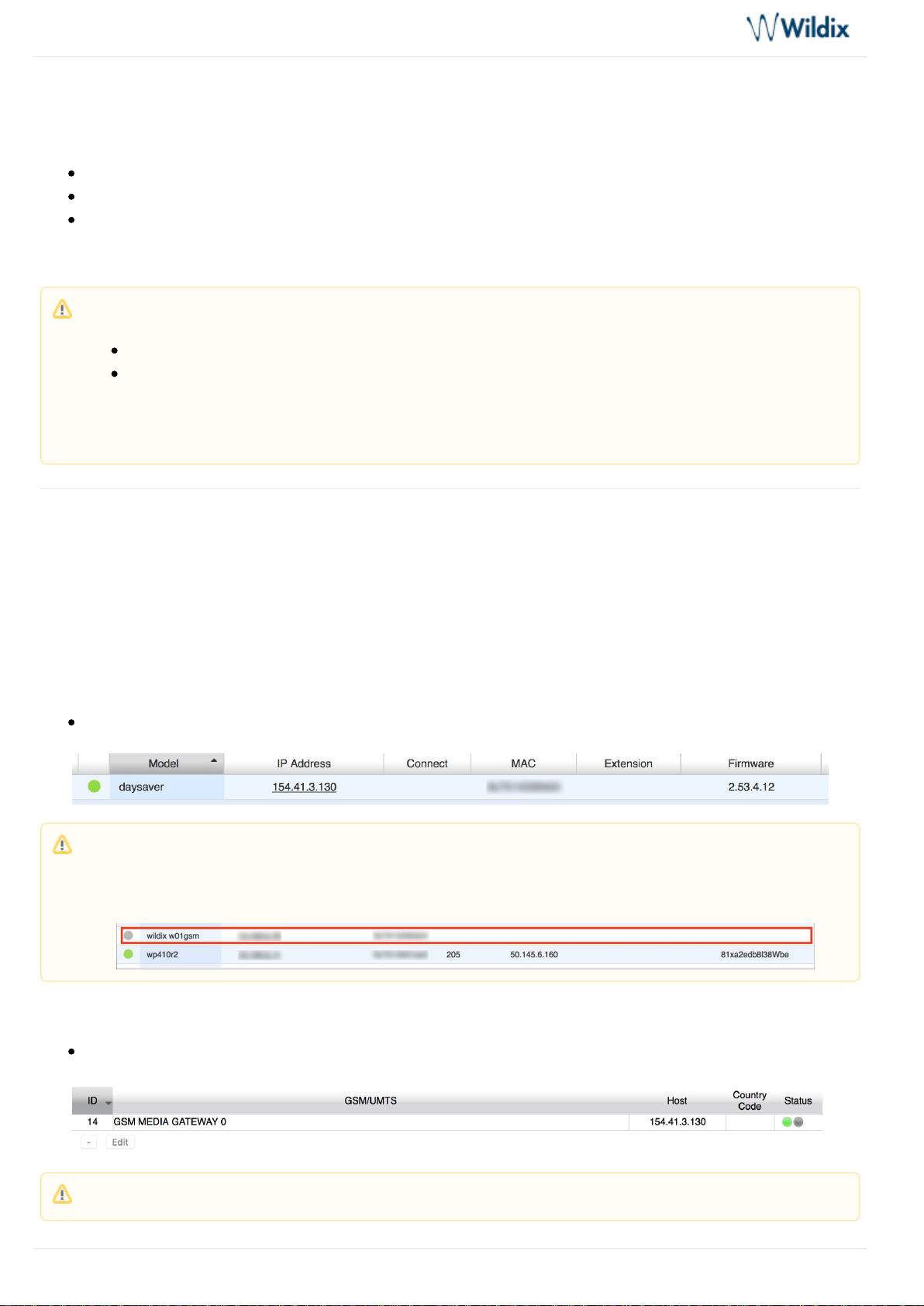

After provisioning, the gateway appears in WMS:
WMS -> :Devices
WMS -> Trunks:
The number of supported devices per one system:
For making calls: no limit
For sending SMS: no limit starting from WMS v. 4.03.44914.04
Note for WMS Network: the option "Remote PBX (for SMS sending)" in WMS -> ->Settings System FAX
doesn't work if another DaySaver is registered to one of the PBXs./SMS server
Note: Auto-upgrade process can take up to 5 minutes. During the upgrade, a device downloads a new
firmware, receives a password and SIP registration.
Please DO NOT reset the device during the upgrade procedure:
Important: Status of signal quality is currently not supported!
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 5 of 15
After the device is provisioned, you can configure its settings. Consult Trunk Settings Guide to check all available
parameters.
Data connection backup
How does it work?
DaySaver is your small remote office. It can work as a data connection backup, in case if your Internet goes
down, and as a backup for Cloud PBX. And, same as its predecessor, it provides phone calls and SMS even if
your operator becomes unreachable (since it allows you placing calls via Mobile network).
DaySaver keeps monitoring the PBX and a other hosts and in case they become unreachable, it automatically
switches to mobile data (4G connection). The gateway supports speeds up to 100 Mbit in download and 50 Mbit
in upload.
: DaySaver is placed between the customer’s existing network and a separate VoIPBackup for the voice service
Network (over vlan, for example). If the PBX becomes unreachable over network, DaySaver automatically
switches the connectivity to 4G / LTE.
Without DaySaver:
With DaySaver:
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 6 of 15
: DaySaver is placed between the router and the whole network of the customer. InBackup for an entire office
case the office internet connection goes down, all traffic starts working via DaySaver:
Enable VoLTE
VoLTE Network allows using DaySaver as a backup for Cloud PBXs, as a backup for the cable Internet
connection, or, even as the only Internet access for small offices or during the events.
To activate VoLTE, proceed with the following steps:
Go to ->Network VoLTE
Check off in Status fieldEnable
Click Save
Confirm by clicking Apply
Set uplink config
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 7 of 15
The uplink config should be set to " " with tracking IP addresses set to somethingWAN Master, VoLTE Slave
publicly accessible, in this example we use 8.8.8.8.
Go to ->Network Uplink Config
Set WAN Master,VoLTE Slave
Click Save
If WAN loses 3 pings to 8.8.8.8, it failovers to VoLTE. When WAN becomes available again (Count of up), WAN
becomes the master again.
Enable DHCP Server
Go to -> rNetwork DHCP Serve
Check off Enable
DHCP Server settings must have default gateway as the DaySaver LAN IP address
DNS Servers must be reachable via LAN
Note: Enable DHCP Server to use DaySaver as a backup for an entire office. All other DHCP servers
connected to a network switch should be disabled.
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 8 of 15
If you want to use DaySaver as a backup for a single switch:
Connect WAN into Existing Network / Router (DHCP Client)
Connect LAN into Switch that powers phones
Set Static IP Address for WAN port
Go to Network -> Setting
Plug WAN & LAN port into existing Switch / Router
Allow devices on existing network to get IP addresses from DHCP Server provided from DaySaver:
Important: If you do not connect DaySaver via WAN port to a router, you must assign a static IP to it.
Otherwise the port will be assigned to 0.0.0.0 IP address and DaySaver won't be registered to a PBX
through LTE.
Before setting Static IP, disable DHCP server on existing network.
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 9 of 15
Status Page Example
Go to ->Status Overview
Check the network status:
Test the network topology
To test the network topology, you can use some of the following tools:
1. Tracert
DaySaver Quick Installation Guide
DaySaver Quick Installation Guide Page 10 of 15
Plug into Switch that has DHCP server set from Daysaver
You can run tracert to 8.8.8.8. The first hop should be Daysaver LAN address, Second hop should be the
WAN gateway address
Example:
Traceroute has started…
traceroute to 8.8.8.8 (8.8.8.8), 64 hops max, 72 byte packets
1 192.168.11.1 (192.168.11.1) 1.004 ms 0.613 ms 0.549 ms
2 192.168.1.1 (192.168.1.1) 0.824 ms 0.831 ms 0.742 ms
3 gi12-0-1-451.ptn-ag04.plus.net (84.92.253.87) 9.349 ms 9.591 ms 9.104 ms
Disable the WAN on existing firewall or turn off existing router
Run tracert again
The first hop should be Daysaver and second hop should be VoLTE address
Example:
Traceroute has started…
traceroute to 8.8.8.8 (8.8.8.8), 64 hops max, 72 byte packets
1 192.168.11.1 (192.168.11.1) 1.004 ms 0.613 ms 0.549 ms
3 02.internet.net (86.92.251.81) 9.349 ms 9.591 ms 9.104 ms
2. IP checking websites
For example, use .ipchicken.com
Go to when existing router internet is up ipchicken.com
Go to when existing router internet is disabled or turned off ipchicken.com
Use DaySaver as Trunk backup (optional)
