WHISPER KOOL SS4000 Manuel utilisateur

WhisperKOOL

by Vinothèque

“THE COOLEST THING IN WINE STORAGE.”

The WhisperKOOL

Split Cooling System

requires professional

installation by

a licensed refrigeration

technician.

Thank you for choosing WhisperKOOL Split

Cooling System for your wine preservation

needs. This unit has been speciﬁcally designed

and engineered to create the ideal balance

of temperature and humidity within a wine

cellar. This, along with a properly designed

and constructed cellar, creates the optimum

environment for the proper aging of ﬁne

wine. Please take the time to read through

the owner’s manual so you understand the

correct operations of the WhisperKOOL unit.

Split System.

SS4000 & SS7000.

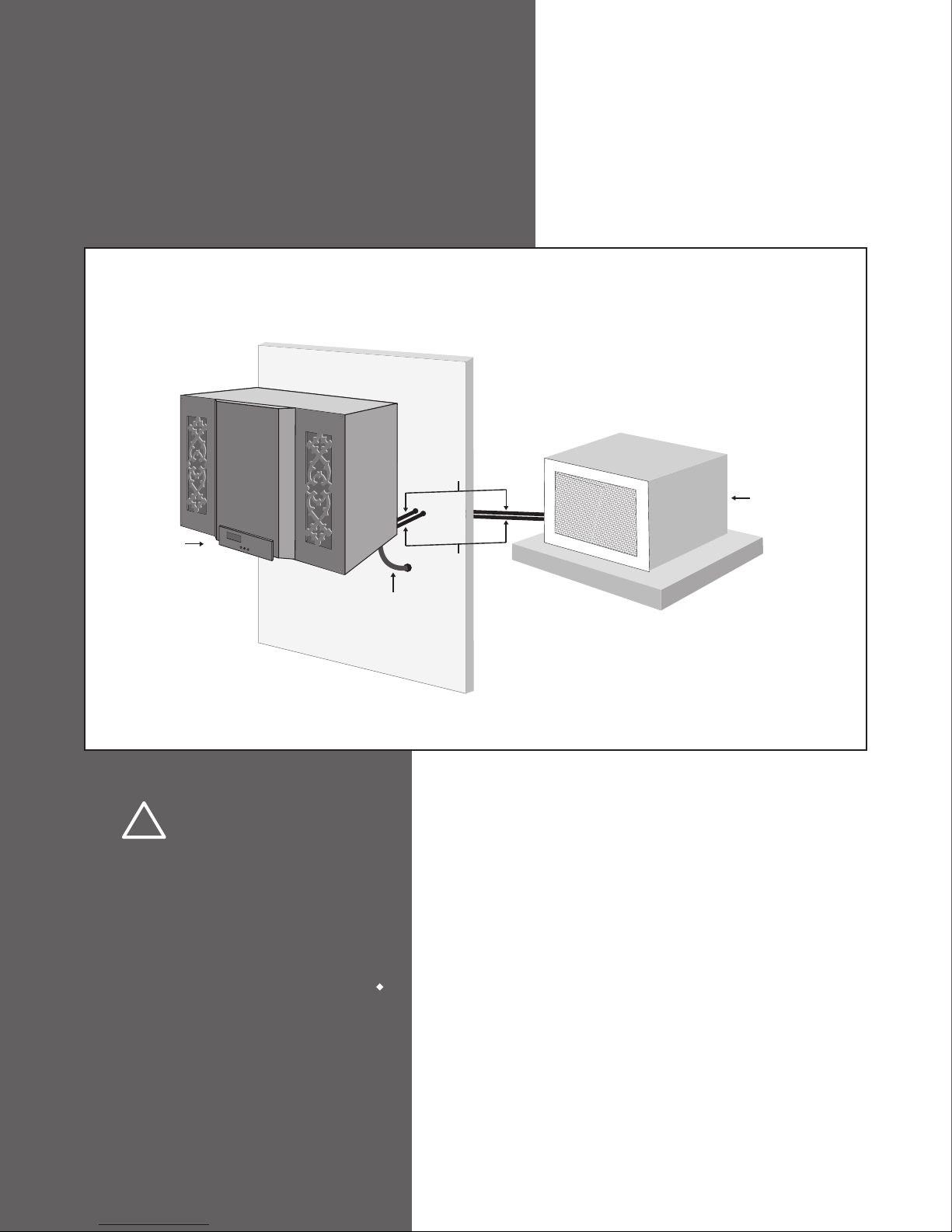

(Indoor/Outdoor)(Indoor)

CondenserEvaporator

Split Refrigeration System

110 VAC

Load (Liquid)

Suction

Drain

This manual, the product design, and the design concepts are copyrighted by Vinothèque

manual are subject to the restrictions and limitations imposed by the copyright laws

of the United States of America. Under copyright laws, this manual may not be copied,

reproduced, translated, transmitted, or reduced to any printed or electronic medium or

to any machine-readable form, for any purpose, in whole or in part, without the written

consent of Vinothèque Wine Cellars.

Every effort has been made to ensure that the information in this manual is accurate.

Vinothèque Wine Cellars is not responsible for printing or clerical errors.

Vinothèque Wine Cellars reserves the right to make corrections or improvements to the

information provided and to the related hardware at any time, without notice.

Vinothèque, and WhisperKOOL are registered trademarks, of Vinothèque Wine Cellars.

Mention of third-party products is for informational purposes only and constitutes

neither an endorsement nor a recommendation. Vinothèque Wine Cellars assumes no

liability with regard to the performance or use of these products.

Rev. 17-1103

-3-

WhisperKOOL Split Cooling System

Features and Benefits....................................................................................

Receiving & Unpacking...................................................................................

Thermostat......................................................................................................

Additional Features................................................................................

PDT Thermostat Operating Instructions......................................................

Package Contents...........................................................................................

Wine Cellar / Space Preparation...................................................................

Technical Specifications.................................................................................

Split System Installation Guidelines.............................................................

Condenser Skid Preparation..................................................................

Mounting the Evaporator Unit..............................................................

Electrical Lines ...................................................................................

Installing Drain Line............................................................................

Refrigeration Lines..............................................................................

Wiring system......................................................................................

Charging the system...........................................................................

Maintenance..................................................................................................

Technical Assistance....................................................................................

Trouble Shooting...........................................................................................

Installation Terms & Conditions..................................................................

TABLE OF CONTENTS

-4-

Designed speciﬁcally for wine storage, the WhisperKOOL system is a specialized refrigeration unit

designed for one purpose only: to maintain the optimal temperature and humidity levels conducive

to the proper aging of ﬁne wines.

Humidity Control

As the temperature begins to drop within the cellar, the relative humidity will rise. The WhisperKOOL

units do not create humidity. If you live in a dry area of the country, you may need to create

humidity in the wine cellar. This can be done by introducing a non-heat humidiﬁer or installing a

small fountain within the cellar. The unit will remove excess humidity from the air and discharge

it through the drain line hookup on the evaporator unit.

Quiet Operation

Years of experience with our self contained cooling units has resulted in a totally new design which

accounts for a number of environmental conditions which are unique to wine cellars. We have

accounted for these variables and incorporated the use of state of the art components, which offer

quiet and sophisticated operations while keeping the basic concept rather simple.

Indoor and Outdoor Condenser Installations

This system offers the option of installing the condenser unit indoors or outdoors. This will allow

home builders and architects to incorporate this system with the utmost ease with regard to

installation and space requirements. Note: Exterior installations require the condenser

housing. Please specify the need of this requirement at the time of order.

Temperature Differential

The WhisperKOOL split system is designed with a 55 degree temperature differential. This means

the unit can operate correctly even if the ambient temperature outside (or wherever the condenser

unit is mounted) even in 110 degree heat. This is a signiﬁcant improvement over most cooling

units designed for wine storage.

FEATURES & BENEFITS

The system includes both the evaporator and condenser units packaged in two (2) separate

containers. An exterior housing is optional for outdoor installations and will arrive packed

separately.

-5-

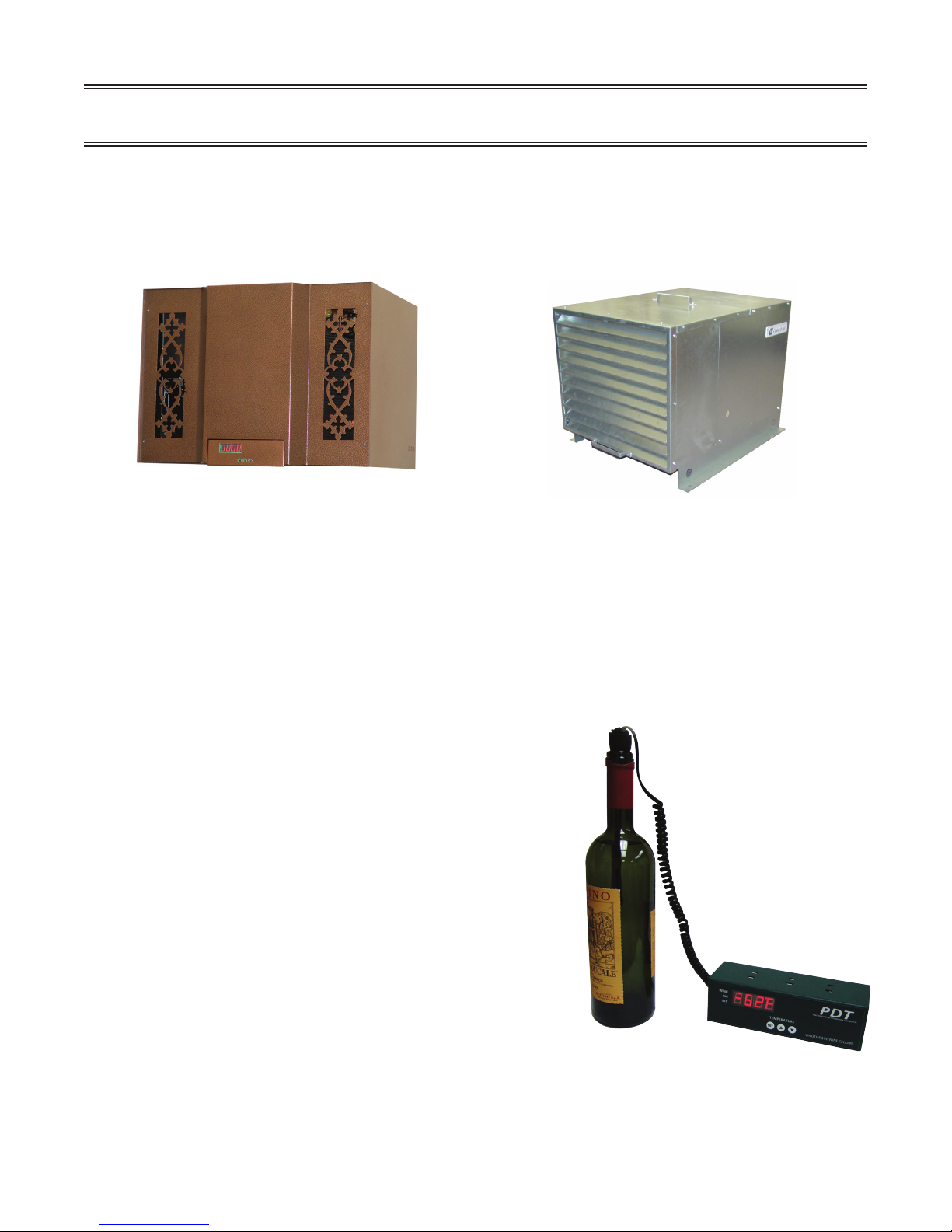

Evaporator Condensers (Shown With Optional Housing)

• Wine is maintained at a precise, measured

temperature.

• The unit will switch on/off less often,

extending cooling unit life.

• The unit will run longer during cycles

effectively maintaining humidity.

PDT Thermostat

Digital probe––contains a microchip which communicates

back and forth to the thermostat, resulting in accuracy.

Heavy Duty Circuitry––designed to resist power surges,

which play havoc on sensitive electrical components.

Fahrenheit and Celsius readout––for use in the United

States as well as around the world.

Built In Defrost Cycle––designed to prevent icing on the

evaporator coil.

RECEIVING & UNPACKING

Thermostat

The split system evaporator has been designed to incorporate the Vinothèque PDT ™ series

thermostat.

Years of research and testing have gone into the design of the PDT thermostat- resulting in advanced

microprocessor controlled digital technology and pinpoint accuracy. This system incorporates a

probe designed to measure the liquid temperature in a wine bottle rather than the air temperature

of the cellar. This results in several distinct advantages:

Additional Features:

-6-

The unit is set at 55°F at the factory. To raise or lower the set temperature, press the set button

while at the same time pressing either the arrow up or arrow down button.

Wine Temperature Indicator: A red LED bar will light up when the thermostat is reading the

liquid temperature in the bottle via the probe. This will remain lit and the temperature you see

displayed is what the probe is reading.

LED Screen: Displays your thermostat readings.

Wine Temperature Reading: The temperature the water bottle is registering to the

thermostat.

Temperature SET Indicator: A red LED bar will light up when you are setting the

temperature.

Unit ON Indicator: A red LED bar will light up every time the unit turns on to run a cooling

cycle.

SET Button: Used to set the temperature you want the unit to maintain.

UP Arrow Button: Used with the SET button to set temperature higher. In addition, by pressing

and holding the button it will allow you to see the 5-minute count down.

DOWN Arrow Button: Used with the SET button to set temperature lower.

*Up and Down Arrow Buttons used simultaneously will change the temperature read

out from Fahrenheit to Celsius*

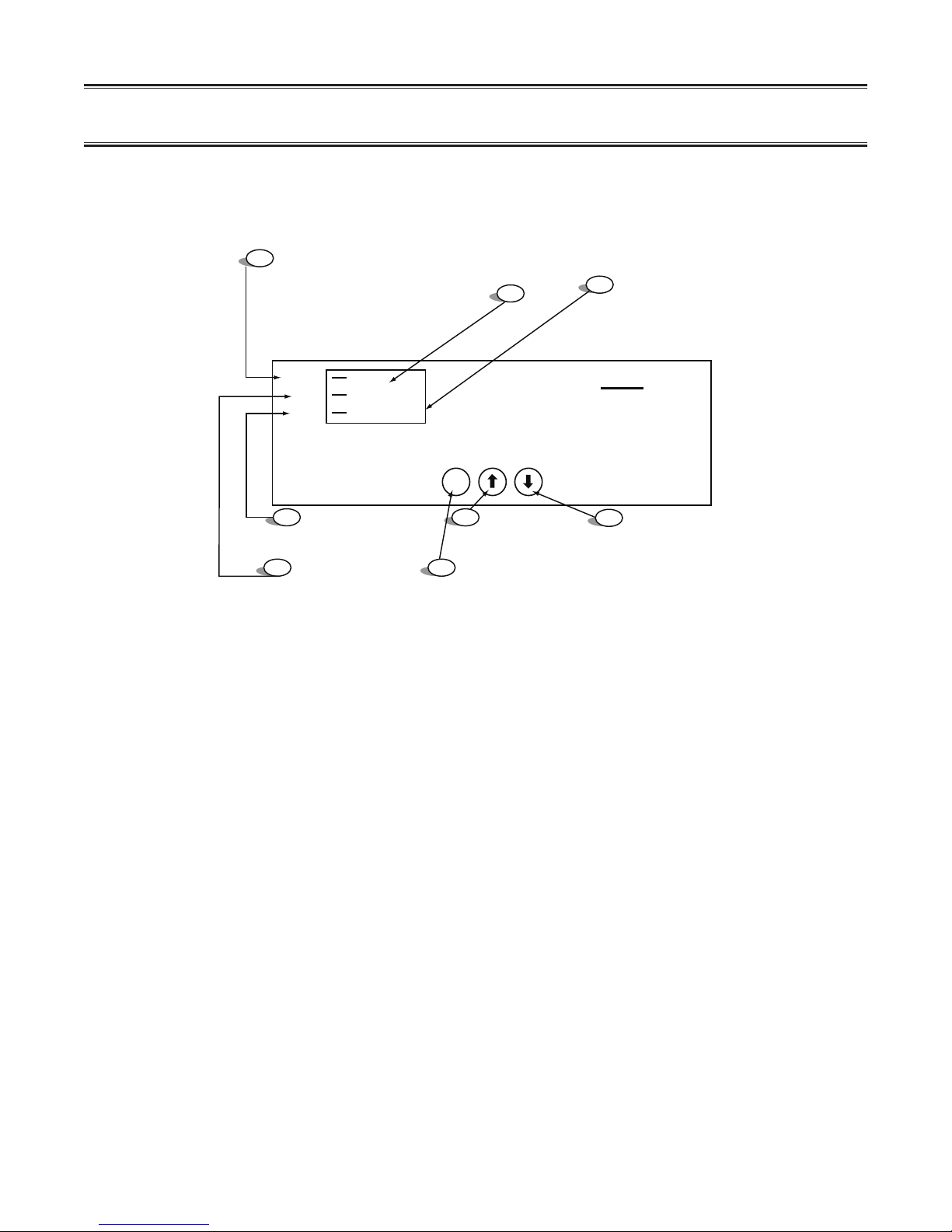

WINE Temperature Indicator

Wine Temperature Reading

LED Screen

5 6

Temperature SET Indicator

Button

UP Arrow Button DOWN Arrow Button

Unit ON Indicator Button SET Temperature Button

Temperature

Precision digital Technology Thermostat

PDT

WINE

SET 55F

SET

PDT OPERATING INSTRUCTIONS

-7-

SS4000

Box 1

Evaporator Unit (part #: 03-4000SS-0120)

Sight Glass

Filter Dryer

Box 2

Condenser Unit (part #: 1-122100)

Accessory Kit (par #: 09-950-9997SS)

Box 3

Optional Exterior Housing (part #: 03-4000SS-0120)

Mounting Hardware

Optional Electrical Cover

SS7000

Box 1

Evaporator Unit (part #: 03-7000SS-0120)

Sight Glass

Filter Dryer

Box 2

Condenser Unit (part #: 1-122101)

Accessory Kit (par #: 09-950-9997SS)

Box 3

Optional Exterior Housing (part #: 03-7000SS-0120)

Mounting Hardware

Optional Electrical Cover

Accessory Kit part #: 09-950-9997SS Quantity

Brass Fitting, 3/8” Barb x 1/8 1-141012 1

Brass Nipple, 1/8” Male Pipet 1-141025 1

Bypass Plug Jumper w/Molex 1-212455 1

Drain Line & Fitting N/A 1

Owner’s Manual M-4/7SS RevA 1

Screw #8 x 1-3/4 SH Black 1-422813B 9

PACKAGE CONTENTS

-8-

The proper design and preparation of the wine cellar is essential in order to maintain the ideal

temperature and humidity levels. We have created a typical presentation on “How to Build a

Wine Cellar” which is available for viewing on our web site at www.whisperkool.com. Failure

to prepare the cellar accordingly will result in improper functioning of the cooling unit and is not

covered under warranty.

Preparing the Wine Cellar

Sizing Guide & Speciﬁcations

Vinothèque model Cellar Volume Run Amps Start-Up Amps H x W x D Lbs

SS4000 Condenser

SS4000 Evaporator

SS7000 Condenser

SS7000 Evaporator

Outside Enclosure (All)

1000 cu. ft.

1750 cu. ft.

NA NA

1.5 Amps

9 Amps

1 Amp

10 Amps

3 Amps

18 Amps

2 Amps

15 Amps

20.75”x25.75”x18”

15.75”x23.5”x15.5”

13.5”x18.5”x12”

15.75”x23.5”x15.5”

13.5”x18.5”x12”

Technical Speciﬁcations

Ton

7/12

1/3

Power Source

Condenser

Evaporator

Lines and Wiring

• 1/4” Liquid Line

• 3/8” Suction Line for lines 50 ft or less, or

• 1/2” Suction Line for lines 51-100 ft, or with excessive bends on line

• Insulation for Suction Line

• For each line reduce the line set calculation by 10 ft for every 90° bend. Do not

exceed 100 ft total length. No wiring required between condenser and evaporator.

-110Volt, 20Amp Dedicated (Non-GFI) Breaker

-110Volt, 15Amp Dedicated (Non-GFI) Breaker

WINE CELLAR / SPACE PREPARATION

General Installation Guidelines and Instructions

Vinothèque requires that a certiﬁed HVAC technician install the Split System unit modules.

Please take a moment to review State and City building codes to insure the safe and proper

installation of the unit.

Installing Condenser Unit

The condenser unit can be mounted inside a utility area of the home or outside utilizing the optional

outdoor condenser housing. The system will operate on a 55 degree temperature differential. This

means that the unit will have the capacity to produce cool air into the cellar as long as the ambient

temperature does not climb above 110 degrees Fahrenheit. This unit requires a dedicated 20 amp

circuit, non-GFI. Make sure there is a minimum three-foot horizontal clearance in front and rear

of the unit. The unit may either be hard wired or plug-in depending on local electrical codes. The

unit must be installed at an elevation lower than the evaporator unit. If not, a “P Trap”

must be installed.

Internal Condensing Unit Installations. Internal installations require special consideration

by having adequate ventilation to dissipate the heat created during normal operations. An

exhaust port with fan may need to be installed to assure that heat is effectively dissipated

from the utility room. Unobstructed airﬂow to and from the unit is a critical factor in the

unit’s overall performance. Make sure there is a minimum three-foot horizontal clearance in

front and rear of the unit. This will assure that the unit can move the air around the room in

an efﬁcient manner.

External Condensing Unit Installations. You must utilize the optional exterior condenser

housing for outdoor installations. Place the condenser on a solid foundation in a location

with adequate ventilation. There should be three feet for clearance in the front and rear of

the unit and one foot on each side. The unit should be elevated in order to avoid any possible

ﬂooding and should be clear from leaves, dirt, and other debris.

Mounting Evaporator Unit

The evaporator unit should be mounted close to 18 inches or less from the ceiling of the cellar in

order to achieve sufﬁcient cooling. As the room cools down, warm air will rise to the ceiling, which

is then captured into the cooling unit in order to create a consistently cool environment. Mounting

the unit low in the room will result in a temperature variation due to the unit’s inability to draw

warm air down from the ceiling into the unit itself.

Unobstructed Airﬂow

Unobstructed airﬂow to and from the unit is a critical factor in the unit’s overall performance.

Make sure there is horizontal clearance in front of the unit. This will assure that the unit can move

the air around the room in an efﬁcient manner.

-9-

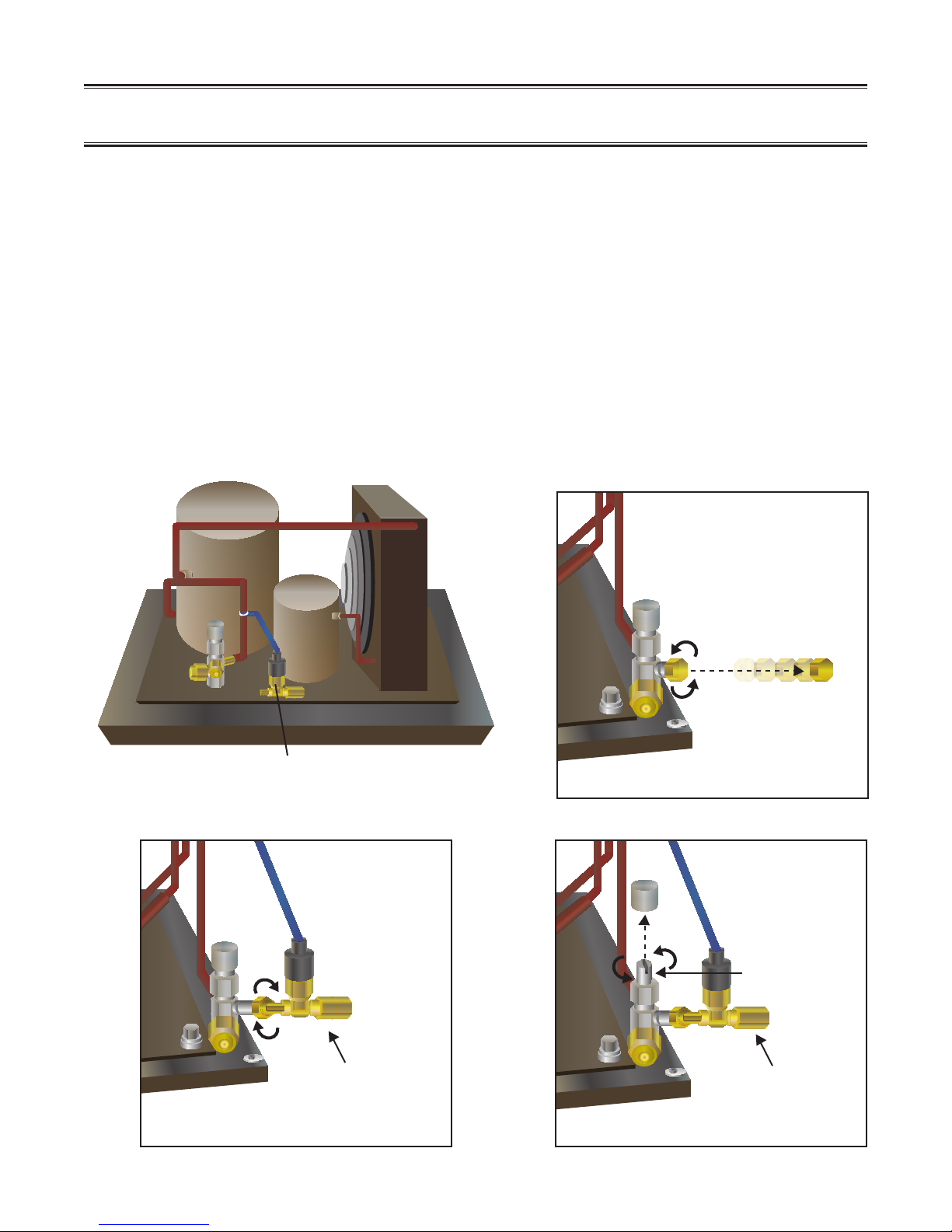

SPLIT SYSTEM INSTALLATION GUIDELINES

PLEASE NOTE: Minor assembly to compressor solenoid valve is required prior to installation.

The Condenser Skid requires assembly prior to charge/operation. The included solenoid valve

needs to be connected. In Figure A – locate the capped nut. Remove the nut and replace Teﬂon

tape on the threads. Install the Solenoid valve – insuring a leak-tight torque (Figure B). Remove

the protective valve cap to expose the valve stem. Using a wrench, rotate the valve stem counter-

clockwise (Figure C). This will open the compressor system and prepare the unit for charging.

Note: The compressor unit is shipped with a protective foam pad/ block to prevent damaging tubing

against the evaporator coil ﬁns. Please ensure that this pad is removed prior to operation.

-10-

Figure A

Figure CFigure B

Solenoid Valve

CONDENSER SKID PREPARATION

Solenoid Valve Solenoid Valve

Valve Stem

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels WHISPER KOOL Refroidisseur de vin

WHISPER KOOL

WHISPER KOOL Slimline 2500 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL PLATINUM MINI Manuel utilisateur

WHISPER KOOL

WHISPER KOOL SC Series Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Ceiling Mount 4000 Instructions d'installation et d'utilisation

WHISPER KOOL

WHISPER KOOL Platinum Split Instructions de montage

WHISPER KOOL

WHISPER KOOL Extreme Platinum Series Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Platinum Split H.E. PS4000 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Platinum Mini Split Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Twin Ceiling Mount H.E. CM9000 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL EXTREME 5000TIR Manuel utilisateur

WHISPER KOOL

WHISPER KOOL SLIMLINE LS Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Quantum SS9000 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Platinum Split 4000 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Platinum Split Version 4 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Platinum Split Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Mini Platinum Split H.E. PSMINI Manuel utilisateur

WHISPER KOOL

WHISPER KOOL XLT SERIES XLT 1600 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Slimline 2500 Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Self-Contained Extreme Ti Manuel utilisateur

WHISPER KOOL

WHISPER KOOL QUANTUM Series Manuel utilisateur

WHISPER KOOL

WHISPER KOOL SC 2000i Manuel utilisateur

WHISPER KOOL

WHISPER KOOL Slimline 2500 Guide de l'utilisateur

WHISPER KOOL

WHISPER KOOL CEILING MOUNT 8000 H.E. Manuel utilisateur

WHISPER KOOL

WHISPER KOOL 2800 Manuel utilisateur

Manuels Refroidisseur de vin populaires d'autres marques

U-Line

U-Line Echelon Wine Captain 2075WC Manuel du propriétaire

Haier

Haier WS50GA Manuel utilisateur

Cavist

Cavist 62 Manuel utilisateur

Kenmore

Kenmore 461.99130 Manuel utilisateur

Miele

Miele KWT 6422 iG Manuel utilisateur

Danby

Danby DWC113BLSDB Manuel utilisateur

Caple

Caple Wi6128 Manuel utilisateur

Avanti

Avanti WC1001 Manuel utilisateur

Frigidaire

Frigidaire FFWC38F6LS Manuel utilisateur

Titan

Titan TT-W2454SZ Manuel d'installation

Klarstein

Klarstein Botella 166 Uno Manuel utilisateur

Costway

Costway FP10130WL Manuel utilisateur

Lemair

Lemair LWC59 Manuel utilisateur

Haier

Haier JC-125GEA Manuel utilisateur

Caple

Caple WCi46B Manuel utilisateur

Climadiff

Climadiff CLI24 Guide rapide

Viking

Viking VCWB301LSS Manuel utilisateur

Caple

Caple WC6511 Manuel utilisateur
