Whispbar S15W Manuel utilisateur

WHISPBARTHROUGHBAR

S15W

Pokyny pro montáž základních

nosičů

Fitting Instructions for Basic Carrier

Felszerelési útmutató a

tetőcsomagtartóhoz

Pokyny pre montáž základných

nosičov

x 1

x 4

x 2

x 1

Revision No:

WHISPBARTHROUGHBAR

S15W

First Time Installation

Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

Ensure the roof rack face towards the front of

vehicle.

1. Adjusting Screw

2. Locking Screw

3. Security Screw

WHISPBARTHROUGHBAR

S15W

Crossbar Adjustment

Use keys to remove covers.

Use hex screwdriver to reverse adjusting

screw 10 turns.

Hold adjusting screw in and slide crossbar in

or out as required.

Ensure each end of the crossbar is adjusted

equally.

WHISPBARTHROUGHBAR

S15W

To fit roof rack to vehicle, refer to Fitting Kit

instructions.

Tighten adjusting screw to 5 Nm (3.7 ft lb).

Use keys to fit and lock covers

WHISPBARTHROUGHBAR

S15W

Maintenance

Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

Set crossbars a minimum distance of 700mm

(27 1/2") apart where no other distance is

specified in the fitting instructions. This is

especially important when carrying long

loads.

Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

Do not modify this product.

Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the fitting

instructions.

Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

Remove all loose or removable objects from

the load prior to loading.

Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

WHISPBARTHROUGHBAR

S15W

A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds, changing

of direction, and braking performance. Avoid

rapid acceleration and deceleration. Drive

carefully.

Note that the total height of the vehicle

increases when upright loads are carried.

Products should be locked during transport if

they have locks fitted.

Check and replace worn out or defective

parts.

Keep the product clean and maintained.

Never drive into a car wash with the roof rack

system fitted.

Lubricate locks and adjusting screws at

regular intervals.

Remove the products from the vehicle when

not in use. Make sure all loose parts are

stored safely.

Accessories Available for this Product:

Roof Box

Ski, Snowboard Carrier

Canoe, Kayak Carrier

Bicycle Carrier

For more accessories please see our product

catalogue.

WHISPBARTHROUGHBAR

S15W

Yakima Products, Inc.

15025 SW Koll Pkwy.

Beaverton, OR 97006-6056

USA

www.whispbar.com

www.whispbar.ca

www.whispbar.eu

www.whispbar.co.uk

www.whispbar.co.za

WHISPBARTHROUGHBAR

S15W

Montáž kitu

Vyjměte jednotlivé díly z balení azkontrolujte

je. Chybí-li některý díl anebo je poškozen,

kontaktujte svého prodejce.

Ujistěte se, že nosič směřuje k přední části

vozidla.

1. Nastavovací šroub

2. Zamykací šroub

3. Bezpečnostní šroub

WHISPBARTHROUGHBAR

S15W

Nastavení tyče

Pomocí klíče demontujte kryty patek.

Šestihranným šroubovákem uvolněte

nastavovací šroub cca o 10 otáček.

Zatlačte na nastavovací šroub a posuňte tyč

ven nebo dovnitř podle potřeby.

Nastavte oba konce tyče souměrně.

WHISPBARTHROUGHBAR

S15W

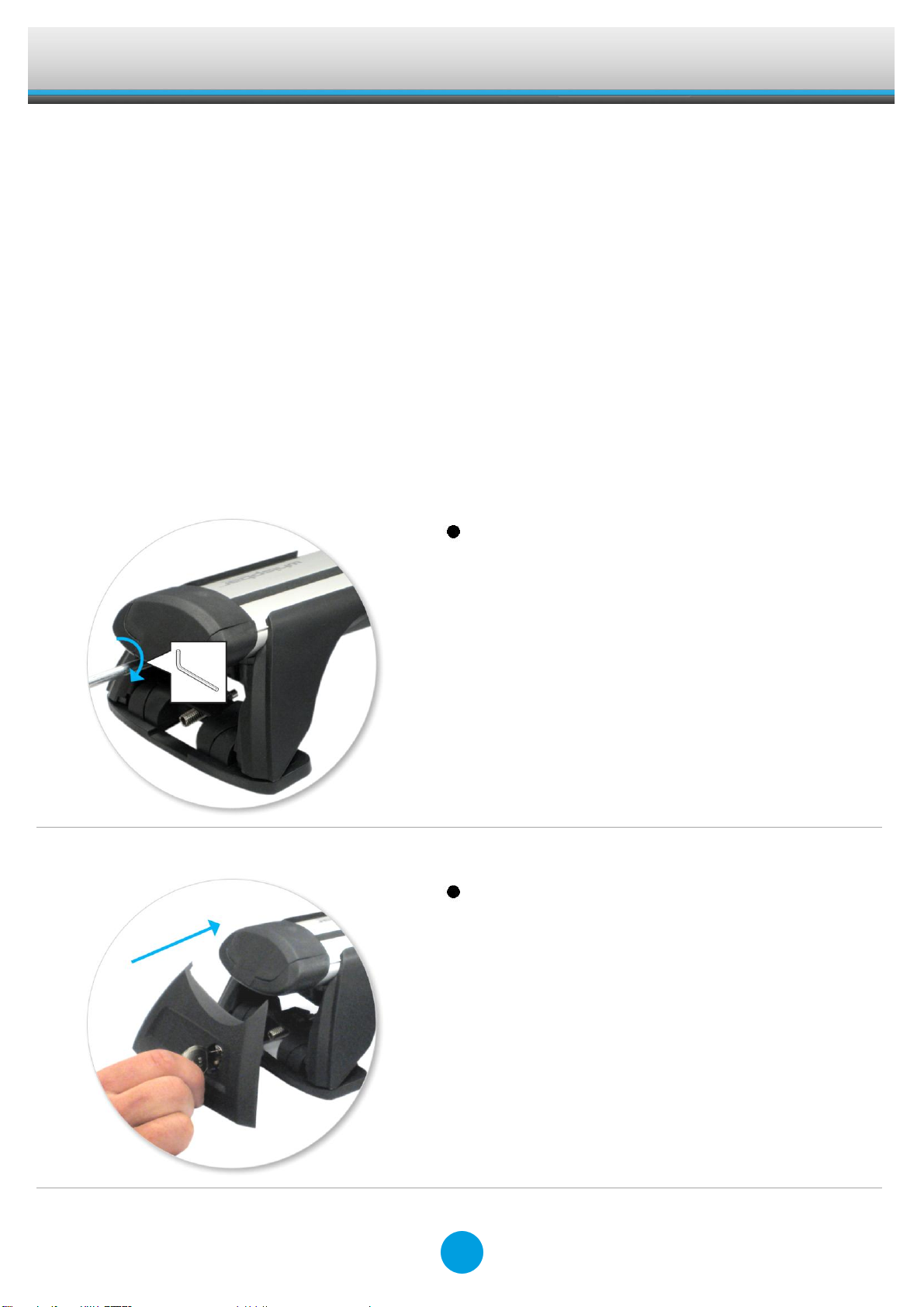

Pro správné uchycení střešního nosiče na auto si

pročtěte návod k montážnímu kitu.

Nastavovací šrouby dotáhněte silou 5 Nm /

3.7 ft lb.

Pomocí klíče namontujte a zamkněte kryty

na patkách.
