Whispbar K399 Manuel utilisateur

Fitting Kit

K399

ESES

Instrucciones de montaje para el

sistema de transporte.

Instructions de montage pour Basic

Carrier

GBGB

Fitting Instructions for Basic Carrier

x 1 x 4 x 4 x 4

x 4 x 2 x 1 x 1

Revision No: 1.2B

Fitting Kit

K399

MAX lbs

W/P WHD W/P WHD

Land Rover

Range Rover , 5dr SUV 02-+ ZA 165 165 Range Rover , 5dr SUV 02-+ US 165 165

Range Rover , 5dr SUV 02-+ EU 165 165 Range Rover , 5dr SUV 02-+ NZ 165 165

Range Rover , 5dr SUV Aug 02-+ AU 165 165

First Time Installation

Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

This kit fits type A, B, C and D.

These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Use keys to remove covers.

Use hex screwdriver to reverse adjusting

screw 10 turns.

Press adjusting screw and pull crossbar legs

out. Refer to the crossbar instructions for

crossbar adjustment.

Ensure each end of the crossbar is adjusted

equally.

Set bars to length (refer to the crossbar

instructions for crossbar adjustment).

Please check the rear of this manual for

information relating specifically to your

vehicle.

Tighten adjusting screw to 5 Nm (3.7 ft lb).

Remove clamp block by pressing backwards.

Select plastic internal block (from fitting kit)

and insert into foot.

Repeat for all legs.

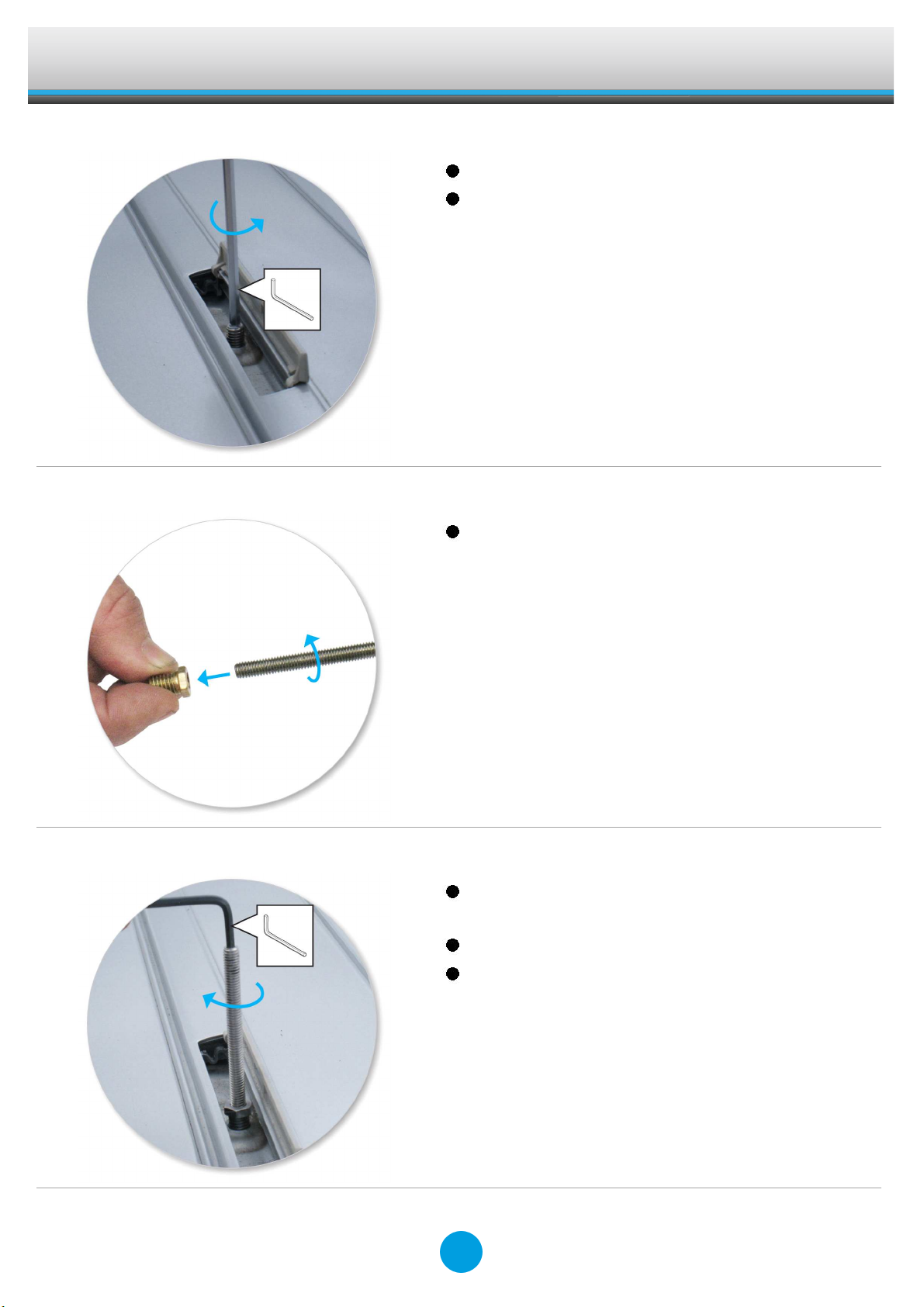

Fitment

Open or remove fixed-point covers.

Remove original screws from fixed points

using 4mm (1/8") hex driver supplied with

crossbars.

Select four grubscrews and assemble them

into the adaptor using 3 mm (1/8") Hex Key.

Select grubscrews and screw into the

vehicle's fixed points.

Do not over tighten.

Repeat for all four positions.

Refer to the underside of the pad for the part

number.

Letters refer to the pad part numbers and

position.

Pad Part Number:

A = 11-04-220

B = 11-04-224

C = 11-04-225

Ensure the fixed-point covers sit vertically in

the recess in the pads.

Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and the

grubscrew pass through the hole in the foot.

Repeat for all four positions.

Tighten the red plastic knob. The side with

the nut showing should be facing up.

Ensure the red plastic knob is in the position

shown when fully tightened.

Repeat for all legs.

Fitting Kit

K399

Check crossbar is securely attached to the

vehicle.

Use keys to fit and lock covers

CAUTION:

CAUTION:CAUTION:

CAUTION:

Recheck all fasteners immediately after a load is

Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is

Recheck all fasteners immediately after a load is

applied to the crossbars.

applied to the crossbars.applied to the crossbars.

applied to the crossbars.

Regularly check screws are tight.

Regularly check screws are tight.Regularly check screws are tight.

Regularly check screws are tight.

Fitting Kit

K399

Maintenance

Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

Set crossbars a minimum distance of 700mm

(27 4/8") apart where no other distance is

specified in the fitting instructions. This is

especially important when carrying long

loads.

Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

Some sunroofs and radio antennae cannot

be used when the product is fitted.

Do not modify this product.

Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the fitting

instructions.

Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

Objects with pointed ends (skis) should be

carried with the pointed ends to the rear of

the vehicle.

Remove all loose or removable objects from

the load prior to loading.

Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.
