Whispbar K174W Manuel utilisateur

K174W

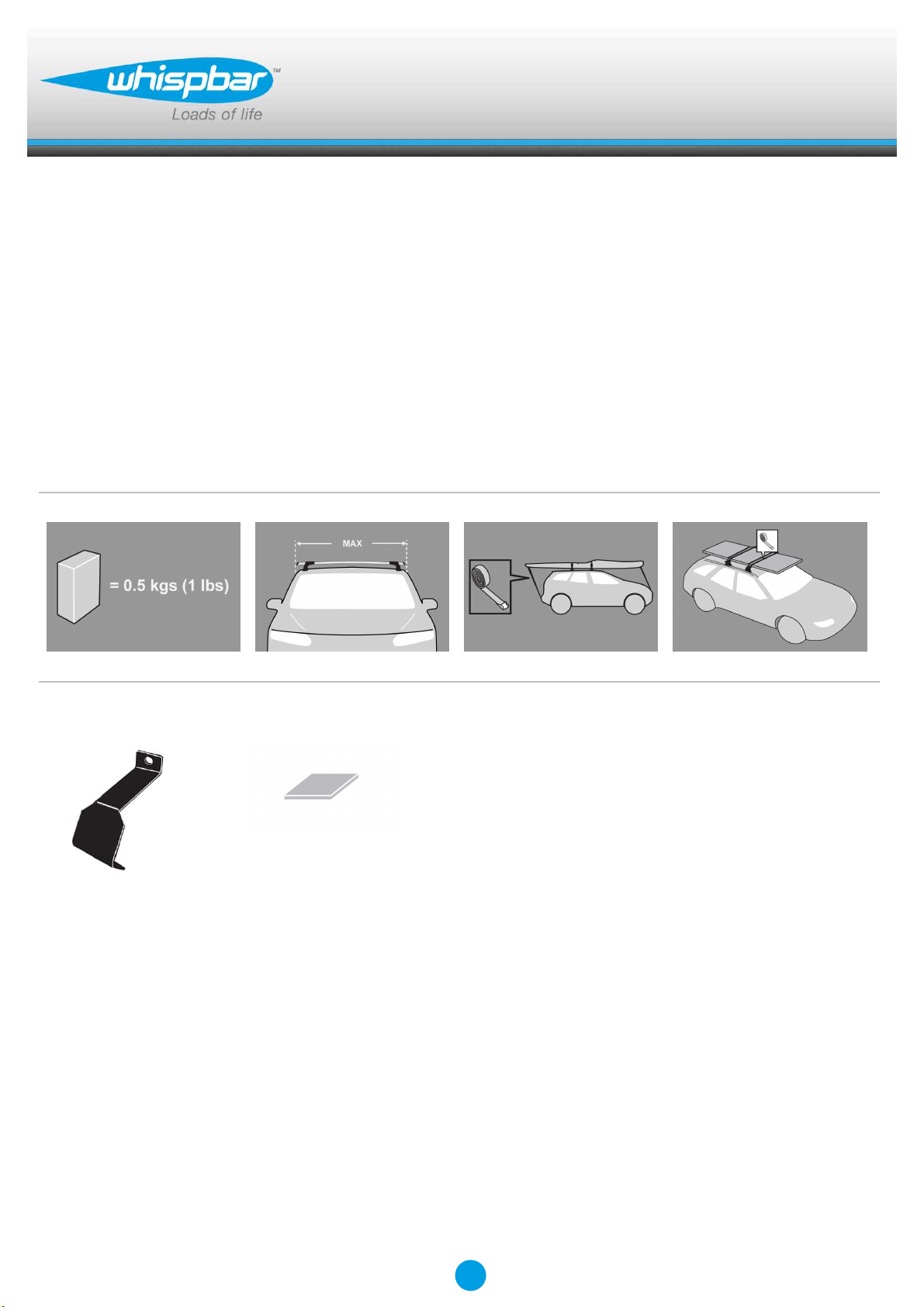

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4

Revision No: 5C 1

Fitting Kit K174W

MAX kgs (lbs)

W/P WHD

Hyundai

Sonata, 4dr Sedan 05-10 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan 05-10 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan 05-10 CN 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan 05-10 CN 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan Jun 05-10 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan Jun 05-10 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan Jun 05-10 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonata, 4dr Sedan Jun 05-10 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonica, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

Sonica, 4dr Sedan 05-10 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

2

Fitting Kit K174W

X

A B C 1 2 3

Sonata, 4dr Sedan 05-10 (ZA) -260mm 390mm - - - -

-10 -1/4ths" 15 3/8ths" - - - -

Sonata, 4dr Sedan 05-10 (ZA) -260mm 390mm - 920mm 910mm -

-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -

Sonata, 4dr Sedan 05-10 (EU) -260mm 390mm - - - -

-10 -1/4ths" 15 3/8ths" - - - -

Sonata, 4dr Sedan 05-10 (EU) -260mm 390mm - 920mm 910mm -

-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -

Sonata, 4dr Sedan 05-10 (CN) -260mm 390mm - - - -

-10 -1/4ths" 15 3/8ths" - - - -

Sonata, 4dr Sedan 05-10 (CN) -260mm 390mm - 920mm 910mm -

-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -

Sonata, 4dr Sedan Jun 05-10 (AU) -260mm 390mm - - - -

-10 -1/4ths" 15 3/8ths" - - - -

Sonata, 4dr Sedan Jun 05-10 (AU) -260mm 390mm - 920mm 910mm -

-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -

Sonata, 4dr Sedan Jun 05-10 (NZ) -260mm 390mm - - - -

-10 -1/4ths" 15 3/8ths" - - - -

Sonata, 4dr Sedan Jun 05-10 (NZ) -260mm 390mm - 920mm 910mm -

-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -

Sonica, 4dr Sedan 05-10 (EU) -260mm 390mm - - - -

-10 -1/4ths" 15 3/8ths" - - - -

Sonica, 4dr Sedan 05-10 (EU) -260mm 390mm - 920mm 910mm -

-10 -1/4ths" 15 3/8ths" - 36 1/4ths" 35 13/16ths" -

3

Fitting Kit EN

K174W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K174W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K174W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

6

Fitting Kit EN

K174W

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

7

Fitting Kit EN

K174W

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

8

Fitting Kit EN

K174W

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

9

Fitting Kit EN

K174W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
