Whispbar K557W Manuel utilisateur

K557W

Fitting Kit

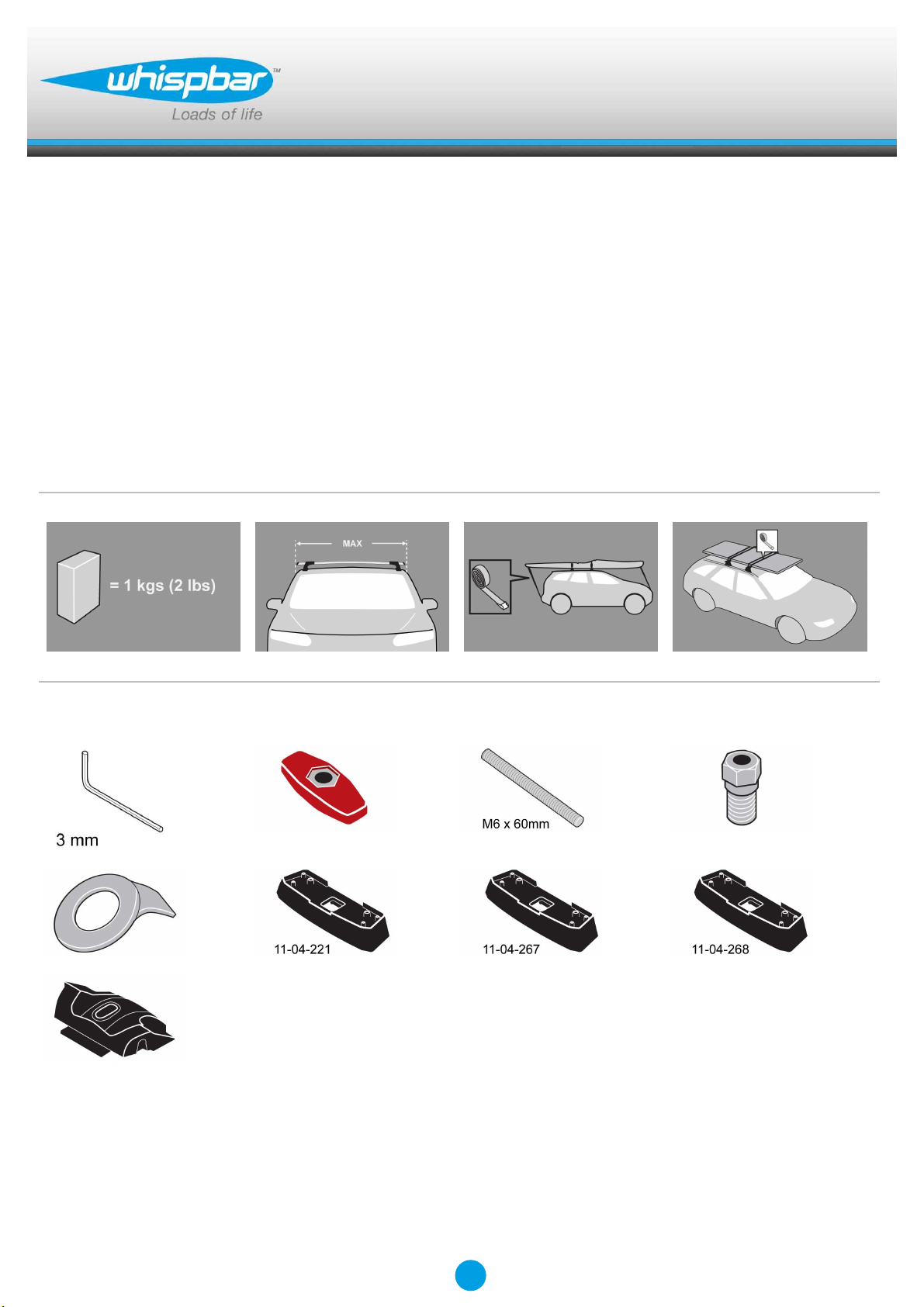

EN Fitting Instructions for Basic Carrier

x 1 x 4 x 4 x 4

x 4 x 2 x 1 x 1

x 4

Revision No: 3C 1

Fitting Kit K557W

MAX kgs (lbs)

W/P WHD

Mercedes

R Class W251, 5dr MPV 05-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

R Class W251, 5dr MPV 05-13 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

R Class W251, 5dr MPV 05-13 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

R Class W251, 5dr MPV 05-13 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

R Class W251, 5dr MPV 05-13 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

R Class W251, 5dr MPV 06-12 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K557W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K557W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K557W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K557W

Fitment

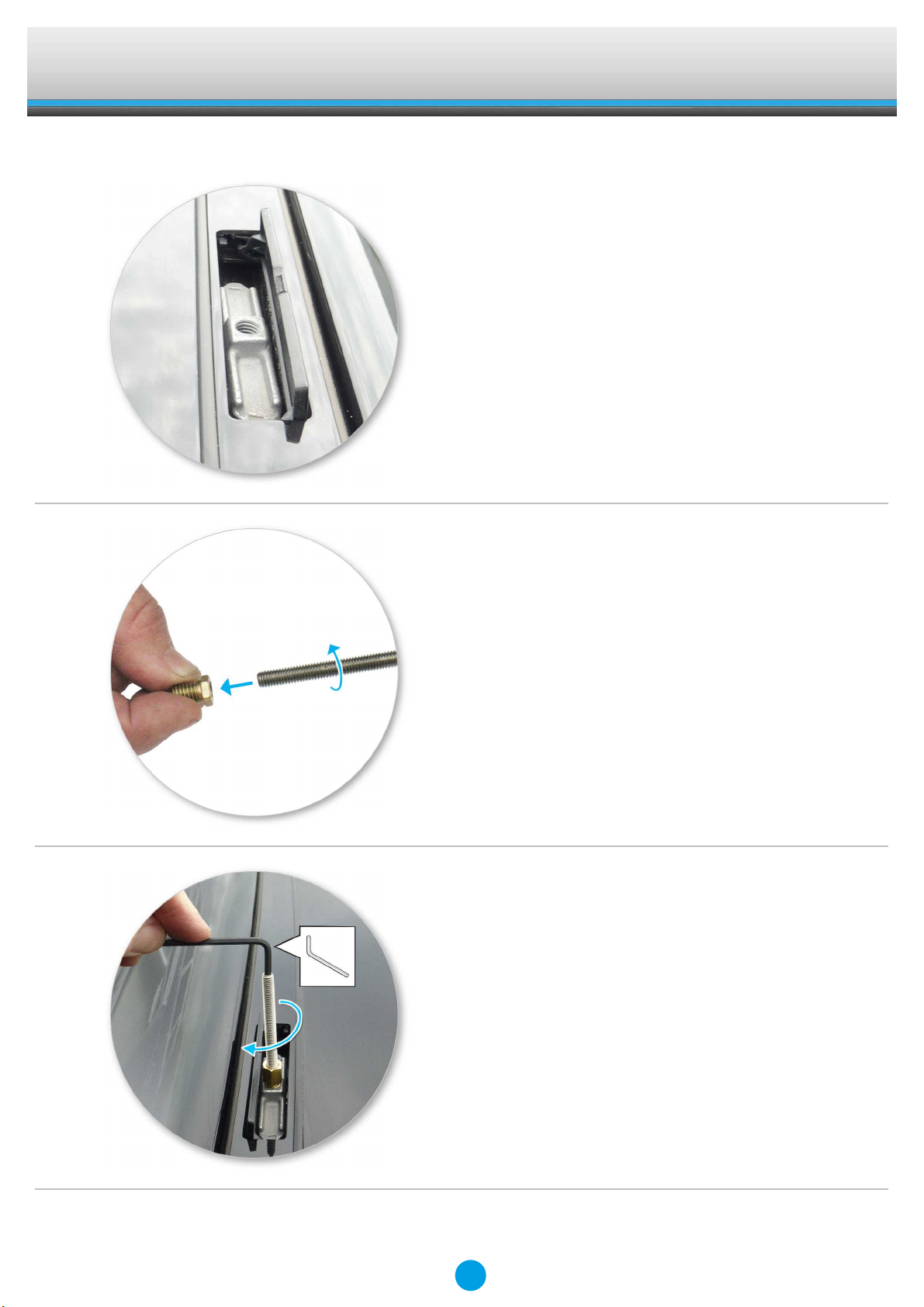

●Open or remove fixed-point covers.

●Select four grubscrews and assemble them

into the adaptor using 3 mm (1/8") Hex

Key.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

Fitting Kit EN

K557W

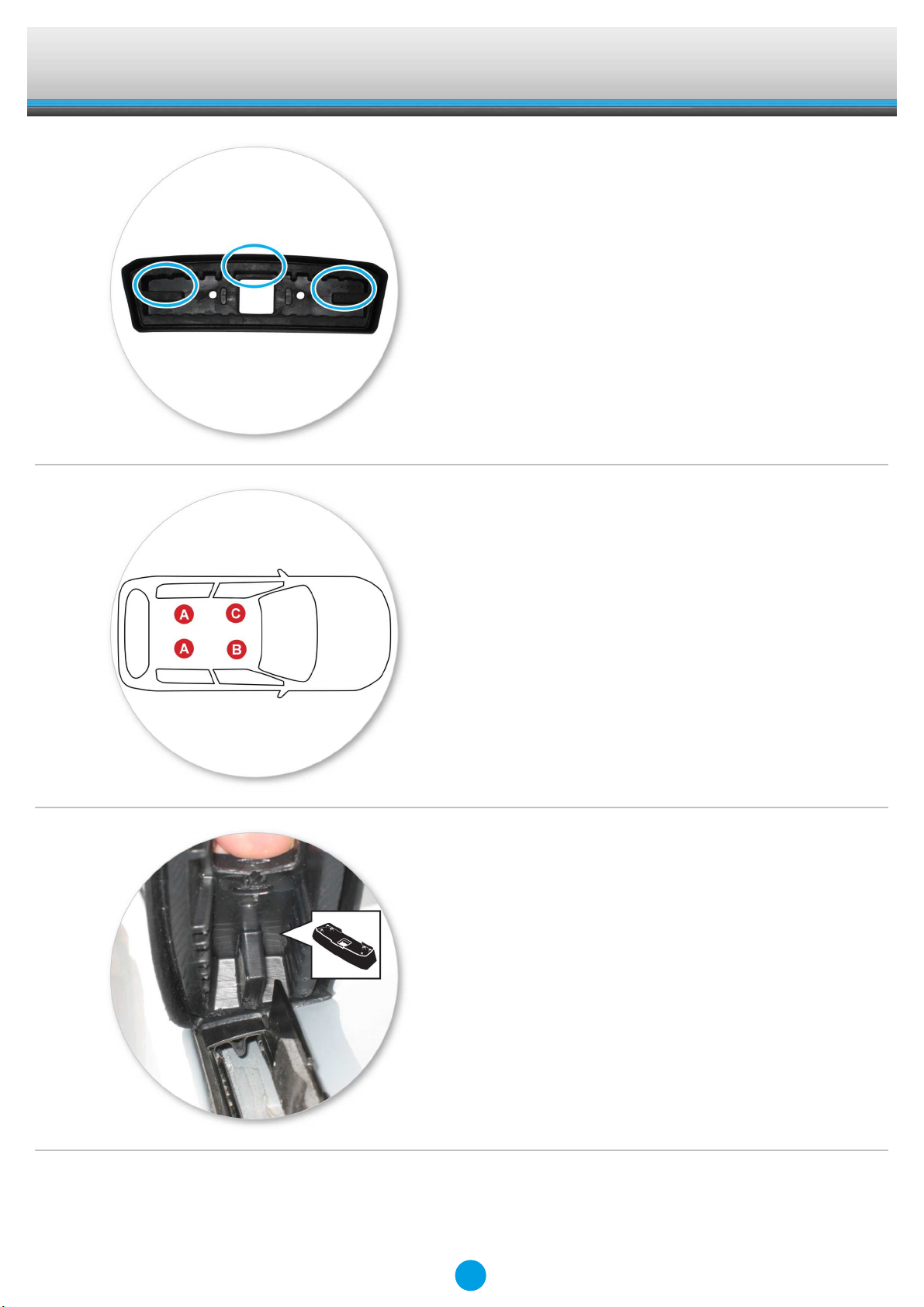

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-221

B = 11-04-267

C = 11-04-268

●Ensure the fixed-point covers sit vertically

in the recess in the pads.

Fitting Kit EN

K557W

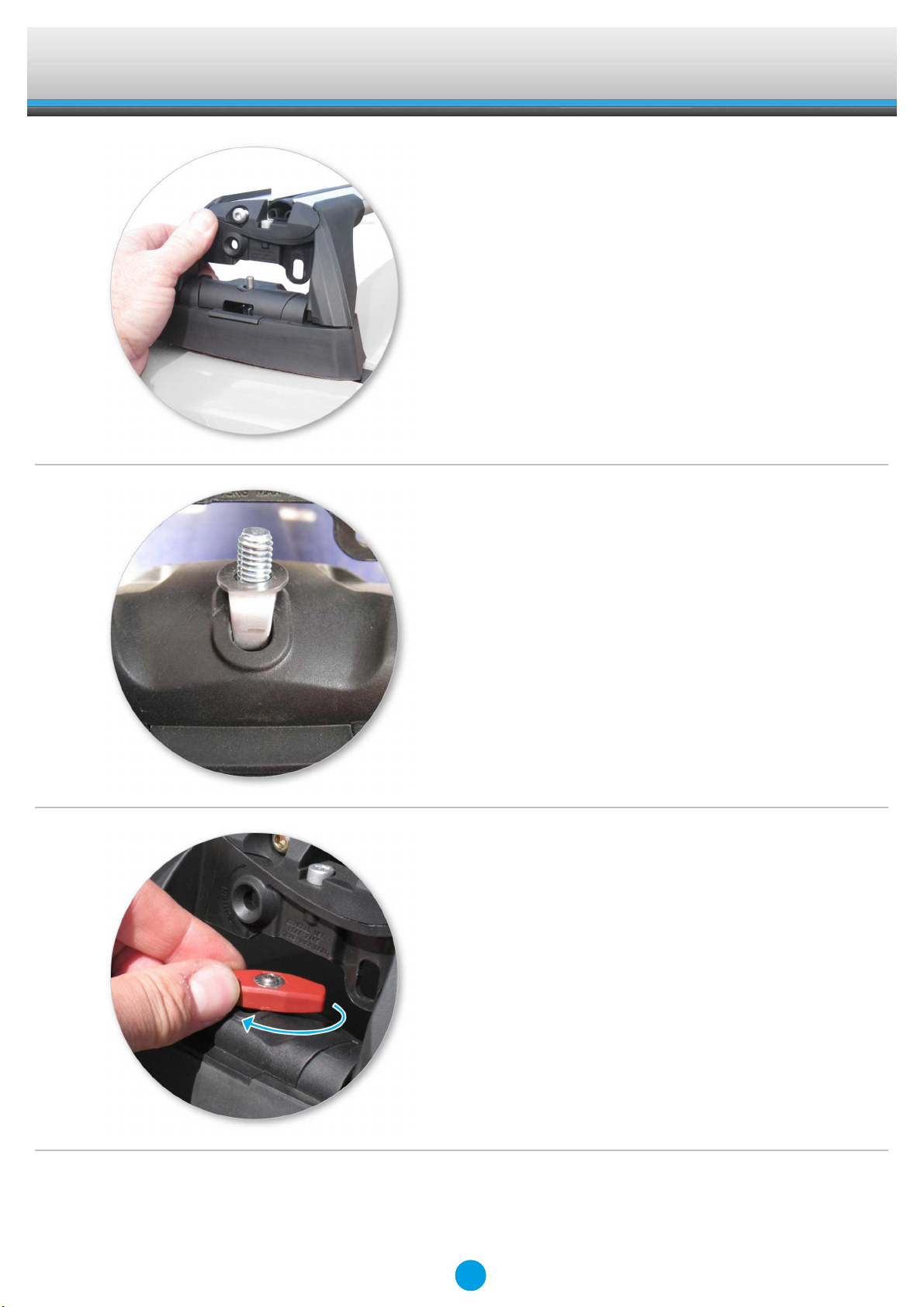

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

Fitting Kit EN

K557W

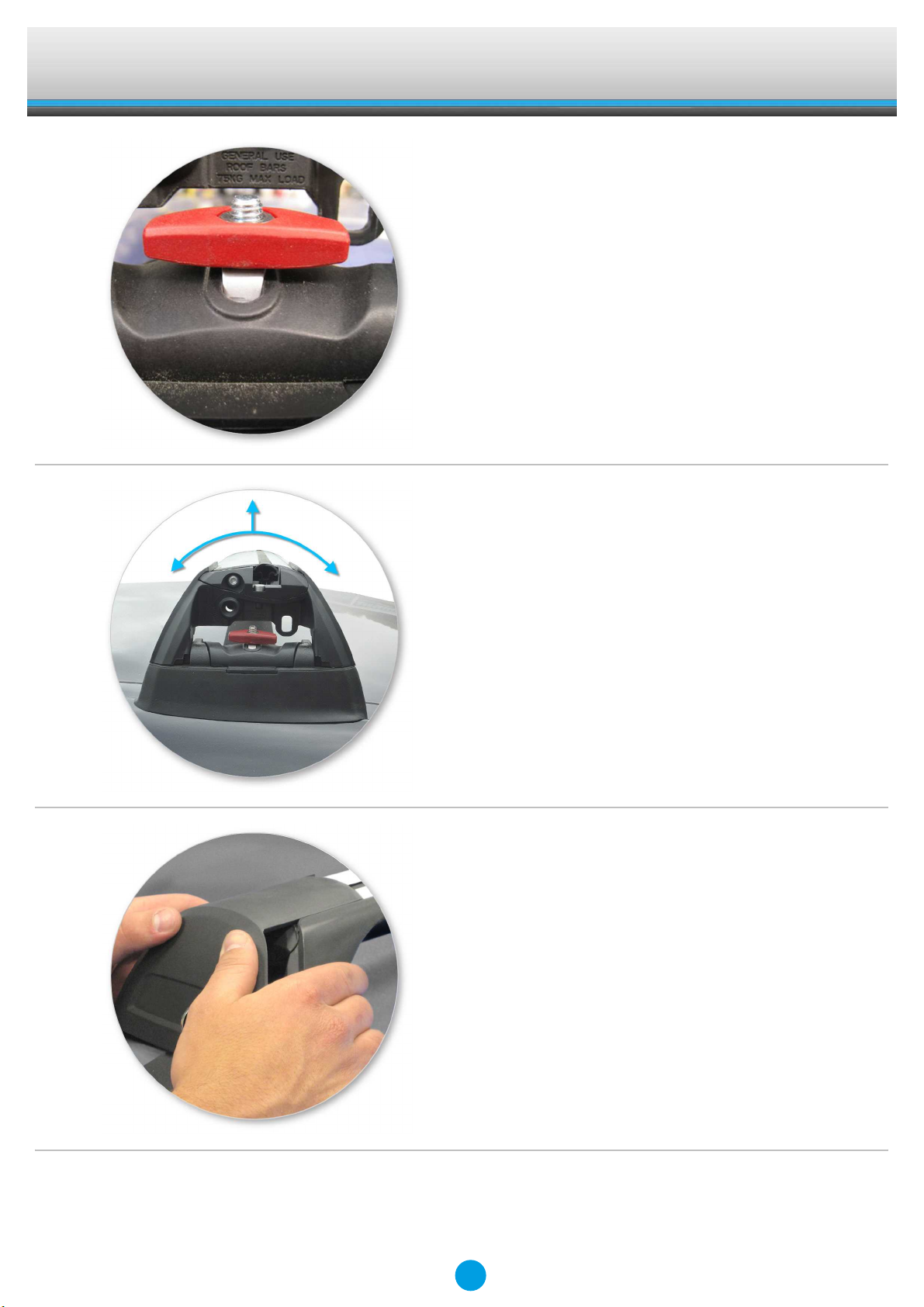

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K557W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
