K612W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 8 x 4 x 4 x 4

x 4 x 4 x 4 x 1

x 4 x 4

Revision No: 6F 1

Fitting Kit K612W

MAX kgs (lbs)

W/P WHD

Opel

Combo C, 5dr Van 01-11 CN 75 kgs (165 lbs) 100 kgs (220 lbs)

Combo, 5dr Van 01-11 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Vauxhall

Combo C, 5dr Van 01-11 CN 75 kgs (165 lbs) 100 kgs (220 lbs)

Holden

Combo XC, 5dr Van 01-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Combo XC, 5dr Van 01-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Renault

Master MWB, 4dr Van 10-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Master MWB, 4dr Van 10-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Master MWB, 4dr Van 10-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Master MWB, 4dr Van 10-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Master MWB, 4dr Van 10-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Master MWB, 4dr Van 10-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

2

Fitting Kit K612W

X

A B C 1 2 3

Combo C, 5dr Van 01-11 (CN) 220mm 1040mm - 910mm 915mm -

8 11/16ths" 40 15/16ths" - 35 13/16ths" 36" -

Combo C, 5dr Van 01-11 (CN) 220mm 1040mm - 910mm 915mm -

8 11/16ths" 40 15/16ths" - 35 13/16ths" 36" -

Combo XC, 5dr Van 01-+ (AU) 220mm 1040mm - 910mm 915mm -

8 11/16ths" 40 15/16ths" - 35 13/16ths" 36" -

Combo XC, 5dr Van 01-+ (NZ) 220mm 1040mm - 910mm 915mm -

8 11/16ths" 40 15/16ths" - 35 13/16ths" 36" -

Combo, 5dr Van 01-11 (ZA) 220mm 1040mm - 910mm 915mm -

8 11/16ths" 40 15/16ths" - 35 13/16ths" 36" -

Master MWB, 4dr Van 10-+ (EU) 160mm 1050mm - 1150mm 1150mm -

6 5/16ths" 41 5/16ths" - 45 1/4ths" 45 1/4ths" -

Master MWB, 4dr Van 10-+ (EU) 160mm 1050mm 1720mm 1150mm 1150mm 1150mm

6 5/16ths" 41 5/16ths" 67 11/16ths" 45 1/4ths" 45 1/4ths" 45 1/4ths"

Master MWB, 4dr Van 10-+ (AU) 160mm 1050mm - 1150mm 1150mm -

6 5/16ths" 41 5/16ths" - 45 1/4ths" 45 1/4ths" -

Master MWB, 4dr Van 10-+ (AU) 160mm 1050mm 1720mm 1150mm 1150mm 1150mm

6 5/16ths" 41 5/16ths" 67 11/16ths" 45 1/4ths" 45 1/4ths" 45 1/4ths"

Master MWB, 4dr Van 10-+ (NZ) 160mm 1050mm - 1150mm 1150mm -

6 5/16ths" 41 5/16ths" - 45 1/4ths" 45 1/4ths" -

Master MWB, 4dr Van 10-+ (NZ) 160mm 1050mm 1720mm 1150mm 1150mm 1150mm

6 5/16ths" 41 5/16ths" 67 11/16ths" 45 1/4ths" 45 1/4ths" 45 1/4ths"

3

Fitting Kit EN

K612W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K612W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Please check the front of this manual for

information relating specifically to your

vehicle.

5

Fitting Kit EN

K612W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K612W

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

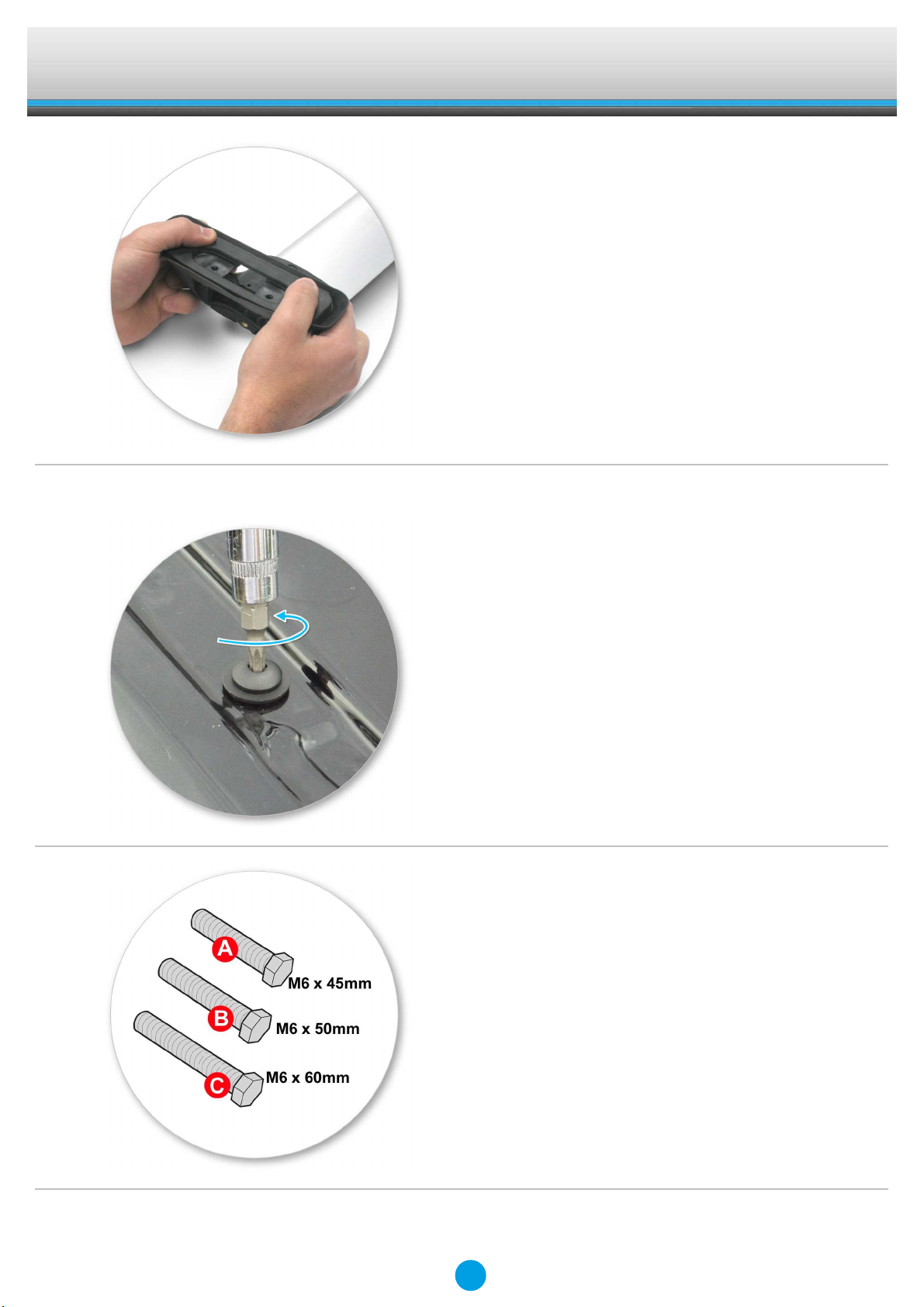

●Locate vehicle's fixed points.

●Fixed point may vary to those pictured.

●Open or remove fixed-point covers.

●Sort hex bolts into lengths. Choose correct

length for your vehicle.

●A = Master Van

B = Combo Van

C = Not applicable unless advised

7

Fitting Kit EN

K612W

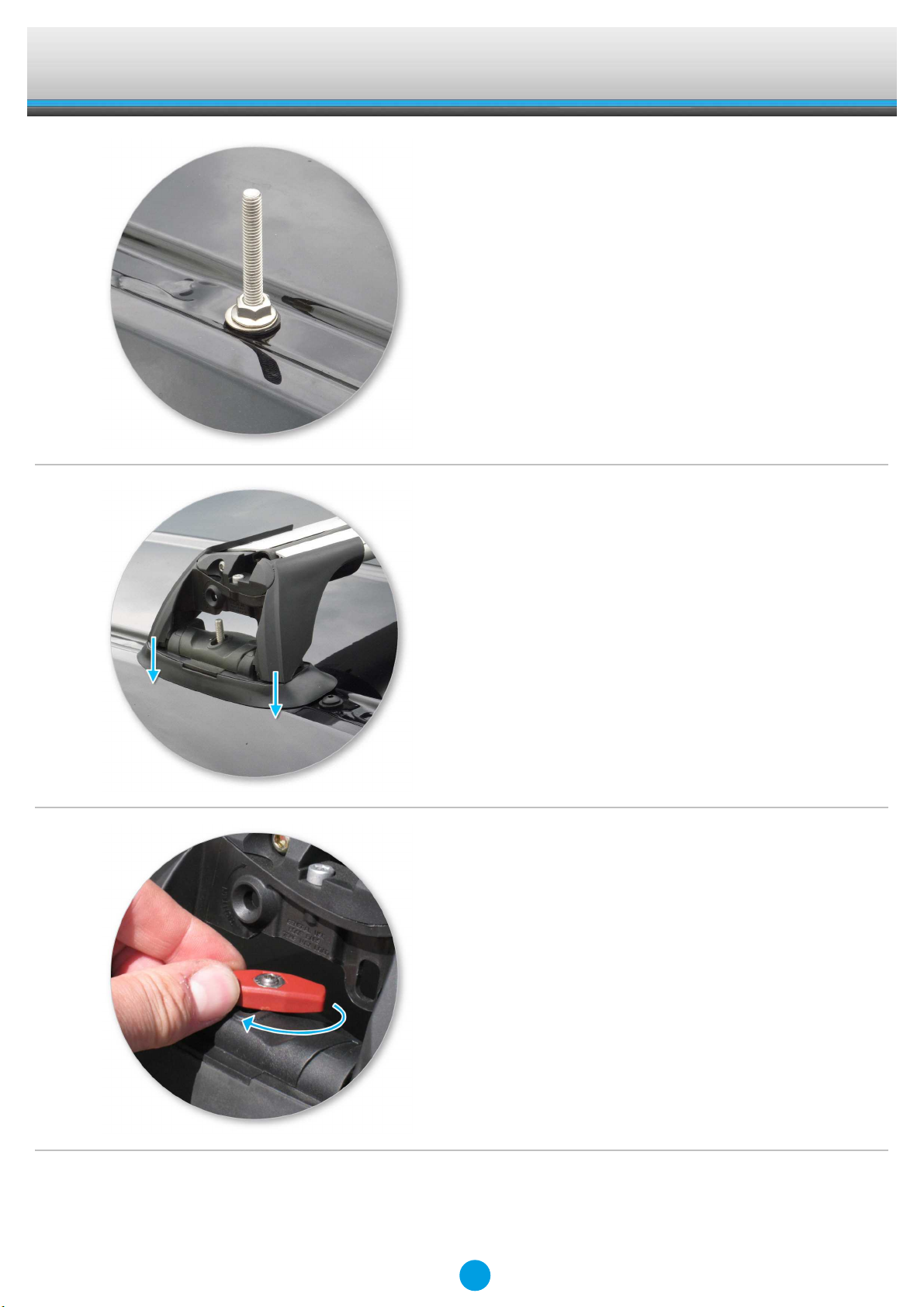

●Place large flat washer onto bolt.

●Install bolt with washer up through the

fixed-point from inside vehicle.

NOTE: May require holding in place by a

second person or sticky tape.

●Apply silicon sealant.

●Place rubber seal over bolt thread as

shown.

8

Fitting Kit EN

K612W

●Place second flat washer over rubber seal.

●Screw flange nut onto hex bolt.

●Tighten flange nut using 10mm (3/8")

spanner provided.

●Do not over tighten.

9

Fitting Kit EN

K612W

●Check seal is secure.

NOTE: If seal has slid out from under

washer, loosen flange nut slightly.

●Place crossbar foot over grubscrews.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

10
