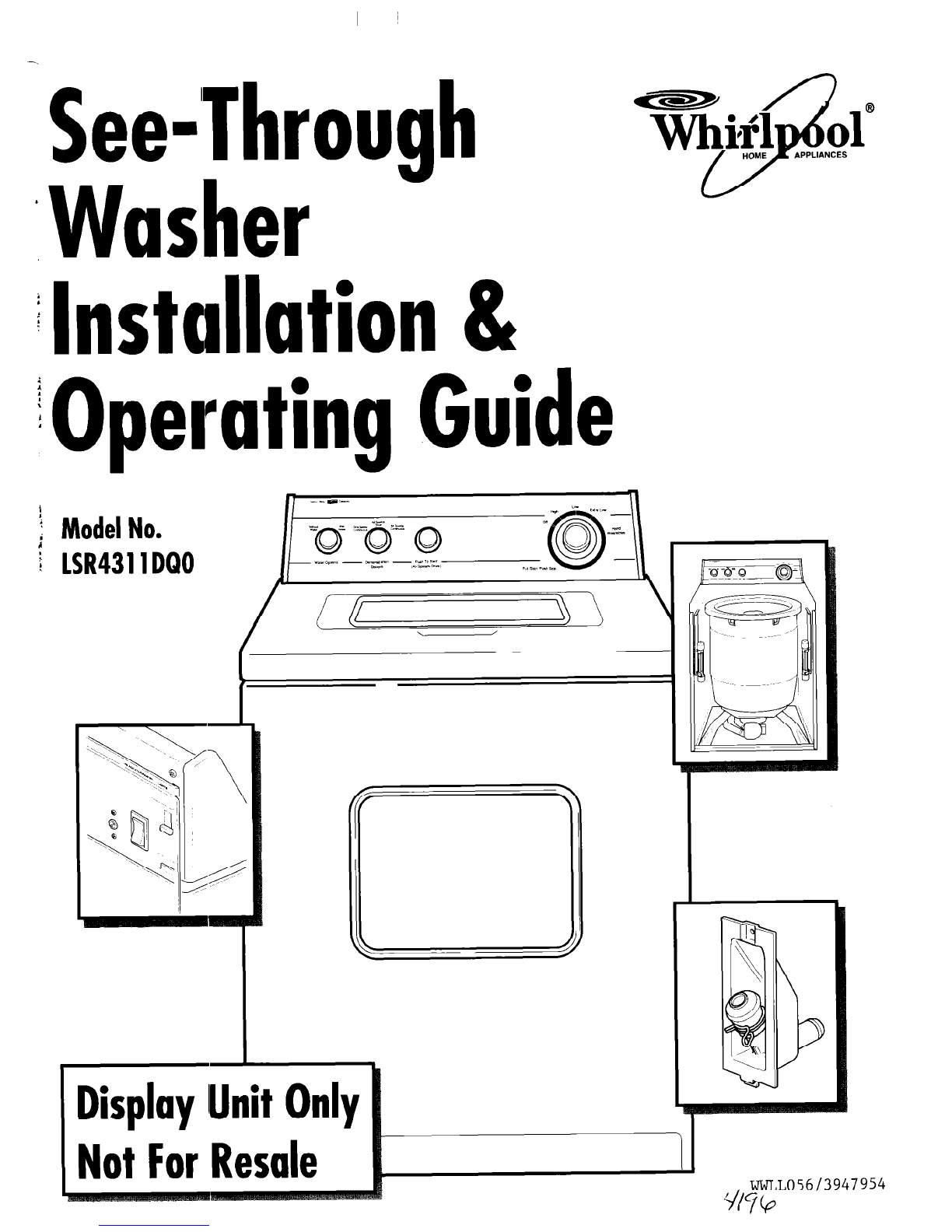

&Through

1Washer

tInstallation&

iOperatingGuide

! ModelNo.

i LSR4311DQO

DisplayUnit Only

Not ForResale

wWLLO56/3947954

i/l’i@

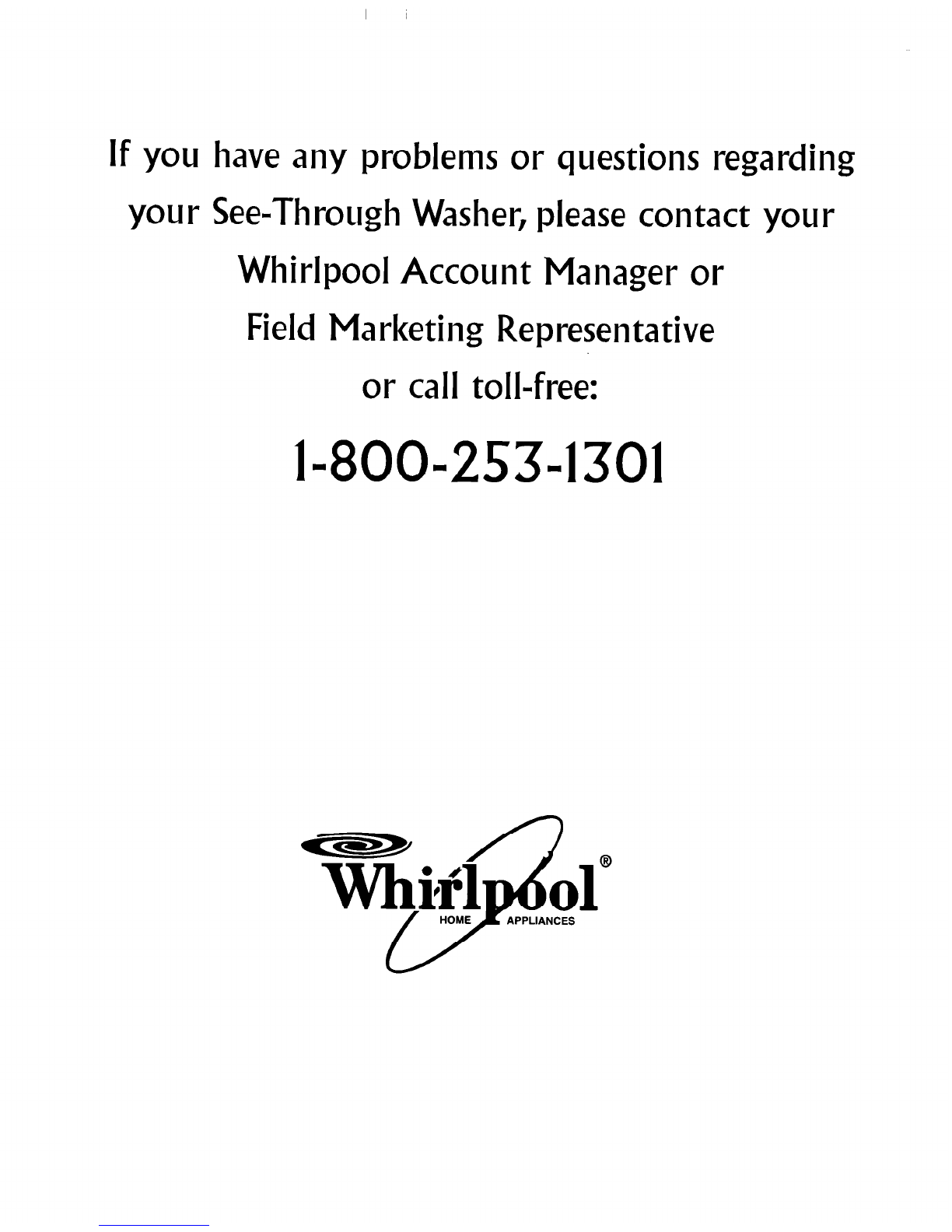

If you have any problems or questions regarding

your See-Through Washer,please contact your

Whirlpool Account Manager or

Field Marketing Representative

or call toll-free:

l-800-253-1301

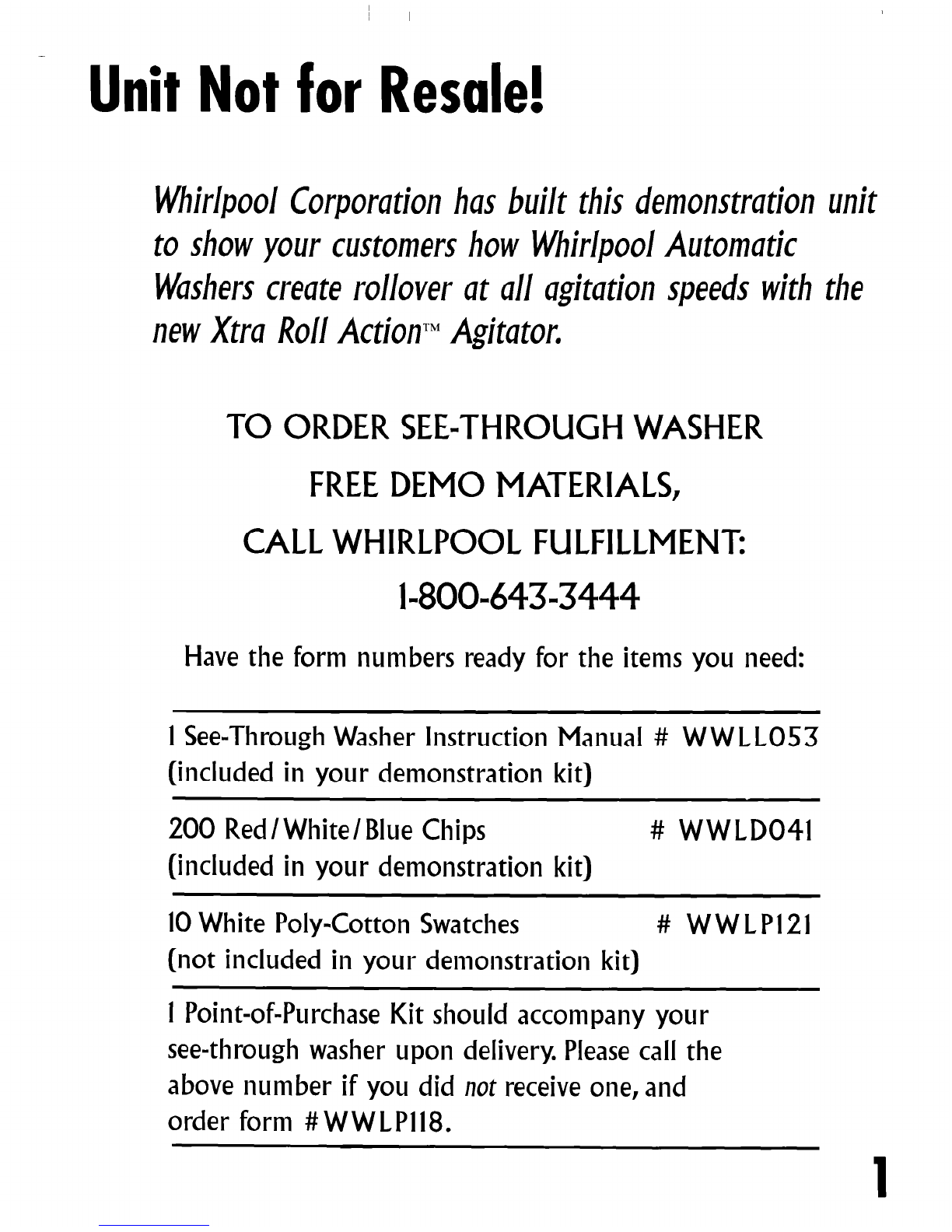

Unit Not for Resale!

Whir/poolCorporationhasbuilt this demonstrationunit

to showyour customershowWhir/poolAutomatic

Washerscreaterollover at all agitationspeedswith the

newXtra RollActionTMAgitator.

TO ORDER SEE-THROUGH WASHER

FREEDEMO MATERIALS,

CALL WHIRLPOOL FULFILLMENT

l-800-643-3444

Havethe form numbersreadyfor the itemsyou need:

1See-ThroughWasherInstruction Manual # WWLL053

(included in your demonstration kit)

200 RedIWhite/ BlueChips # WWLD041

(included in your demonstration kit)

10White Poly-Cotton Swatches # WWLPl21

(not included in your demonstration kit)

1Point-of-PurchaseKit should accompanyyour

see-throughwasherupon delivery.PleasecalI the

abovenumber if you did notreceiveone,and

order form #WWLP118.

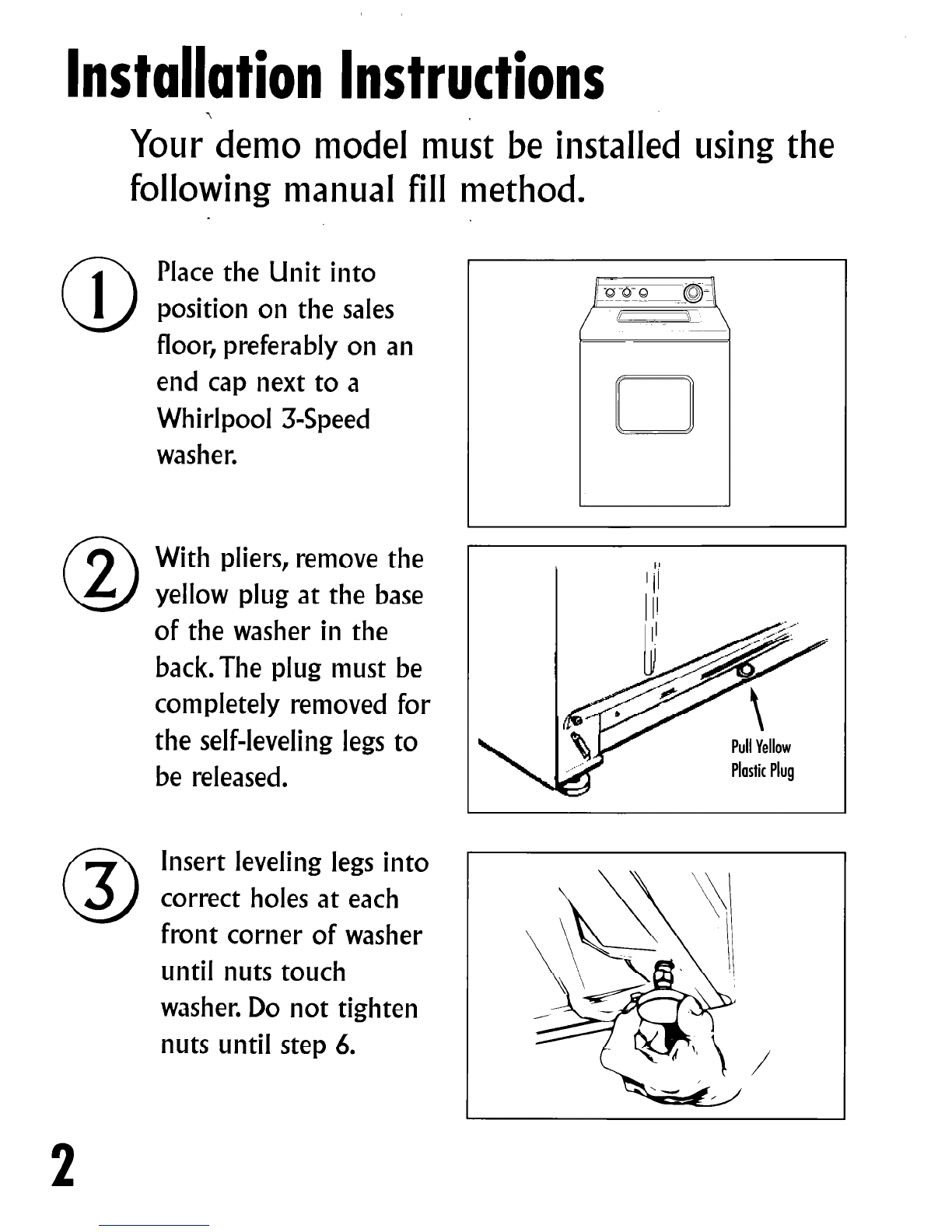

Installation Instructions

Your‘demo model must be installed using the

following manual fill method.

Placethe Unit into

position on the sales

floor, preferablyon an

end capnext to a

Whirlpool 34peed

washer.

With pliers,removethe

yellow plug at the base

of the washerin the

back.Theplug must be

completely removedfor

the self-levelinglegsto

be released.

Insert levelinglegsinto

correct holesat each

front corner of washer

until nutstouch

washer.Do not tighten

nuts until step6.

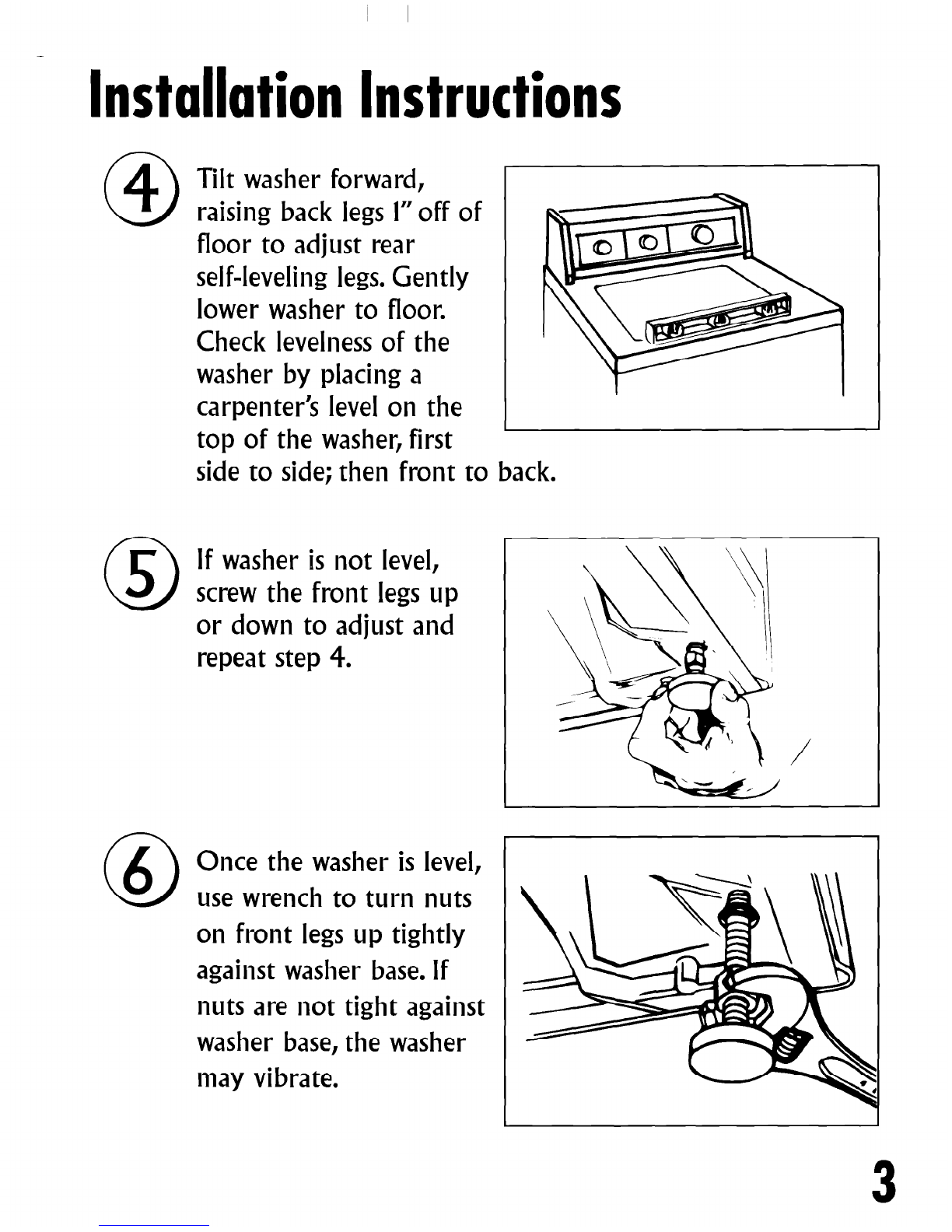

Installation Instructions

Tilt washerforward,

raisingbacklegs1”off of

floor to adjust rear

self-levelinglegs.Gently

lower washerto floor.

Checklevelnessof the

washerby placinga

carpenter’slevelon the

top of the washer,first

sideto side;then front to back.

If washeris not level,

screwthe front legsup

or down to adjust and

repeatstep4.

Once the washeris level,

usewrenchto turn nuts

on front legsup tightly

againstwasherbase.If

nuts are not tight against

washerbase,the washer

may vibrate.

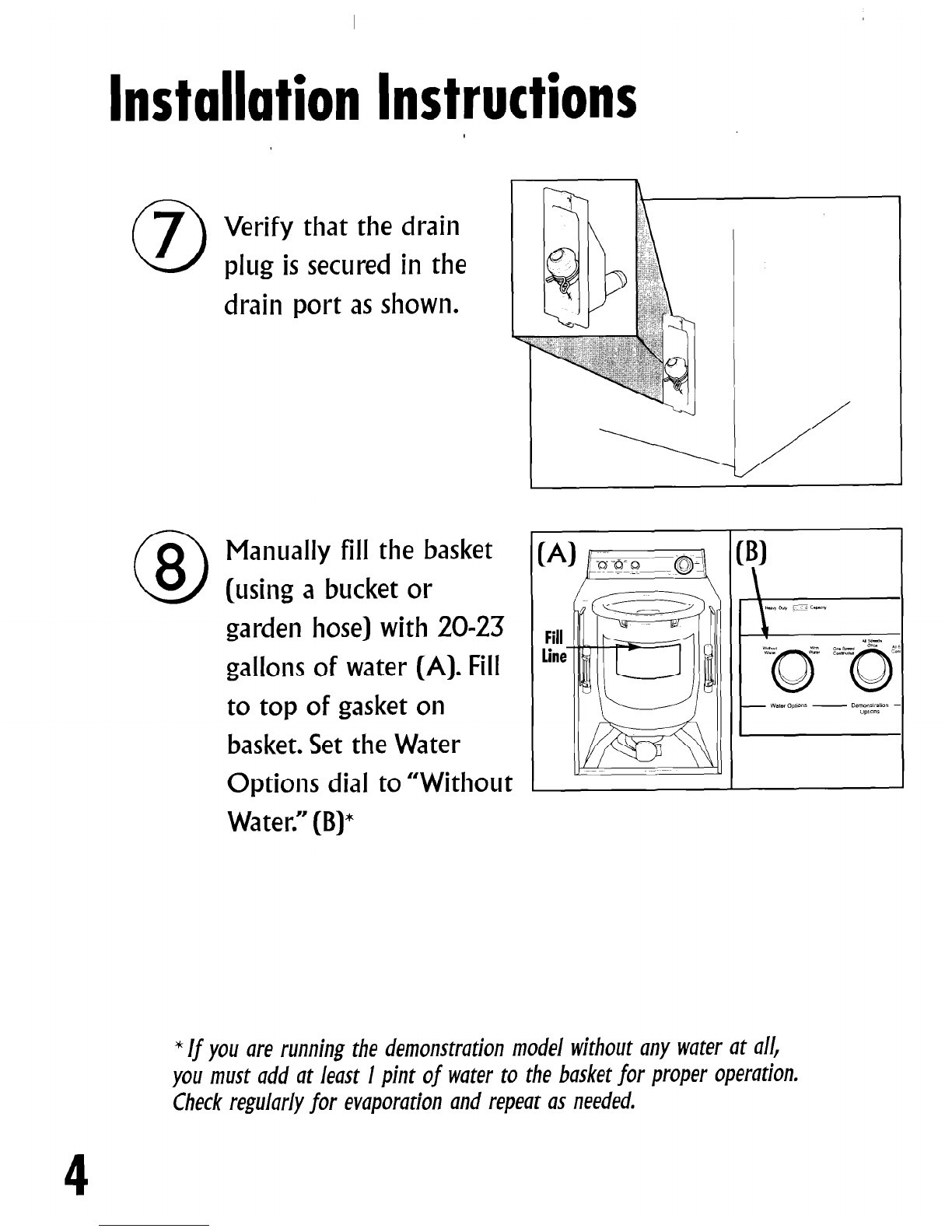

Installation Instructions

Verify that the drain

plug is securedin the

drain port asshown.

Manually fill the basket

(usinga bucketor

gardenhose)with 20-23

gallonsof water (A). Fill

to top of gasketon

basket.Setthe Water

Options dial to “Without

Water.”(B)*

*If youarerunningthedemonstrationmodelwithoutanywaterat all,

youmustaddat leastI pint of waterto thebasketfor properoperation.

Checkregularlyfor evaporationandrepeatasneeded.

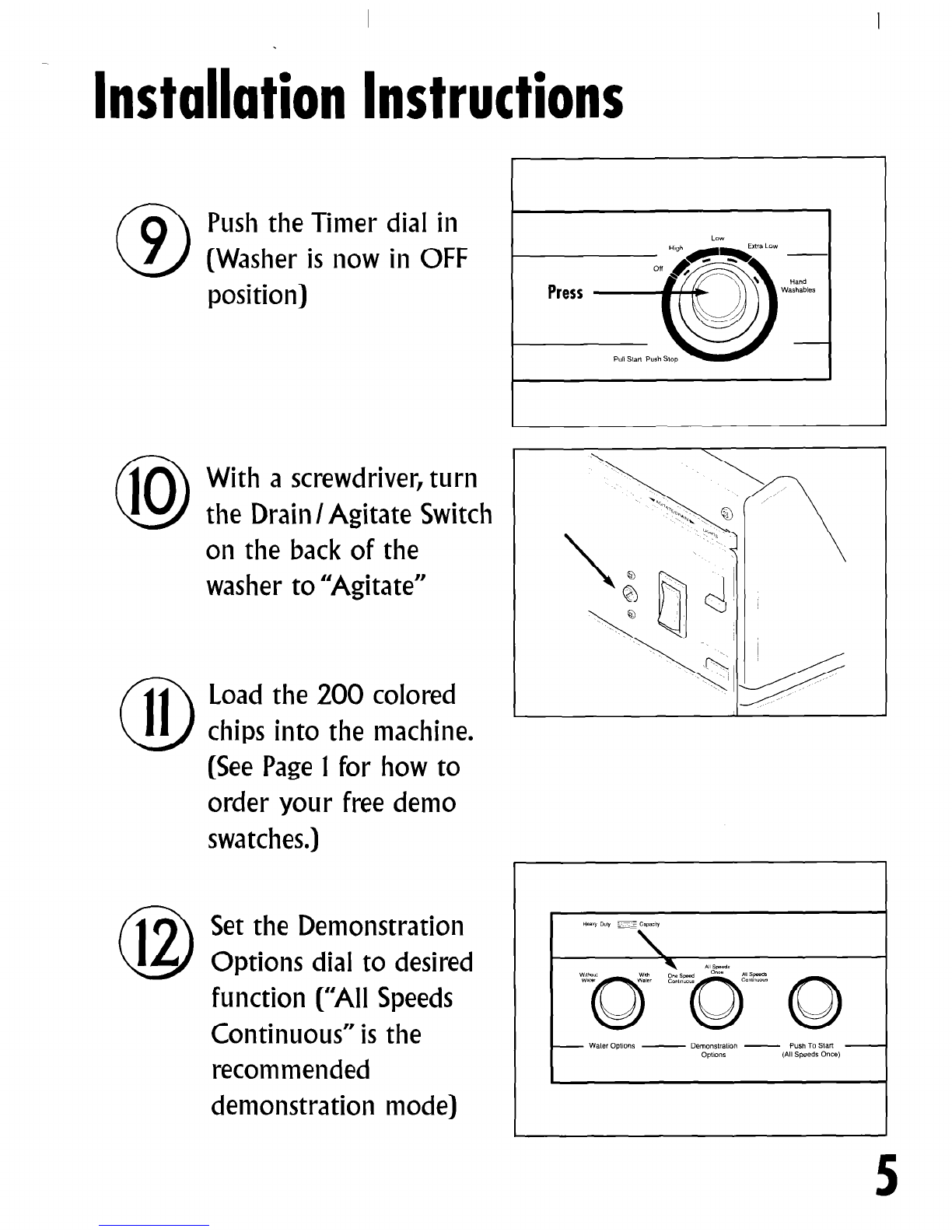

Installation Instructions

Pushthe Timer dial in

(Washeris now in OFF

position)

With a screwdriver,turn

the DrainIAgitate Switch

on the backof the

washerto “Agitate”

Loadthe 200 colored

chipsinto the machine.

(SeePage1for how to

order your freedemo

swatches.)

Setthe Demonstration

Options dial to desired

function (“All Speeds

Continuous” isthe

recommended

demonstration mode)

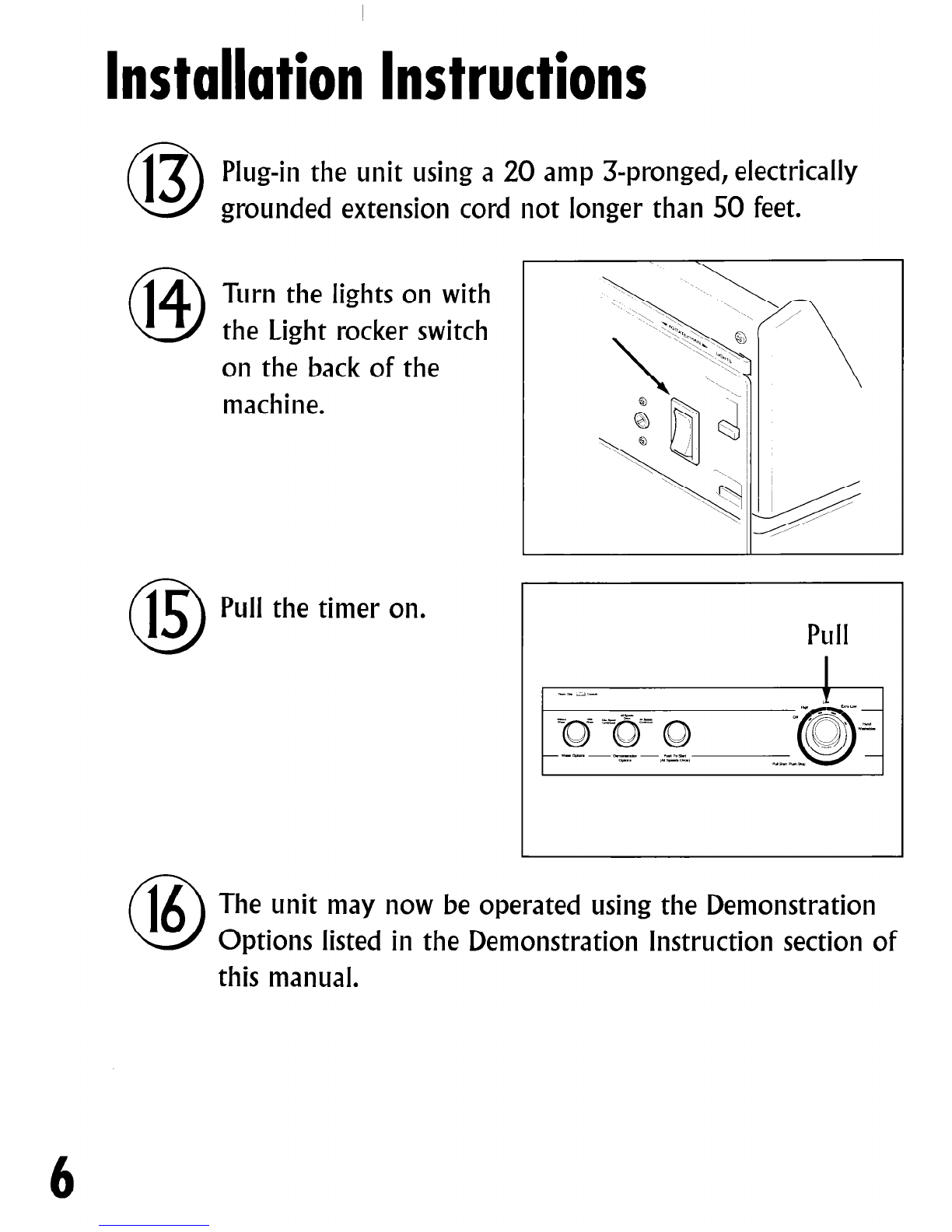

Installation Instructions

Plug-inthe unit usinga 20 amp 3-pronged,electrically

grounded extensioncord not longer than 50 feet.

Turn the lights on with

the Light rocker switch

on the backof the

machine.

Pull the timer on. Pull

The unit may now beoperated usingthe Demonstration

Options listed in the DemonstrationInstruction sectionof

this manual.

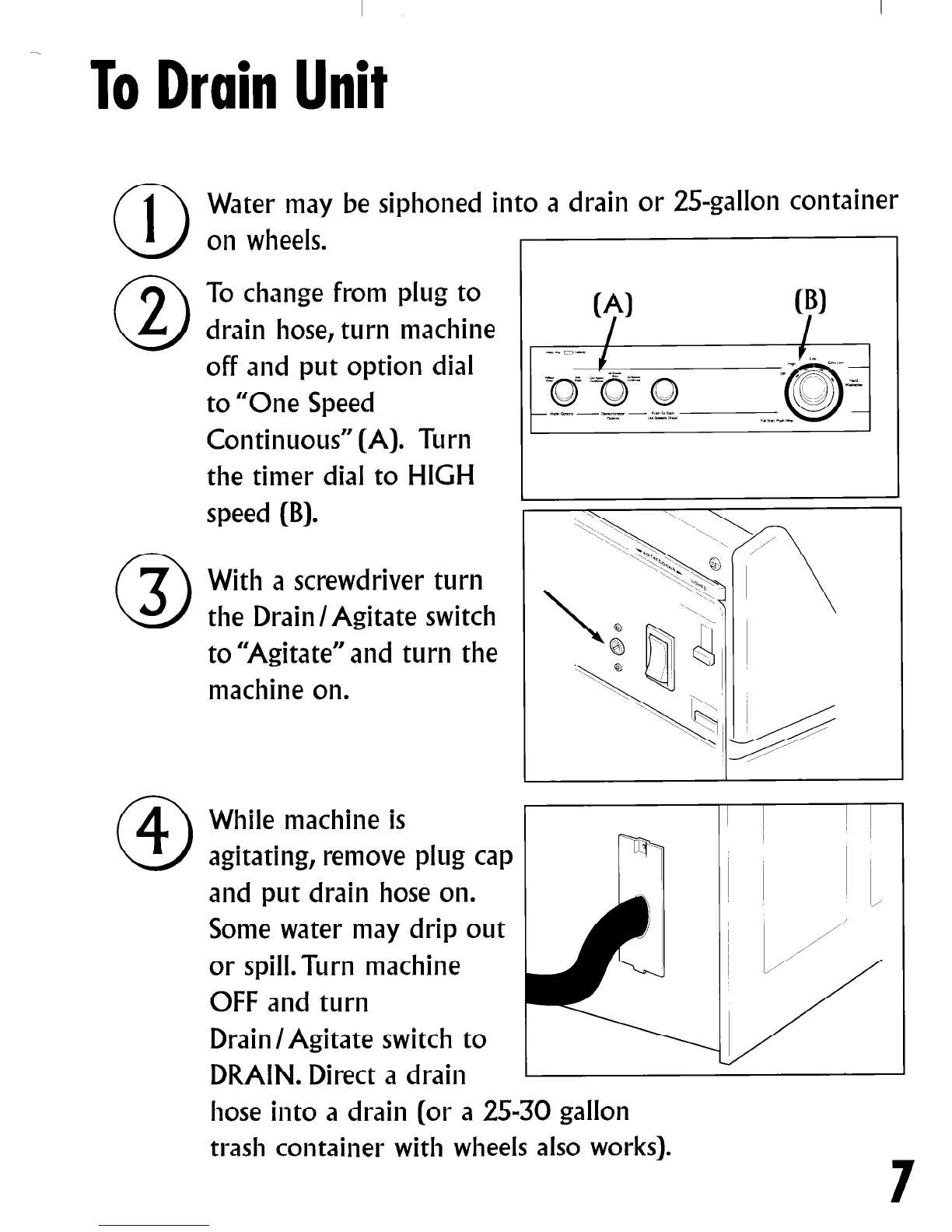

ToDrain Unit

CilW

ater may besiphonedinto a drain or 25-gallon container

u 1

on wheels.

changefrom plug to

drain hose,turn machine

off and put option dial

to “One Speed

Continuous” (A). Turn

the timer dial to HIGH

speed(B).

With a screwdriverturn

the Drain/Agitate switch

to “Agitate” and turn the

machineon.

(41

While machineis

w agitating, removeplug cap

and put drain hoseon.

Somewater may drip out

or spill.Turn machine I

OFFand turn

Drain/Agitate switchto

DRAIN. Direct a drain I

hoseinto a drain (or a 25-30 gallon

trash container with wheels also works).

I I

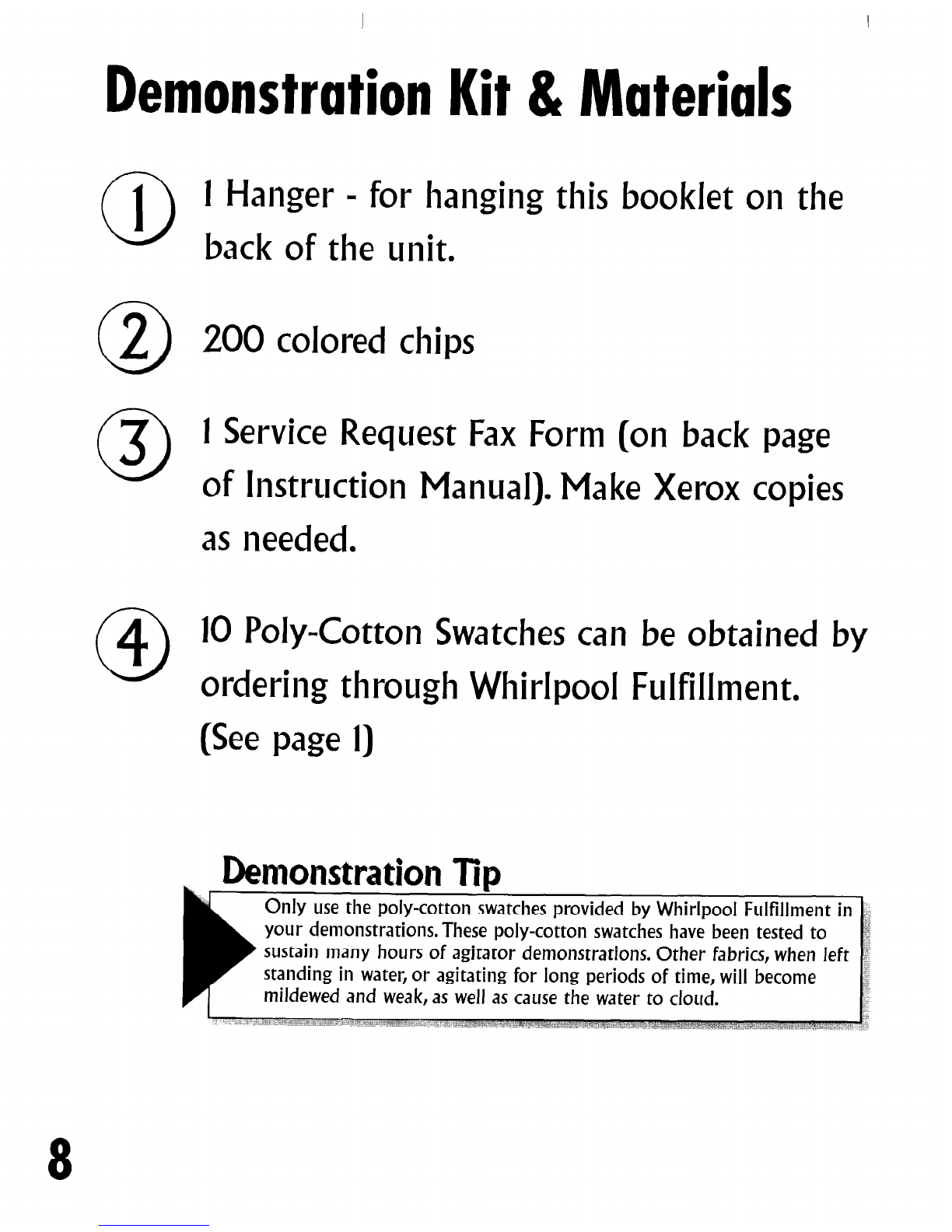

Demonstration Kit & Materials

1Hanger - for hanging this booklet on the

back of the unit.

200 colored chips

1Service Request Fax Form (on back page

of Instruction Manual). Make Xerox copies

as needed.

10 Poly-Cotton Swatches can be obtained by

ordering through Whirlpool Fulfillment.

(See page 1)

Only use the poly-cotton skatches provided by Whirlpool Fulfillment in

your demonstrations. These poly-cotton swatches have been tested to

sustain many hours of agitator demonstrations. Other Fabrics,when left

standing in water, or agitating For long periods of time, will become

mildewed and weak, as well as cause the water to cloud.
