Whirlpool WWBCM58E0A Guide de démarrage rapide

Doc No. WOI/washer/2001/009 Page No 1

Modified on date 03/08/2001 Subject to modification

Twin Tub Washing Machine

PARTS &

SERVICEManual

NARSO MODELS

Doc No. WOI/washer/2001/009 Page No 2

Modified on date 03/08/2001 Subject to modification

MODEL NUMBERS

SAP_MODEL_NO DESCRIPTION OLD_MODEL_NUMBER

1099 WASHING MACHINE -ROPER - APWH WWBDQ59E0

1100 WASHING MACHINE -SUPER PLUS - APWH WWBDS50E8

1104 WASHING MACHINE -SUPER PLUS -APWH WWBCP59E6

1108 WASHING MACHINE-SUPER+APWH-S.MARTIN-220V WWBDI58E3

1109 WASHING MACHINE -SUPER+ APWH -SURINAME WWBDJ58E4

1113 WASHING MACHINE -WWBCM58-E0A-APP.WHITE WWBCM58E0

1294 WASHING MACHINE-SUPER+APWH-S.MARTIN-110V WWBDH58E0

2254 WASHING M/C - 110 V AC, 60Hz APWH-PANAMA WWBDR58-E0A

2255 WASHING M/C-115 V AC,60Hz APWH-TRINIDAD WWBDT58-E6A

MODEL DETAILS

WWBCM58E0A WWBDM58E5A WWBDN58E0A

With pump With pump With pump

110v 110v 110v

WWBDH58E0A WWBDL58E0A WWBDI58E3A

No pump No pump No pump

110v 110v 220v

Doc No. WOI/washer/2001/009 Page No 3

Modified on date 03/08/2001 Subject to modification

TWIN TUB WASHING MACHINE

CONTENTS

NARSO MODELS

S.NO DESCRIPTION PAGE NO

1.SPECIFICATIONS 6

2. SPECIAL FEATURES OF SUPER PLUS NEW & SUPER NEW 7

3. CONTROL & FUNCTIONS 8

4. EXPLODED VIEW AND PARTS LIST 10

5. WIRING DIAGRAM 16

6. FAULT FINDING GUIDE 17

7. COMPONENT CHECK GUIDE 18

Doc No. WOI/washer/2001/009 Page No 4

Modified on date 03/08/2001 Subject to modification

Doc No. WOI/washer/2001/009 Page No 5

Modified on date 03/08/2001 Subject to modification

SPECIFICATIONS

Doc No. WOI/washer/2001/009 Page No 6

Modified on date 03/08/2001 Subject to modification

MODEL: SUPER PLUS NEW & SUPER NEW

NARSO MODELS

1. POWER SOURCE : 110V /60 Hz (Except model BDI58E3A)

2. CAPACITY WASH : 5 KG DRY WEIGHT

SPIN : 5 KG WET WEIGHT

3. OVERALL DIMENSIONS : W 750MM/D 490 MM/H-812MM

4. MACHINE WEIGHT PACKED : 37 KGS

UNPACKED : 30 KGS

5. MOTOR SPEED WASH : 1400 RPM+ 25 RPM

SPIN : 1400 RPM+ 25 RPM

6. MOTOR POWER WASH : 330 W

(INPUT) SPIN : 150 W

7. WASH SYSTEM : AGITATOR TYPE

8. SPIN SYSTEM : CENTRIFUGAL

9. WATER LEVEL SELECTION : 3

10. WATER CAPACITY HIGH : 50 L

MEDIUM:43L

LOW :36L

11. AGITATOR SPEED : 13 STROKES PER MINUTE

12. INDICATOR : BUZZER AT THE END OF

SUPER PLUS NEW – WASH/RINSE

SUPER NEW – WASH/RINSE & SPIN

13. DRIVE SYSTEM WASH : BELT & PLANETARY GEAR

SPN :DIRECT

14. WASH TIMER SETTINGS : 1 TO 15 MINUTES

15. SPIN TIMER SETTINGS : 1 TO 5 MINUTES (Super Plus New only)

16. TIMER WASH : ELCTRO MECHANICAL

SPIN : MECHANICAL (Super Plus New only)

Doc No. WOI/washer/2001/009 Page No 7

Modified on date 03/08/2001 Subject to modification

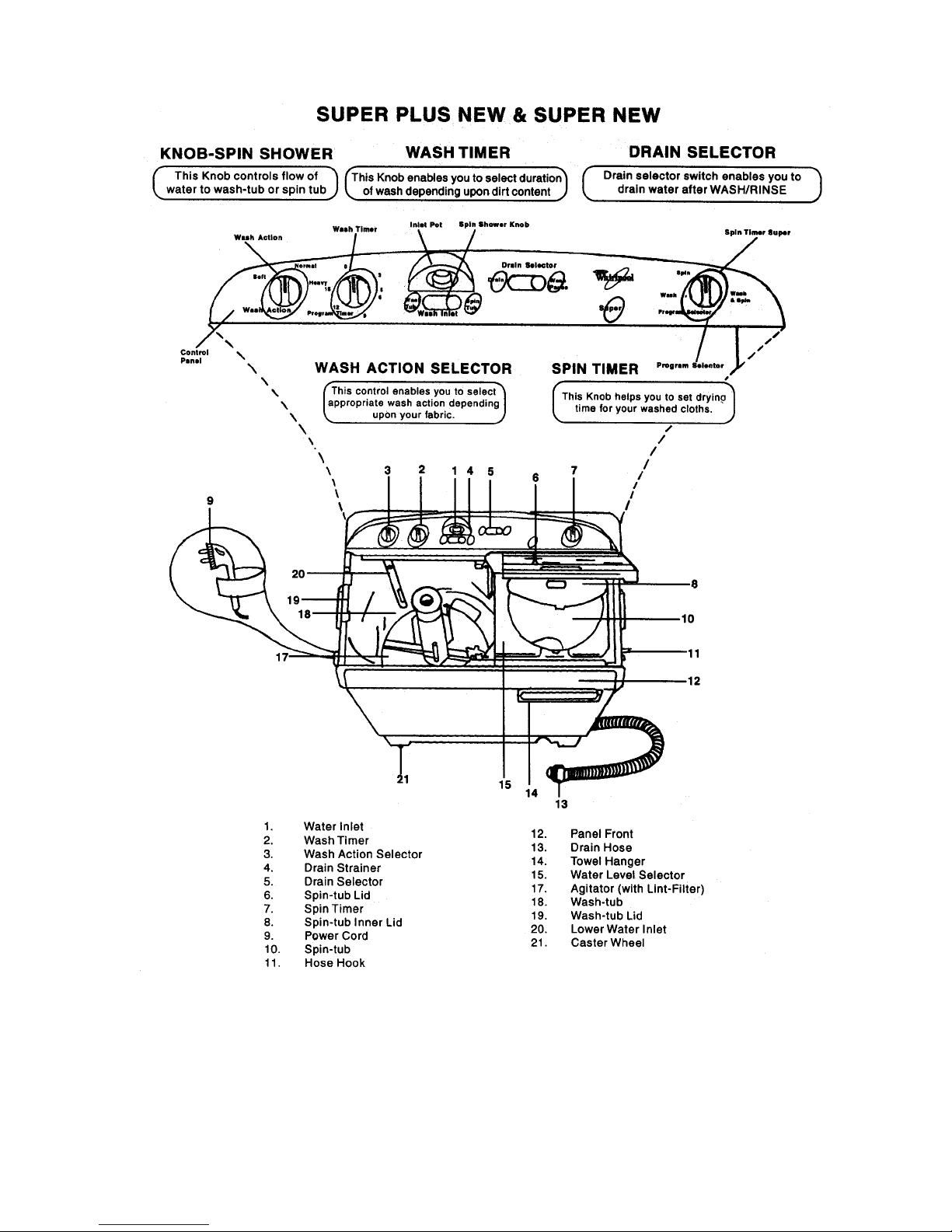

FEATURES OF – SUPER PLUS NEW & SUPER NEW TWIN TUB

MACHINES

The following are of the main features available in – Super plus New and Super New semi

automatic washing machine:

⇒ Stainless steel spin basket with liquid balancing ring.

(Only for SUPER PLUS NEW MODEL)

⇒ Prepainted galvanized sheet for cabinet.

⇒ Unique agitator washing system

⇒ Towel hanger ( Only for SUPER PLUS NEW model)

⇒ True 5-kg wash & matched spin capacity.

⇒ Rat mesh

⇒ Transparent wash lid

⇒ Improved Spin shower option

⇒ Wheels for mobility

⇒ Buzzer indication

⇒ Electro mechanical wash timer

⇒ Drain hose routing on all four sides

⇒ Power card winding facility

⇒ Drain Pump in models BCM58 E0A, BDM58 E5A AND BDN58 E0A

⇒ Hinged wash lid and also easily accessible & can be hinged on the side

⇒ Fuse 3A – Enclosed in Polyphone cover

Doc No. WOI/washer/2001/009 Page No 8

Modified on date 03/08/2001 Subject to modification

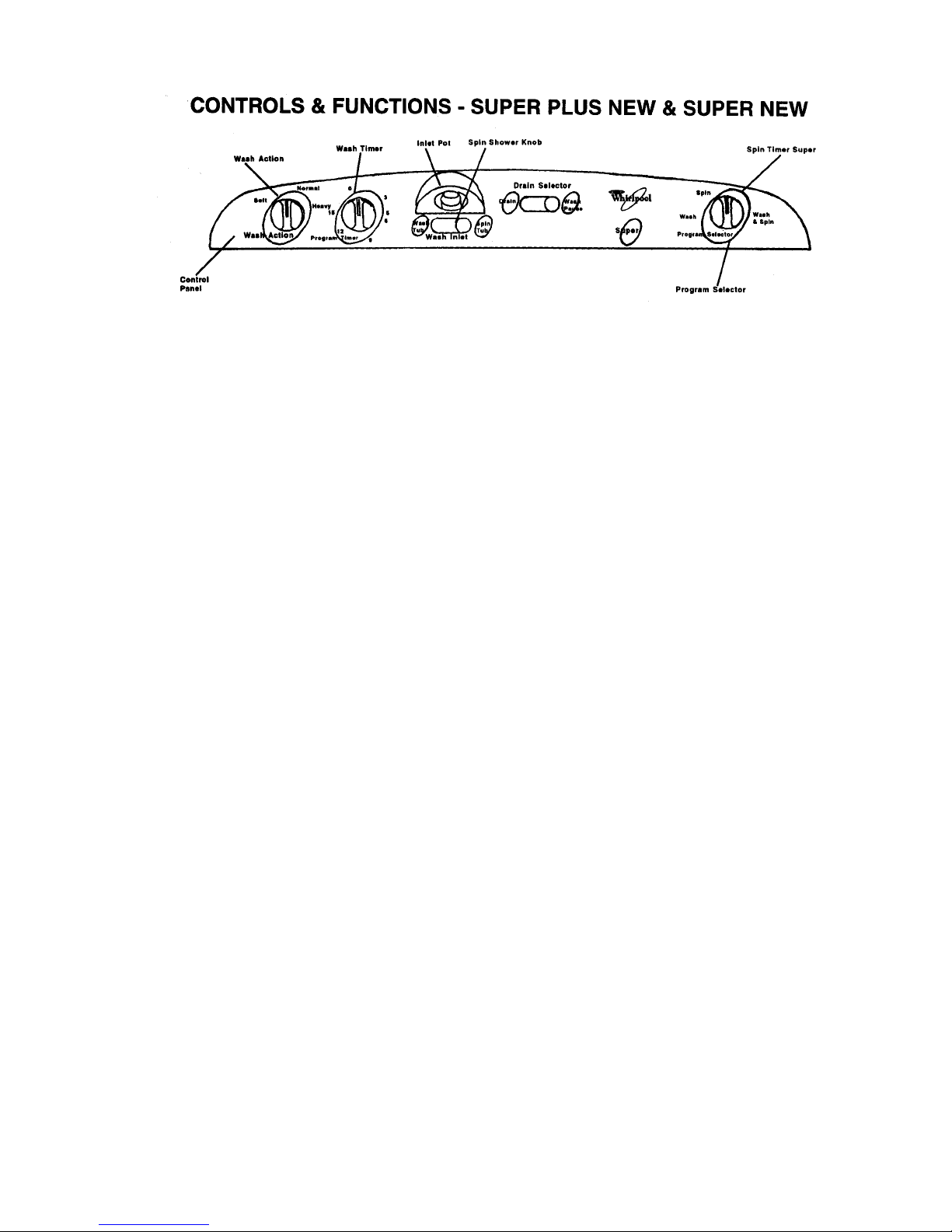

1.WASH TIMER

This Electro mechanical timer is meant for selecting the WASH / RINSE duration ranging

from 1 minute to 15 minutes. Indications for 3,6,9,12 & 15 minutes are given in the dial. For

setting the required duration, the knob has to be rotated in clockwise direction and set at

corresponding mark in the dial. Once the knob is set at the required position, the machine is

switched on and the timer automatically rewinds in anticlockwise direction while performing

WASH / RINSE. Once the timer knob reaches the 'OFF' position, the buzzer indicates the

completion of the cycle and the machine gets automatically switched off.

2 . WASH ACTION

Wash action switch is basically a three position switch viz., HEAVY, NORMAL, & SOFT.

This knob controls the ON and OFF duration of the motor during agitation thereby varying

the washing action. The following are the wash timing corresponding to various settings:

3. DRAIN SELECTOR

This is a mechanical, slide type knob with two positions WASH/RINSE and DRAIN. When

set at WASH/RINSE position, the drain valve attached to the wash tub is closed thereby

allowing the water to get retained in the tub to perform wash/rinse , If the knob Is pushed to

DRAIN mode , the drain and the water in the wash tub is drained out.

4. SPIN TIMER (only in SUPER PLUS NEW Model)

This is a mechanical, spring wound timer meant for setting the spin duration ranging form 1

to 5 minutes. For setting the required duration, the knob has to be rotated clockwise and set at

the required mark. Never attempt to rotate the timer in anticlockwise direction. Once the

knob is set at the required position, the spin motor starts rotating thereby completing the

drying process. Once the cycle is completed, the knob reaches OFF position and thereby the

supply to the spin motor is automatically cut off.

Since the spin timer is a spring wound type, in case of any power cut, the same will not be

sensed by the timer and it continues to rewind till it reaches the OF POSITION.

Doc No. WOI/washer/2001/009 Page No 9

Modified on date 03/08/2001 Subject to modification

5. SPIN SHOWER

This is again a tow position knob viz. WASH TUB and SPIN SHOWER. When set at WASH

TUB position, it allows the water to be filled in the wash tub. When set at SPIN SHOWER

position, the water gets filled in the spin tub.

Spin shower option is generally used to aid the soap removal form the clothes. During this

process, the clothes are loaded in the spin tub and the knob is set at SPIN SHOWER mode.

Water is then filled into the machine. This water gets sprayed over the clothes in spintub.

After 2 minutes of spraying, the water supply needs to be cut off and then spin timer is set

ON for few minutes of spinning. This removes the suds from the clothes effectively.

6. PROGRAM SELECTTOR (applicable only for SUPER NEW model)

In super new models, the spin timer is replacing this three way switch. The three positions

available are WASH, SPIN and WASH & SPIN. This switch will work in conjunction with

the wash timer (Known as PROGRAM TIMER in SUPER NEW model) as detailed below:

AT WASH POSITION : The wash motor will be ON for the duration set at

PROGRAM TIMER

AT SPIN POSITON : The spin motor will be ON for the duration set at

PROGRAM TIMER

AT WASH & SPIN : BOTH THE WASH AND SPIN MOTORS will be ON for

the duration set at PROGRAM TIMER

Doc No. WOI/washer/2001/009 Page No 10

Modified on date 03/08/2001 Subject to modification

With pump

No pump

110v

220v

POS_NO material PART_CODE DESCRIPTION

BCM58E0A

BDM58E5A

BDN58E0A

BDH58E0A

BDL58E0A

BDI58E3A

1 P013200160D P0132001516-0 LID WASH - APP. WHITE 1111 1

2 P013200040B P0132001504-0 WINDOW - LID WASH 111111

3 P013200170F P0132001517-0 LID SPIN - APP. WHITE 111111

4 P013200080C P0132001508-0 BRACKET - LID WASH - OFF WHITE 1 1 1

4 P013200280C P0132001528-0 BRACKET - LID WASH - APWH 1 1 1

5 P013200180D P0132001518-0 PANEL FRONT - APP. WHITE 111111

6 P010600020C P0106001502-0 INNER COVER-SPIN 111111

7 P014200010B P0142001501-0 SPIN CAP - PL/SS 111111

8 P010612290B P0106121529-0 FILTER CAP - APWH 111111

9 P010612350A P0106121535-0 COUPLING LINT FILTER - APWH 111111

10 P010612380A P0106120005-0 FILTER NET ASSY 111111

11 S011280120B S011280T012-0 AGITATOR SCREW 111111

12 P010612320G P0106121532-0 AGITATOR - APWH 111111

13 P0132120300 P0132120003-0 BELLOW SPIN ASSY - TT 111111

14 P0106180200 P0106180006-0 DRUM COUPLING ASSY 111111

15 P010618250A P0106180901-0 BRAKE FIX PLATE 111111

16 P010618010H P0106181501-0 UNDER BASE 111111

17 P0132400200 P0132401502-0 DIVERTOR 111111

18 P013200310B P0132005702-0 SPRING LID 111111

19 P014213020B P0142131502-0 COVER - SPIN BASKET - PLASTIC 111111

20 P010613030E P0106130003-0 BALANCE RING ASSEMBLY (TT) 111111

21 P013513020D P0135131501-0 SPIN BASKET - PLASTIC 111111

22 P010613020R P0106130002-0 SHAFT FIX PLATE ASSY 111111

23 P010618040I P0106180004-0 BRAKE WIRE ASSY 111111

24 P013218040B P0132180901-0 PULLEY FAN - BOTTOM (BIG) 111111

24 P013218050B P0132180902-0 PULLEY FAN - TOP (SMALL) 111111

25 P010618240F P0106182503-0 MOTOR - WASH (30MM STACK) 1

25 P013818010F P0138182501-0 MOTOR - WASH - 110 ~ 127V, 60HZ 11111

26 P0106181601-0 P0106181601-0 GROMMET 333333

27 P0106181800 P0106181503-0 GROMMET SUPPORT PLATE 111111

28 P0106181502-0 P0106181502-0 WHEEL CASTOR 444444

28 P0106182800 P0106181502-0 WHEEL CASTOR 444444

29 P0136181200 P0136180701-0 WHEEL - SHAFT (LONG) 444444

30 P013240250D P0132401525-0 KNOB SLIDE SELECTOR - APP. WHITE 111111

31 P0132401300 P0132401513-0 RETAINER - SPIN SHOWER 111111

32 P0136700100 P0136700001-0 FILL HOSE ASSY - EXPORT 1 1111

33 P0106123700 P0106121602-0 O RING - TT 111111
