Whirlpool LSQ9620LW1 Manuel utilisateur

TOP AND CABINET PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

5−03 Litho in U.S.A.(drd) Part No. 8179977

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3956025

Installation

Instructions

LIT3955869

Use & Care Guide

LIT3955903

Feature Sheet

LIT3956285

Energy Guide

LIT8542482

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

2 Top

3955792 White

3955793 Biscuit

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63424 White

3954357 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3976348 Cabinet−Sound

Damper

8 3400611 Screw,

Lid Switch (2)

9 3357011 Screw, 10−16 x 1/2

10 8054939 Seal, Lid

11 8054980 Switch, Lid

13 355274 Screw, Lid Hinge

Mounting (4)

15 8055257 Hinge, Lid (L.H.)

16 8055256 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 8319539 Bearing, Lid

Hinge (2)

19 Lid

3956016 White

3956017 Biscuit

22 3351614 Screw, Ground

28 3390631 Screw,

10−16 x 3/8 (4)

31 3955788 Cover, Dispenser

32 8519517 Dispenser, Bleach

CONTROLS AND REAR PANEL PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

CONTROLS AND REAR PANEL PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 694419 Mini, Buzzer

3 Hose, Water

Inlet (2)

3949374 Blue Coupler

3949375 Red Coupler

4 3400073 Screw, Ground

5 8318255 Strap, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension

Drain Hose

(21 Inches)

(Not Included)

9 3955765 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw

11 90767 Screw, 8−18 x 3/8

12 3366847 Switch,

Water Level

13 3948608 Bracket, Control

14 661661 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

17 303294 Edge Protector

18 3979347 Valve, Water Inlet

& Thermistor Assy.

19 3976286 Shield, Capacitor

20 8318201 Clip, Capacitor

21 370451 Clamp, Hose

22 8055003 Clip, Harness

& Pressure Hose

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 8317975 Retainer, Harness

26 8317940 Hose, Drain

(Anchored)

27 3366912 Clamp, Hose

28 661605 Capacitor,

Motor Start

29 8539879 Control, ATC

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes #30)

33 3976395 Clamp, Hose

34 3956080 Switch, Rotary

35 62863 Screw, 10−16 x 3/8

36 3400818 Screw, Timer

Mounting

37 3347812 Clip, Harness

38 3955774 Switch,

Temperature

39 Panel, Console

(Includes Item 40)

3955822 Grey

3955823 Gold

40 3955775 Medallion

42 3950356 Switch, Rotary

43 8317926 Hose, Vacuum

Break

44 Knob, Timer

8538949 (For LSQ9620LW1)

8538952 (For LSQ9620LG1)

45 Dial, Timer

8538955 (For LSQ9620LW1)

8538956 (For LSQ9620LG1)

46 Knob, Control

8538957 (For LSQ9620LW1)

8538958 (For LSQ9620LG1)

47 8536939 Clip, Knob

49 388326 Screw, 8−18 x 1.25

(Panel to Top)

50 9740848 Screw

51 Cap, End (R.H.)

8271359 White

8271362 Biscuit

53 3357027 Nozzle, Hose

Drain

54 3366913 Clamp, Drain

Hose

55 3348424 Shield, Suds

56 3956277 Harness, Wiring

(For Detail See

Pages 9 & 10)

AGITATOR, BASKET AND TUB PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

AGITATOR, BASKET AND TUB PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

Illus. Part

No. No. DESCRIPTION

1 63594 Dispenser

2 358237 Screw & Washer

(5/16−24 x 1)

3 389141 Auger, Agitator

4 389386 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Seal, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3363662 Cam Driven

10 3366877 Dog, Agitator

Clutch

11 3363661 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 8526016 Basket & Balance

Ring

15 8519788 Balance Ring

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3347674 Auger & Agitator

(Complete)

22 3350389 Spacer, Thrust

23 63973 Cap, Agitator

24 358912 Seal, Agitator Cap

26 3949550 Washer

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8529935 Motor, Main

Drive

20 8529896 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

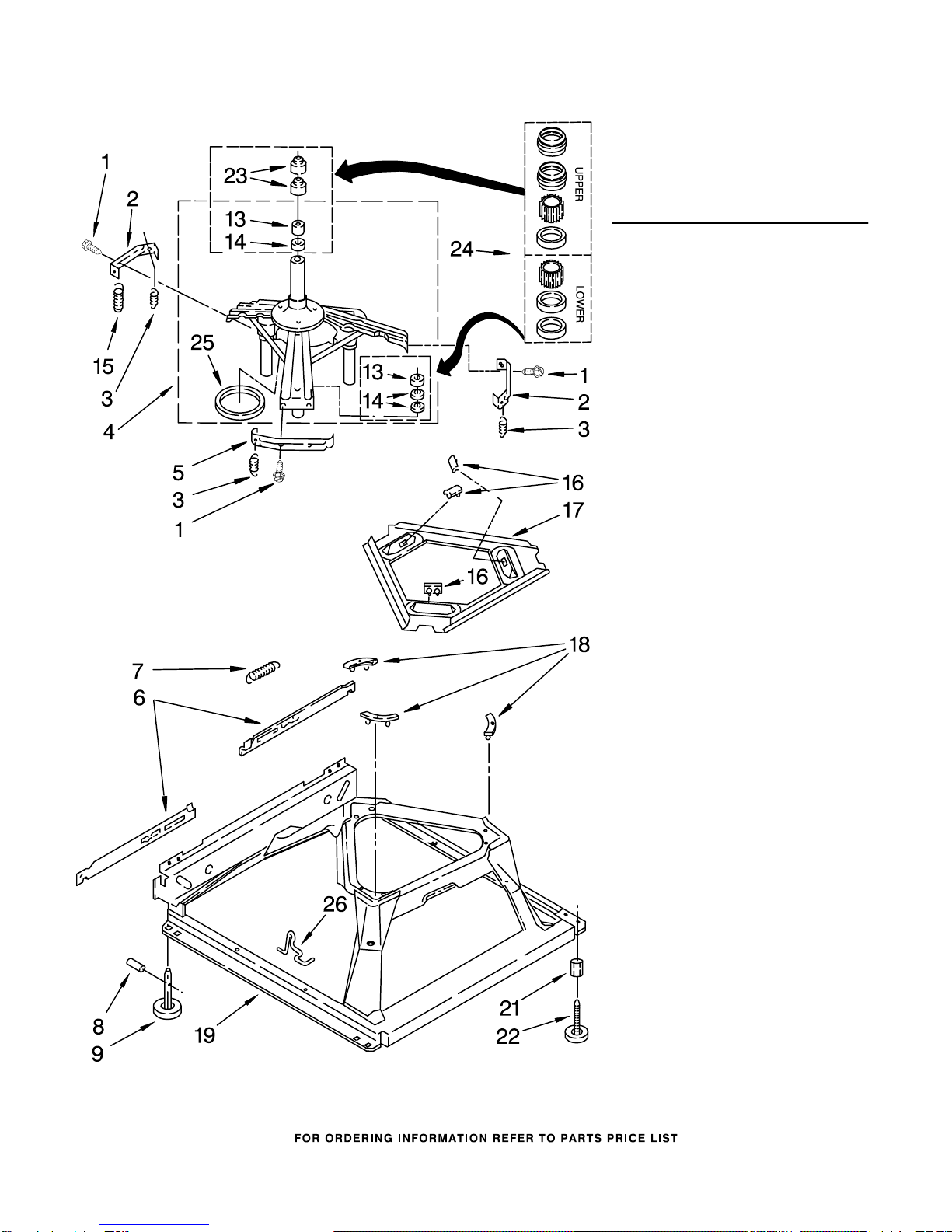

MACHINE BASE PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 8318050 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9,16,17,18,

& 26.)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

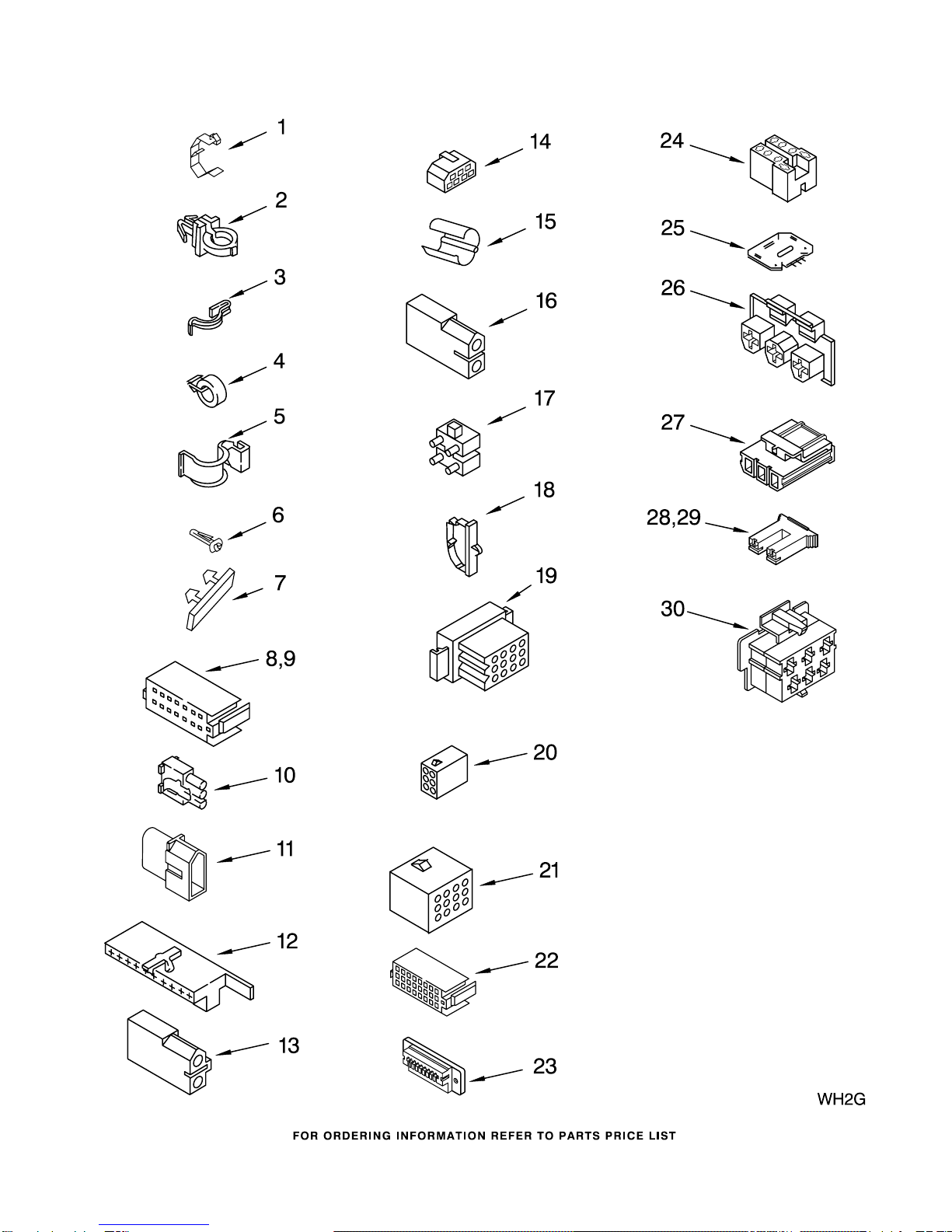

WIRING HARNESS PARTS

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

For Models: LSQ9620LW1, LSQ9620LG1

(White/Grey) (Biscuit/Gold)

8179977
