Whirlpool WTW6600SB0 Manuel utilisateur

TOP AND CABINET PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

1−08 Printed In U.S.A. (drd) Part No. 8181164

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8566931 Use & Care Guide

8567470 Installation

Instructions (DVD)

8567037 Tech Sheet

8566929 Quick Start Guide

8577781 Wiring Diagram

8567168 Energy Guide

2 Top

8565311 White

8565312 Biscuit

W10053420

Black

3 8576639 Frame Assembly,

Cabinet Top

(Includes Item 31)

4 8576784 Sound Absorber,

Cabinet

5 Cabinet

8566156 White

8566157 Biscuit

W10050330

Black

6 8566090 Panel, Rear

7 8543781 Retainer, Drain

Hose Storage

8 8578225 Sound Absorber,

Cabinet

9 8576475 Ball,

Suspension (4)

10 8564009 Damper Assembly,

Tub Suspension

(Set Of 4)

11 1157158 Screw, 8−18 x 3/8

12 8563602 Locator, Top (2)

W10078270

Screw, Lid

Hinge

Mounting (4)

14 Hinge Wire (2)

8563965 (L.H.)

8572974 (R.H.)

15 Hinge, Spring

Assembly

(Glass Lid)

8563962 (Left)

8563963 (Right)

16 8563785 Lock, Top−

Front (2)

W10052730

Bearing, Lid

Hinge (2)

19 Lid, Glass

Assembly

8565267 Brilliant White

Aluminum

8576485 Gold Dust

W10071520

Black

20 8578826 Foot Assembly,

Leveling (4)

21 Dispenser,

Fabric Softener

W10059150

White

W10052670

Biscuit

W10052680

Elephant

22 Bezel, Fabric

Softener Dispenser

8566210 White

8580016 Biscuit

8580017 Elephant

23 Dispenser, Bleach

W10059160

White

W10052690

Biscuit

W10052700

Elephant

24 Bezel, Bleach

Dispenser

8566211 White

8580018 Biscuit

8580019 Elephant

25 Dispenser, Detergent

8564976 White

W10059170

Biscuit

W10059180

Elephant

26 Bezel, Detergent

Dispenser

8564979 White

W10045190

Biscuit

W10045210

Elephant

27 8543779 Nozzle Assembly,

Fresh Water

28 371503 Clamp, Hose

W10059230

Lock Assembly, Lid

30 Bezel, Lid Lock

8572019 White

8563939 Biscuit

W10052520

Black

31 8564458 Absorber, Impact

32 8564456 Hinge, Top (2)

33 18849 Pad, Top Hinge (2)

34 343641 Screw,

10−16 x 1/2 (2)

35 8563941 Cover, Harness

36 693995 Screw, 8−18 x 3/8

37 8543784 Bracket,Drain Hose

39 8281136 Screw, 10−16 x 3/4

40 8576476 Spacer, Rear

(Cabinet/Top)

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

44 90016 Clip, Harness (4)

45 8281736 Wire,

Ground Jumper

46 3400076 Screw, 10−32 x 5/8

47 3390647 Screw, 8−18 x 1/2

48 8577896 Washer, Suspension

Umbrella

CONTROL PANEL PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

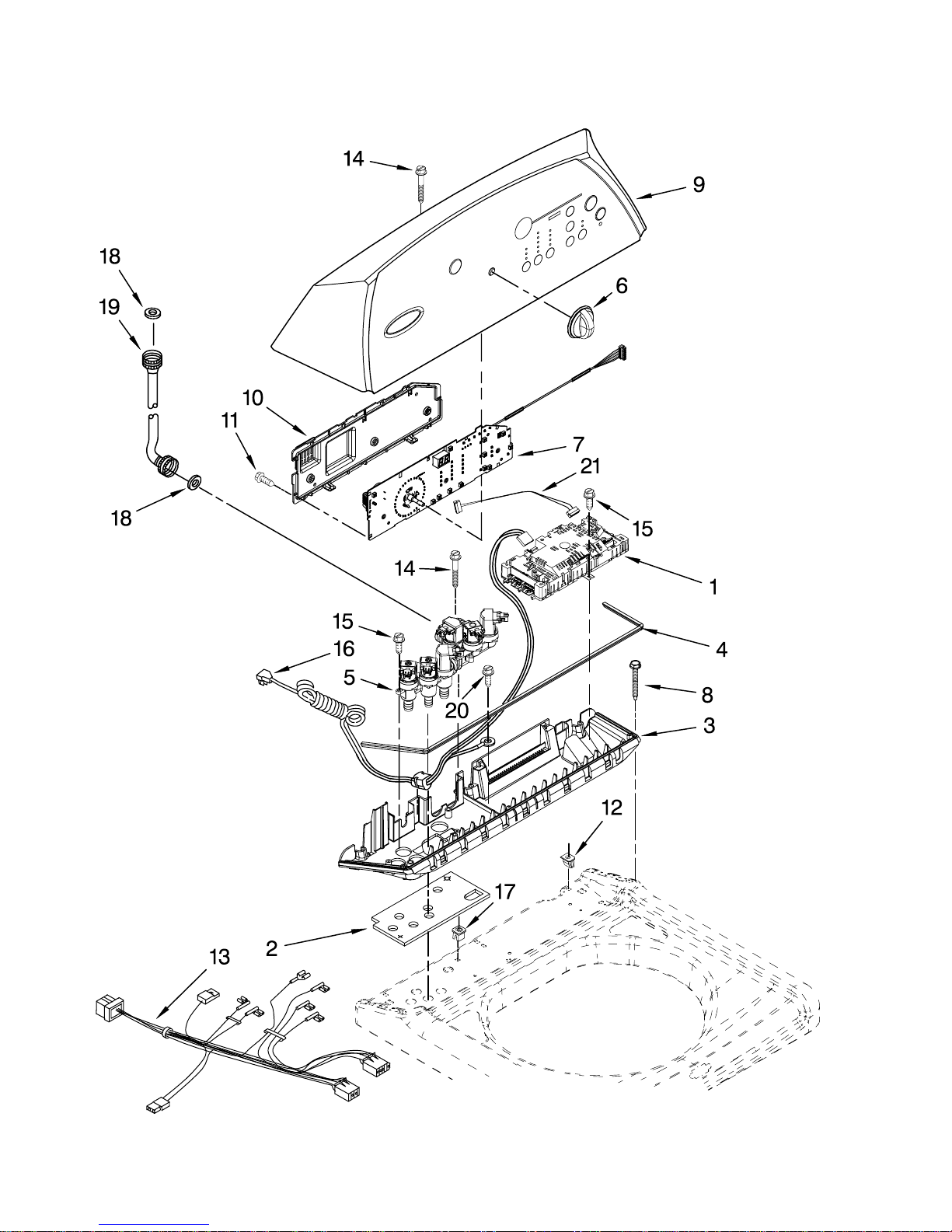

CONTROL PANEL PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

Illus. Part

No. No. DESCRIPTION

1 W10104830 Control Unit

Assembly,

Machine & Motor

2 8565260 Gasket, Valve Tray

3 Tray Assembly,

Console (Includes

Items 2 & 4)

8565304 White

8565306 Biscuit

8565305 Black

4 8565259 Gasket,

Console/Tray

W10059320

Valve, Log

Assembly

6 Knob, Control

8574885 White

8580119 Biscuit

8580118 Black

7 8564290 User Interface

W10004990

Screw, 6−20 x 1.2

9 Console

W10070060

White

W10070070

Biscuit

W10070080

Black

10 8564265 Cover, Rear−

User Interface

W10003770

Screw,

6−19 x 1/2 (3)

W10022060

Nut, Push−In (3)

W10045100

Harness, Upper

14 8565324 Screw,

10−16 x 1.75

15 8281136 Screw, 8−18 x 3/4

16 3407203 Cord Assembly,

Power

17 98460 Nut, Push−In (2)

18 3976300 Washer, Water

Inlet Hose

(1−1/16 x 5/8)(4)

19 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

20 488649 Screw, Power

Cord Ground

21 3407187 Harness,

Thermistor

MOTOR, BASKET AND TUB PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

MOTOR, BASKET AND TUB PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

Illus. Part

No. No. DESCRIPTION

1 8578929 Cap, Impeller

W10076270

Screw & Washer

Assembly

W10076260

Washer

4 8542666 Tub Ring

5 8572540 Hose Pressure

Switch

W10076230

Impeller

(Washplate)

7 8533953 Screw,

8−16 x 1.000 (6)

8 8545948 Hub, Basket−Driven

(Includes Item 9)

9 8545953 Hub, Basket−Driver

(Includes Item 8)

10 8557267 Basket Assembly

(Includes Items

7, 8, & 9)

11 8572660 Tub & Drive Shaft

Assembly

12 8546680 Wrap, Tub

13 8542674 Weight,

Tub Counterbalance

W10004910

Screw,

12−16 x 1−1/4 (2)

15 8557839 Shield,

Drive Motor

(Includes Item 16)

16 8565172 Tube, Buffer

(Set Of 4)

17 8565170 Stator, Motor

(Includes Item 18)

18 8557836 Plate, Stator

(Set Of 2)

W10076010

Screw,

1/4−20 x .968 (4)

20 8565188 RPS Assembly

21 8565177 Rotor, Main Drive

Motor (Includes

Item 22)

22 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

W10058730

Harness, Lower

(Includes Item 5)

24 8566197 Filter, Dual

Pump Hood

25 8533928 Screw,

8−18 x 3/4 (2)

26 8533987 Retainer, Push−In

W10005430

Clamp, Pressure

Hose Retainer

28 8533957 Screw, 10−16 x 1/2

29 8564017 Cup,

Suspension (4)

PUMP PARTS

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

Illus. Part

No. No. DESCRIPTION

W10049390

Pump Assembly,

Drain

2 8571715 Hose, Drain

3 8543774 Hose, Recirc

4 8578573 Pump Assembly,

Recirc

5 8534063 Screw,

10−14 x 1.000

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting (4)

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8578572 Shield,

Recirc Pump

13 8576642 Retainer,

Drain Hose

14 3347868 Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

18 8182768 Clamp,

Drain Pump Hose

OPTIONAL PARTS (NOT INCLUDED)

For Models: WTW6600SW0, WTW6600SG0, WTW6600SB0

(White) (Biscuit) (Black)

8181164

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

4392901 Biscuit

786020 Black

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

786032 Black (Uncut)

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose
