Whirlpool 3RLSQ8033SW2 Manuel utilisateur

TOP AND CABINET PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

6−09 Litho in U.S.A. (drd)(bay) Part No. W10280205 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10131577

Installation

Instructions

W10131573

Use & Care Guide

W10215726

Wiring Diagram

W10131548

Installation &

User Guide

2 9724509 Bumper, Lid (2)

W10171315

Lid

W10119828

Screw, Lid Hinge

Mounting (4)

5 8319539 Bearing, Lid

Hinge (2)

W10080580

Screw, Ground

7 357213 Nut, Push−In (2)

W10194871

Top

9 62750 Spacer, Cabinet

To Top (4)

10 63424 Cabinet

11 3390631 Screw,

10−16 x 3/8 (4)

12 21097 Pad, Lid Hinge

W10225136

Hinge, Lid (L.H.)

W10237162

Switch, Lid

W10192089

Dispenser, Bleach

W10177046

Cabinet−Damper,

Sound

17 91770 Hinge, Lid (R.H.)

18 62780 Clip, Top &

Cabinet & Rear

Panel (2)

W10180691

Shield, Lid Switch

CONTROLS AND REAR PANEL PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

CONTROLS AND REAR PANEL PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349365 Hose, Sensor

(Upper)

2 8317975 Retainer, Harness

3 Hose, Water Inlet

3949382 Red

3949383 Blue

4 8577378 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

6 8318015 Panel, Rear

7 62747 Pad, Rear Panel

W10096921

Drain Hose

Assembly (Includes

Items 27 & 28)

W10222216

Timer, Control

(50 Hz.)

(Motor Not A

Service Part)

W10242307

Washer, Water

Inlet Hose

(1−1/16 x 5/8)

W10080280

Screw, 8−18 x 3/8

W10213199

Switch, Water Level

13 8544893 Bracket, Control

W10111552

Cord, Power

15 8559337 Strain Relief,

Power Cord

16 8541780 Cap, End (L.H.)

W10080580

Screw, Ground

18 3360397 Valve, Water

Mixing

W10111181

Fuse

(In Harness)

20 8536939 Clip, Knob

W10117299

Clamp, Hose

22 3357319 Hose, Vacuum

Break

W10117298

Clamp, Hose

24 387606 Break, Vacuum

W10217035

Harness, Wiring

(For Detail See

Pages 9 & 10)

26 8314879 Shield,

Inlet Valve

27 8541667 Clamp, Hose

28 8541668 Clamp, Hose

29 3352282 Sensor, Inline

W10094820

Clamp, Hose

W10112110

Clamp, Hose

W10116973

Hose, Pump To Tub

(Includes Item 30)

33 8316039 Shield, ATC

W10110247

Control, ATC

W10168262

Switch, Rotary

(2nd Rinse)

36 3400818 Screw, Timer

Mounting

W10130933

Screw, Ground

38 3407160 Transformer

W10115456

Panel, Console

40 8055003 Clip, Harness

& Pressure Hose

W10113937

Clip, Grounding

W10110977

Wire, Ground

43 8519200 Support, RearPanel

44 8544945 Knob, Timer

45 8544947 Dial, Timer

46 8544937 Knob, Control

47 3347868 Cable Tie

48 3352944 Clip, Harness

W10080350

Screw, 8−18 x 1.25

(Panel to Top)

W10080260

Screw, 10−16 x 3/8

51 8541779 Cap, End (R.H.)

W10168171

Switch, Rotary

(Temperature)

53 3357397 Adapter, Water

Inlet Hose (2)

54 3357450 Washer, Inlet

Hose Adapter (2)

AGITATOR, BASKET AND TUB PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

AGITATOR, BASKET AND TUB PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

Illus. Part

No. No. DESCRIPTION

1 8575076 Dispenser

W10003790

Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3952374 Bearing, Driven

Cam

9 3951682 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

11 2219077 Clip, Pressure

Switch Hose

12 21366 Nut, Spanner

13 8526017 Basket & Balance

Ring

14 387240 Balance Ring

15 8543666 Washer, Agitator

W10135425

Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

21 3949550 Washer

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

W10072840

Seal, Inner Cap

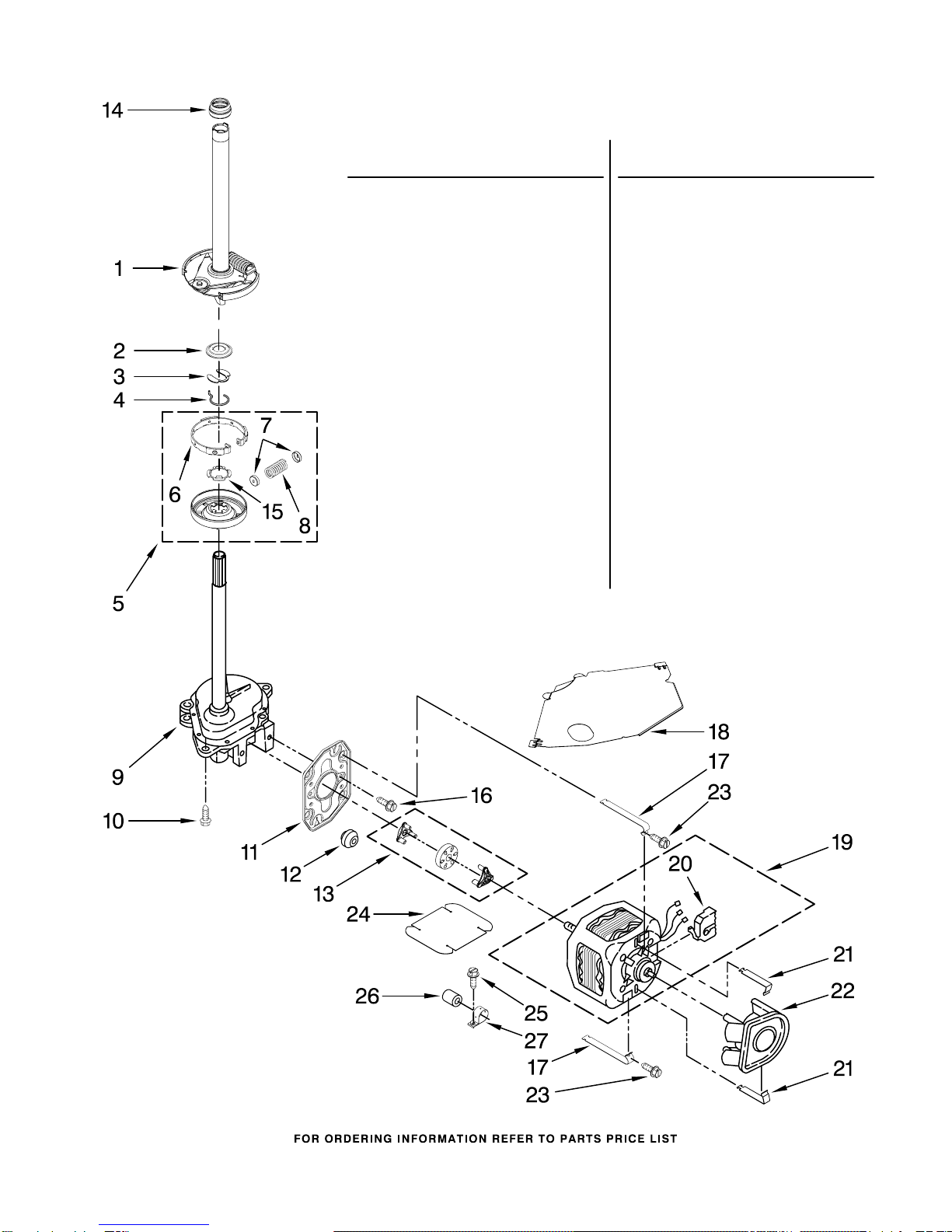

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10117003

Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

W10080230

Ring, Spin

Tube Support

4 63283 Ring, Retainer

W10116968

Clutch (Complete)

W10118761

Band & Lining,

Clutch

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

W10116916

Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

W10080600

Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

14 8577374 Seal

15 3355454 Clip, Anti−Rattle

W10080610

Screw

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3950297 Motor, Main

Drive

20 8529896 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

W10080650

Screw, 10−16 x 5/8

24 8316060 Shield, Motor

W10080260

Screw,

10−16 x 5/16

26 8572719 Capacitor

W10083210

Clamp, Capacitor

MACHINE BASE PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

Illus. Part

No. No. DESCRIPTION

W10080750

Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

W10117005

Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

W10080920

Pin, Knurled (2)

W10083250

Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

W10250667

Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

W10116943

Base Assembly

(Includes Items 6,

7, 8, 9, 15 & 22)

W10080250

Nut, Lock (2)

(3/8−16)

W10080910

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

W10145155

Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: 3RLSQ8033SW2

(White/Grey)

W10280205
