WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

October 2000

All rights strictly reserved. Reproduction or issue to third parties in any form whatsoever is

not permitted without written authority of Whirlpool (Australia) Pty. Limited

Whirlpool is a registered trademark of Whirlpool U.S.A.

This documentation is intended only for qualified technicians who possess the required qualifications and

are aware of the regulatory requirements applicable to servicing electrical appliances.

Whirlpool (Australia) Pty Limited Part No. SM2057

A. B. N. 28 003 578 023

WHIRLPOOL AUSTRALASIA

CONSUMER SERVICES

SERVICE MANUAL

TOP LOAD WASHING MACHINE

Model 6ALBR5233JQ0

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 2 of 23

CONTENTS

Page

AUTOMATIC (ELECTRONIC) TEMPERATURE CONTROL 3 - 4

SERVICING THE ATC COMPONENTS 5

TESTING AND CHECKING ATC SYSTEM 5

TEST PROCEDURE 6

THERMISTOR RESISTANCE CHART 7

WATER LEVEL SWITCH 7

TOP AND CABINET PARTS 8 - 9

CONTROLS AND REAR PANEL PARTS 10 - 11

AGITATOR, BASKET AND TUB PARTS 12 - 13

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

PARTS

MACHINE BASE PARTS 16 - 17

WIRING HARNESS PARTS 18 - 19

BRAKE AND DRIVE TUBE PARTS 20

GEARCASE PARTS 21

WATER SYSTEM PARTS 22

MISCELLANEOUS PARTS 22

OPTIONAL PARTS (NOT INCLUDED) 23

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 3 of 23

AUTOMATIC (ELECTRONIC) TEMPERATURE CONTROL - ATC (ETC)

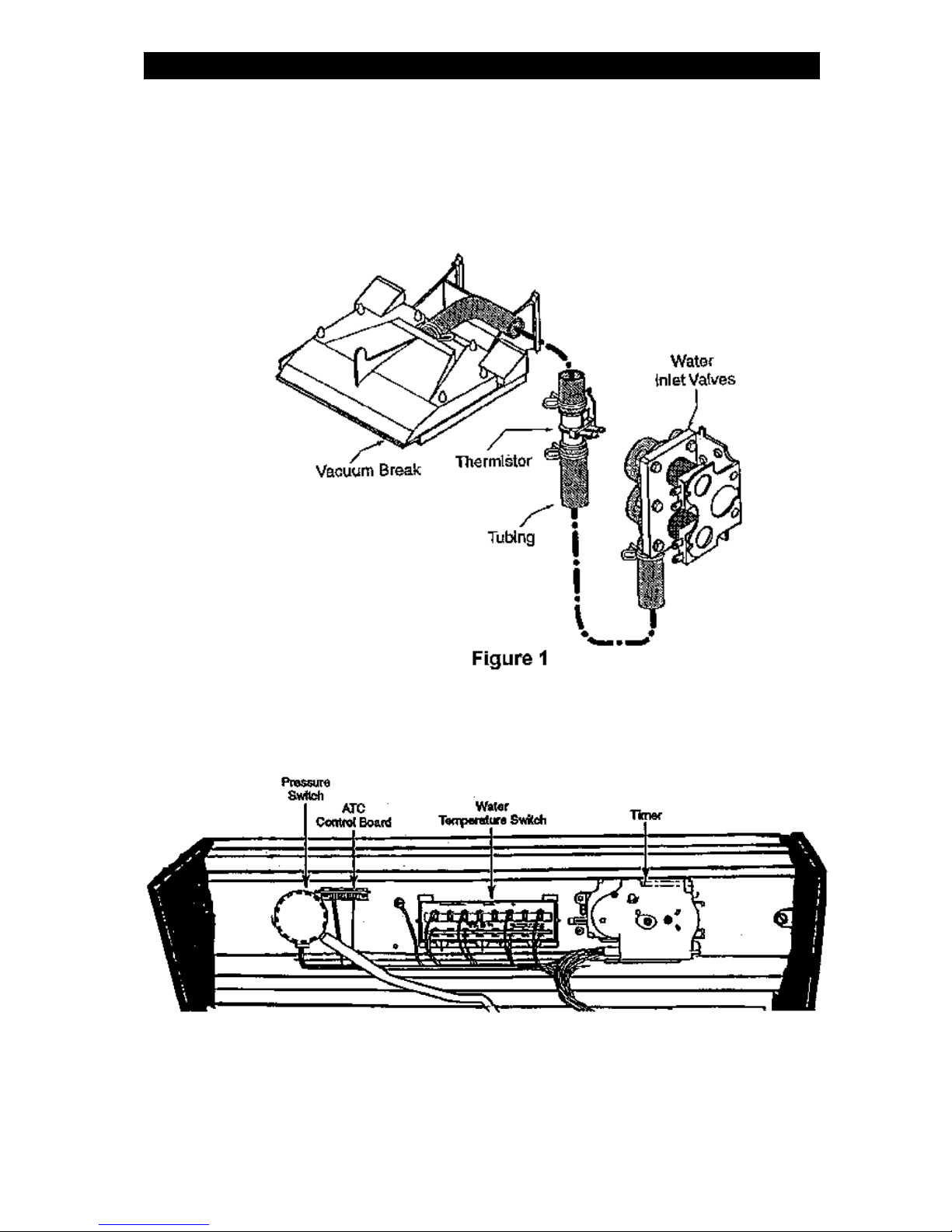

The ATC system controls the incoming water supply to provide an accurate setting for the

water temperature in the washing machine tub. The ATC system uses a thermistor located in

the water supply tubing between the water inlet valves and the and the vacuum break (See

Figure 1). The thermistor senses the incoming water temperature and provides input to the

ATC control board.

The ATC control board uses the input from the thermistor to cycle the hot and cold water

solenoids on the water inlet valves to achieve the desired water temperature. A triac located on

the control board, cycles the hot and cold water solenoids through the water temperature switch

(See Figure 2).

Figure 2

The ATC system will provide 24°C ±3°C For the COLD setting and 38°C ±5°C For the WARM

setting.

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 4 of 23

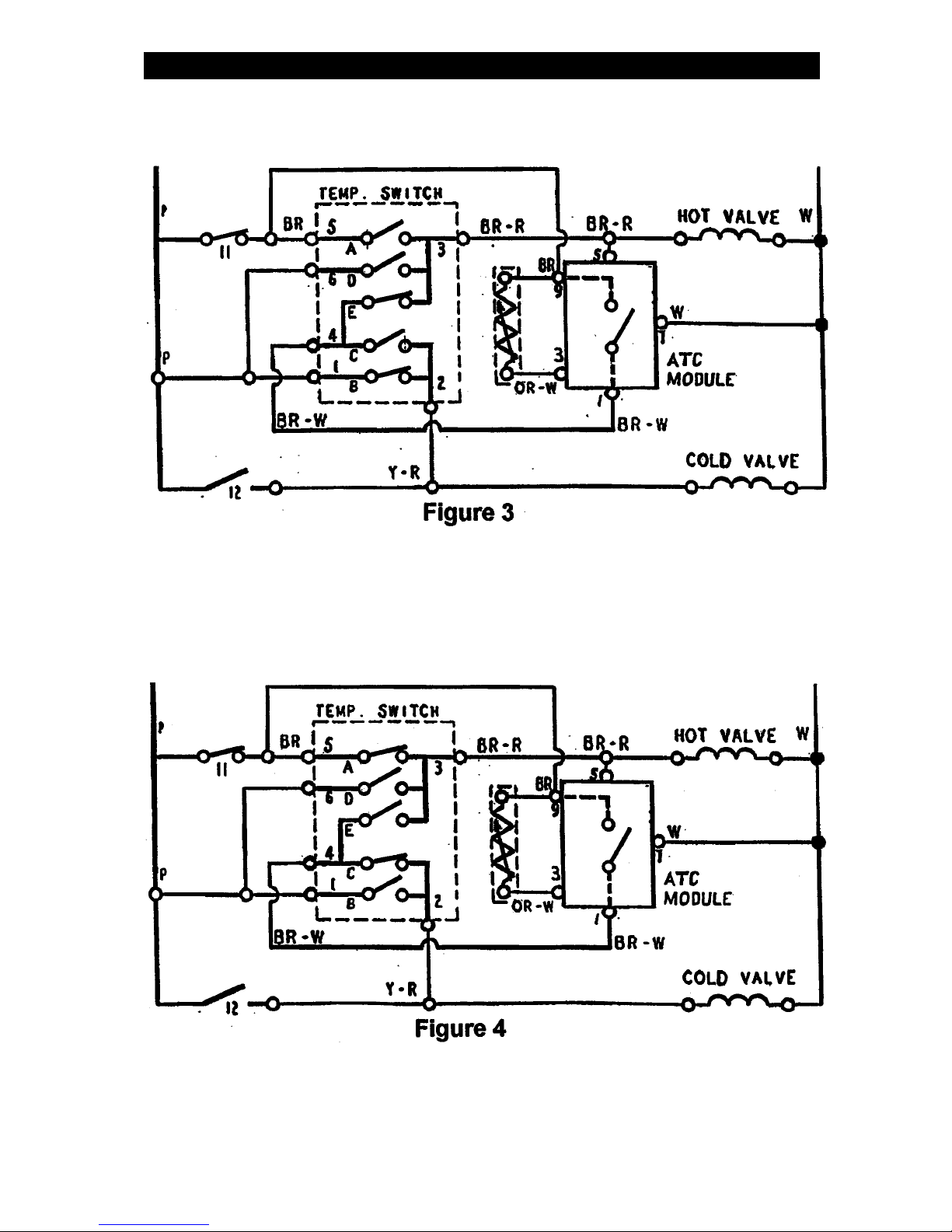

With the temperature selector switch set to COLD, the cold water solenoid energised for 100%

of the time and the hot water solenoid is cycled on and off (See Figure 3).

With the temperature selector switch set to WARM, the hot water solenoid energised for 100%

of the time and the cold water solenoid is cycled on and off (See Figure 4).

Note : During the warm water fill, both solenoids are energised for 55 seconds. After

55 seconds, the hot water inlet valve stays on and the cold water inlet valve

cycles.

The ATC is only active during the wash fill, it has no effect on the rinse water temperature.

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 5 of 23

SERVICING THE ATC COMPONENTS

1. To remove the ATC Control Board (See Figure 2 on Page 4), grip the sides of the board and

pull it straight out of its connector.

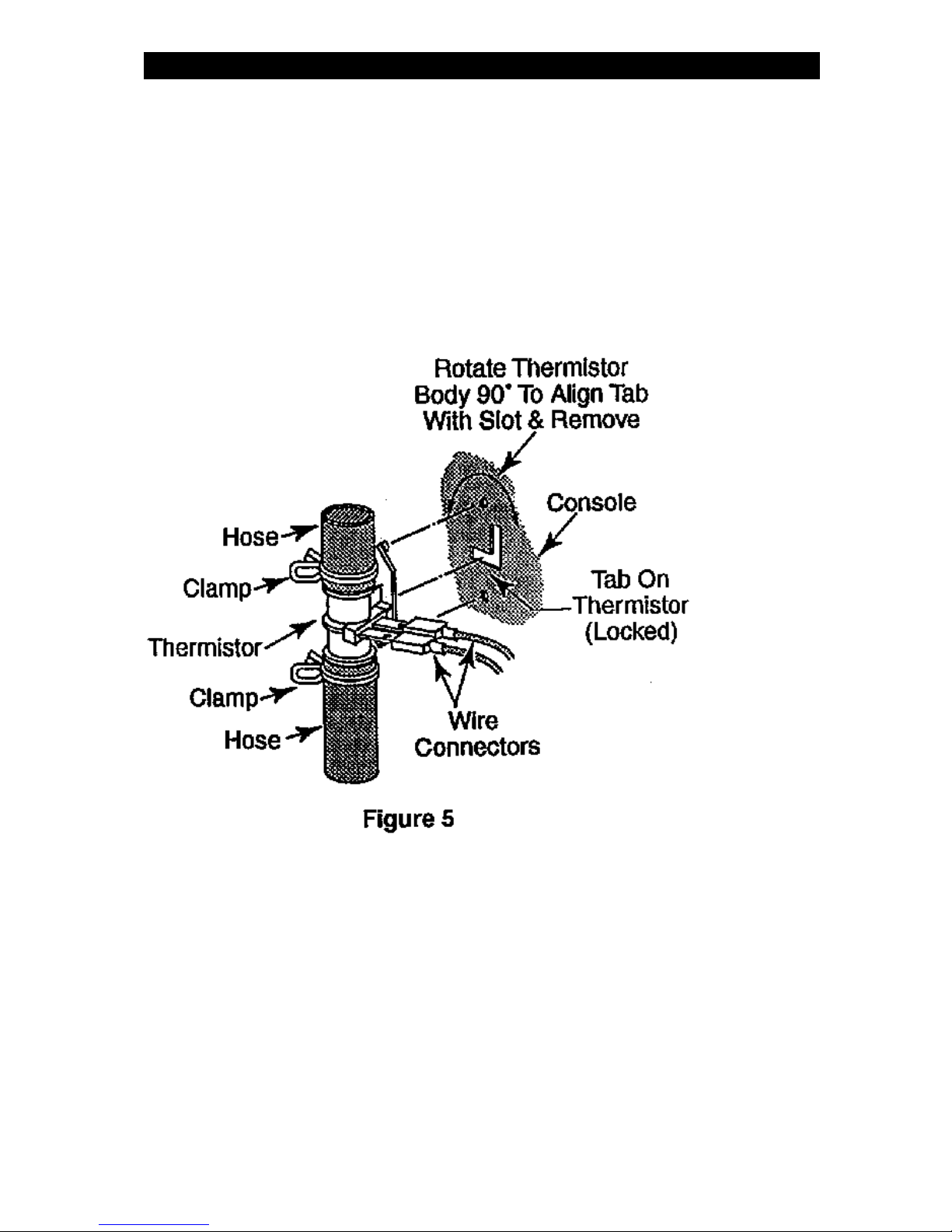

2. To remove the thermistor (See Figure 5) :

I. Disconnect the two wire connectors from the thermistor terminals.

II. Remove the two clamps from the hoses and pull the hoses off the connectors.

III. Pry the pins at the top at the top and bottom of the thermistor out of their console

holes and twist the body 90°in either direction. Pull the tab out of the console slot

and remove the thermistor.

TESTING AND CHECKING ATC SYSTEM

The following steps test the ATC portion of the system.

Notes :

1. A properly operating ATC system will provide the following water temperatures in

the washer after the machine has filled with water ready for the wash operation :

Cold Wash : 24°

°°

°C ±

±±

±3°

°°

°C

Warm Wash : 38°

°°

°C ±

±±

±5°

°°

°C

2. The hot wash and all rinse water fills are not controlled by the ATC.

3. On cold wash setting Using gravity feed hot water systems may not allow the wash

water to achieve 24°

°°

°C ±

±±

±3°

°°

°C.

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 6 of 23

TEST PROCEDURE

1. Set the water temperature selector switch to Warm wash / Cold rinse.

2. Set the timer to the start of a wash cycle, start the machine and the tub will begin filling with

water.

3. Both the hot and cold inlet valves will operate continuously for approximately 55 seconds.

After the 55 seconds the hot water inlet valve should remain energised while the cold water

inlet valve will cycle on and off.

4. If the cold water inlet valve is not working properly :

•Disconnect the machine from the electrical supply.

•Check the ATC Control Board for proper installation in its connector.

•Make sure that the harness wires are in their proper location in the connector.

•Remove the ATC Control Board from its connector.

•Using an ohmmeter, measure the resistance of the thermistor at connector harness

wires 3 (OR-W) and 9 (BR). Compare the reading with the values in the “Thermistor

Resistance Chart” (See Page 8).

If the ohmmeter readings are incorrect Remove and replace the thermistor and repeat

the test.

Notes :

I. If the hot water temperature is less than 49°

°°

°C, the cold water inlet valve

may turn off and stay off.

II. If the cold water temperature is above 21°

°°

°C, the cold water inlet valve will

stay on continuously.

III. If the thermistor is open-circuit, the cold water inlet valve will stay off. If

the thermistor is shorted, the cold water inlet valve will stay on

continuously.

5. Set the water temperature selector switch to Cold wash / Cold rinse.

6. Set the timer to the start of a wash cycle, start the machine and the tub will begin filling with

water.

7. The cold water inlet valve should remain energised while the hot water inlet valve will cycle

on and off. If the cold water temperature is above 18°

°°

°C, the hot water inlet valve may

not operate.

If the hot water inlet valve is not working properly disconnect the machine from the electrical

supply, replace the ATC Control Board and repeat steps 6. & 7.

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 7 of 23

Thermistor Resistance Chart

Temperature

°C

Resistance

kOhms

5 123.1 - 131.7

10 97.0 - 102.0

15 77.0 - 80.4

20 61.4 - 64.4

25 49.6 - 51.2

30 40.0 - 41.0

35 32.0 - 33.5

40 26.0 - 27.6

45 21.5 - 22.5

50 17.4 - 18.4

55 14.7 - 15.7

60 12.0 - 13.0

65 10.2 - 11.2

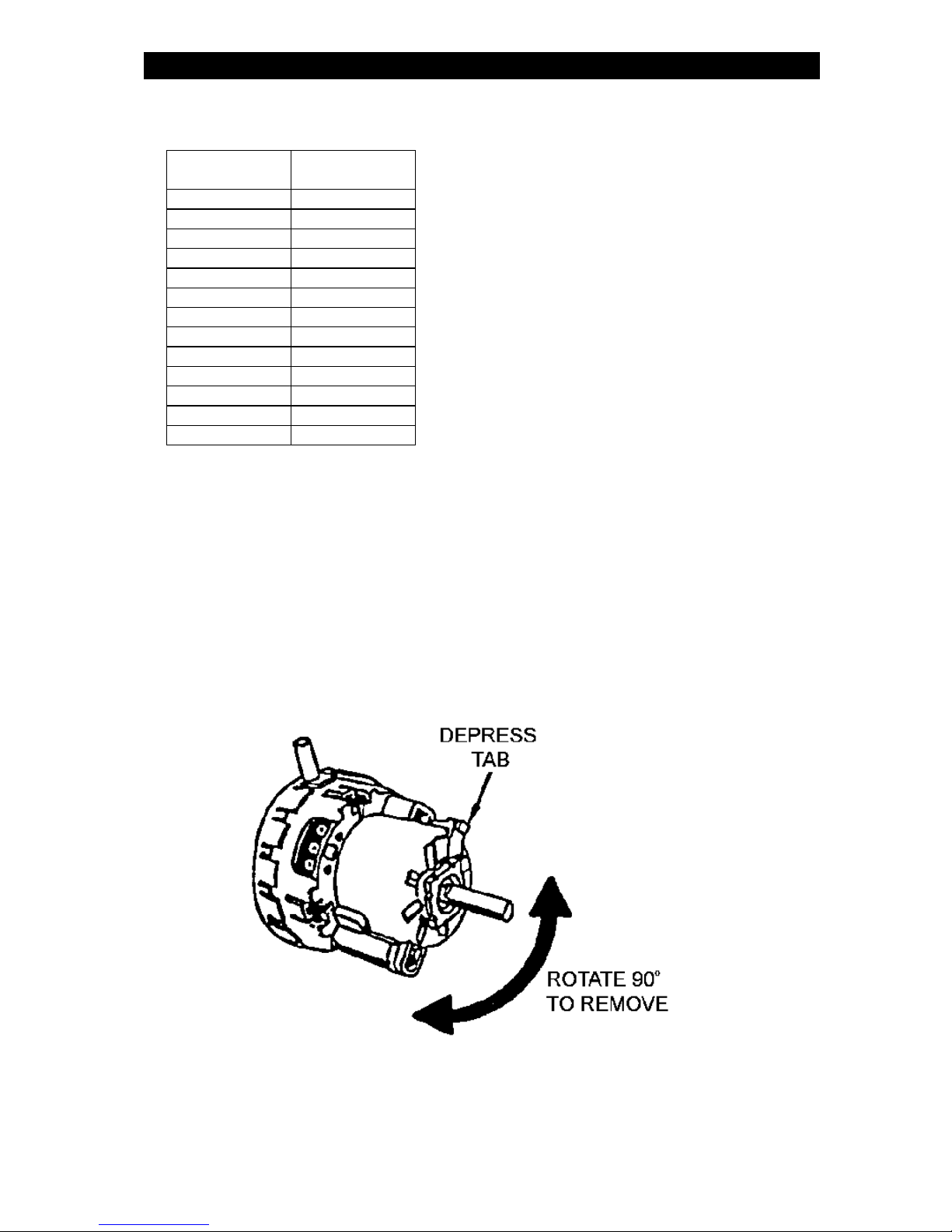

WATER LEVEL SWITCH

All new models are being fitted with a new water level switch constructed with a plastic body.

To remove the water level switch :

1. Pull the knob off the switch shaft.

2. Unplug the wiring harness connector from the switch assembly terminals and remove the

pressure switch tubing.

3. Depress the tab and rotate the switch 90°and pull it from the console mounting plate.

Figure 6

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 8 of 23

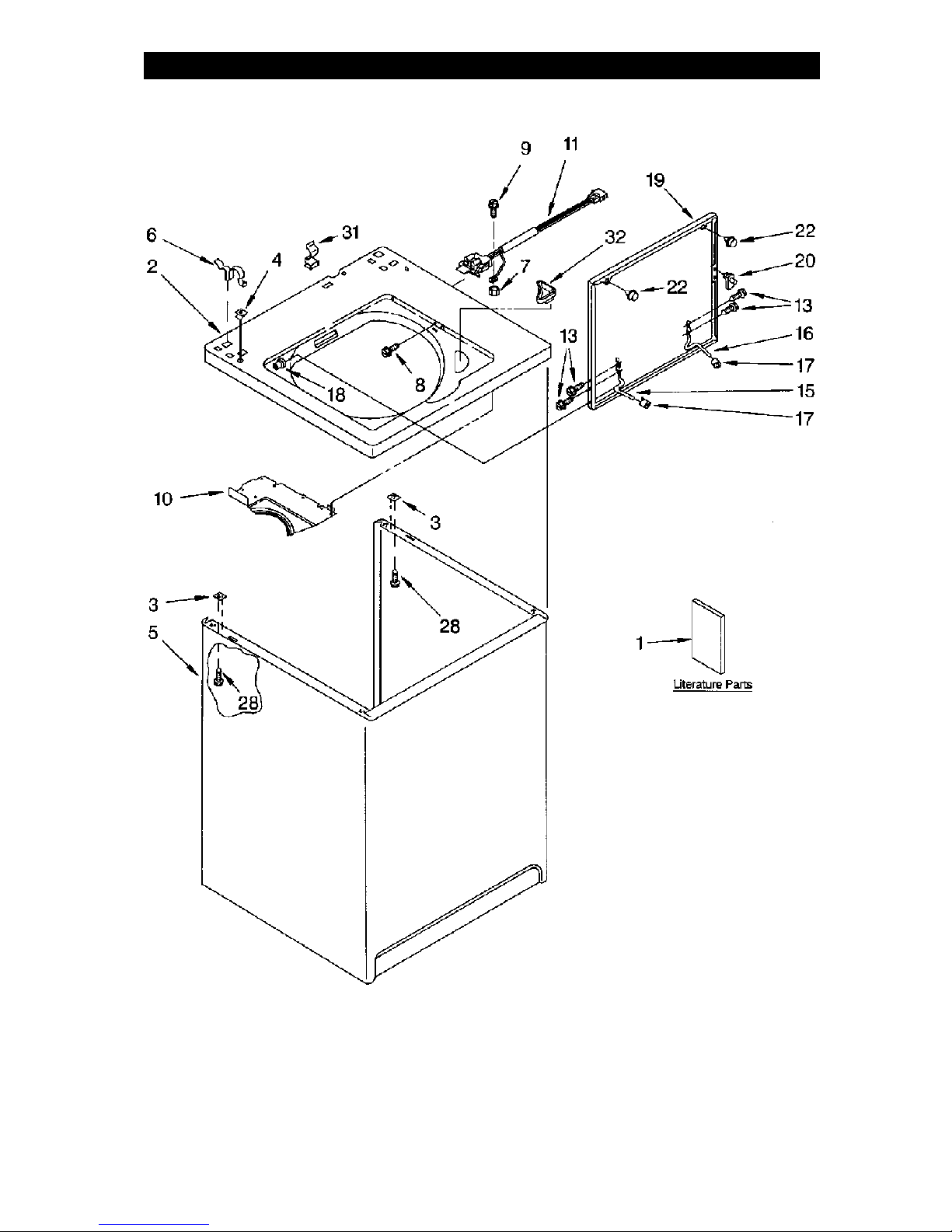

TOP AND CABINET PARTS

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 9 of 23

TOP AND CABINET PARTS

Item Part No Description

1 LIT3948875 Installation Instructions

1 LIT3951076 Use & Care Guide

1 LIT3954088 Wiring Diagram

2 8271408 Top

3 62750 Spacer, Cabinet To Top (4)

4 357213 Nut, Push-In

5 3951171 Cabinet

6 62780 Clip, Top & Cabinet & Rear Panel (2)

7 680762 Nut, Hex

8 3356311 Screw & Washer, Lid Switch (2)

9 3351614 Screw, 10-24 x 3/8

10 3950995 Shield, Lid Switch

11 3950299 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 3361400 Lid

20 358684 Strike, Lid Switch

22 9724509 Bumper, Lid (2)

28 3390631 Screw, 10-16 x 3/8 (4)

31 90016 Clip, Harness

32 3362952 Dispenser, Bleach

WHIRLPOOL CONSUMER SERVICES Model 6ALBR5233JQ0

Page 10 of 23

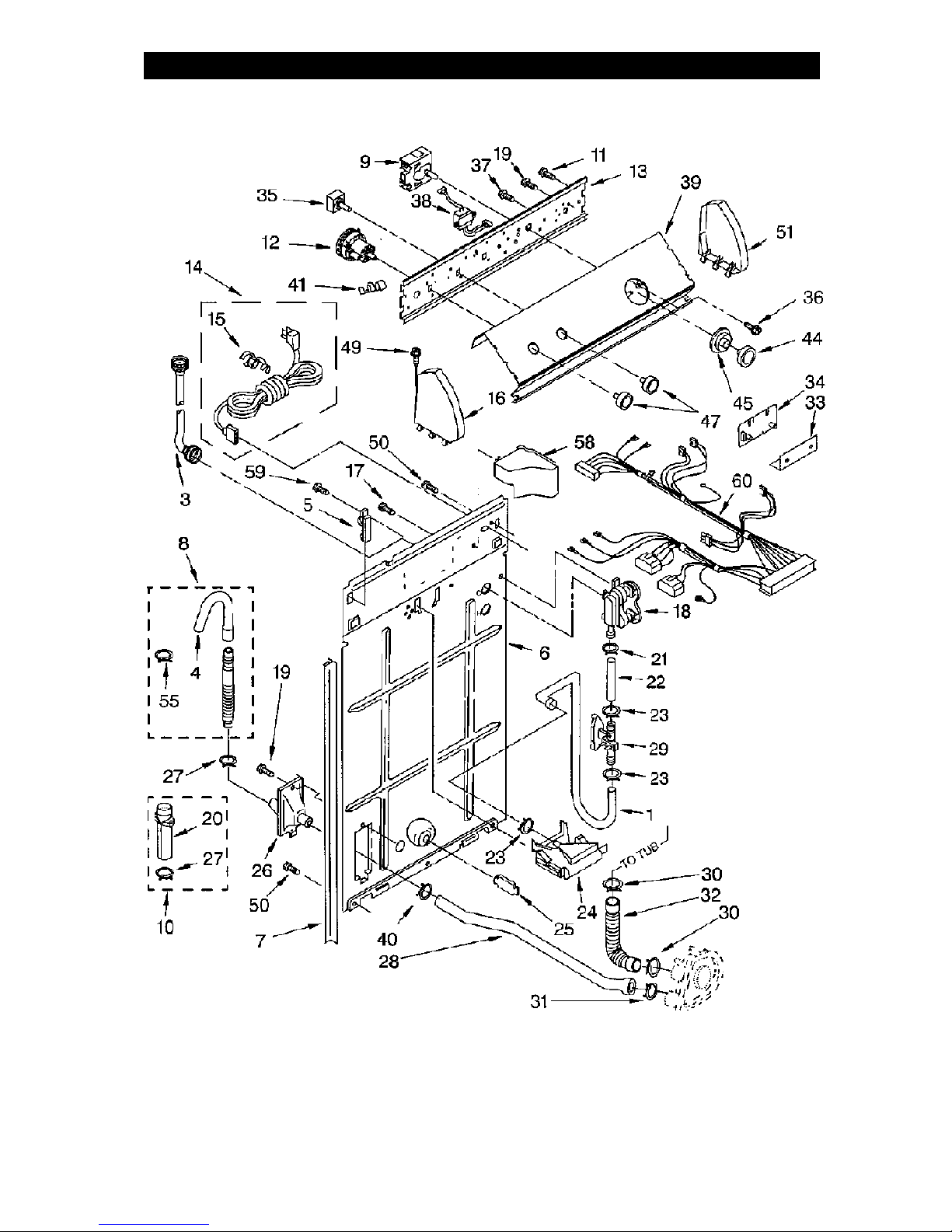

CONTROL AND REAR PANEL PARTS
