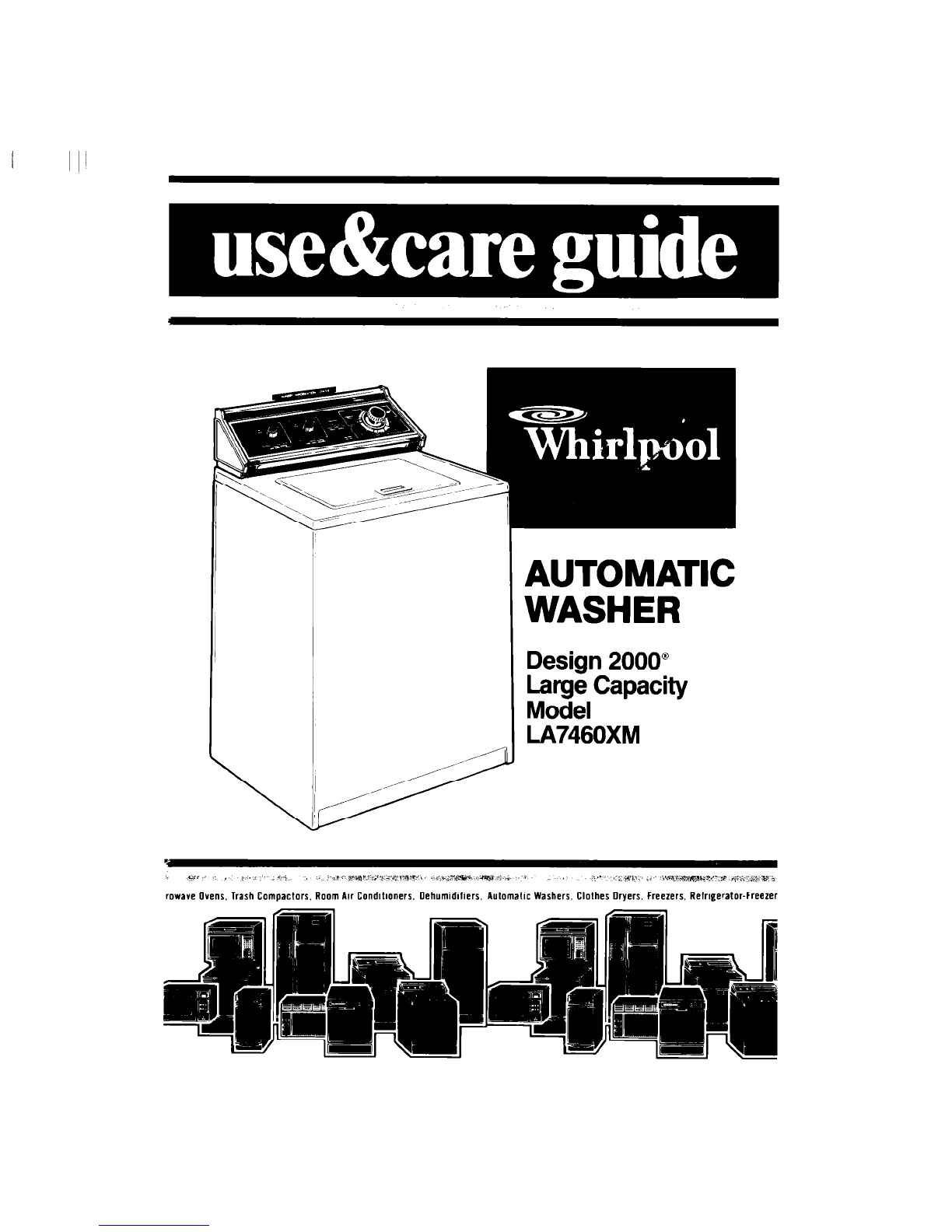

Whirlpool LA7460XM Manuel utilisateur

AUTOMATIC

WASHER

Design 2000”

Large Capacity

Model

LA7460XM

_ yc,- > :.‘, .-*,i. : i’,i+-- **P~<;y:2*$r:a&’ I . c~~.z~*~s. .:*.i: & ‘.’ : p ti /T ;vq:~~*:y’-* .+-<r :;+ F, -*

rowave Ovens, Trash Compactors. Room AM Conditroners. Oehumidrliers. Aulomalic Washers, Clothes Oryers, Freezers. Refrigerator-Freezer

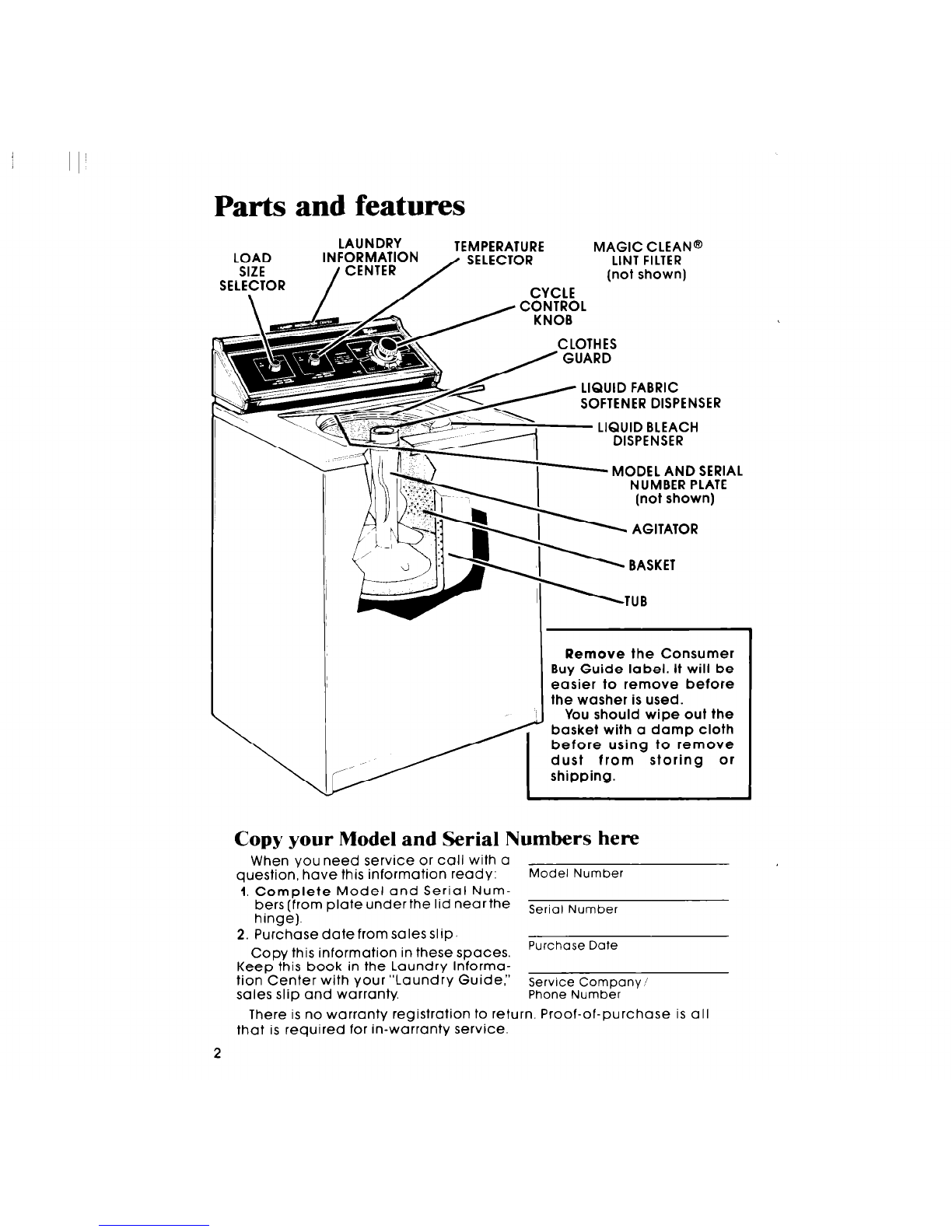

Parts and features

LOAD LAUNDRY

INFORMATION TEMPERATURE MAGIC CLEAN@

LINT FILTER

(not shown)

CYCLE

CLOTHES

/ GUARD

LIQUID FABRIC

SOFTENER DISPENSER

- LIQUID BLEACH

DISPENSER

- MODEL AND SERIAL

NUMBER PLATE

(not shown)

1 AGITATOR

\ BASKET

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready: Model Number

1. Complete Model and Serial Num-

bers (from plateunderthe lid nearthe

hinge). Serial Number

2. Purchase date from sales slip,

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

sales slip and warranty. Service Company!

Phone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

Your responsibilities

Read this ‘*Us& and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer.. .

is installed by a qualified installer.

is properly installed and

leveled on a floor that can

support the weight.’

is connected to the right kind

of outlet, electric supply, water

supply and drain.’

is properly grounded.*

i is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete information

Contents

Page

PARTSAND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER . 4

WHAT HAPPENS IN

EACH CYCLE 6

OTHER OPERATING

INSTRUCTIONS 8

For a Rinse and Spin 8

For a Drain and Spin 8

For a Soak or Pre-Wash 8

Liquid Bleach

Dispenser. 9

Liquid Fabric Softener

Dispenser. 9

MAGIC CLEAN@ Lint

Filter, 9

CARING FOR YOUR

WASHER 10

IF YOU NEED SERVICE OR

ASSISTANCE

0 1985 Whirlpool Corporation

II’

starting

your washer

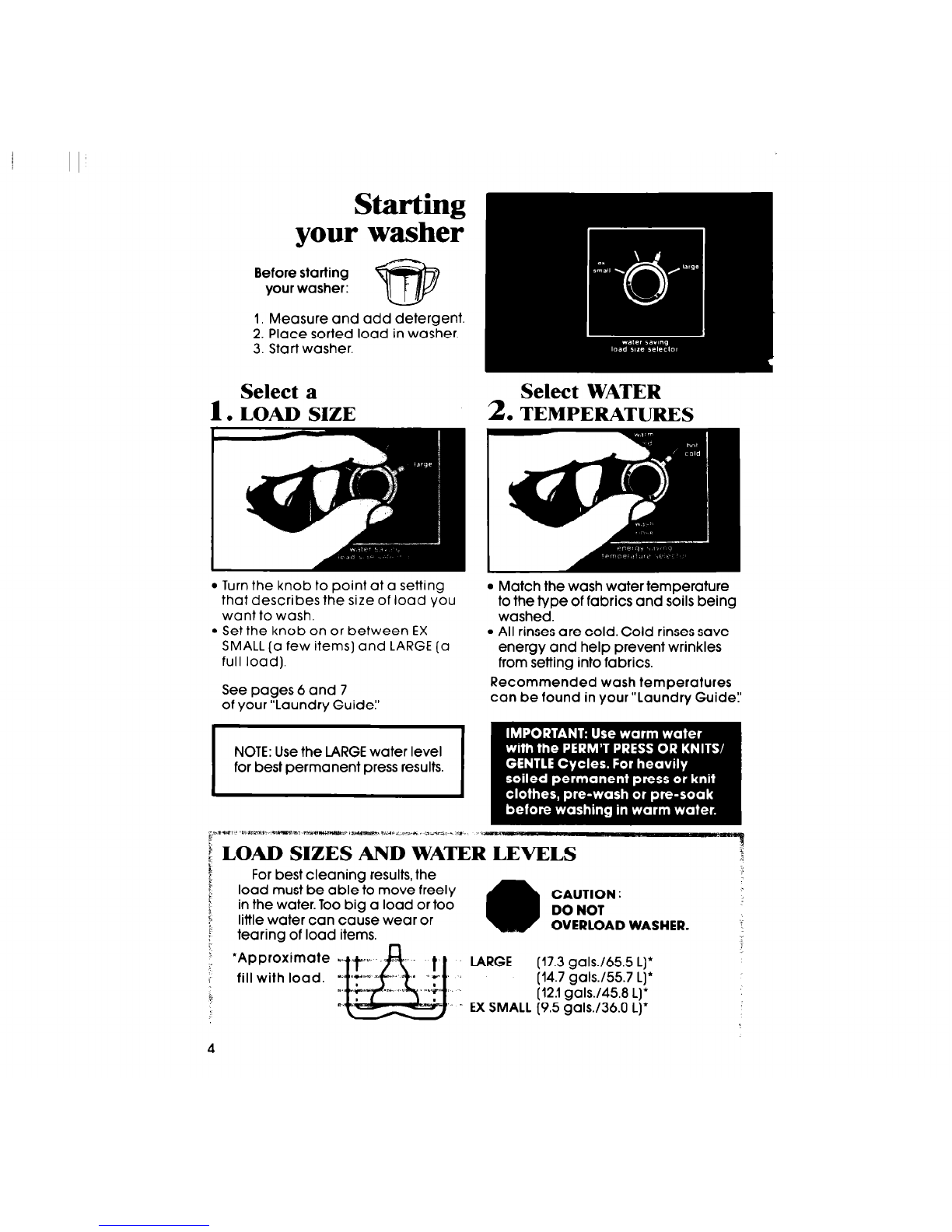

Before starting

your washer:

I, Measure and add detergent.

2. Place sorted load in washer.

3. Start washer.

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash.

. Set the knob on or between EX

SMALL (a few items] and LARGE (a

full load).

See pages 6 and 7

of your “Laundry Guide:’

Match the wash water temperature

to the type of fabrics and soils being

washed.

All rinses are cold. Cold rinses save

energy and help prevent wrinkles

from setting into fabrics.

Recommended wash temperatures

can be found in your “Laundry Guide:

NOTE: Use the LARGE water level

for best permanent press results. I

1 LOAD SIZES AND WATER LEVELS 9

For best cleaning results, the

; load must be able to move freely

I in the water. Too big a load or too CAUTION :

DO NOT

2 little water can cause wear or

!’ tearing of load items. 0 OVERLOAD WASHER. ;

‘, *Approximate u LARGE (17.3 gals./655 L)’

i fill with load. “- (14.7 galsJ55.7 L)*

b (12.1galsJ45.8 L)*

” F.XSMALL (9.5 galsJ36.0 L)’

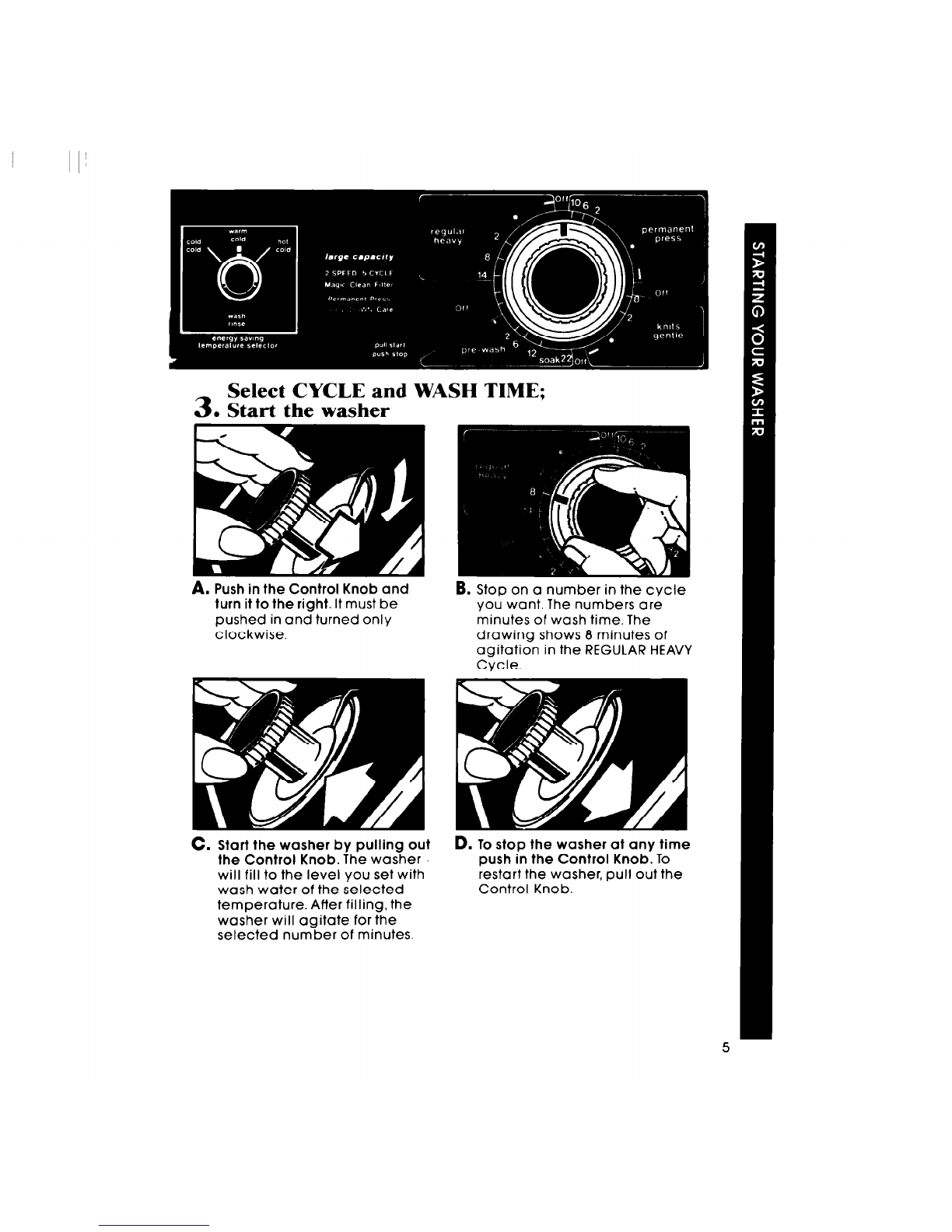

Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are

minutes of wash time. The

drawing shows 8 minutes of

agitation in the REGULAR HEAVY

Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

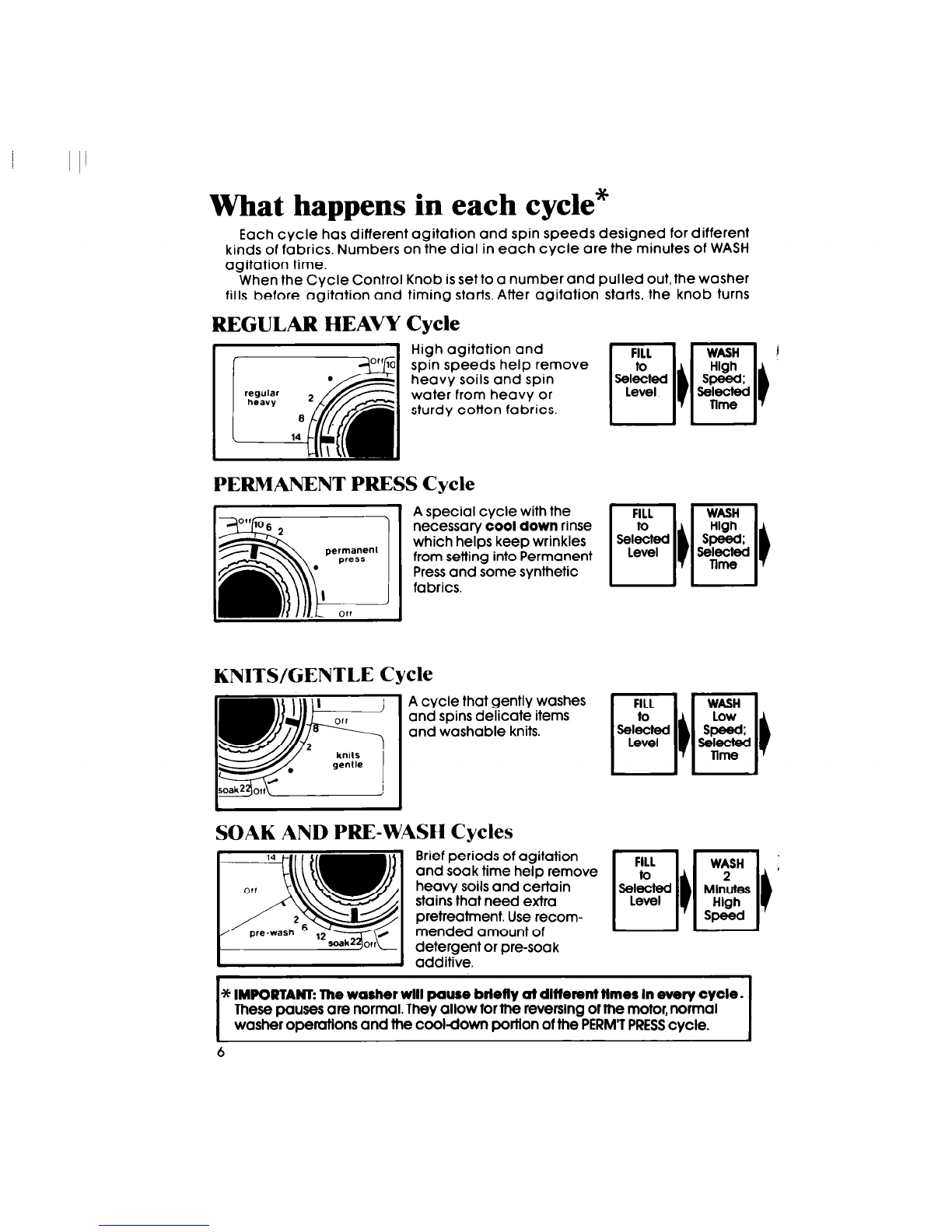

What happens in each cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns

REGULAR HEAVl

PERMANENT PRE

Cycle

High agitation and

spin speeds help remove

heavy soils and spin

water from heavy or

sturdv cotton fabrics.

S Cycle

A special cycle with the

necessary cool down rinse

which helps keep wrinkles

from setting into Permanent

Press and some synthetic

fabrics.

KNITS/GENTLE Cycle

A cycle that gently washes

and spins delicate items

and washable knits.

SOAK AND PRE-WASH Cycles

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soak

additive.

-)cIMPORTANT: The

washer

will pause brlefly at different timer In every cycle.

These paus8s are normal. They allow for the reversing of the motor, normal

washer

OperatlOnS

and the cookfown portion of the PERMIT PRESScycle.

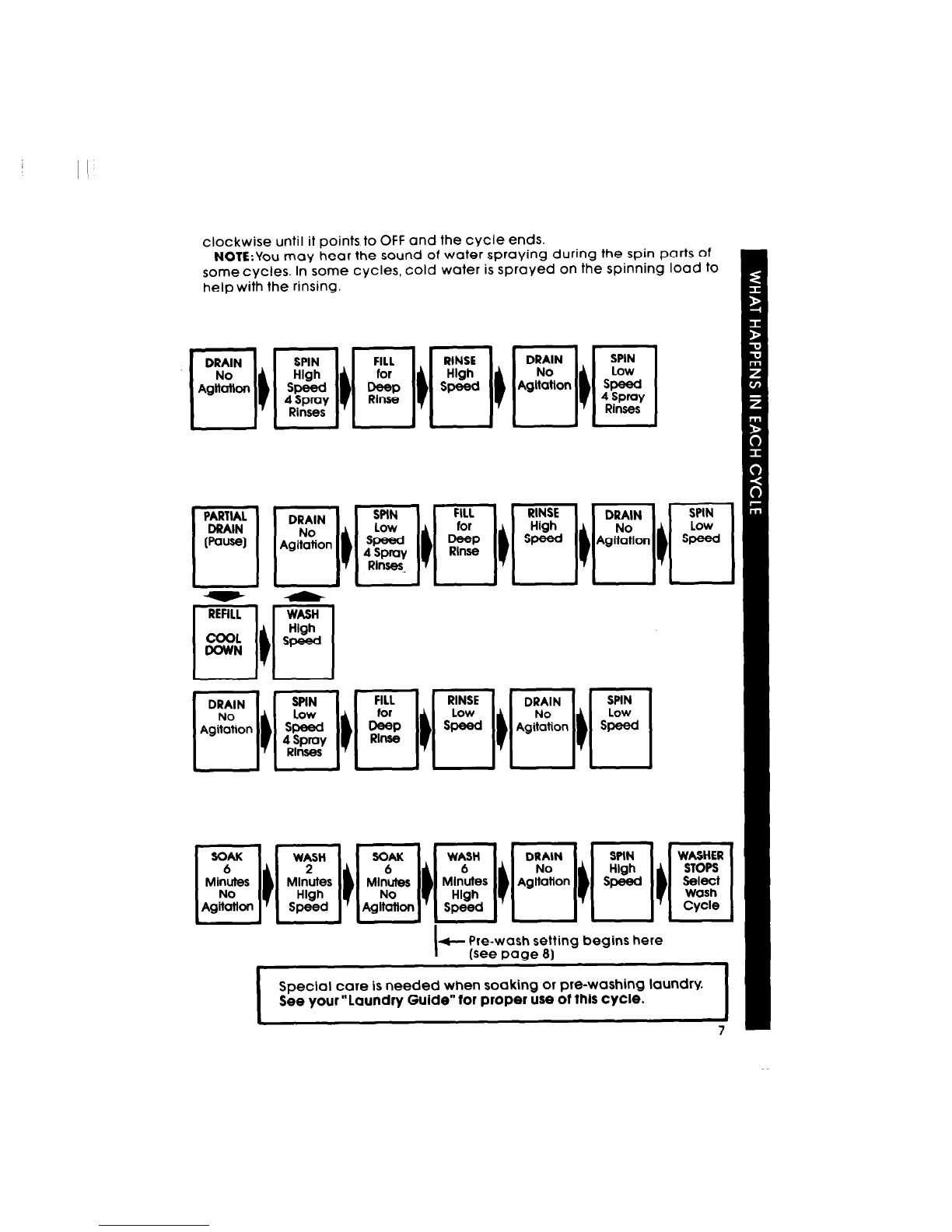

clockwise until it points to OFF and the cycle ends.

NOTE:You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to

help with the rinsing.

c- Pre-wash setting begins here

(see page 8)

Special care is needed when soaklng or pre-washing laundry.

See your “Laundry Guide” for proper use of this cycle.

I I’

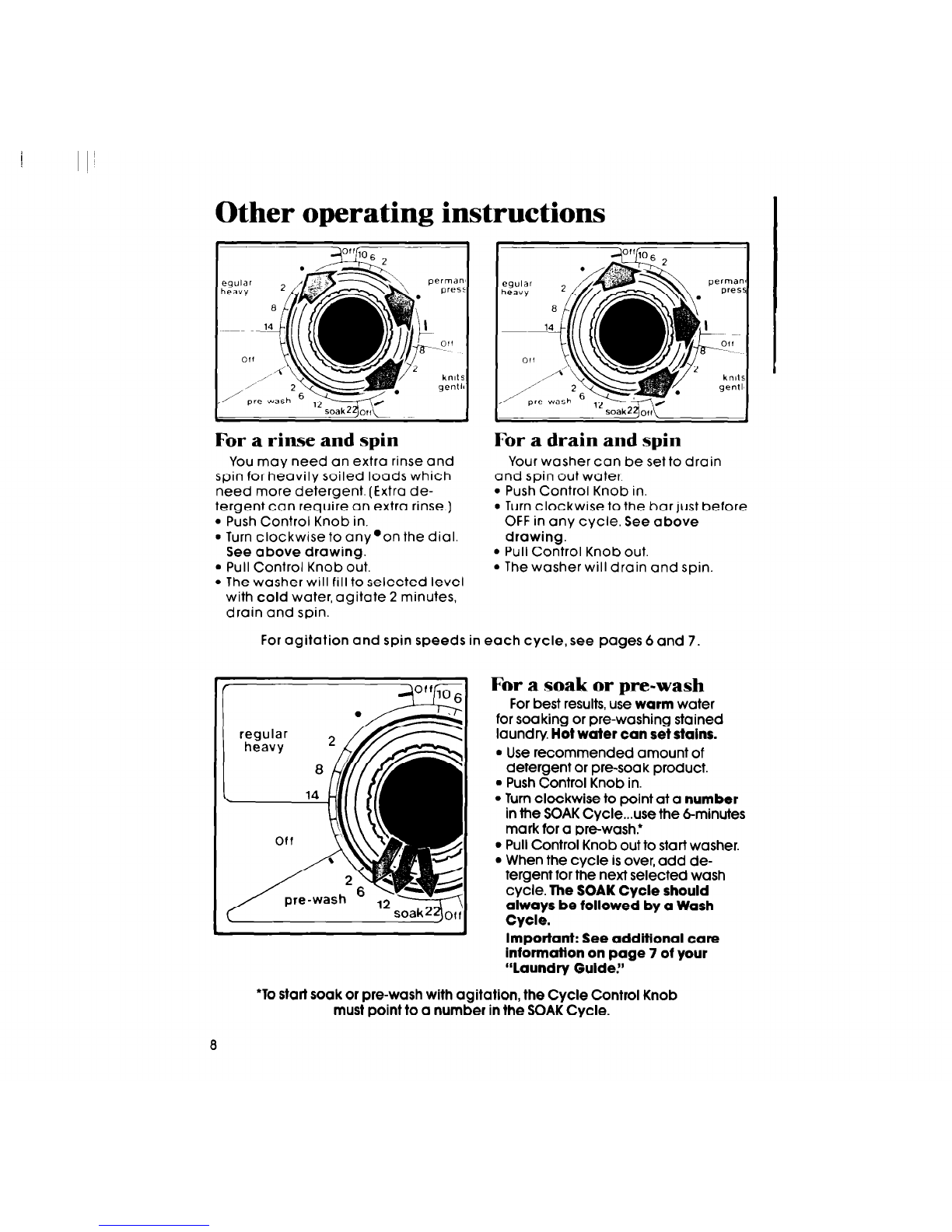

Other operating instructions

For a rinse and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.]

Push Control Knob in.

Turn clockwise to any’on the dial.

See above drawing.

Pull Control Knob out.

The washer will fill to selected level

with cold water, agitate 2 minutes,

drain and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6 and 7.

For a soak or pre-wash

For best results, use

warm

water

for soaking or pre-washing stained

laundry.

Hot water can set stains.

Use recommended amount of

detergent or pre-soa k product.

Push Control Knob in.

Turn clockwise to point at a

number

in the SOAK Cycle...use the bminutes

mark for a prewash.*

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle.

The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additlonal care

information on page 7 of your

“Laundry Guide!’

‘To start soak or pre-wash with agitation, the Cycle Control Knob

must point to a number in the SOAK Cycle.

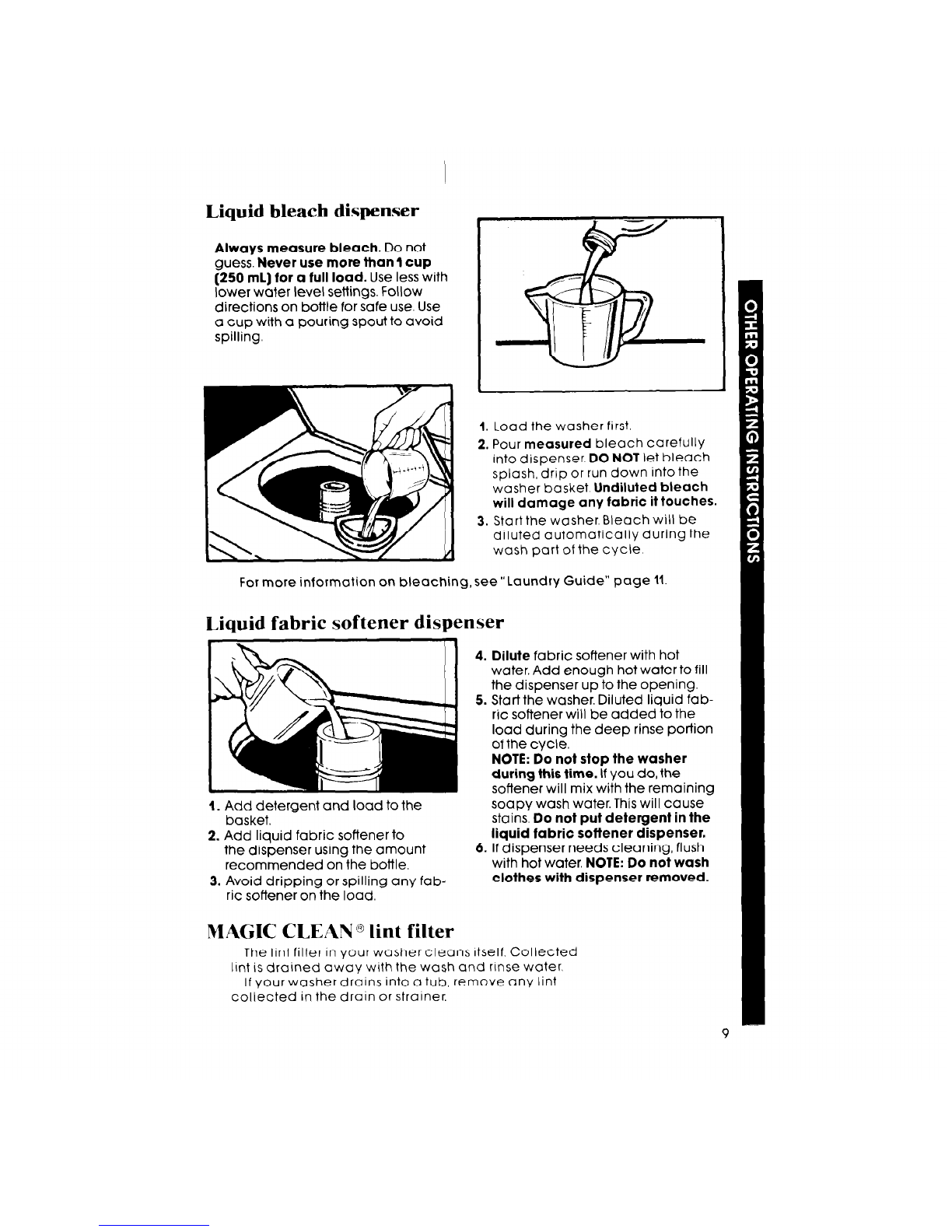

Liquid bleach dispenser

Always measure bleach. Do not

guess. Never use more than 1 cup

(250 ml) for a full load. Use less with

lower water level settings. Follow

directions on bottle for safe use. Use

a cup with a pouring spout to avoid

spilling.

1. Load the washer first.

2. Pour measured bleach carefully

into dispenser. DO NOT let bleach

splash, drip or run down into the

washer basket. Undiluted bleach

will damage any fabric it touches.

3. Start the washer. Bleach will be

diluted automatically during the

wash part of the cycle

For more information on bleaching, see”Laundry Guide” page 11.

Liquid fabric softener dispenser

1. Add detergent and load to the

basket.

2. Add liquid fabric softener to

the dispenser using the amount

recommended on the bottle.

3. Avoid dripping or spilling any fab-

ric softener on the load.

4. Dilute fabric softener with hot

water. Add enough hot water to fill

the dispenser up to the opening.

5. Stat-l the washer. Diluted liquid fab-

ric softener will be added to the

load during the deep rinse portion

of the cycle.

NOTE: Do not stop the washer

during this time. If you do, the

softener will mix with the remaining

soapy wash water. This will cause

stains. Do not put detergent in the

liquid fabric softener dispenser.

6. If dispenser needs cleaning, flush

with hot water. NOTE: Do not wash

clothes with dispenser removed.

MAGIC CLEAN @lint filter

The lint filter in your washer cleans ItSelf.

COlleCted

lint is drained away with the wash and rinse water.

If your washer drains into a tub, remove any lint

collected in the drain or strainer.

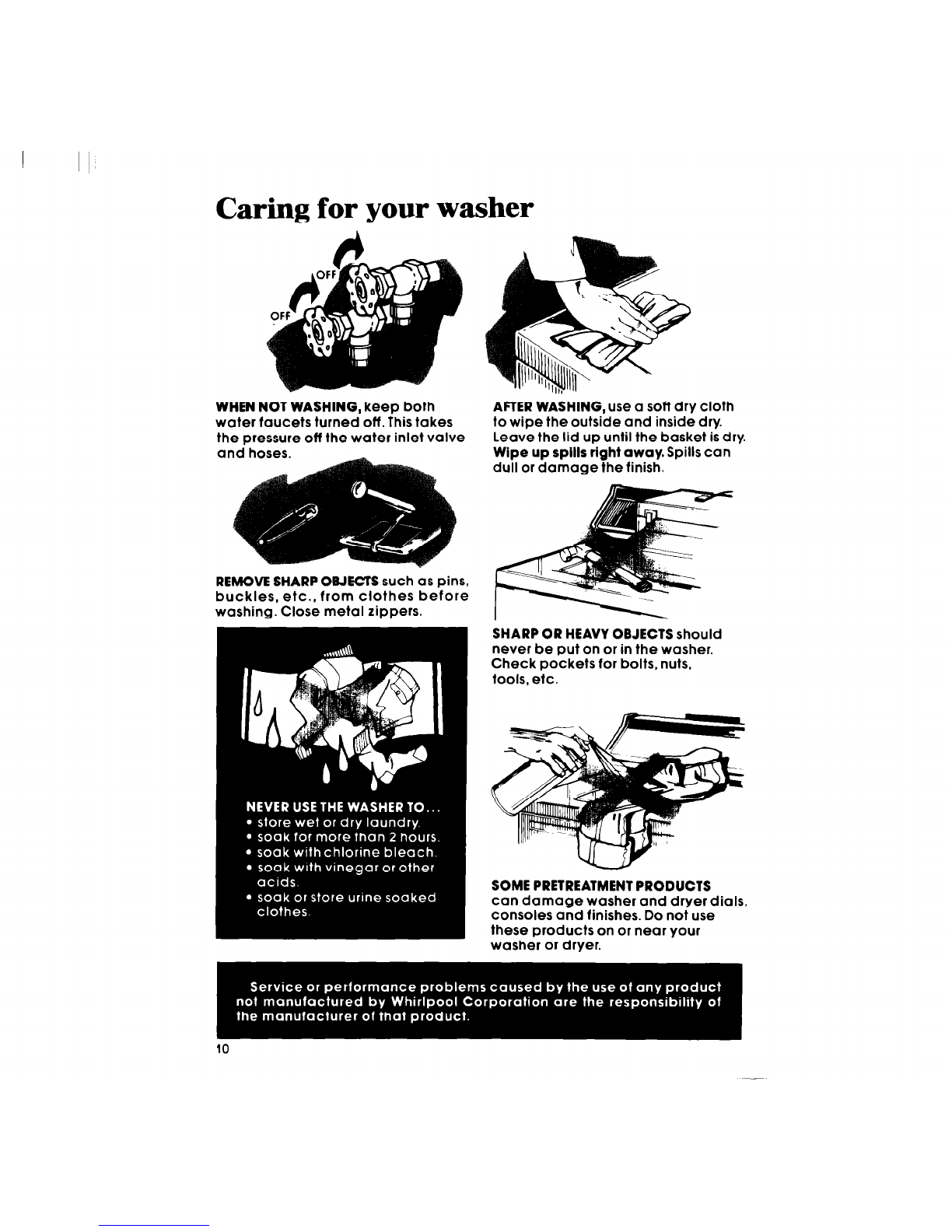

Caring for your washer

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet valve

and hoses.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

AFTER WASHING, use a soft dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry.

Wipe up spills right

away.

Spills can

dull or damage the finish.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can damage washer and dryer dials,

consoles and finishes. Do not use

these products on or near your

washer or dryer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Rondelle

Whirlpool

Whirlpool WWDC-9440 Manuel utilisateur

Whirlpool

Whirlpool LA9800XM Manuel utilisateur

Whirlpool

Whirlpool 8578566 Manuel utilisateur

Whirlpool

Whirlpool LA638OXP Manuel utilisateur

Whirlpool

Whirlpool WTW8000BW Manuel utilisateur

Whirlpool

Whirlpool WTW4800X Series Manuel utilisateur

Whirlpool

Whirlpool AWM276 Manuel utilisateur

Whirlpool

Whirlpool LSP880GP Manuel utilisateur

Whirlpool

Whirlpool AWM 028 Manuel utilisateur

Whirlpool

Whirlpool LLR8233BN0 Manuel utilisateur

Whirlpool

Whirlpool LA5530XP Manuel utilisateur

Whirlpool

Whirlpool CABRIO W10280477C Manuel utilisateur

Whirlpool

Whirlpool LA8100XW Manuel utilisateur

Whirlpool

Whirlpool duet sport WFW8300SW1 Guide de dépannage

Whirlpool

Whirlpool LC4900XK Manuel utilisateur

Whirlpool

Whirlpool AWZ 9995 Manuel utilisateur

Whirlpool

Whirlpool W10554130C - SP Manuel utilisateur

Whirlpool

Whirlpool AWG 681 WP Manuel utilisateur

Whirlpool

Whirlpool cabrio W10560171B Manuel utilisateur

Whirlpool

Whirlpool FRONT-LOADINGAUTOMATIC WASHER Manuel utilisateur

Whirlpool

Whirlpool LA5460XS Manuel utilisateur

Whirlpool

Whirlpool AWM 8163/3 Manuel utilisateur

Whirlpool

Whirlpool WFW95HEDC Manuel utilisateur

Whirlpool

Whirlpool Duet Steam WFW9550WW00 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
