This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

Twin Tub Washing Machine

PARTS &

SERVICEManual

MODEL

Sap Model No

Description

6111

AWT-55S GREY (Philippines)

6301

AWT-55S ALMOND (Philippines)

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

TWIN TUB WASHING MACHINE

CONTENTS

S.NO DESCRIPTION PAGE NO

1. SPECIFICATIONS 5

2. SPECIAL FEATURES OF SUPER XL 6

3. CONTROL & FUNCTIONS 7

4. EXPLODED VIEW AND PARTS LIST 9

5. WIRING DIAGRAM 13

6. FAULT FINDING GUIDE 14

7. COMPONENT CHECK GUIDE 16

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

AWT 55S

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

SPECIFICATIONS

MODELS:

1. POWER SOURCE : 220V AC 60 HZ

2. CAPACITY WASH : 5.5 KG DRY WEIGHT

SPIN : 5.5 KG WET WEIGHT

3. OVERALL DIMENSIONS : W 750MM/D 490 MM/H-812MM

4. MACHINE WEIGHT PACKED : 37 KGS

UNPACKED : 30 KGS

5. MOTOR SPEED WASH : 1400 RPM+ 25 RPM

SPIN : 1400 RPM+ 25 RPM

6. MOTOR POWER WASH : 330 W

(INPUT) SPIN : 150 W

7. WASH SYSTEM : AGITATOR TYPE

8. SPIN SYSTEM : CENTRIFUGAL

9. WATER LEVEL SELECTION : 3

10. WATER CAPACITY HIGH : 55 L

MEDIUM : 43 L

LOW : 36 L

11. AGITATOR SPEED : 11 STROKES PER MINUTE

12. INDICATOR : No BUZZER

13. DRIVE SYSTEM WASH : BELT & PLANETARY GEAR

SPN : DIRECT

14. WASH TIMER SETTINGS : 1 TO 15 MINUTES

15. SPIN TIMER SETTINGS : 1 TO 5 MINUTES

16. TIMER WASH : ELCTRO MECHANICAL

SPIN : MECHANICAL

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

FEATURES

The following are of the main features available in –Super WASH New semi automatic

washing machine:

Stainless steel spin basket with liquid balancing ring.

Pre painted galvanized sheet for cabinet.

Unique agitator washing system

5.5-kg wash & matched spin capacity.

Rat mesh

Transparent wash lid

Improved Spin shower option

Wheels for mobility

Electro mechanical wash timer

Drain hose routing on all sides

Power card winding facility

Hinged wash lid and also easily accessible & can be hinged on the side

Fuse 3A –Enclosed in Polyphone cover

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

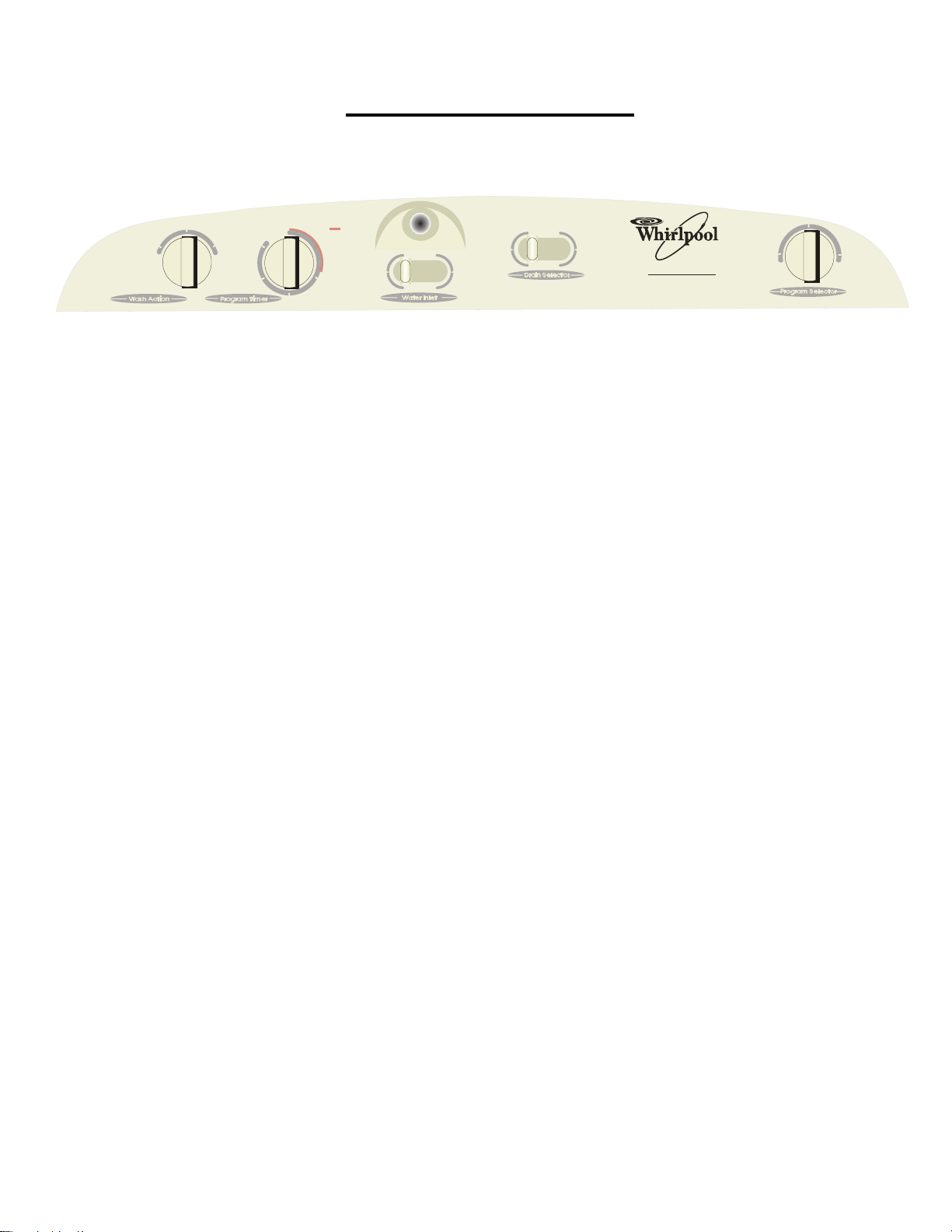

Controls and Functions

1.WASH TIMER

This Electro mechanical timer is meant for selecting the WASH / RINSE duration ranging

from 1 minute to 15 minutes. Indications for 3,6,9,12 & 15 minutes are given in the dial. For

setting the required duration, the knob has to be rotated in clockwise direction and set at

corresponding mark in the dial. Once the knob is set at the required position, the machine is

switched on and the timer automatically rewinds in anticlockwise direction while performing

WASH / RINSE. Once the timer knob reaches the 'OFF' position, the buzzer indicates the

completion of the cycle and the machine gets automatically switched off.

2 . WASH ACTION

Wash action switch is basically a three position switch viz., HEAVY, NORMAL, & SOFT.

This knob controls the ON and OFF duration of the motor during agitation thereby varying

the washing action. The following are the wash timing corresponding to various settings:

3. DRAIN SELECTOR

This is a mechanical, slide type knob with two positions WASH/RINSE and DRAIN. When

set at WASH/RINSE position, the drain valve attached to the wash tub is closed thereby

allowing the water to get retained in the tub to perform wash/rinse , If the knob Is pushed to

DRAIN mode , the drain and the water in the wash tub is drained out.

4. SPIN SHOWER

This is again a tow position knob viz. WASH TUB and SPIN SHOWER. When set at WASH

TUB position, it allows the water to be filled in the wash tub. When set at SPIN SHOWER

position, the water gets filled in the spin tub.

Spin shower option is generally used to aid the soap removal form the clothes. During this

process, the clothes are loaded in the spin tub and the knob is set at SPIN SHOWER mode.

Water is then filled into the machine. This water gets sprayed over the clothes in spin tub.

Wash

Tub

Spin

Tub

Drain

Wash/Rinse

max. spin

time

Soft

Normal

Heavy

Wash

Spin

Wash

Spin

AWT 55

5.5 KG

HOM

APPLIANC

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

After 2 minutes of spraying, the water supply needs to be cut off and then spin timer is set

ON for few minutes of spinning. This removes the suds from the clothes effectively.

5. PROGRAM SELECTTOR

In super new models, the spin timer is replacing this three way switch. The three positions

available are WASH, SPIN and WASH & SPIN. This switch will work in conjunction with

the wash timer (Known as PROGRAM TIMER in SUPER NEW model) as detailed below:

AT WASH POSITION : The wash motor will be ON for the duration set at

PROGRAM TIMER

AT SPIN POSITON : The spin motor will be ON for the duration set at

PROGRAM TIMER

AT WASH & SPIN : BOTH THE WASH AND SPIN MOTORS will be ON for

the duration set at PROGRAM TIMER

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

Parts List

Loc No

Part Code

Description

6111

6301

P013260110I

LID WASH ASSY - PLWH

P0132601700

LID WASH ASSY - LIGHT GREY

P013200040B

WINDOW - LID WASH

P013200260E

COVER - SPLASH - APWH

P013200280C

BRACKET - LID WASH - APWH

P0156004900

FRONT PANEL - NT - PLWH

P0156005200

FRONT PANEL - NT - LIGHT GREY

P010600020C

INNER COVER-SPIN

P014200010B

SPIN CAP - PL/SS

P010690160A

OVERFLOW FILTER ASSY - APWH

P0156173300

ASSY.AGITATOR SHAFT-NT(2 Pins ALUM ASSY)

P0156120900

BELLOW SPIN ASSY - TT (NEW)

P0106182700

BRAKE FIX PLATE ASSY

P010618010H

UNDER BASE

P013240020A

DIVERTOR - Tango

P013200310B

SPRING LID

P010613130H

BALANCE RING ASSY (TT) - APWH

P010613140H

BALANCE RING - BOTTOM (TT) - APWH

P0106131500

BALANCE RING - TOP (TT) - APWH

P0135130400

SPIN BASKET - PLASTIC ASSY - APWH

P016613080A

SHAFT FIX PLATE ASSY-(INSERT MOU)CHANDNI

P010618040I

BRAKE WIRE ASSY

P013218020D

PULLEY FAN ASSY - SHEET METAL

P0160181200

MOTOR-WASH (30 M) - CGL EXPORT - 220 V

P010618150A

GROMMET

P0106181800

GROMMET SUPPORT PLATE

P010618280A

WHEEL CASTOR (S)

P0106181400

WHEEL-SHAFT

P013240400F

KNOB SLIDE SELECTOR - PLWH

P013240130A

RETAINER - SPIN SHOWER

P0150700200

FILL HOSE ASSY-SUPER DLX(1000MM) L.GREY

P013218010B

DAMPING RUBBER - TT

P015617370A

DRIVE ASSY (2 PIN) TT (PES)-ADC(PLASTIC)

P013212070C

PULLEY - DRIVEN

S011590010A

NUT NYLOC

P010618050A

BAND-BRAKE

P013218030A

CUSH MOTOR ASSY - TT

P015018020A

DUAL CAPACITOR (8 + 5 MFD) SUPER DLX

P013240390G

KNOB SLIDE DRAIN - PLWH

P013240040E

HOUSING - LEVER CONTROL

P0135401900

KNOB ROTARY - B - LIGHT GREY

P0138405900

CONTROL PANEL - AWT 55S- LIGHT GREY

P0138406000

CONTROL PANEL ASSY - AWT 55S-LIGHT GREY

P0138406100

CONTROL PANEL - AWT 55S- PEARL WHITE

P0138406200

CONTROL PANEL ASSY - AWT 55S-PEARL WHITE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First release Date 12th Mar, 2003 Subject to modification

Document No. WOI/WM/2003/009

Loc No

Part Code

Description

6111

6301

P0156408600

SWITCH WASH / SPIN - NT (RUBBER SEAL)

P0160403800

Wash Timer Assy - PBT - S.Arabia

P0160403900

WASH TIMER BASE ASSY - PBT - S.ARABIA

P010600060C

RETAINER-BRAKE WIRE

P0106125300

COUNTER FLOW PROTECTOR

P014212010A

TUB ASSY COMPLETE - TANGO++ - APWH

P010600530B

V-BELT(TWIN TUB)

S017100000A

PIG TAIL CONNECTOR-3 DIA

P013240480B

MICRO SWITCH - LEVER - K

P0132400700

DRAIN CONTROL ASSY

P010612390D

VALVE CAP

P010612460C

VALVE SPRING

P0106122000

VALVE ROD-ADJUSTABLE

P010612050A

BELLOWS-VALVE

P010612450D

HOSE-TUB TO DRAIN (D:36, L:275)

P010612040G

INLET JOINT

P0106120300

VALVE HOUSING ASSY

P0132004100

BASE WATER PASSAGE ASSY-White(Optimised)

P013200010I

BRACKET-BRAKE WIRE

P010612280D

COVER SLIDER - APWH

P014212020D

SLIDER - ADJ. OVERFLOW - APWH

P010612470G

HOSE-ADJUSTABLE OVERFLOW

P0156120600

STRAINER (SNAP TYPE) - APWH

P014200020D

INSPECTION COVER - HIPS -PLWH(1.0)W.FLAP

P014200230D

INSPECTION COVER-HIPS-L.GREY (1.0)W.FLAP

P0160405400

INNER EARTH ASSY-W&S.MOT.TO CAB-TT-EXPOR

P013240060E

FUSE ASSY (3A) - TT

P013840310A

POWER CORD - MEXICO (2 FLAT PIN)

P010612080B

DRAIN HOSE WITH HOOK-L.GREY(D:36,L:1145)

P0136210400

CABINET ASSY - PLWH

P014221090A

FILTER NET ASSY - ECO DLX

P010618130A

SPRING-BRAKE

P013212020A

TOP PLATE AND INNER COVER ASSY - APWH

P0160181100

MOTOR SPIN (20 mm) - CGL Export - 220 V

P0150403500

KNOB-ROTARY A - LIGHT GREY - SUPER DLX

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Rondelle

Whirlpool

Whirlpool Easy-Yo-Use Automatic Washer Manuel utilisateur

Whirlpool

Whirlpool Design 2000 LA5700XP Manuel utilisateur

Whirlpool

Whirlpool LSQ8500JQ1 Manuel utilisateur

Whirlpool

Whirlpool Duet GHW9100LW1 Manuel utilisateur

Whirlpool

Whirlpool Cabrio WTW6600SB1 Manuel utilisateur

Whirlpool

Whirlpool LCE4332PQ - 22" Washer w/2.1 cu. Ft.... Manuel utilisateur

Whirlpool

Whirlpool Estate TAWS800JQ3 Manuel utilisateur

Whirlpool

Whirlpool AWM 5085 Manuel utilisateur

Whirlpool

Whirlpool AWV6200 Manuel utilisateur

Whirlpool

Whirlpool LA7680XP Manuel utilisateur

Whirlpool

Whirlpool 3LCHW9100WQ Manuel utilisateur

Whirlpool

Whirlpool AUTOMATIC WASHER W10314723 Manuel utilisateur

Whirlpool

Whirlpool WTW5790SQ2 Manuel utilisateur

Whirlpool

Whirlpool WFC7500VW0 Manuel utilisateur

Whirlpool

Whirlpool w10330926b Manuel utilisateur

Whirlpool

Whirlpool WFW9050XW01 Manuel utilisateur

Whirlpool

Whirlpool AWZ 612 Manuel utilisateur

Whirlpool

Whirlpool AWO/D 6723 Manuel utilisateur

Whirlpool

Whirlpool WFC7500VW Instructions de montage

Whirlpool

Whirlpool 3RLSQ8000JQ4 Manuel utilisateur

Whirlpool

Whirlpool LLN8233BW0 Manuel utilisateur

Whirlpool

Whirlpool WTW4950X Series Manuel utilisateur

Whirlpool

Whirlpool AWM 5145/5 Manuel utilisateur

Whirlpool

Whirlpool LHW0050PQ1 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
