NO-FROST REFRIGERATOR-FREEZER

MODELS 3ET22DK 6ET20DK

3ET18DK 6ET18DK

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as This symbol will help you avoid actions which

personal injury, burns, fire and electrical shock. could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Help when you need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 18. If you need further help, feel free to call an authorized

WhirpoolSM service company. When calling, you will need to know your appliance’s complete model

number and serial number. You can find this information on the model and serial number label (see

diagram on page 4). For your convenience, we have included a handy place below for you to record

these numbers, the purchase date from the sales slip and your dealer’s name and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when ustng your

refrigerator, follow these basic precautions:

Read all instructions before using the

I refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous .__even if

they will “just sit in the garage a few days.”

If you are getting rid of your old refrigerator,

do it safely.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LlQUlDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

-SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding.

Use the refrigerator only for the uses described

in this manual.

Do not install the refrigerator near an oven,

radiator or other heat source.

Properly maintain the refrigerator.

Keep the refrigerator out of the weather.

Do not use the refrigerator in an area where the

room temperature will fall below 13°C (55°F)

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Do not load the refrigerator with food before it

has time to get properly cold.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

. Rub briskly with thumb to make a ball, then

remove.

. Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE:

Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like. The model you have purchased may have all

or some of the parts and features shown and they may not match the illustration exactly. This manual is

designed to cover several models.

Ice cube trays Freezer light Removable shelf

and shelf (3ET22DK) (6ET20DK and 3ET22DK)

Control panel

Shelf glides

Utility

,compartment

Butter

compartment

Freezer shelf

Leveling rollers 7 - uase grme

(behind base grille) Model 3ET22DK shown

Refrigerator

control Exterior moisture

control tight

switch Freezer

control

Before Using Your

Refrigerator

In This Section

Page

Clean it ............._................................................... 5

Plug it in ........._.................................................... 5

Page

Install it properly ..............___.............................5

Level it ..............................................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Clean it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 14.

Plug it in

Recommended Grounding Method

A 220

or 240 Volt, 50 Hz.. AC only 15 or 20

ampere fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance be

provided. Use a receptacle which cannot be

turned off with a switch or pull chain. Do not use

an extension cord.

Install it properly

1. Allow 1.25 cm (I/Zinch) space on each side

and

the top of the refrigerator for ease of

installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave extra

space so the door can be opened wider.

3. The refrigerator can be flush against the back

wall.

Level it

Your refrigerator has 2 front leveling screws-one

on the right and one on the left. To adjust one or

both of these, follow the directions below.

1. Remove base grille. (See page 12.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

Check with level.

Front

Right to raise;

left to lower

Use a screwdriver

roller

5. Replace base grille. (See page 12.)

Using Your Refrigerator

In This Section Page

Setting the control0 ...............................--..... 7

Changing the control settings ..................-...... 9

Adjusting the door bins .....................................9

Adjusting the bin/shelf glides ...........................9

Adjusting the refrigerator shelves ....................9

Removing the meat drawer and cover .........-.. 9

Removing the crispers and crisper cover ...... 10

Adjusting the crisper humidity control .......... 10

Paw

Removing the freezer shelf ........................... 11

Raising the ice compartment door ............... 11

Using the ice cube traya ................................11

Changing the light bulbs ............................... 12

Removing the base grille .............................. 12

Reversing the door swing ............................. 13

Understanding the sounds you may hear ... 13

Saving energy ................................................ 13

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in

for the first time:

Set the Refrigerator Control to 4.

Refrigerator Control adjustments range from

1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 8.

Exterior moisture control

The Exterior Moisture Control operates electric

heaters around the door openings. These heaters

help keep moisture from forming on the outside

of the refrigerator cabinet.

Use the OFF setting when humidity is low.

2. Use the ON setting if moisture forms on the

outside of the refrigerator cabinet.

REFRIGERATOR

EXlERIORMOISTURECOmOL

Changing the control settings

If you need to adjust temperatures in refrigerator

Adjust the Refrigerator Control first.

or freezer, use the settings listed in the chart

Wait at least 24 hours between adjustments.

below as a guide.

Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SEITINGS:

If Refrigerator Door opened often Refrigerator

Section is Large amount of food added Freezer D

TOO WARM Room temperature too warm

If Freezer Door opened often Refrigerator 4

Section is Large amount of food added

Freezer A

TOO WARM

Very cold room temperature

(can’t cycle often enough)

If Refrigerator Controls not set correctly Refrigerator

Section is for your conditions Freezer i

TOO COLD

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer A

Refrigerator

Freezer z

Adjusting the door bins

To remove door bins:

Lift bin up.

2. Pull bin straight out.

To replace door bins:

Slide bin in above desired support button.

2. Push down until it stops.

Support button

Adjusting the bin/shelf glides

The bin/shetf glides can be used to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide glide along bin/track.

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy food

items.

To remove glass shelves:

Remove items from shetf.

2. Tilt shetf up at front.

3. Lift back of shelf.

4. Pull shelf straight out.

To replace glass shelves:

Guide the rear shelf hooks into the slots in the

shelf supports on cabinet

wall.

2. Tilt shetf up at front until hooks drop into slots.

Lower front of shelf to level position.

Removing the meat drawer and cover

To remove the meat drawer:

Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order.

Pull out lo lhe 61op, lift

the front and pull again.

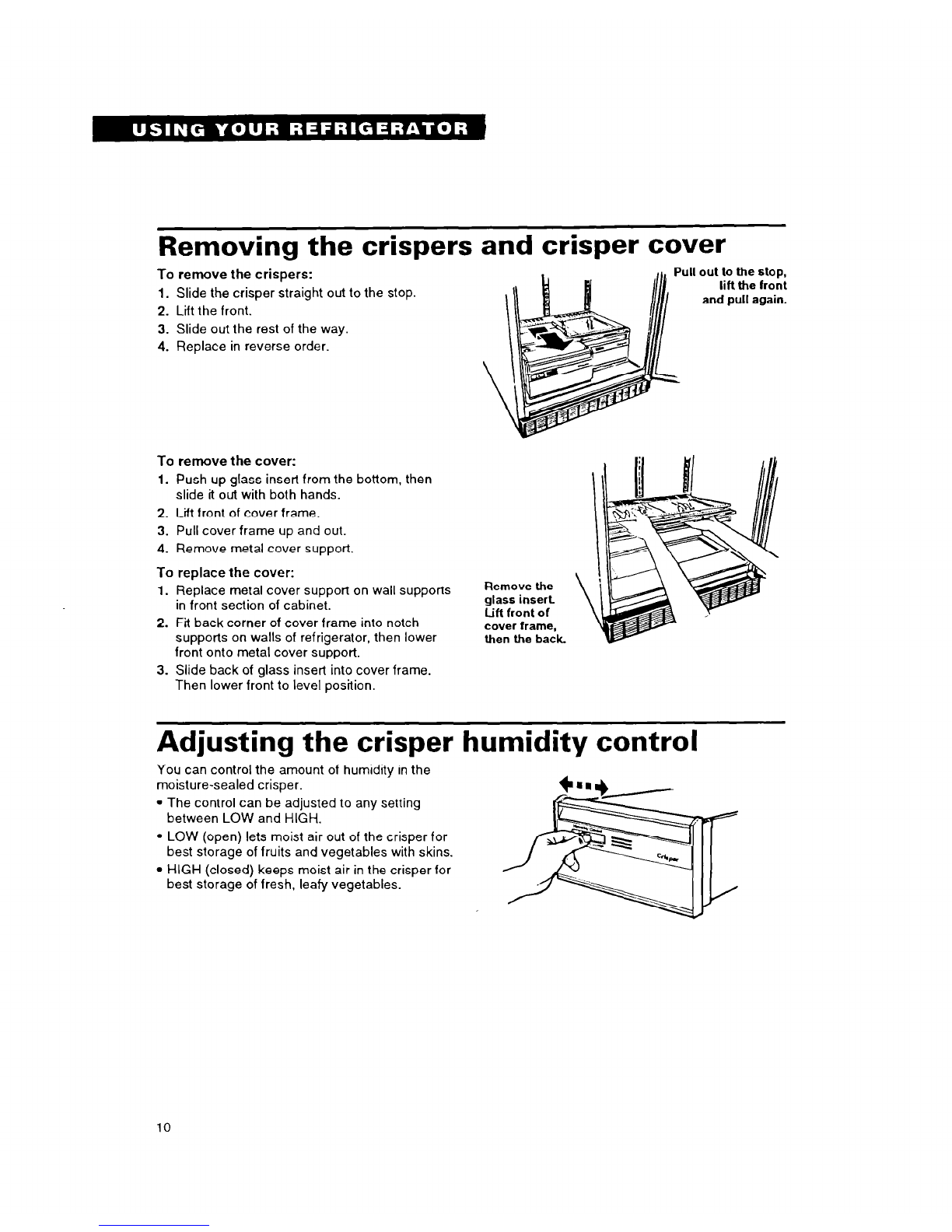

Removing the crispers and crisper cover

To remove the crispers:

Slide the crisper straight out to the stop.

Lift the front.

Slide out the rest of the way.

Replace in reverse order.

To remove the cover:

Push up glass insert from the bottom, then

slide it out with both hands.

2. Lift front of cover frame.

3. Pull cover frame up and out.

4. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall supports

in front section of cabinet.

2. Fit back corner of cover frame into notch

supports on walls of refrigerator, then lower

front onto metal cover support.

3. Slide back of glass insert into cover frame.

Then lower front to level position.

Pull out lo the stop,

lift the front

and pull again.

Remove the

glass insert

Lifi front of

cover frame,

then the back

Adjusting the crisper humidity control

You can control the amount of humidity in the

moisture-sealed crisper.

The control can be adjusted to any setting

between LOW and HIGH.

LOW (open) lets moist air out of the crisper for

best storage of fruits and vegetables with skins.

HIGH (closed) keeps moist air in the crisper for

best storage of fresh, leafy vegetables.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Réfrigérateur

Whirlpool

Whirlpool ENXTL 19 FL Series Manuel utilisateur

Whirlpool

Whirlpool WSC5553 A+N Manuel utilisateur

Whirlpool

Whirlpool ED5LHAXW Instructions d'utilisation

Whirlpool

Whirlpool WRT111SFD Manuel utilisateur

Whirlpool

Whirlpool ET1CHEXVB00 Manuel utilisateur

Whirlpool

Whirlpool ET8WTKXKB07 Manuel utilisateur

Whirlpool

Whirlpool ED7FHGXKB00 Manuel utilisateur

Whirlpool

Whirlpool ED22PC Manuel utilisateur

Whirlpool

Whirlpool GI5FVAXVB - 25 Cubic Foot Refrigerator Guide de l'utilisateur

Whirlpool

Whirlpool GSF26C5EXT Manuel utilisateur

Whirlpool

Whirlpool ET8WTMXKQ02 Manuel utilisateur

Whirlpool

Whirlpool ES5DVAXWA00 Manuel utilisateur

Whirlpool

Whirlpool WRS975SIDM Guide de démarrage rapide

Whirlpool

Whirlpool CS25AEXHN00 Manuel utilisateur

Whirlpool

Whirlpool Refrigarator Manuel utilisateur

Whirlpool

Whirlpool ARC 4330 WH Manuel utilisateur

Whirlpool

Whirlpool ET1CHMXKB06 Manuel utilisateur

Whirlpool

Whirlpool TT14DK Instructions d'installation

Whirlpool

Whirlpool EL7JWKLMQ00 Manuel utilisateur

Whirlpool

Whirlpool SW8 AM2C XR Manuel utilisateur

Whirlpool

Whirlpool W8FLNGFV Instructions d'utilisation

Whirlpool

Whirlpool ED5HVAXVL01 Manuel utilisateur

Whirlpool

Whirlpool ET0MSRXTL - 9.7 Cubic Foot Refrigerator Instructions de montage

Whirlpool

Whirlpool Chillerator GARAGE REFRIGERATOR Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
