Whirlpool GSC25C4EYY Manuel utilisateur
1
CABINET PARTS
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
REFRIGERATOR
4−12 Litho In U.S.A. (wam) (psw) Part No. W10386501 Rev. B
CABINET PARTS
2
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10168325
Use & Care Guide
W10336413
Service & Wiring
Sheet
W10184982
Energy Label
2 2150304 Front Roller
3
W10297485
Screw
4 12477102 Roller (Rear)
5 12477202 Axle, Roller
6 981125 Rivet, Roller
7
W10379525
Extension Tube
8
W10257186
Bracket, Foot
9
W10141622
Foot, Brake
10
W10308750
Screw
11
W10238100
Valve, Inlet
12 Hinge, Top (FC)
W10247899
White
W10249920
Black
W10249922
Apollo Grey
13 Hinge, Top (RC)
W10247901
White
W10249923
Black
W10249925
Apollo Grey
14
W10142283
Screw
15 Bottom Hinge (FC)
W10249940
White
W10249941
Black
W10249943
Apollo Grey
16 Bottom Hinge (RC)
W10257188
White
W10257207
Black
W10257209
Apollo Grey
17 Door Closer (RC)
W10247905
White
W10257195
Black
W10257197
Apollo Grey
18
W10141645
Screw
19 549193 Clamp, Service
Cord
20
W10333887
Cover, Unit
21 Filler, Wrapper
12587703W
White
12587703B
Black
12587703AP
Apollo Grey
22 Grille
W10257231
White
W10257232
Black
W10257234
Midnight Grey
23
W10142234
Screw
24 Door Closer (FC)
W10247903
White
W10257198
Black
W10257200
Midnight Grey
25
W10001250
Screw
26
W10279882
Tube, Filter
Inlet, 1/4 OD
27
W10279884
Tube, Filter
Outlet, 5/16 OD
28
W10370680
Drain Fitting
29 12957702 Cover
30
W10120821
Elec. Control−15W
Power Supply
31
W10235414
Elec. Control
32
W10155679
Roller Assy, RC
33 Cabinet (Not A
Serviceable Part)

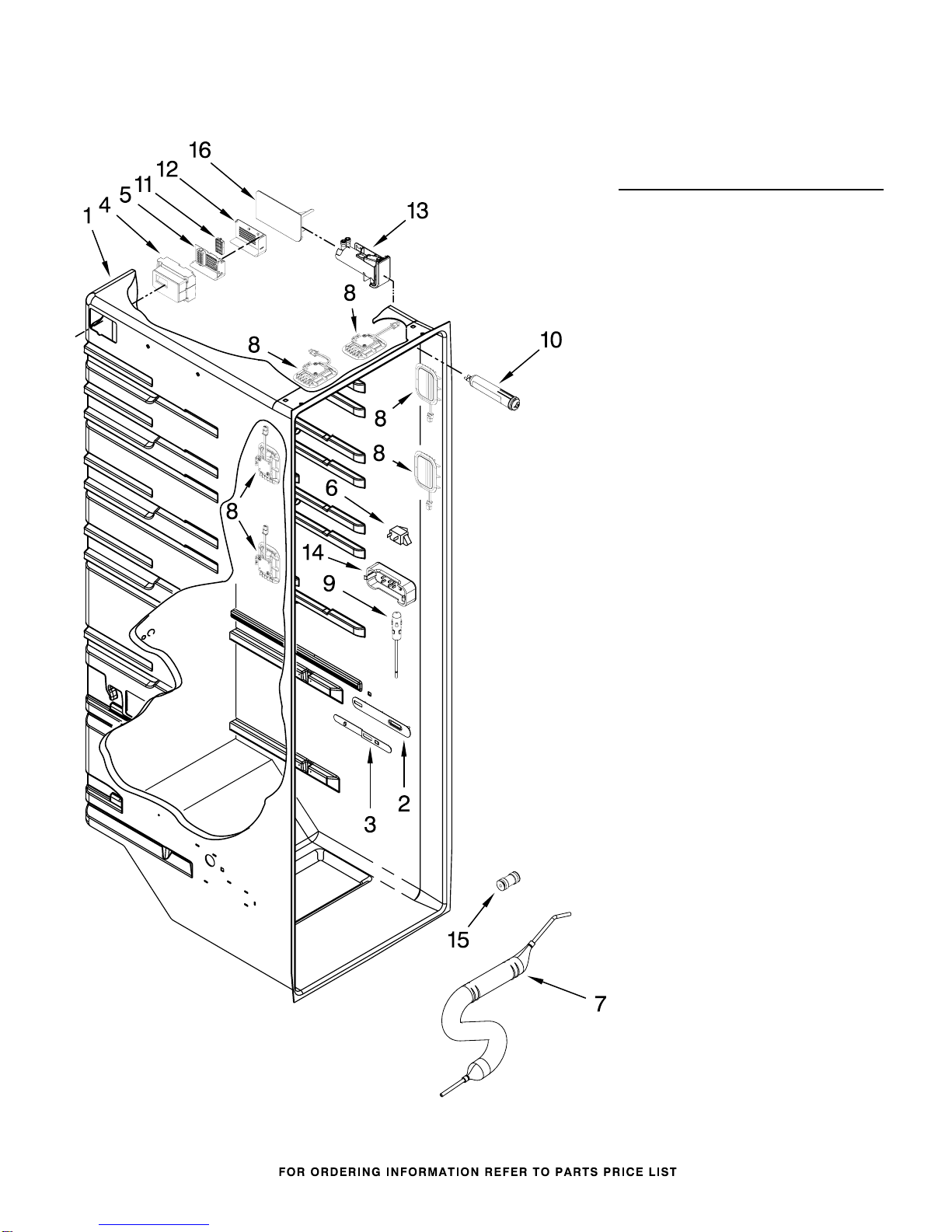

REFRIGERATOR LINER PARTS
3
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10260988
Escutcheon, Meat
Pan Control
3
W10260989
Slide, Meat
Pan Control
4
W10322031
Air Diffuser
Assembly
5
W10300475
Air Diffuser
Cover
6 C3680314 Switch
Rocker Arm
7
W10366790
Reservoir
8
W10279030
LED Light Assy
9
W10280385
Thermistor
10
W10295370
Water Filter
11
W10315189
Air Filter
12
W10389900
Air Filter Cover
13
W10238123
Housing, Water
Filter
14
W10425251
Cover, Thermistor
15
W10271543
Connector,
1/4 x 5/16
16
W10300484
Cover, Water
Filter
REFRIGERATOR SHELF PARTS
4
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
Illus. Part
No. No. DESCRIPTION
1
W10290870
Shelf, Snack Pan
2
W10290876
Cover, Assy
3
W10256809
Snack Pan
(Includes 4 & 5)
4
W10278139
Roller
5
W10257246
Axle, Roller
6
W10256812
Crisper Pan
(Includes 4 & 5)
7
W10256813
Meat Pan
(Includes 4 & 5)
8
W10257332
Housing, Humidity
9
W10257334
Slide, Humidity
10
W10395554
Wine Rack
11
W10393381
Shelf Assy
5
FREEZER LINER PARTS
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
6
FREEZER LINER PARTS
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2
W10290890
Cover Assy
3
W10393383
Shelf, Glass
Upper
4
W10280386
Thermistor
5
W10393382
Shelf, Glass
Lower
6
W10322533
Pan, Freezer
Upper
(Includes 7 & 8)
7
W10278139
Roller
8
W10257246
Axle, Roller
9
W10322536
Pan, Freezer
Lower
(Includes 7 & 8)
10 12466114 Switch, Rocker Arm
Light
11
W10425253
Cover, Thermistor
12
W10279030
LED Light Assy
13
W10419177
Switch, Rocker Arm
Ice Maker
MOTOR AND ICE CONTAINER PARTS
7
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
MOTOR AND ICE CONTAINER PARTS
8
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
Illus. Part
No. No. DESCRIPTION
1
W10353207
Ice Bin Assy
2
W10286610
Ice Bin
3
W10258552
Latch, Assy
4 2220458 Coupling, Lower
5
W10258544
Drive Shaft
6 2198607 Spring, Coupling
7
W10293211
Mounting Plate
Assembly
8 2198628 Seal
9
W10291905
Gasket
10 2212370 Washer
11 2323603 Dispenser, Motor
12
W10287594
Cover, Container
100
W10353207
Ice Container
(Complete)
9
REFRIGERATOR DOOR PARTS
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
REFRIGERATOR DOOR PARTS
10
For Models: GSC25C4EYW00, GSC25C4EYB00, GSC25C4EYY00
(White) (Black) (Monochromatic
Stainless)
W10386501
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 5)
W10261181
White
W10372830
Black
W10372832
Mono Stainless
2
W10336573
Door Compartment
Assembly
3
W10296816
Screw
4
W10335219
Door Bin, Shallow
5 Door Gasket,
Magnetic
W10247884
Mist Beige
W10249912
Black
W10249916
Apollo Grey
6 Handle
W10268056
White
W10268057
Black
W10311213
Stainless/Satina
7 2200086 Thimble−Top
8
W10170540
Stud, Handle
9 Door Closer,
Upper Cam
W10248011
White
W10257201
Black
W10257203
Apollo Grey
10
W10296804
Screw
11
W10367462
Bracket, Door Stop
12 Nameplate
2220214 Gold
13 Set Screw
W10010140
Chrome
W10010150
Black
14
W10316883
Lid, Compartment
15
W10336570
Window, Door
Compartment
16 Cover, Door Stop
W10248013
White
W10257216
Black
W10257218
Midnight Grey
